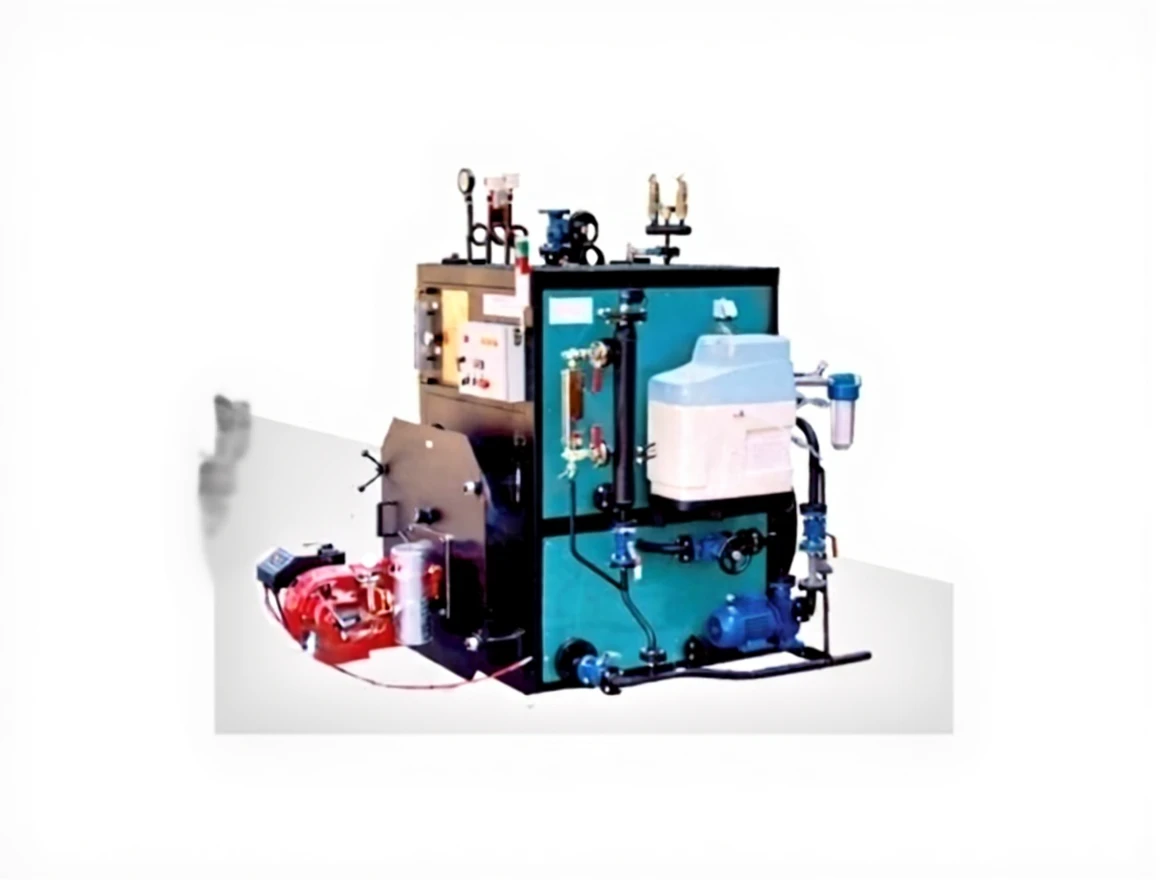

200 Kg/Hour Mini Steam Generator
| Brand | Universal |
|---|---|
| Model Type |
MBÜ-200 |
200 Kg/Hour Mini Steam Generator
GENERAL FEATURES
-
Takes up little space and produces economical steam in a very short time.
-
Manufactured according to heavy-duty conditions. Not easily affected by hard and turbid waters.
-
Operates automatically and safely. Has consecutive safety systems.
-
Works without requiring much information, maintenance, and supervision.
-
Proven with hundreds of examples operating in and outside Turkey for years.
-
It is a compact unit with a boiler, feed water pump, water treatment unit, condensate tank, and electrical panel.
DESIGN
-
An ideal steam producer for hotels, laundries, garment and knitwear factories, feed industry, concrete curing, dry cleaning, beverage bottling industry, steam washing and cleaning, sock industry, and similar industrial facilities that need steam in small capacities.
COMPONENTS
-
Steam generator
-
Boiler fittings
-
Safety systems
-
Feed water (condensate) tank and fittings
-
Boiler feed pump and fittings
-
Burner
-
Automatic water softening device
-
Water filter
-
Electrical panel and installation

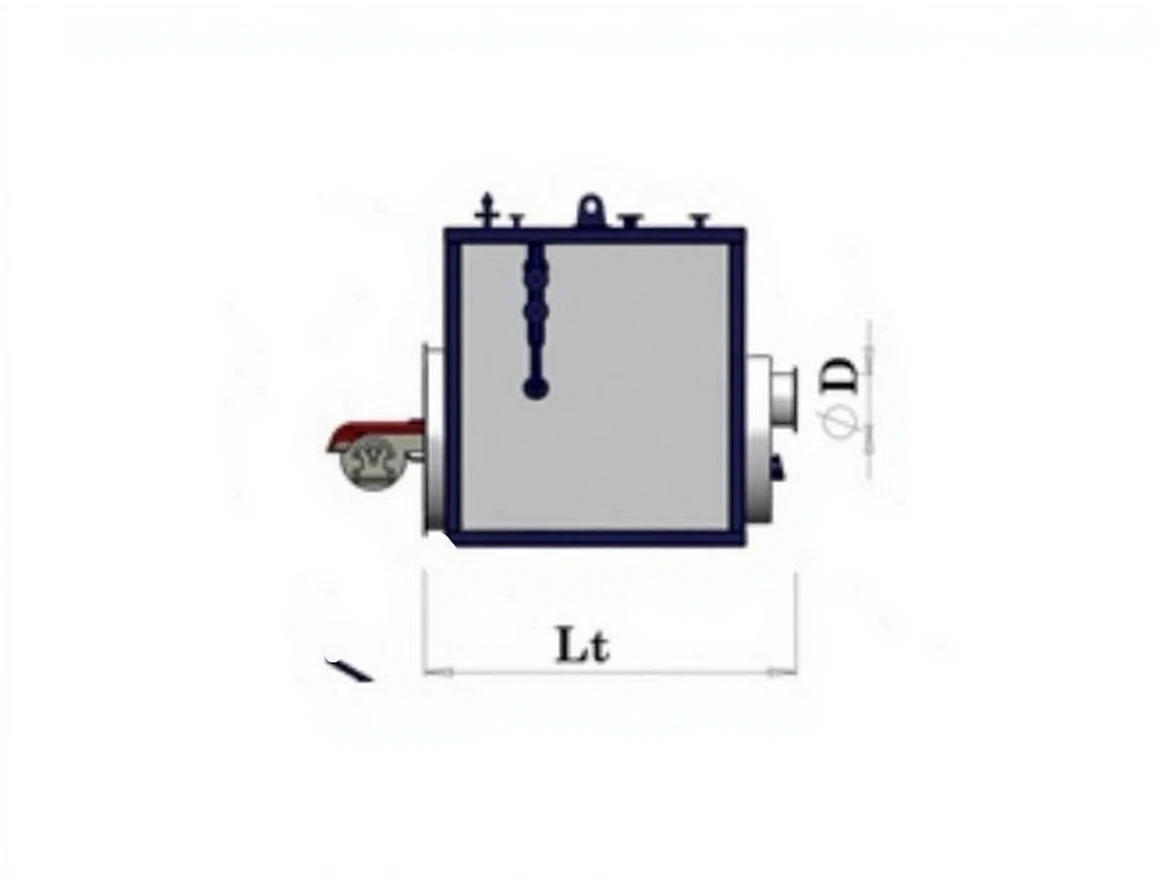

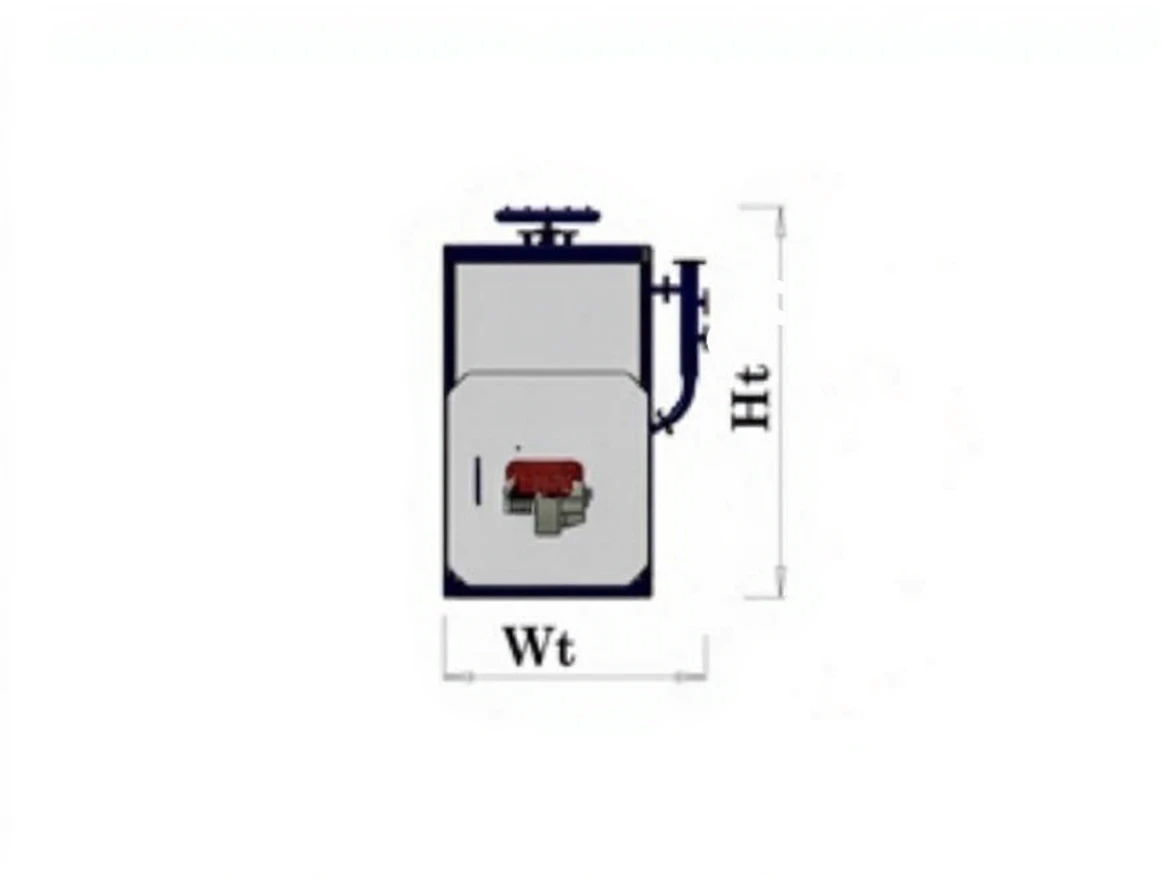

200 Kg/Hour Mini Steam Generator Technical Specifications:
| MBÜ 200 | |
| Steam Capacity (kg/h) | 200 |
| Length Without Burner (mm) | 1600 |
| Width Without Armatures (mm) | 1040 |
| Height Without Armatures (mm) | 1635 |
| Total Length (mm) | 2400 |
| Total Width (mm) | 1380 |
| Total Height (mm) | 1885 |
| Water Volume (lt) | 240 |
| Flue Outlet (mm) | 200 |
| Approx. Weight (kg) | 1100 |
