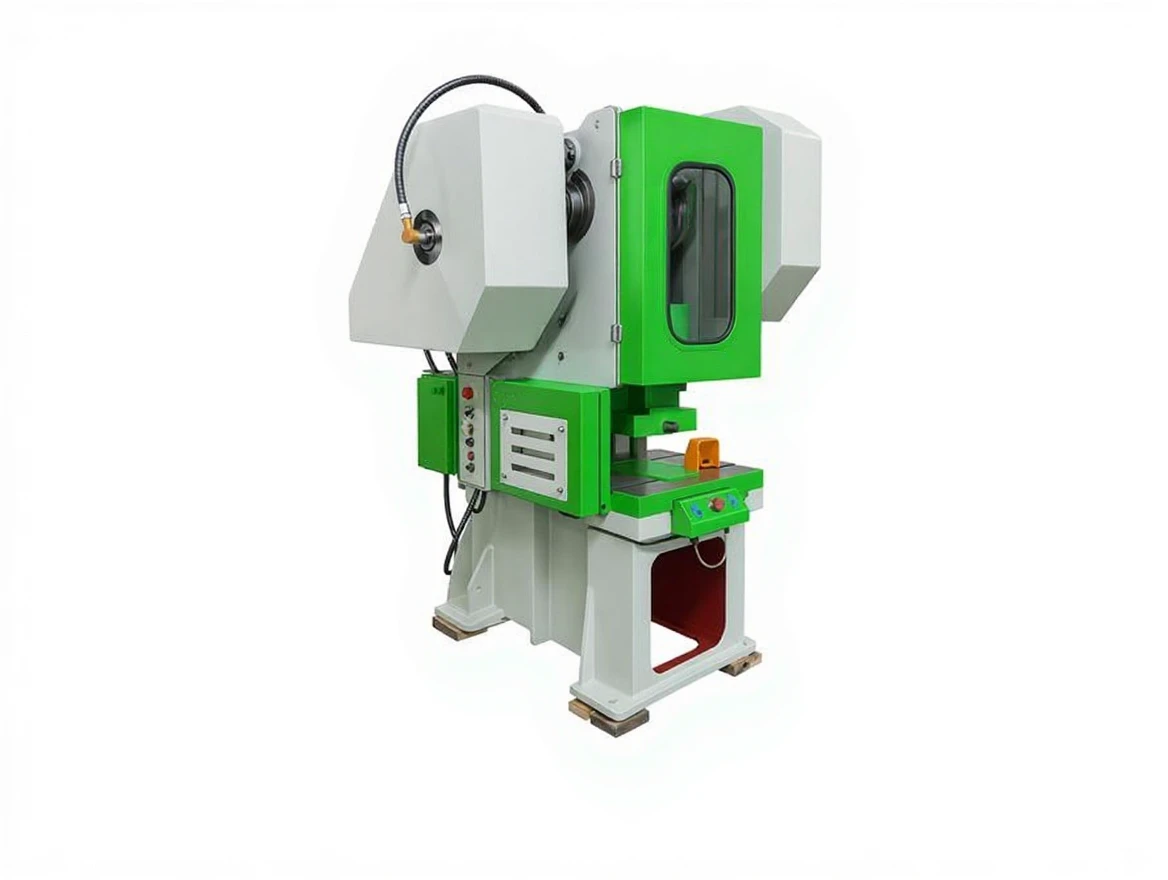

200 Ton C Type Eccentric Press

C Type Eccentric Press – CECP 200 Tons

Standard Features

• Steel construction body

• Registration from 4 surfaces

• Spheroidal cast iron connecting rod and gear bearings

• 4140 annealed steel crankshaft and transmission shafts

• Central system fully automatic grease lubrication

• Pneumatic clutch and brake combination

• Compliance with CE safety directives

• Double-coil safety valve

• Manually adjustable stroke

• Beam barrier finger – hand protection safety system

• PLC control system

• Double-pedal control system

• Mechanical safety system

• Emergency reverse motor movement

• Compliance with work safety regulations

• Compliance with CE standards

Optional Features

• Vibration-proof wedge

• Spare table

• Press feeding systems

• 1 set of mold in desired specifications

• 8-bearing slideway

Technical Specifications

• Capacity: 200 Tons

• Throat Depth: 340 mm

• Table – Ram Distance: 500 mm

• Slide – Table Distance: 600 mm

• Distance between Walls: 510 mm

• Adjustment of Ram: 130 mm

• Approximate Width of the Press: 1900 mm

• Approximate Depth of the Press: 2400 mm

• Approximate Height of the Press: 3000 mm

• Front Anchorage Dimension: 920 mm

• Side Anchorage Dimension: 1420 mm

• Table Hole Diameter: 240 mm

• Table Size: 680 × 1000 mm

• Mold Fastening Socket Diameter: 60 mm

• Ram Size: 620 × 350 mm

• Ground Table Size: 805 mm

• Stroke Adjustment: 20 – 140 mm

• Number of Strokes / Minute: 50 strokes/min

• Motor Power: 18.5 + 0.75 kW

• Motor Speed: 1450 RPM

• Approximate Weight: 9200 kg

Production Information

This machine is manufactured by CronossTech in Turkey.
