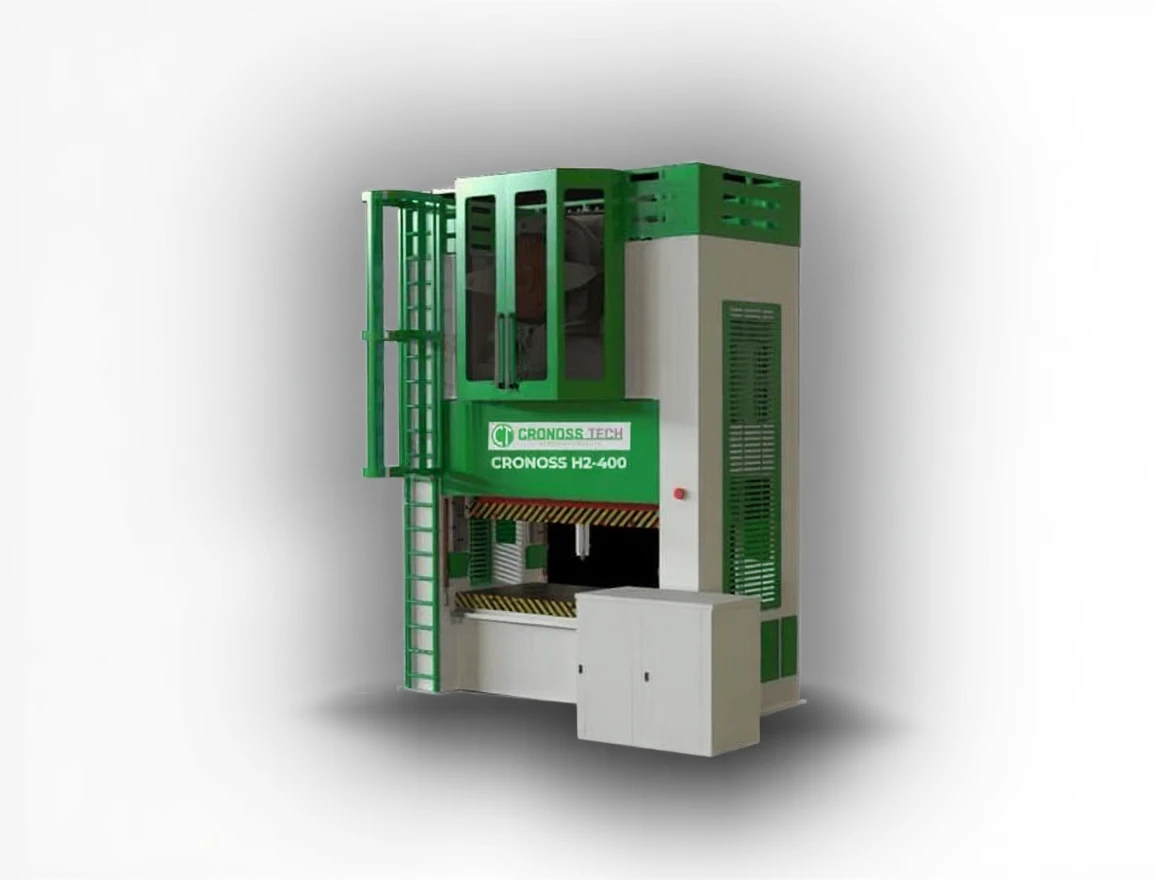

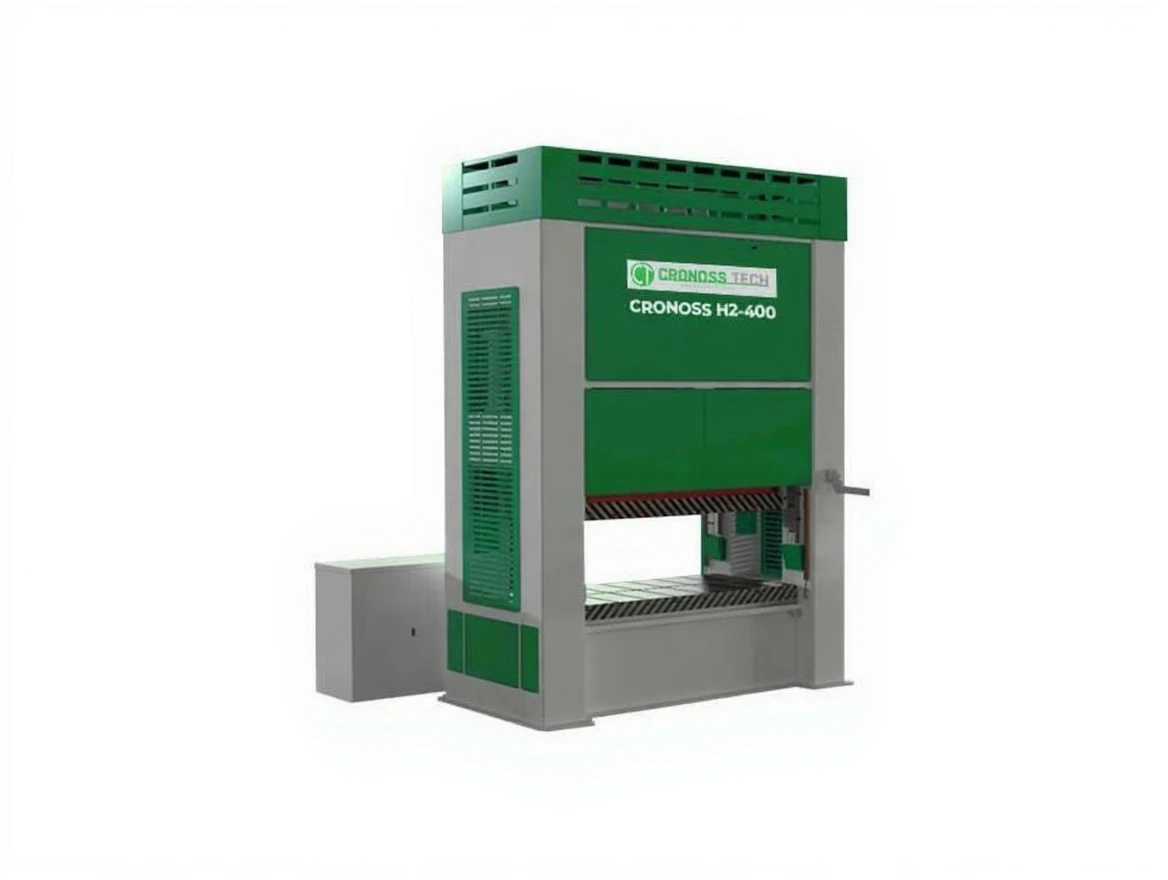

200 Ton H Type Double Crankshaft Eccentric Press

H Type Eccentric Press – CEHP 200 Ton

Standard Features

• Steel construction body

• Pneumatic clutch – brake system

• T channel additional die plate

• 8-bedded ram

• Adjustable stroke on single connecting rod

• Balancer piston on ram

• Full automatic fine lubrication system

• PLC control system

• Grand piano type control panel

• Touch screen LCD display

• Motion reversal of the motor

• Overload hydraulic fuse

• Motorized ram adjustment mechanism

• Photoelectric safety curtain

• Gear group in enclosed oil tank

• Double coil safety valve

• Compliance with CE standards

Optional Features

• Press feeding systems

• Waste material discharge systems

• Sliding safety cover to front of table

• Die in desired specifications

Technical Features

• Steel construction 8-slide monoblock body

• Vibration stress relief on body and welded parts

• Usable area with moving table: 2000 × 1000 mm

• Usable area with stationary table: 2000 × 1000 mm

• Parallelism and perpendicularity tolerances compliant with ISO and DIN standards

• Stroke distance: 200 mm (fixed)

• Table – Ram distance (max.): 500 mm

• Ram adjustment (regulation): 120 mm

• Eccentric shafts: CK4140

• Gears: Steel casting

• Motor-controlled table–ram distance adjustment

• Approximate press height: 4600 mm

• Approximate press width: 2900 mm

• Approximate press depth: 2550 mm

• Lower table height from floor: 900 mm

• Space between walls: 2130 mm

• Side window size of press can be adjusted upon request

• Bearing structure with flywheel

• Slide guidance: Bronze (Zr14)

• Connecting rods, intermediate and main bearings: Bronze (Zr14)

• Central automatic grease lubrication

• Double connecting rod structure

• Pneumatic clutch and combination brake system (OMPI)

• 4 cushioning cylinders on the ram

• Approximate press weight: 32,000 kg

Automation and Electrical Information

• Main motor: 30 kW – IE3

• Touch panel and PLC: Delta

• PLC program for adapting the mold to the press

• Speed control device: Delta

• Operating speed: 25 – 45 strokes/min

• Mold recipe capacity: 100 pcs

• Switching equipment: Siemens & Schneider

• Grand piano type or wall-mounted electrical panel

• Measuring table–ram distance can be monitored from the screen

Production Information

This machine is produced by CronossTech in Turkey.
