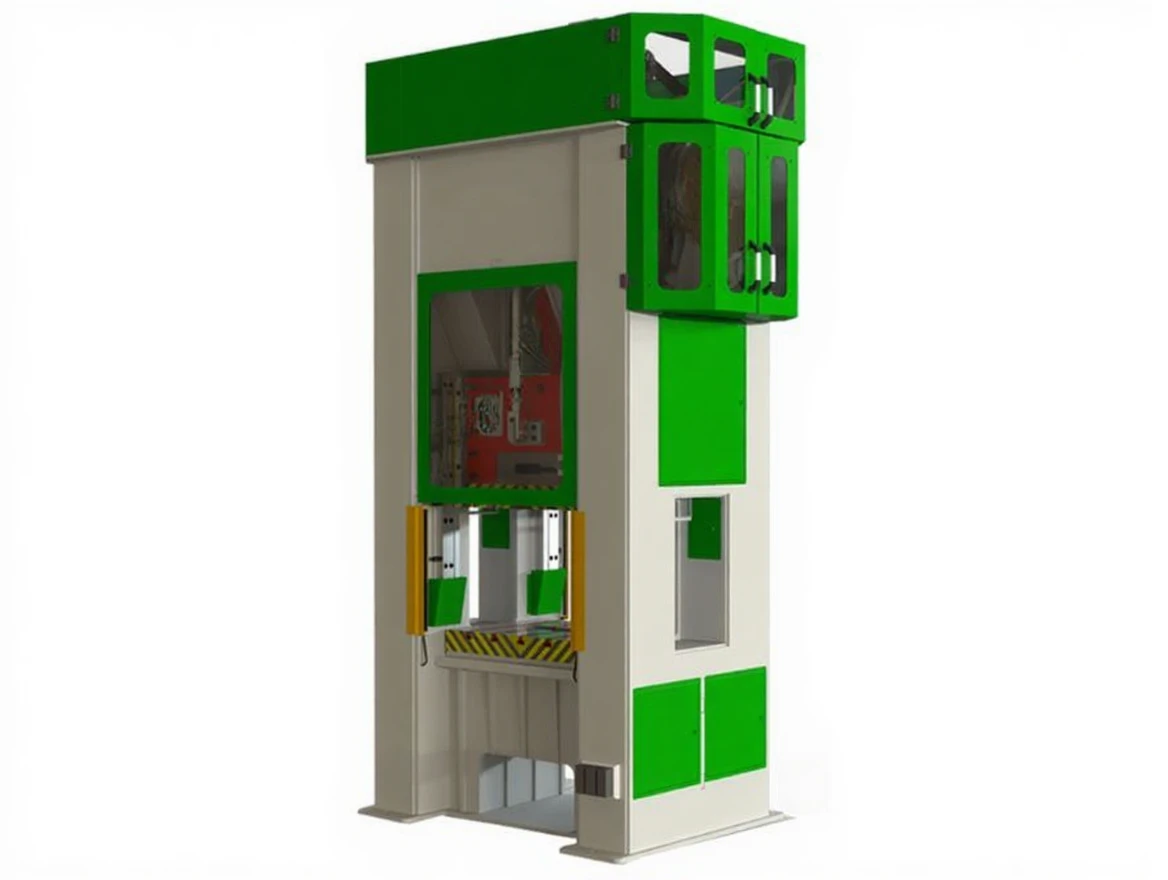

200 Ton H Type Single Connecting Rod Eccentric Press

H Type Eccentric Press – CEHP TB 200 Ton

Standard Features

• Steel construction body

• Pneumatic clutch – brake system

• T-channel additional slide

• 8-bedded ram

• Adjustable stroke on single crank

• Balancer piston on the ram

• Automatic fine lubrication system

• PLC control system

• Grand piano type control panel

• Touchscreen LCD display

• Motor reverse movement

• Overload hydraulic fuse

• Motorized ram adjustment mechanism

• Photoelectric protection curtain

• Gear group in closed oil tank

• Double-coil safety valve

• Compliance with CE standards

Optional Features

• Press feeding systems

• Waste material discharge systems

• Sliding safety cover in front of the table

• Mold with desired features

Technical Features

• Steel construction 8-slide monoblock body

• Vibration stress relief on body and welded parts

• Usable area of moving table: 1200 × 1000 mm

• Usable area of fixed table: 1200 × 1000 mm

• Parallelism and perpendicularity tolerances compliant with ISO and DIN standards

• Stroke distance: 200 mm (fixed)

• Table – Ram distance (max.): 500 mm

• Ram adjustment (regulation): 120 mm

• Eccentric shafts: 42CrMo4

• Gears: Steel casting

• Motorized table–ram distance adjustment

• Approximate press height: 4600 mm

• Approximate press width: 2700 mm

• Approximate press depth: 2200 mm

• Press bottom table height from the ground: 900 mm

• Space between walls: 1230 mm

• Press side window size can be adjusted as desired

• Flywheel bearing structure

• Slide bearing: Bronze (Zr14)

• Connecting rods, intermediate and main bearings: Bronze (Zr14)

• Central automatic grease lubrication

• Single crank structure

• Pneumatic clutch and brake combination system (OMPI)

• 4 pcs ram cushioning cylinders

• Approximate press weight: 24,000 kg

Automation and Electrical Information

• Main motor: 30 kW – IE3

• Touch panel and PLC: Delta

• PLC program for mold adaptation to press

• Speed control device: Delta

• Operating speed: 25 – 45 strokes/min

• Mold recipe capacity: 100 pieces

• Switching materials: Siemens & Schneider

• Piano type or wall type electrical panel

• Table–ram distance measurement can be monitored on the screen

Production Information

This machine is manufactured by CronossTech in Turkey.
