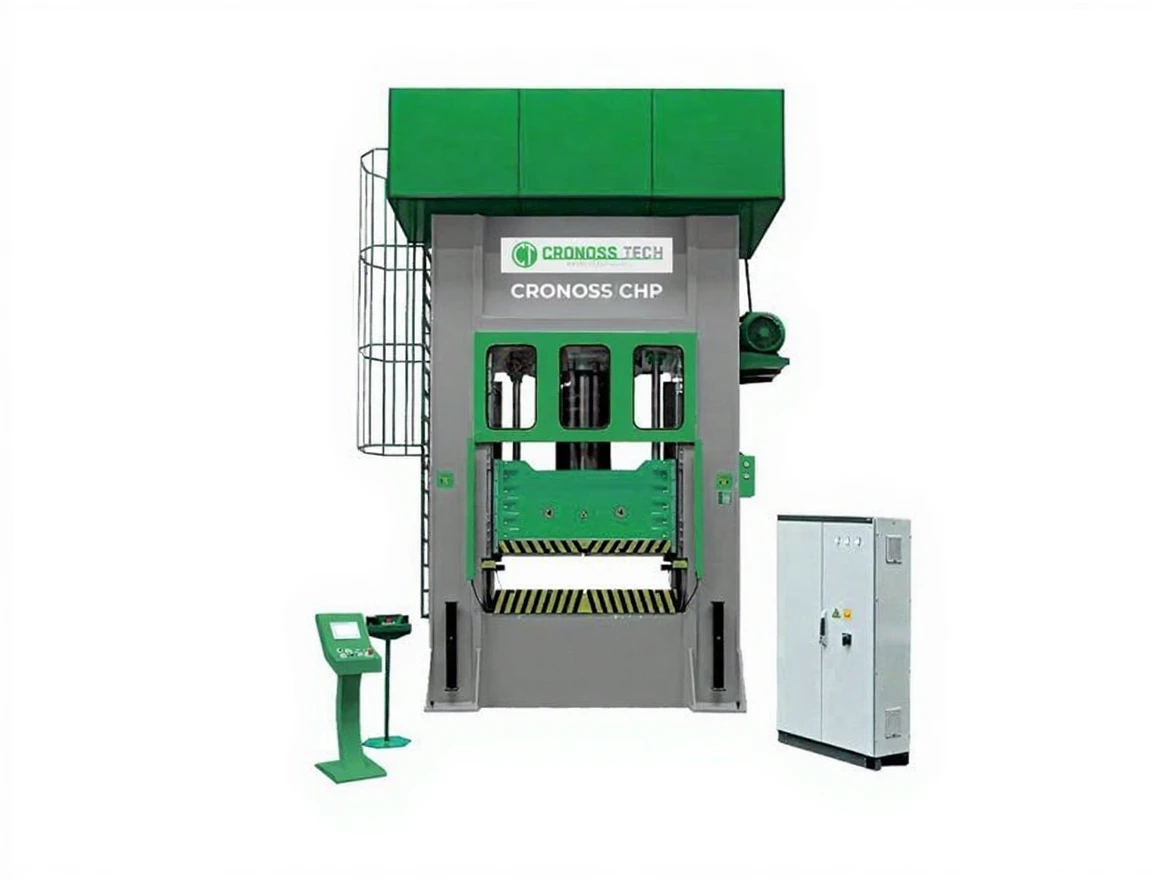

200 Ton H Type Single Effect Hydraulic Press

CHP – H Type Single Effect Hydraulic Press | 200 Tons

STANDARD FEATURES

• Steel construction body and parts with stress / welding stress relieved by vibration method

• 8-surface slide / bearing for high precision and long-life use

• PLC control system and touchscreen operator panel

• Argon welding application for fixing elements and steel pull pipes

• Approved by TÜRK-AK; WPQR and WPS for EN ISO 15614-1:2017 welding application certificate
  (Welding applications are controlled by welding coordination engineers certified according to EN ISO 14731)

• Parallelism and perpendicularity tolerances conform to ISO and DIN standards
  (≤ 120 microns / meter)

• PARKER / REXROTH hydraulic unit

• SIEMENS / SCHNEIDER electrical consumables

• Automatic centralized lubrication system

• Dual hand control system

OPTIONAL FEATURES

• CE application

• Safety PLC (SIEMENS Failsafe / PILZ PNOZ Multi)

• Beam barriers (LEUZE, PILZ or SICK – 2 pieces)

• Traceable feedback valves (REXROTH or PARKER – 3 pieces)

• Hydraulic coach lock system (1 piece)

• Proportional speed and pressure application
  (Different speed, stop, and pressure values can be entered at different points of the pressing process,
  minimizing the effect of material and mold deformations on the work)

TECHNICAL SPECIFICATIONS

• Press Type: Steel construction, 8-slider H type press body

• Body Material: St52 – ERDEMİR

• Slide Bearing: Bronze Zr14

• Press Capacity (Coach): 200 Tons

• Moving Platen Size: 800 × 1000 mm

• Fixed Platen Size: 800 × 1000 mm

• Parallelism Tolerance: 120 microns / m.

• Perpendicularity Tolerance: 60 microns / m.

• Coach Stroke Distance: 600 mm

• Minimum Die Opening: 100 mm

• Maximum Die Opening: 700 mm

• Maximum Operating Pressure: 250 bar

• Total Motor Power: 22 kW – IE3

• Main Pump: 32 cm³ – REXROTH or PARKER

• Moving Platen Fast Down Speed: 150 mm/s

• Moving Platen Pressing Speed: 12 mm/s

• Moving Platen Return Speed: 170 mm/s

• Main Cylinder Internal Diameter: Ø 320 mm – Ck45

• Auxiliary Acceleration Cylinders: 2 pieces

• Press Approximate Height: 3800 mm

• Press Approximate Width: 2950 mm

• Press Approximate Depth: 2200 mm

• Lower Platen Height from Ground: 1350 mm

• Front Filling Valve: NG 125

• Cooling System: EMMEGI – CIESSE – PARKER

• Off-line Filtration: REXROTH or PARKER

• Air Filter: 10 micron permeability

• Return Filter: 25 micron permeability

• Filter Pollution Warning: Electronically controlled

• Lubrication Method: Automatic (adjustable from screen)

• Coach Stroke Adjustment: Adjustable from screen

• Coach Tonnage (Pressure) Adjustment: Adjustable from screen

• System Error / Press Status Information: Monitorable on screen

• Mold Memory: Available

• Hydraulic Oil Temperature Information: Monitorable on screen

• Linear Distance Scale: NOVATECHNIK or TURCK

• PLC: DELTA

• Touch Panel: DELTA 7”

• Approximate Weight: 8 tons
