200 Ton Kapasiteli Metal Enjeksiyon Makinası

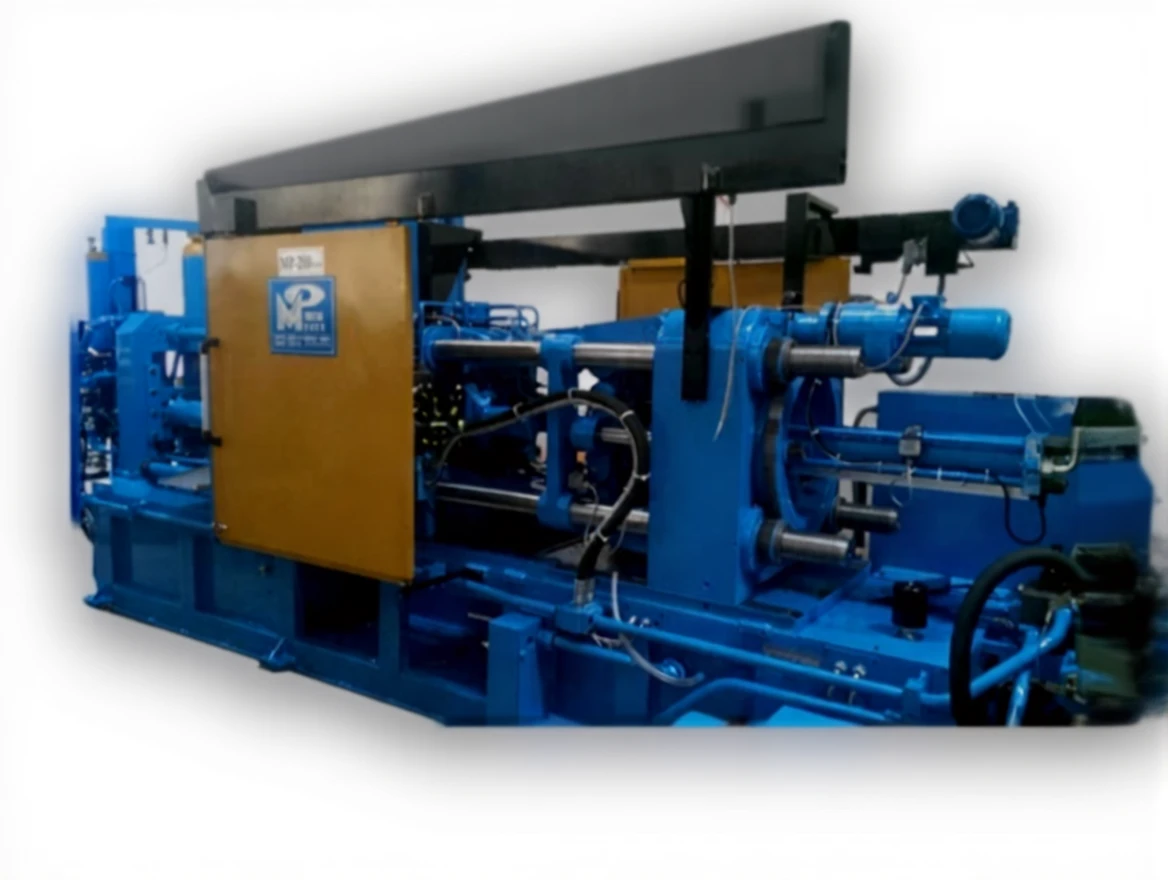

Metal Pres Mp-200 Metal Injection Machine

This metal injection press with a clamping force of 200 tons is designed for the precise and high-speed injection of aluminum, zinc, and magnesium alloys. Its strong hydraulic system, precise injection control, and durable body structure provide maximum efficiency in serial production. With automatic control units, mold protection system, and proportional hydraulic structure, it offers a safe, stable, and long-lasting operation. It is an ideal solution for industrial casting facilities, automotive parts, and precise metal component production.

Key Features:

• PLC or microprocessor electronic control system

• Graphic control with speed, pressure, and distance variables (shot control – injection curve)

• Possibility to control 11 different parameters to maximize production quality

• Proportional control hydraulic system (Vickers – Parker)

• Precise clamping lock pressure system

• Error reporting system

• Precise oil pressure cover protection system

• Plate type oil cooling system (Alfa-Laval)

• Electronic control nostalgic scissor hydraulic system

• Steel casting plates and scissor group

• Hydraulic clamping force connected to the control center

• Automatic injection stroke and gram adjustment

• Injection screw speed and opening-closing system

• Scissor group double-back system with proportional units

• Visor sensor warning system

• Digital oil level and pressure indicator

• Digital oil temperature control system

• Electronic hydraulic thermostat counter

• Triple-documentation compliance and certification

• Electronic hydraulic unit (I/O) ready

• Piston lubrication

• Mold adjusting gripper robot

• Mold licking robot

• Part receiver (material receiving) robot

Metal Pres Mp-200 Technical Specifications

• Clamping Force: 2200 kN

• Traverse Plate Movement (Max.): 440 mm

• Mold Height (Min./Max.): 150 – 650 mm

• Plate Dimensions: 780 × 780 mm

• Space Between Columns: 480 × 480 mm

• Column Shaft Diameter: 100 mm

• Pusher Force: 130 kN

• Pusher Stroke: 100 mm

• Injection Force: 80 kN

• Injection Stroke: 420 mm

• Nozzle Diameters (Min./Max.): 45 mm / 65 mm

• Max. Part Weight (Max.): 1250 g

• Max. Casting Area (Max.): 600 cm²

• Motor: 15 kW

• Machine Weight: 8,500 kg

• Machine Dimensions (Length × Width × Height): 5800 × 1600 × 2300 mm
