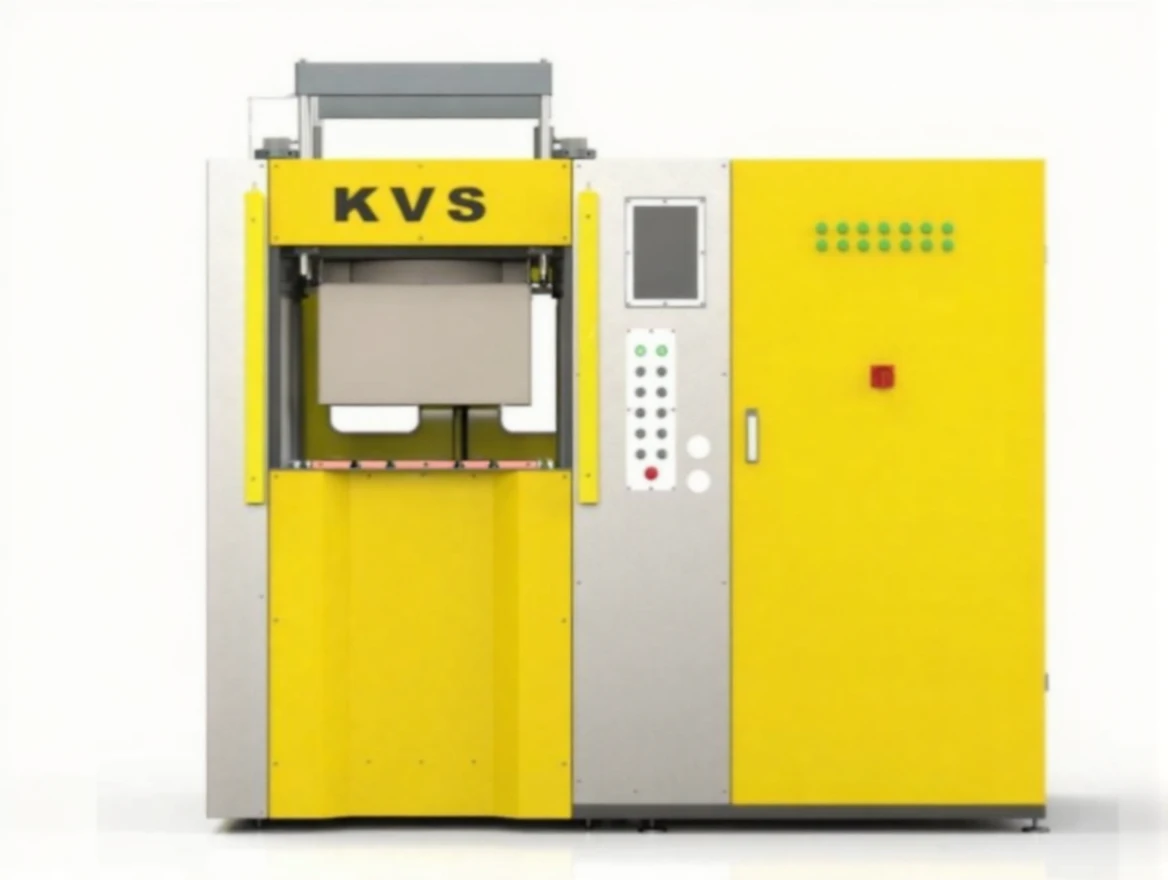

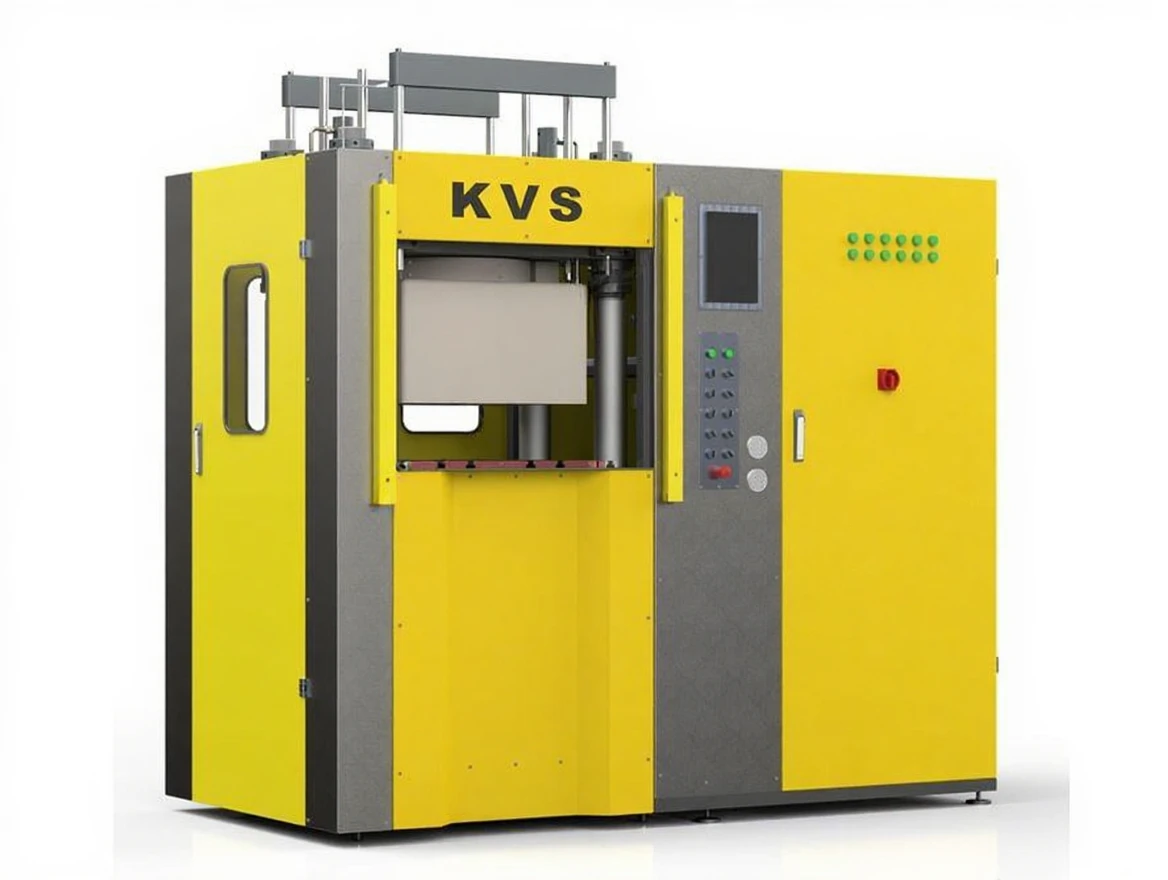

200 Ton Vacuum Rubber Vulcanization Machine
| Brand | KVS |
|---|---|
| Model Type |
VKM / V-200 |
Description
200 Ton Vacuum Rubber Vulcanization Machine
| MODEL | TYPE | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ |
| V-50 | V-80 | V-100 | V-150 | V-200 | V-250 | V-300 | V-400 | V-500 | ||
| Clamping Force | Ton | 50 | 80 | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
| Piston Stroke | mm | 200 | 200 | 200 | 200 | 250 | 250 | 250 | 250 | 250 |
| Table Size | mm | 300*300 | 400*400 | 450*450 | 500*500 | 600*600 | 650*650 | 700*700 | 750*750 | 900*900 |
| Mold Size | mm | 250*250 | 350*350 | 400*400 | 450*450 | 550*550 | 600*600 | 650*650 | 700*700 | 950*950 |
| Piston Diameter | mm | 180 | 230 | 270 | 310 | 355 | 400 | 430 | 500 | 550 |
| Heating Power | Kw | 5 | 10 | 12 | 12 | 13 | 15 | 20 | 30 | 35 |
| System Pressure | Bar | 210 | ||||||||
| Oil Tank | Lt | 150 | 200 | 200 | 200 | 250 | 250 | 400 | 400 | 500 |
| Pump Type | Palletized | |||||||||
| Dimensions W/H | Mt | 1.2*2.0 | 1.2*2.0 | 1.5*2.0 | 1.5*2.0 | 1.5*2.0 | 1.5*2.0 | 1.8*2.2 | 2.0*2.5 | 2.0*2.5 |
| Weight | Kg | 5000 | 5500 | 5500 | 5500 | 6500 | 7000 | 7500 | 9500 | 13000 |
| Height | Mt | 2.3 | 2.3 | 2.4 | 2.5 | 2.4 | 2.6 | 2.6 | 2.6 | 2.6 |

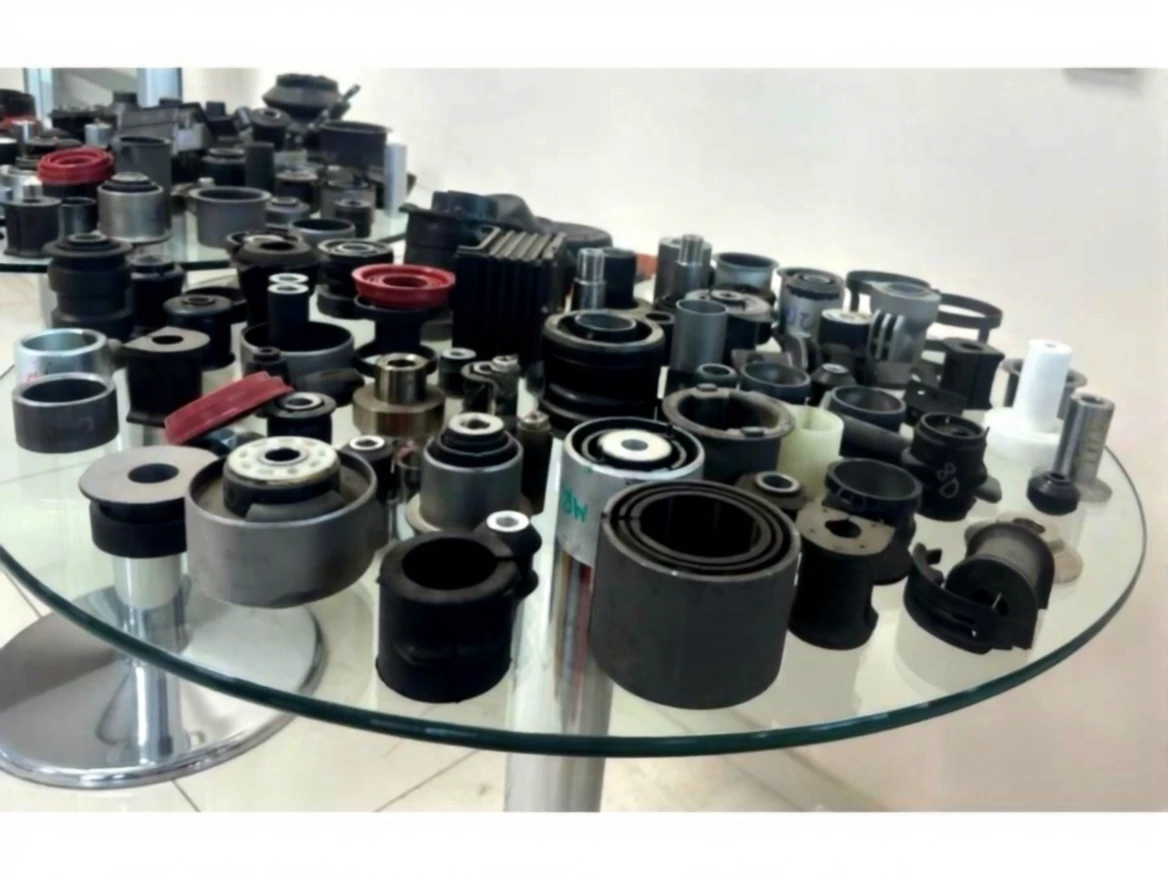

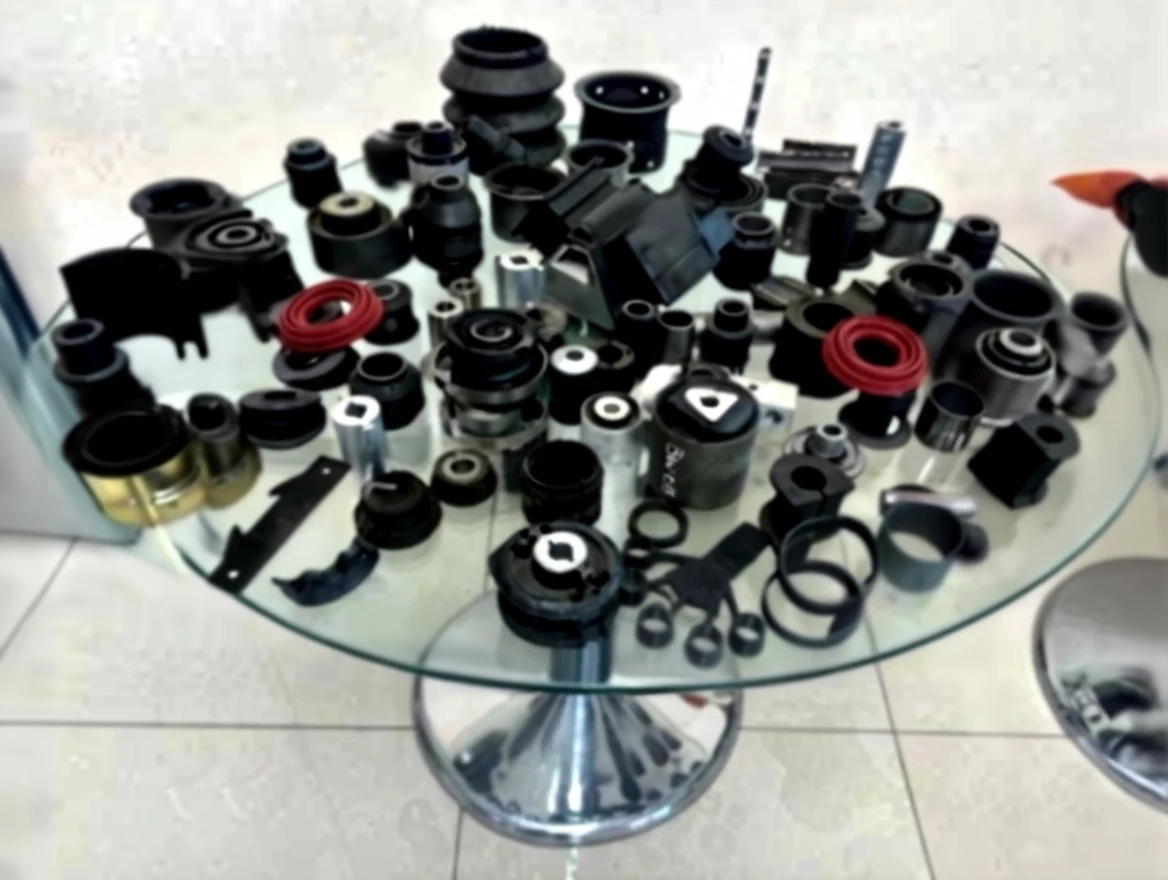

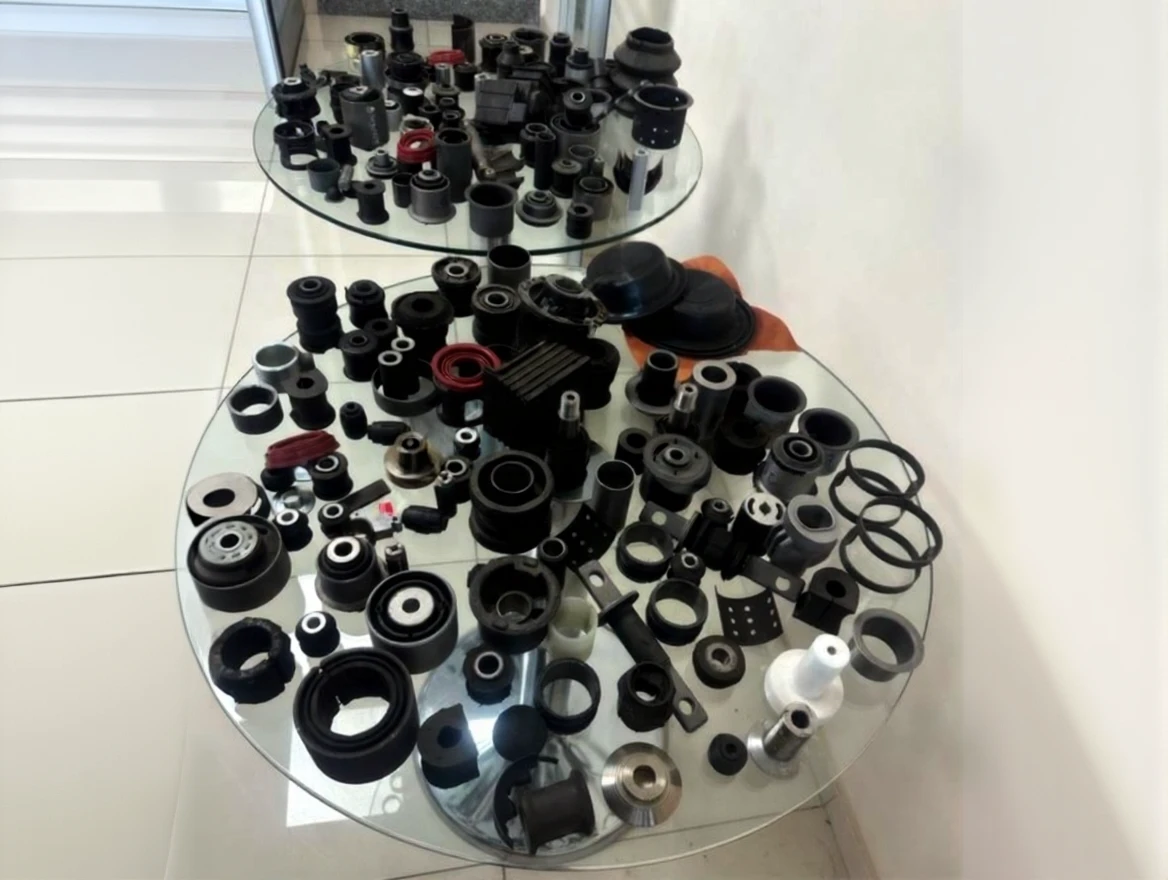

Machines that facilitate the production of rubber products in the easiest way.
As Kavis Machine, we manufacture machines ranging from 50 tons to 5,000 tons.
The 2RT, 3RT, 4RT mold separation systems used in other machines can also be easily used in this machine, providing a highly efficient production process with high safety.
It is suitable for CE safety procedures with a fully enclosed cabin.
Options:
- Upper Plate Lifter
- Lower Plate Lifter
- Product extraction ejector
- 2RT / 3RT / 4RT
- External upper and lower ejectors
- Mold Plate rotation 180 degrees
Related products

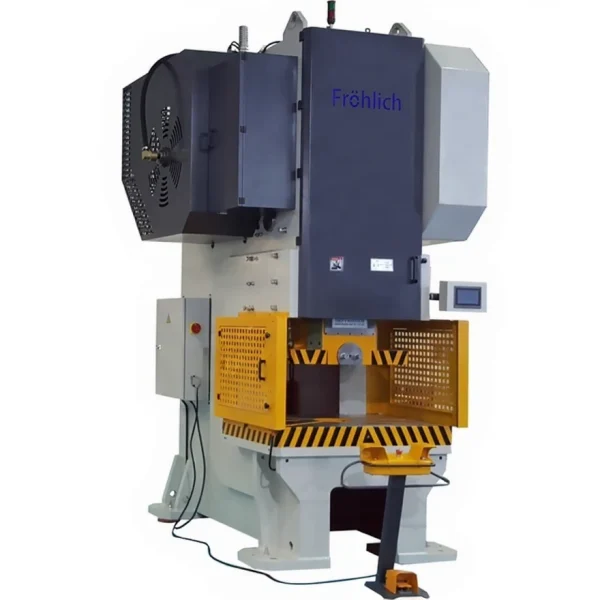

Fröhlich C Type Eccentric Press with a Capacity of 125 Tons
