2000-2500 Units/Hour Fully Automatic Liquid Filling Machine

Fully automatic liner filling machine can fill various packages such as pet, box, bottle, can;

liquid soap, shampoo, hair cream, liquid shower gel, detergent, vegetable oils, mineral oils,

agricultural chemicals, fruit juices, bleach, liquid chemicals, and similar products.

It has a pneumatic valve. It is PLC controlled.

The filling nozzles must open and close from the mouth.

The filling starts automatically as soon as the filling sensors detect the bottles.

The feed tank is mounted on top of the machine.

The filling group is made of 304 stainless steel.

The sealing equipment consists of PTFE teflon and viton.

Integration between stations is extremely comfortable and easy.

Noise and sound are maximally isolated.

The machine’s product hopper is suitable for automatic feeding.

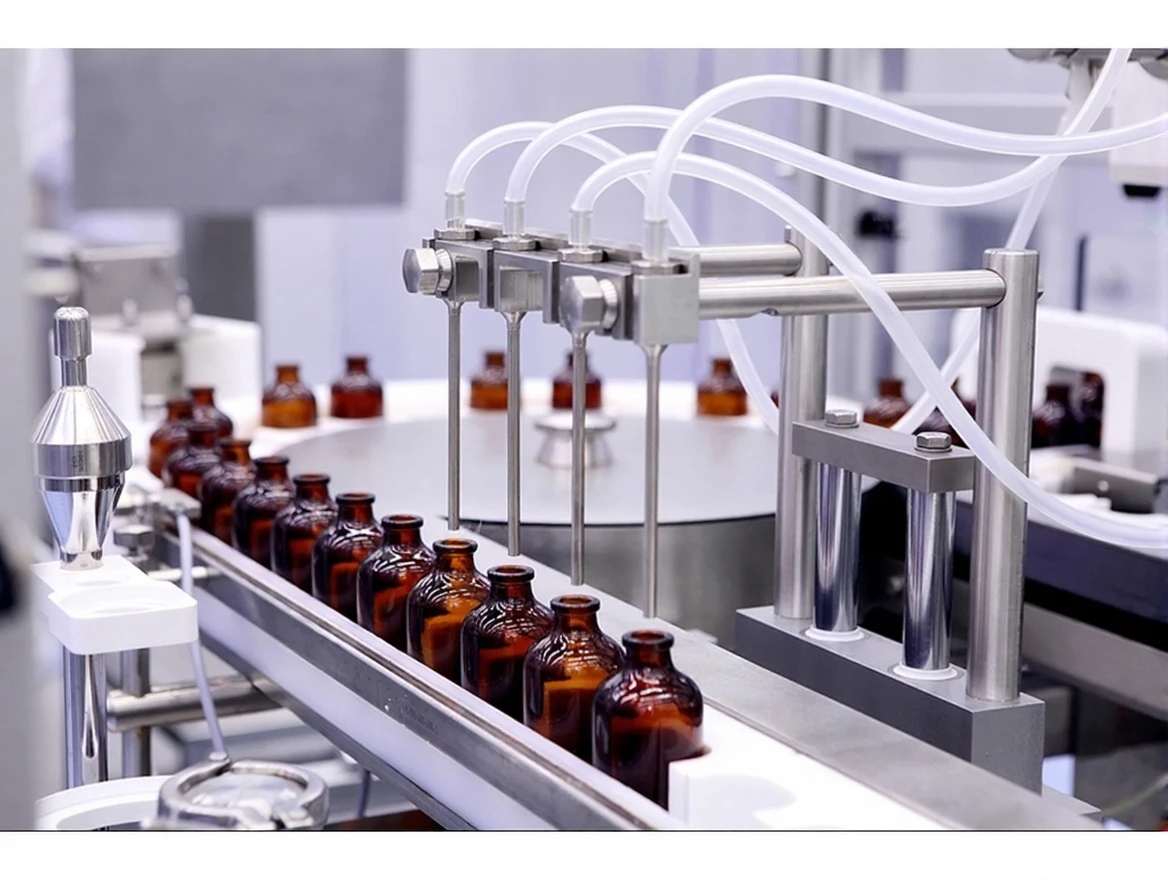

In the filling system, the packages placed manually on the conveyor belt automatically come to the filling group.

Thanks to the piece counting systems, it counts the desired quantity and product cutters stop the counted group.

The centered package is detected by optical readers and the filling process begins.

Since the filling mouths are perfectly seated on the package’s mouth, it does not deform.

The filling process starts from the bottom of the package with the descent of the filling modules and finishes at the mouth of the package.

This prevents the liquid from foaming inside the package and spilling out of the filled product.

The nozzles must close from the mouth and do not drip.

There are very comfortable and easy adjustment options for the filling process at the exact weight and for multiple products.

NOTE: As Meditek Machine, we provide you the opportunity to use equipment brands that can be preferred and supplied by you during the machine production phase. This includes electrical, electronic, and pneumatic equipment.

The machines we produce are provided with technical service by us.

Meditek Fully Automatic Linear Filling Machine

Technical Specifications

1. Machine length: 2000 mm
2. Machine belt length: 5000 mm
3. Machine height: 2100 mm
4. Machine width: 1800 mm
5. Machine weight: 1500 kg
6. Machine capacity: 2000-2500 units/hour
7. Machine power: 6000 W
8. Package diameter: 30 – 120 mm
9. Package height: 100 – 250 mm
10. Package length: 20 – 150 mm
11. Machine chassis material: 304 stainless steel
12. Number of filling mouths: 8 units
13. Filling weight: 150 gr – 1000 (optional)
14. Speed adjustment: PLC speed control
15. Time settings: PLC time control
16. Control system: PLC monitor system
17. Packaging material: Plastic, pet, glass
18. Filling hoses: Braided food hose
19. Filling valves: Pneumatic
20. Air pressure: 6 – 8 Bar
21. Filling material: 316 stainless steel
22. Filling hopper: +/- 200 kg stainless steel

Equipment And Parts

Filling nozzle group: 8 Units
Filling dosage hoppers: 8 Units
Automatic liquid feeding system: 1 Unit
Conveyor system (servo): 1 Unit
Filling movement system (hydraulic or servo): 1 Unit
Nozzle movement system (hydraulic or servo): 1 Unit
Automatic weight adjustment system: 1 Unit
Stock hopper: 1 Unit
Package centering system: 1 Unit
Touch screen: 1 Unit
