2000 Kg Mobile Vibrating Big-Bag Powder Filling System
| Brand | Tuna |
|---|---|
| Model Type |
T-BBF 2000 |

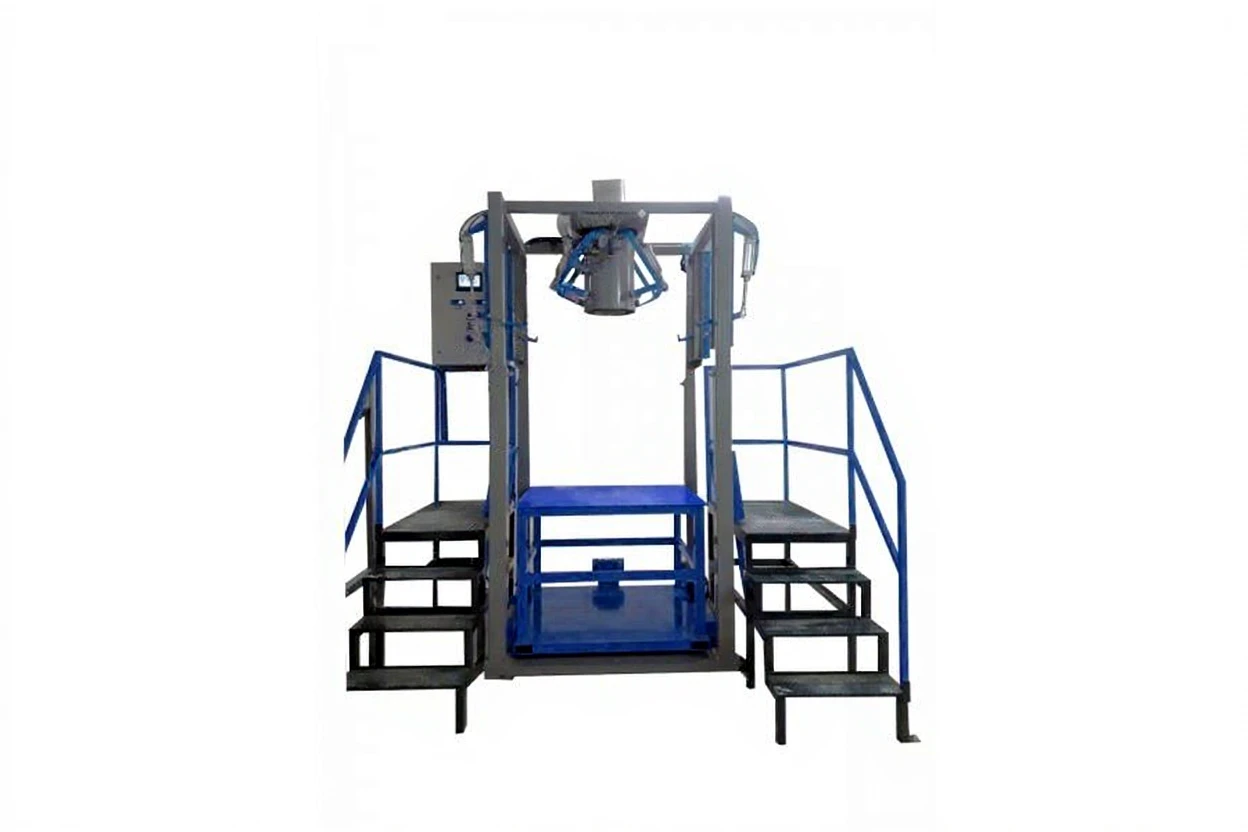

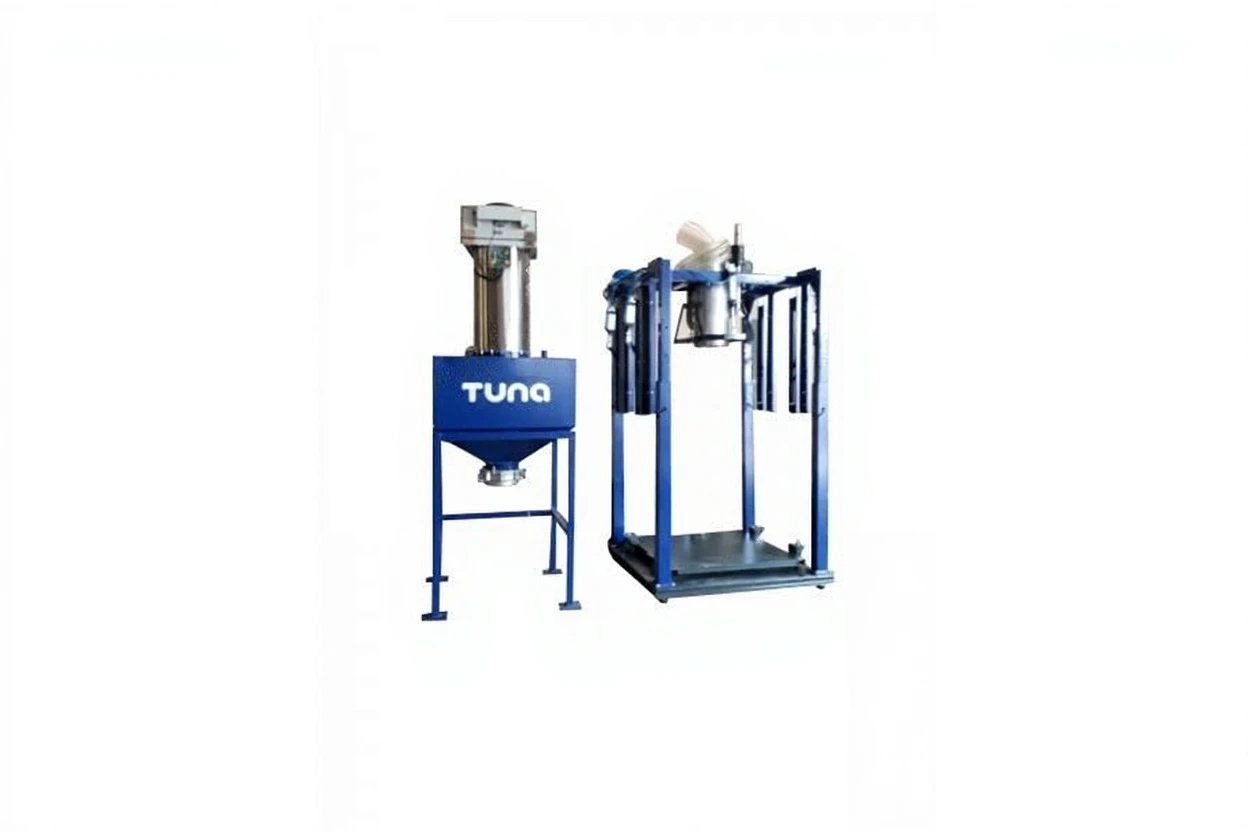

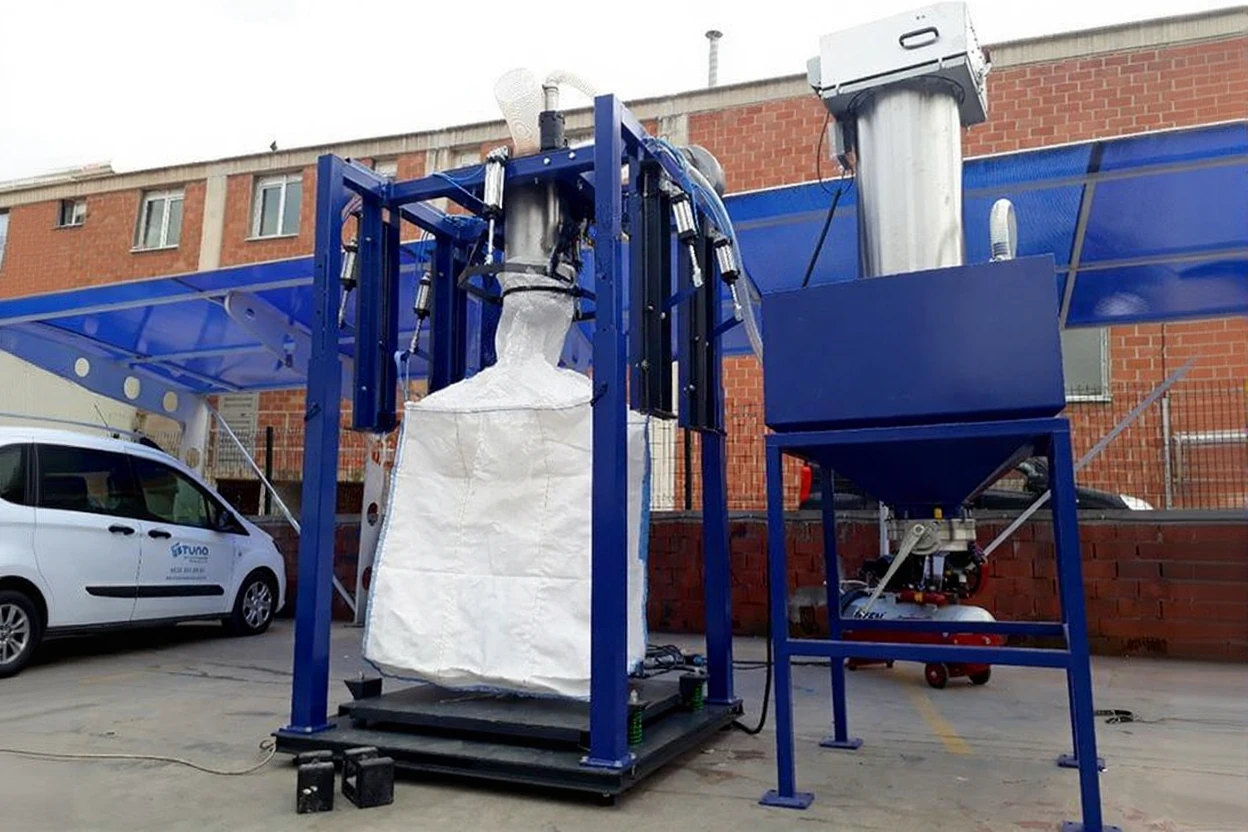

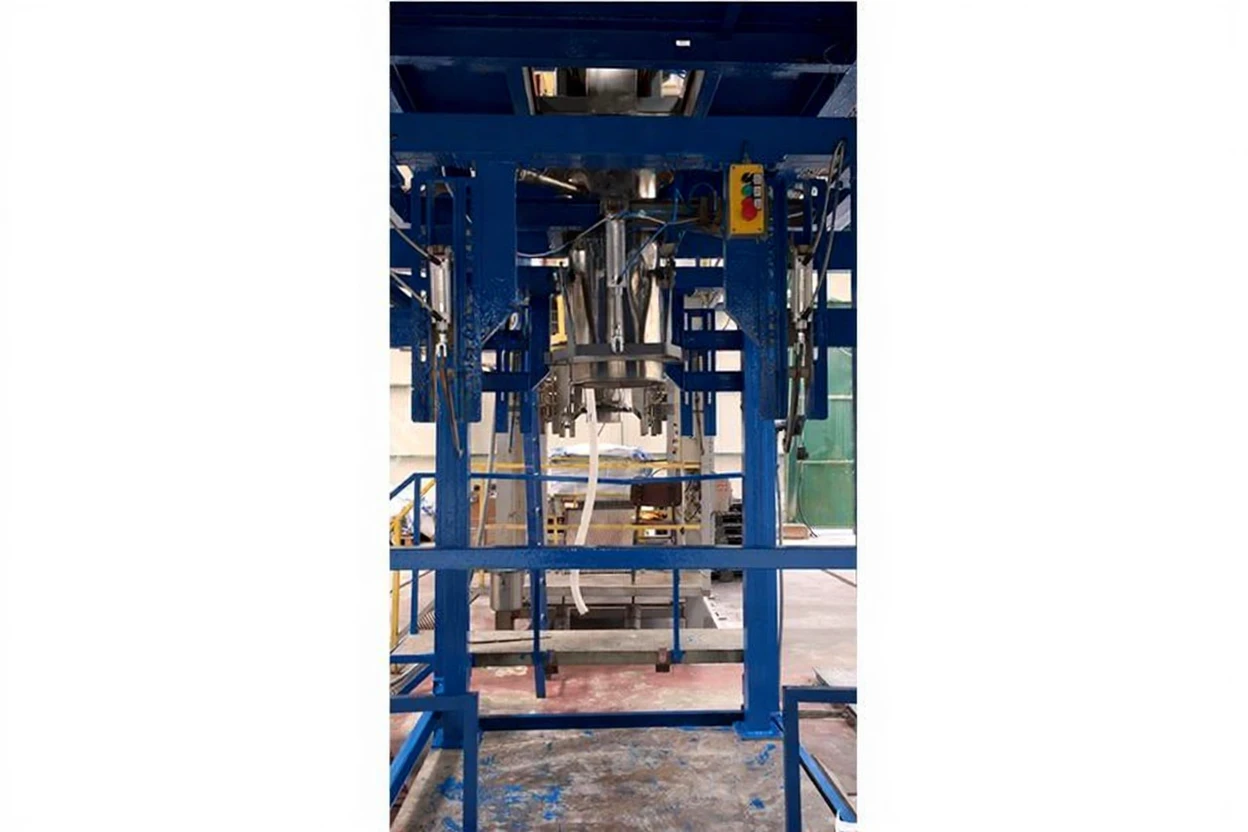

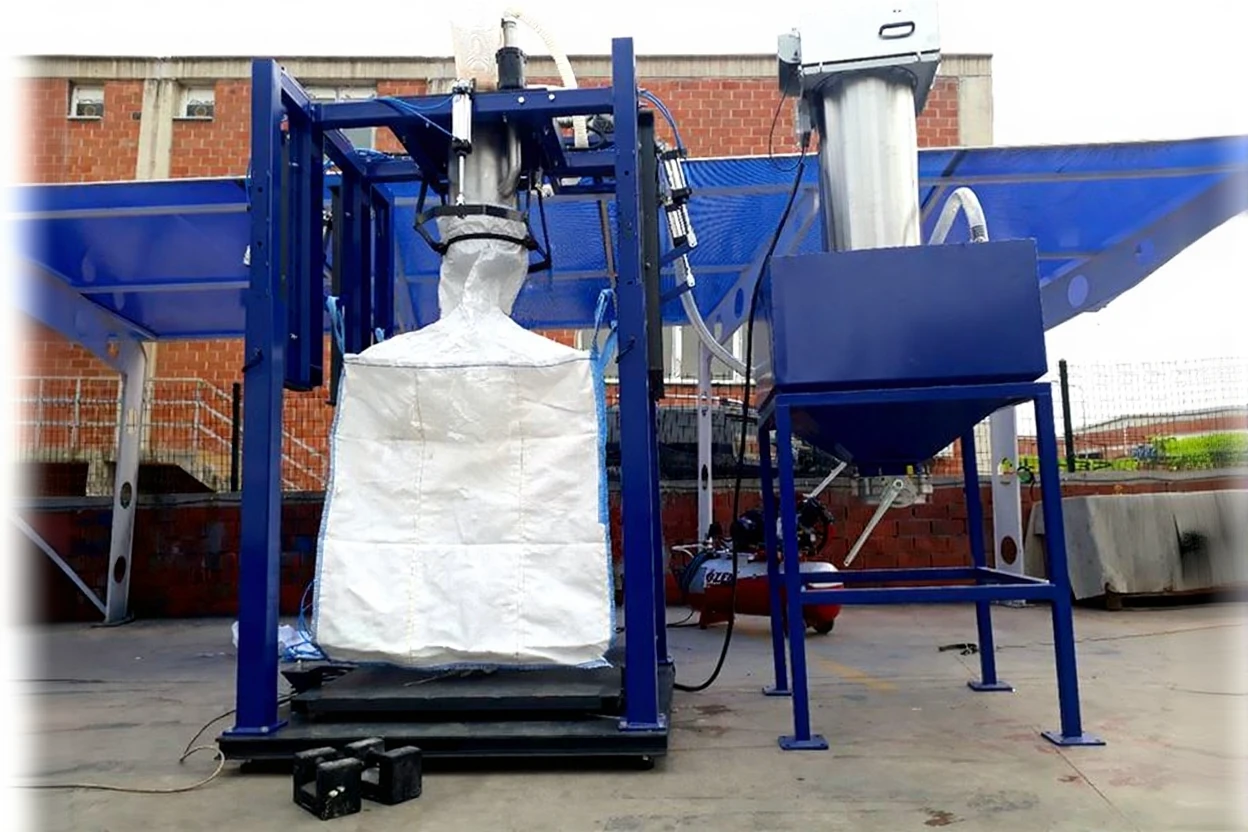

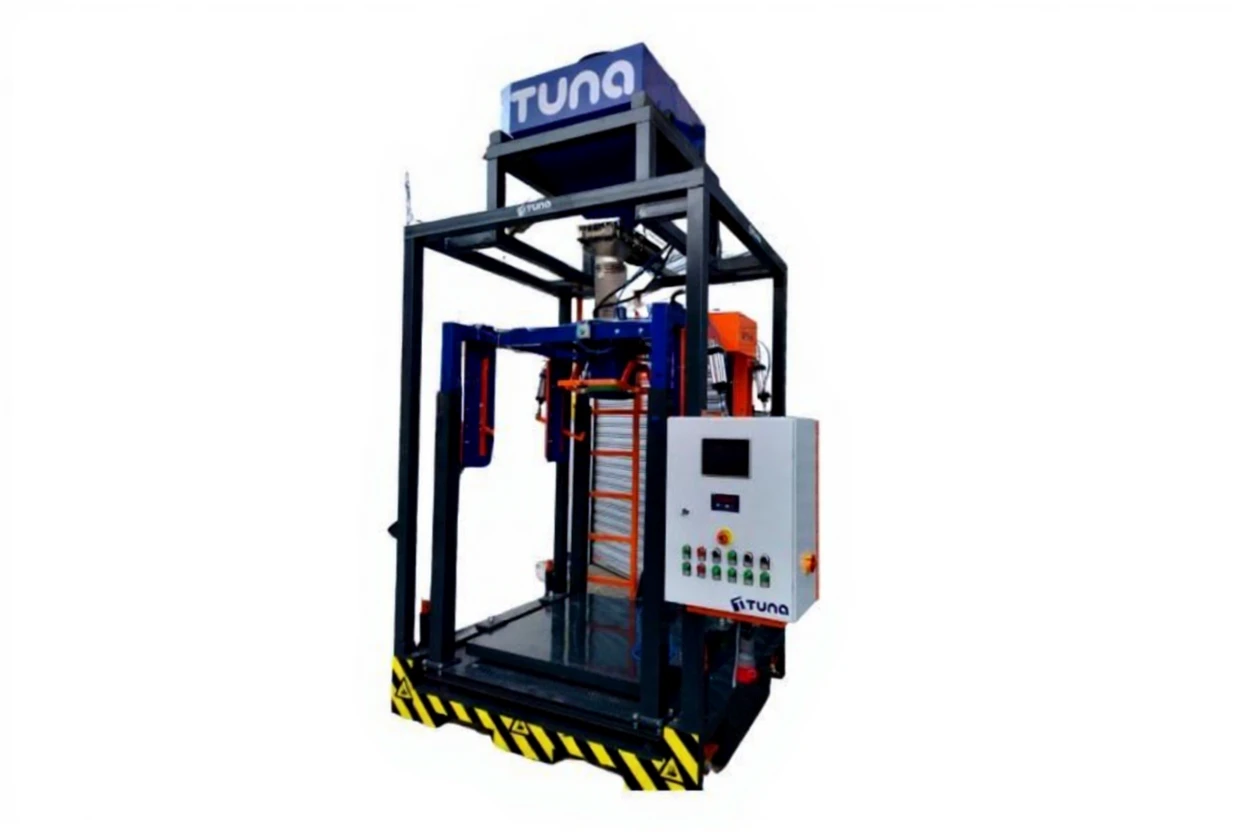

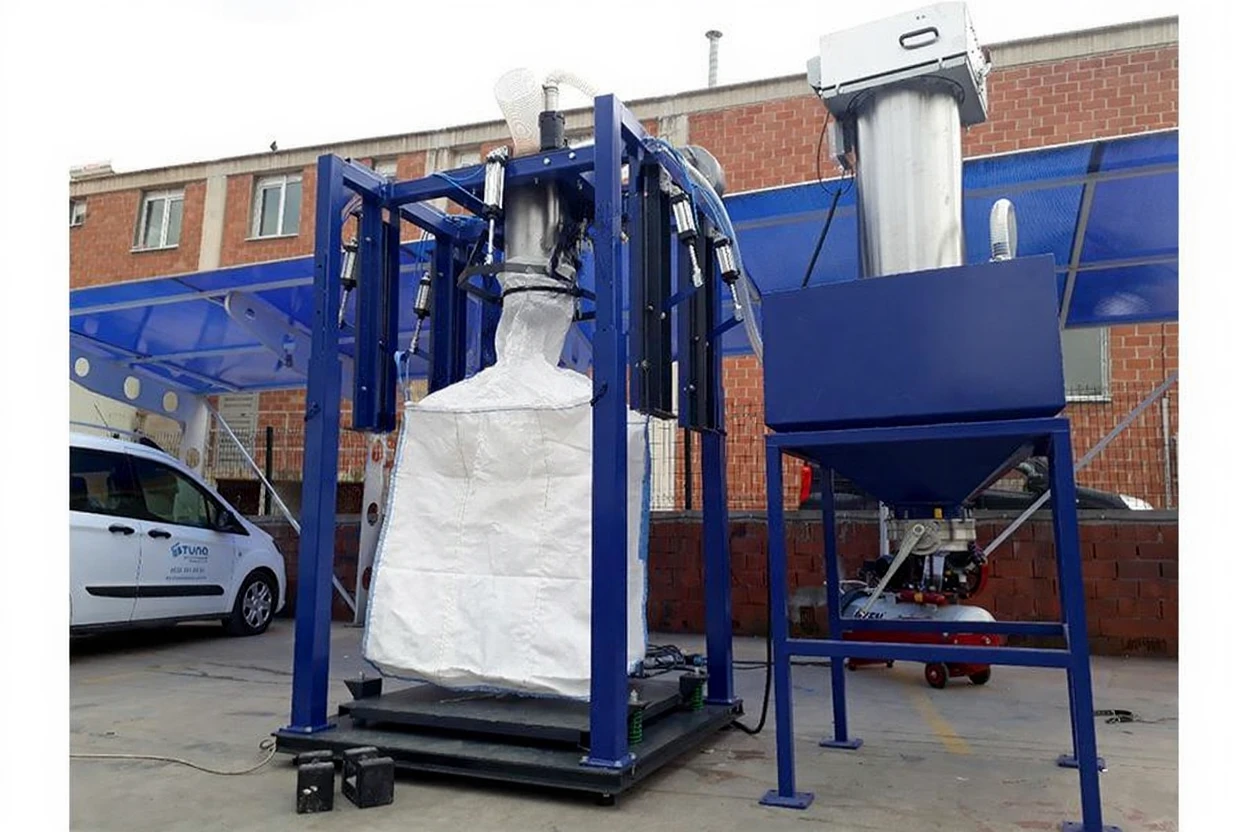

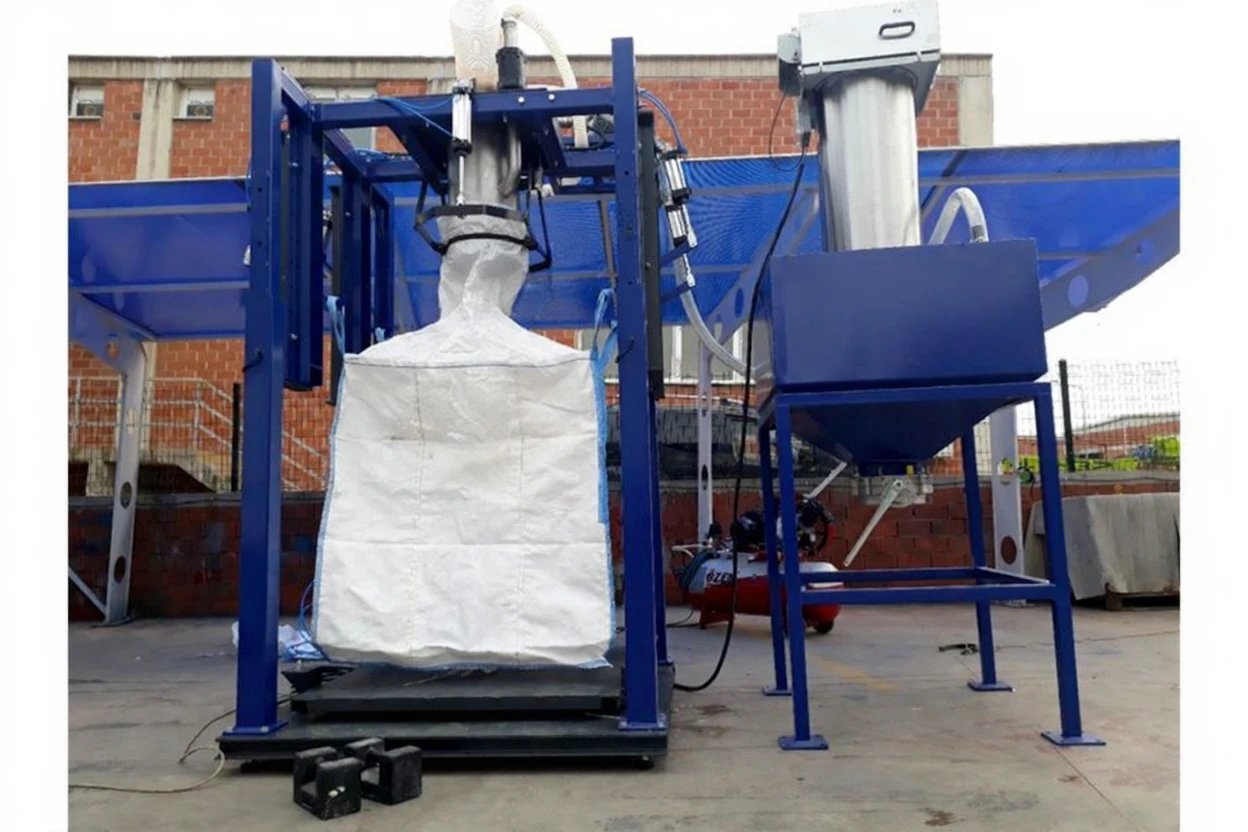

2000 Kg Mobile Vibrating Big-Bag Filling System
The Tuna Big-Bag Filling System is designed to operate in industrial heavy conditions. The semi-finished products on the factory site can be bagged as Big-Bags. The system consists of a strong body, hydraulic elevator, weighing unit, conveying unit, and control panel.
In the weighing system section, SB stainless steel load cell is used, with the Tuna T360L Indicator. It can fill up to 0 kg – 2,000 kg as desired capacity. The system, being hydraulic, is an Automatic Weighed Big-Bag Filling System. It has the capability to fill at a speed of 20-40 t/h with a precision of 1/1000.
It is designed to be used in full industrial and heavy conditions. Thanks to its hydraulic system, it ensures the complete settling of the product being filled. Following the filling, Big-Bag transfer is easily done thanks to the Euro pallet design. It is a system that does not have space and height problems. With the control panel on it, daily, weekly, monthly weighing information can be obtained, and this weight information is automatically recorded on a flash disk or transmitted to weight systems such as MRP, SAP via Ethernet.
It is designed for use in sectors such as Petrochemicals, Cement, Food, Agriculture.
Features
- Industrial Use
- Stainless Steel in contact with the material
- IP68 Protection Class
- Easy to use and assemble
- Resistant to harsh conditions
- Domestic Production
- OIML-CE Certified
Applications
- Petrochemical facilities
- Port and storage facilities
- Cement factories
- High capacity, 20 t/s filling speed
- Precise weighing, 1/1000 precision
- 0 kg – 2,000 kg big-bag filling
- Hydraulic suspension system
- Continuous weight record and data transfer via control panel
- Precisely carry out filling in fast-slow filling logic from the panel, authorization and user definition, reporting in date-time format
| MODEL | T-BBF 600 | T-BBF 1000 | T-BBF 2000 |
| CAPACITY | 600 kg | 1000 kg | 2000 kg |
| PRECISION | 1/1000 | 1/1000 | 1/1000 |
| FILLING CAPACITY | 20 tons/hour | 20 tons/hour | 20 tons/hour |
