2000 kN Compact Hydraulic Universal Testing Machine
| Brand | İbertest |
|---|---|
| Model Type |
UMIB Serisi |

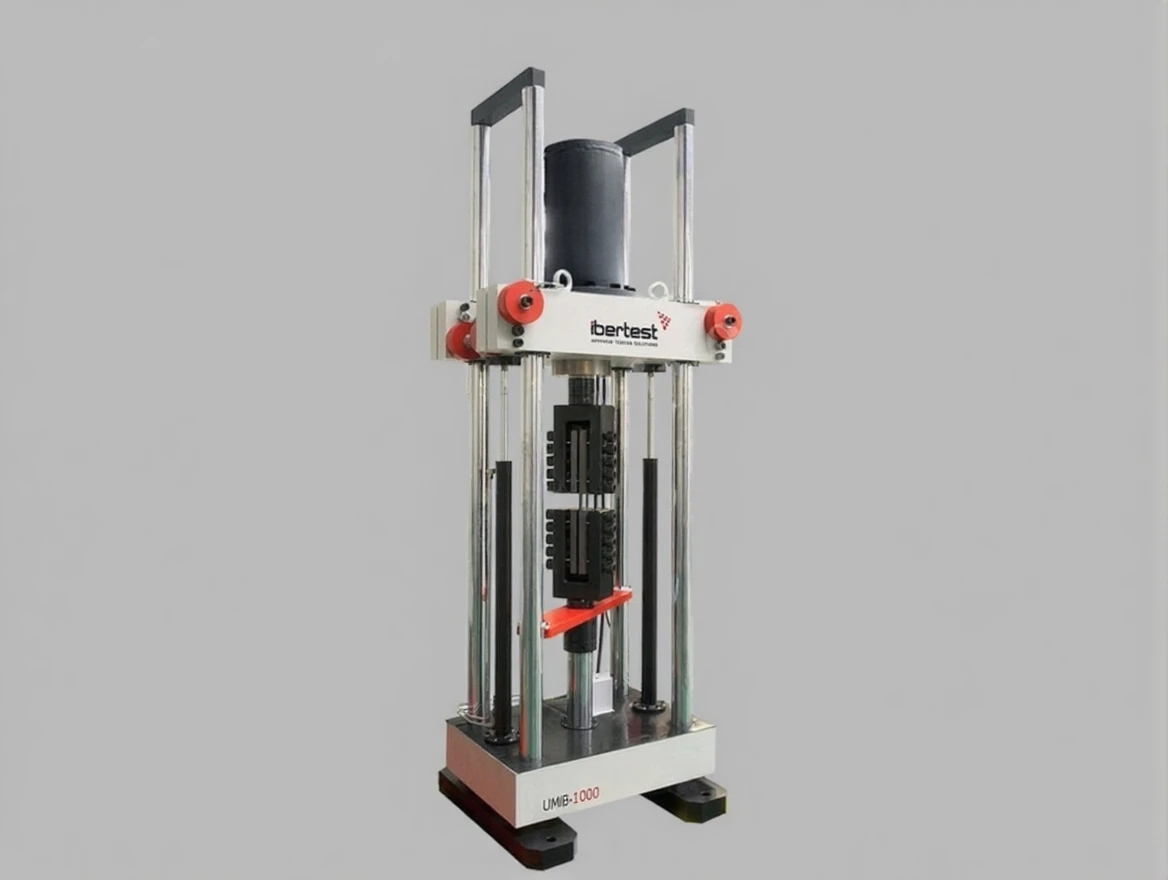

Ibertest UMIB Series 2000 kN Compact Hydraulic Universal Testing Machine
Mobile crosshead hydraulic testing machine.
Test capacity up to 2000 kN, contributed to the versatility of the mobile crosshead through hydraulic cylinders and blocks to accommodate a wide range of sample sizes.
The compact design facilitates installation in low-ceiling areas. The precision and accuracy measurement of the UMIB series is suitable for all kinds of demands in most market applications, industry, and research laboratories.
|
SERIES |
UMIB-600 |
UMIB-1000 |
|
Maximum load |
600 kN |
1000 kN |
|
According to ISO 7500 |
Class 0.5 |
|
|
Load measurement |
Universal strain-gage load cell (tension-compression). |
|
|
Load cell repeatability |
Better or equal to ± 0.05 % |
|
|
Measuring Range |
1 % to 100 % of the load cell nominal capacity (autoescale) |
|
|
Strength Resolution |
5 digits with floating comma |
|
|
Vertical free clearance, with load |
Adjustable from 0 to 1000 mm |
|
|
Number of columns |
4 columns. |
|
|
Free gap between columns |
520 x 250 mm |
710 x 405 mm |
|
Mobile Crosshead |
Automatic movement by means of lateral hydraulic synchronous jacks. |
|
|
Displacement measurement |
Encoder. Optional piston internal LVDT. |
|
|
Power supply |
Three-phase 380 V plus neutral and earth, 50/60 Hz (to specify) |
|
|
Total power |
3 kW |
4 kW |
|
Emergency stop |
”Mushroom“ type, placed on the testing frame and working table |
|
|
Dimensions: Testing frame (mm) |
1020 x 650 x 2450 (h) |
1200 x 650 x 2600 (h) |
|
Approx Weight (without gripping heads) |
2100 kg |
3500 kg |
|
Dimensions / working table weight |
1200 x 800 x 900 mm (width x depth x height)/ 40 kg approx. |
|
|
Foundation |
Special foundation must be performed to allow piston hosting and correct leveling. |
|
