2000 Kn Concrete Test Press

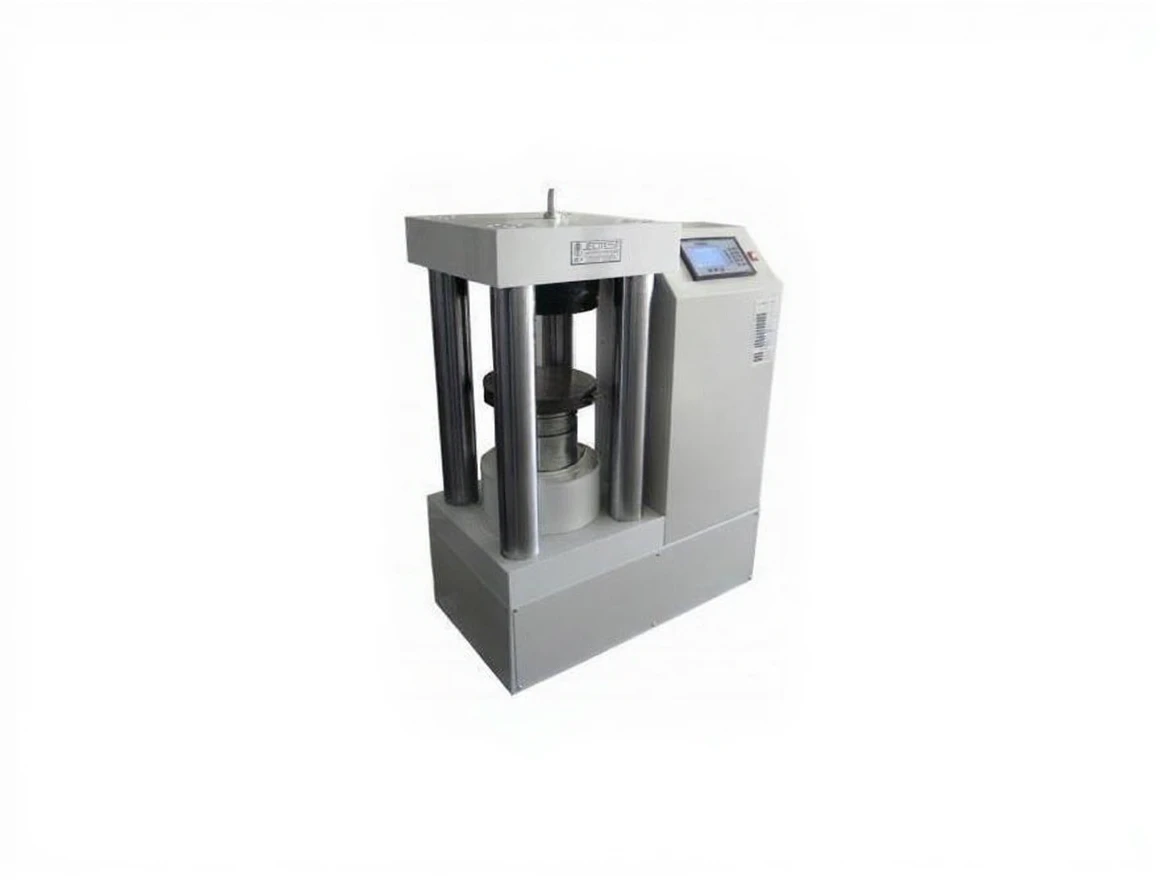

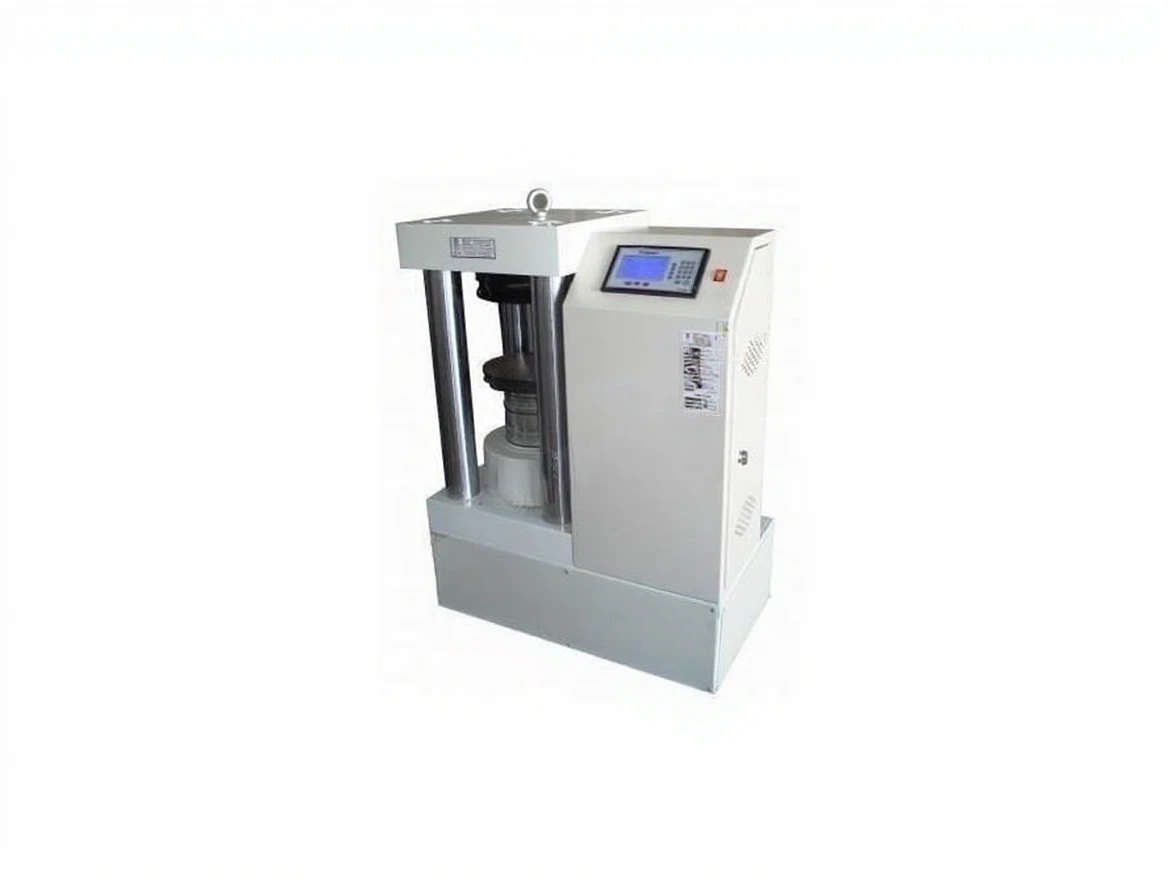

JB-068 2000 kN Concrete Test Press

Compression testing determines the behavior of materials under compressive load.

By applying load to the sample, deformations at different loads are recorded. Two types of body: 4-column type and walled type.

– 150x150x150. It is suitable for testing 200x200x200 mm cube and 150×300 mm cylindrical samples.

– The body has a 4-column rigid structure. The columns are screwed independently from the top and foot parts of the body.

– The upper and lower parts of the body are made of hard material and all support surfaces are mechanically machined.

– Compact body consists of upper and lower plates. Hardened plates are machined on both sides and ground on both sides.

– The upper plate is placed in a spherical shape to allow up to three degrees of inclination to ensure homogeneous loading.

– The lower cylinder is marked to facilitate centering of cube and cylindrical samples.

– The piston has unidirectional movement and is cut from solid material

(there are no screws or connections at the bottom).

– Distance adjustment plate is available for testing samples of different sizes

(100mm, 200mm, 500mm, 800mm).

– The piston is hardened.

– For safety purposes, piston length is limited by a safety switch.

– The piston is protected with steel sheet against rust.

– Thanks to the safe door feature, the device can be used when the device door is open.

Features

Digital Controlled Reading Unit

PCM304 LCD graphical data capture and

control systems, load cells

or processing data from pressure transducers

and control of the machine

It is designed to provide. Easy to read

LCD graphic display and keypad

It ensures fast and smooth operation of the unit.

All measuring applications, simple

It is performed via the menu control panel.

PCM304 with its lightweight component frame and design

for various uses

Meets ergonomic requirements.

PCM304 digital real time

It gives the load-time graph.

At the end of the testing cycle, the results are extensive

can be stored in memory or transferred to the computer.

In the format of PCM304 software

downloadable. Later online computing

information management and documents

Specially designed for printing

software packages are available.

Fully Automatic Hydraulic Unit

–            Dimensions: 400 x 500 x 850 mm

–            Weight: 71 kg.

–            Double pump system.

–            Pumps Imported from Germany.

–            Automatic Adjustable Speed.

–            Adjustable Loading Speed ​​Between 0.5 and 25 kN / s.

–            ±0.5% load accuracy.

–            Imported transducer with ± 1% accuracy for pressure measurement.

–            Ability to connect to any unit in the laboratory.

–            230V / 50Hz.

–            It comes with an LCD control unit.

–            Dimensions    430x410x935mm.
