2000 kN Pneumatic Impact Press Snap Fastening Machine

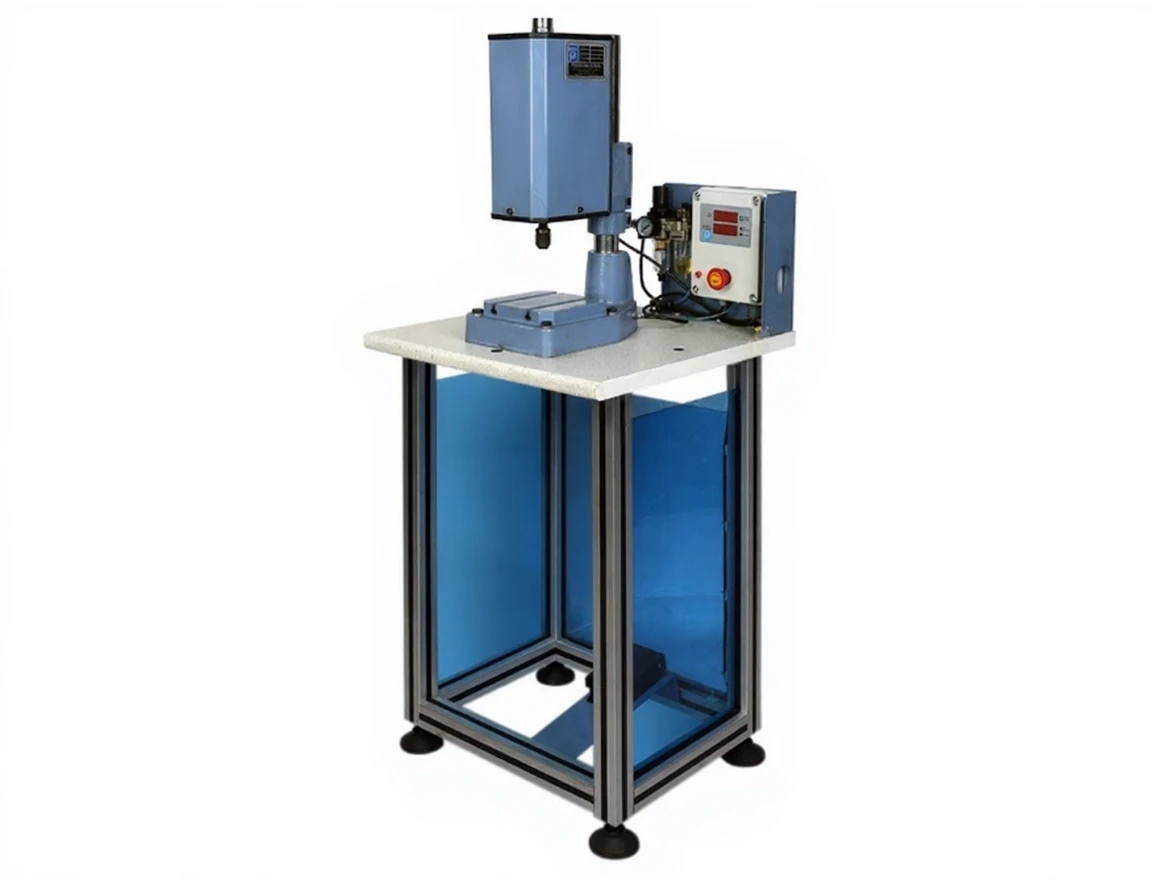

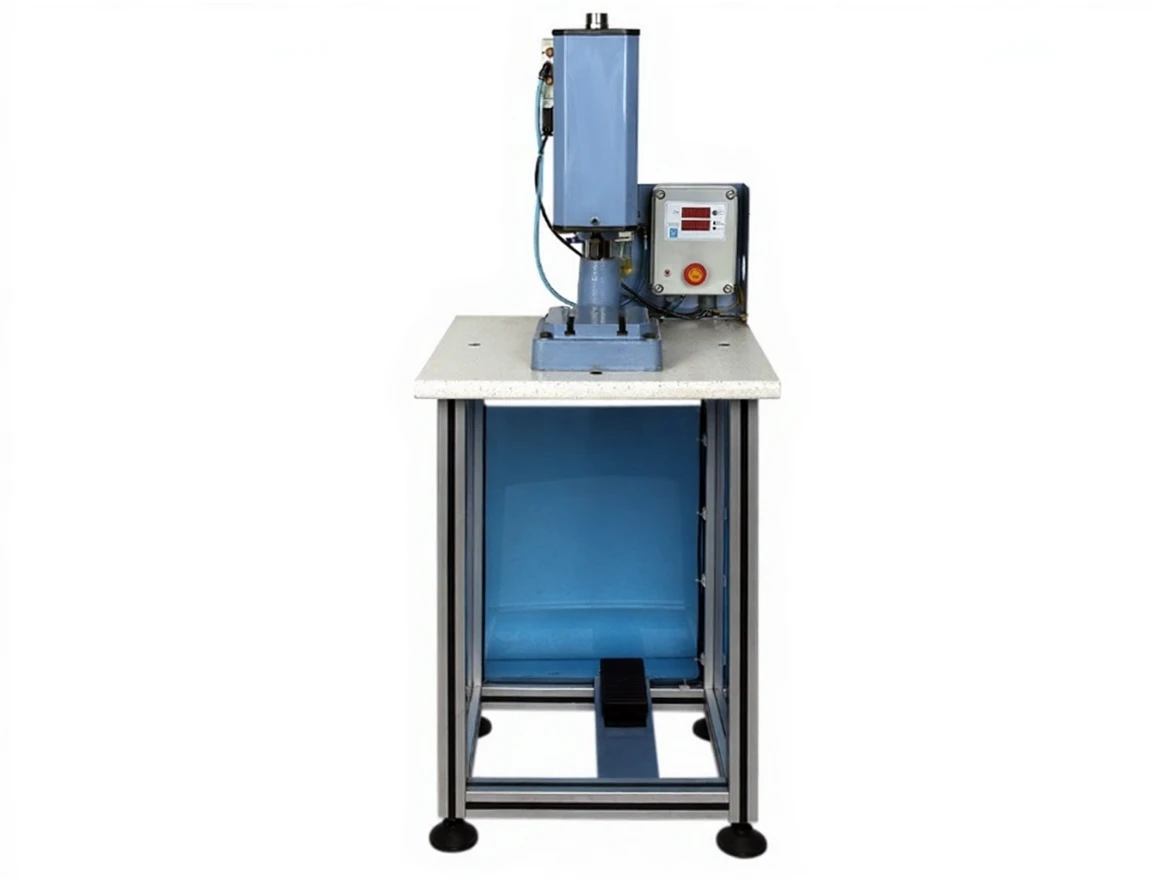

Ron Mikron PDP 2000 2000 kN Pneumatic Impact Press Snap Fastening Machine

You can safely use it for marking, riveting, stapling, skirt bending, curving, drilling, and snapping processes in the electrical, electronic, chipless manufacturing, decoration, furniture, and packaging industries.

TECHNICAL FEATURES / TEKNİK ÖZELLİKLER

Impact Force / Darbe Kuvveti 2000 kN

Working Pressure / Çalışma Basıncı 6 bar

Air Consumption / Hava Sarfiyatı 2.85 NI/Stroke

Nipper Hole / Pens Deliği 9 mm

Table Fixing Size / Tabla Tespit Boyutları 165*165 mm

T slots / T Kanallar 8 (12H, DIN 650)

Weight / Ağırlık (Kg) 35kg

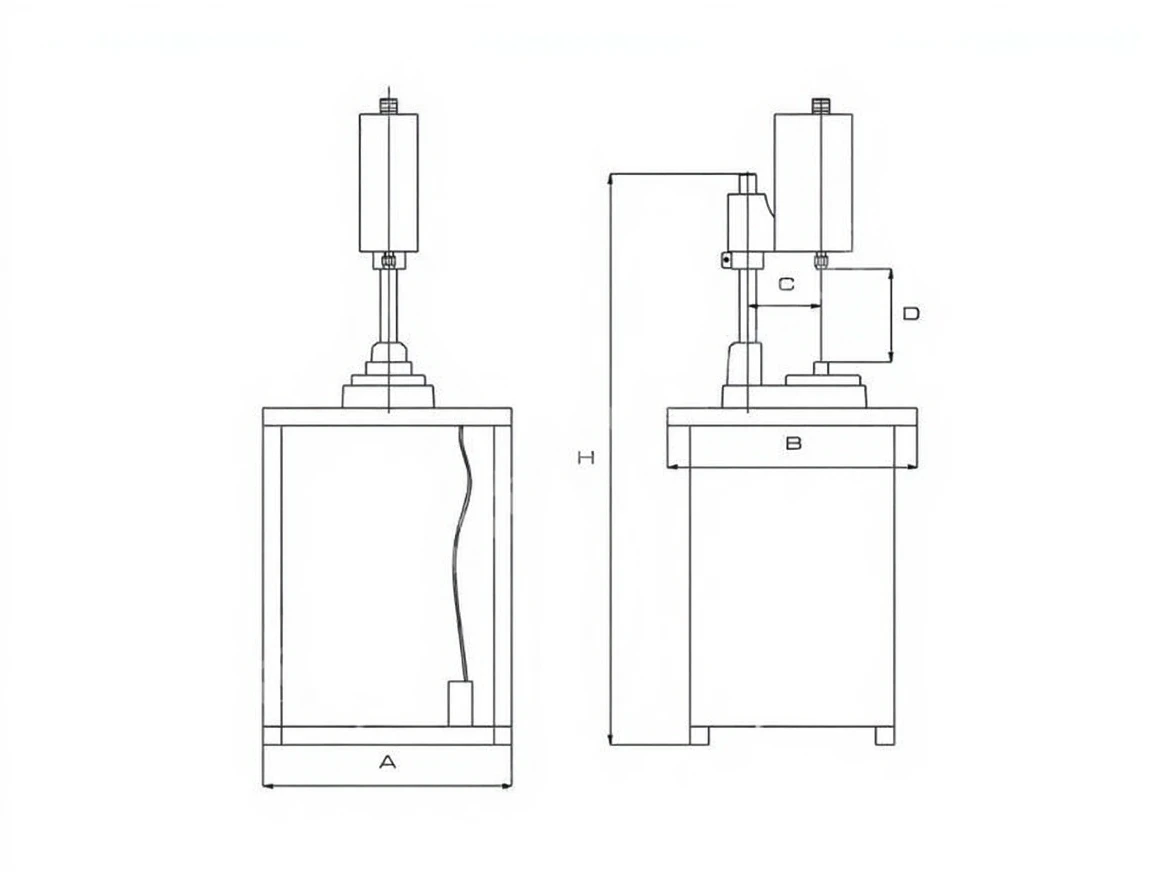

SIZE / ÖLÇÜ PDP-2000

A 200

B 315

C 142

Z (min-max) 70-280 mm

H (max) 550

Box Dimensions (mm) 240x330x540
