2000 Lt, Trailed Type Turbofan Atomizer

Trailed Type Turbofan Atomizer

TECHNICAL SPECIFICATIONS

• TANK CAPACITY    :  2000 lt.

• TANK MATERIAL    Polyester

• CHASSIS   Sheet metal

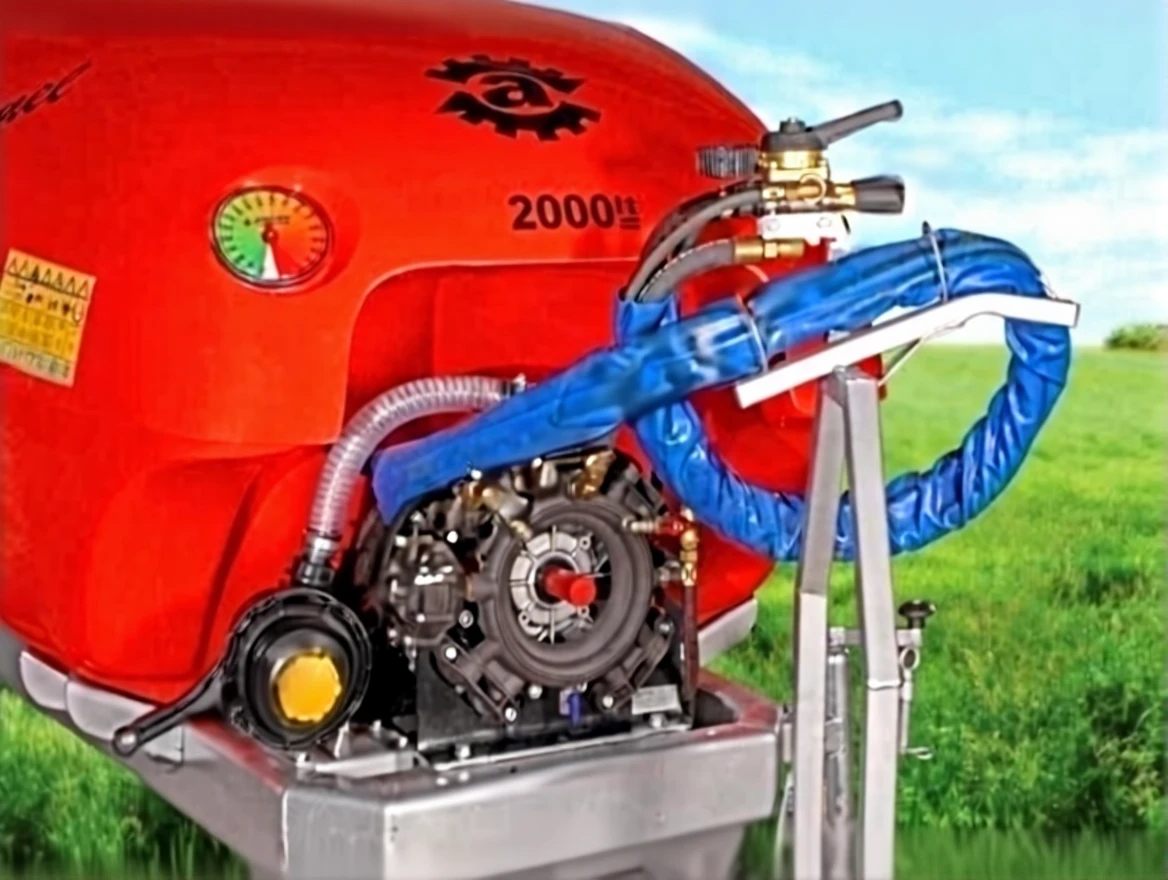

• PUMP OPTIONS      Annovi Reverberi, AR 1203, AR 1064, BHA 150, BHA 170, BHA 200

• PUMP FLOW   170 lt/min.

• PUMP PRESSURE       50 Bar.

• CONTROL UNIT            BRAGLIA M 170

• FILTER GROUP        Tank Inlet – Pump Suction – Control Outlet is in the range of 30-50-80 mesh

• MIXER       3 powder mixers with direct pump outlets, 1 main, 1 auxiliary, 1 tank inlet

• TRANSMISSION       Bondioli Pavesi, Comer 1:3.5- 1:4.5 speed

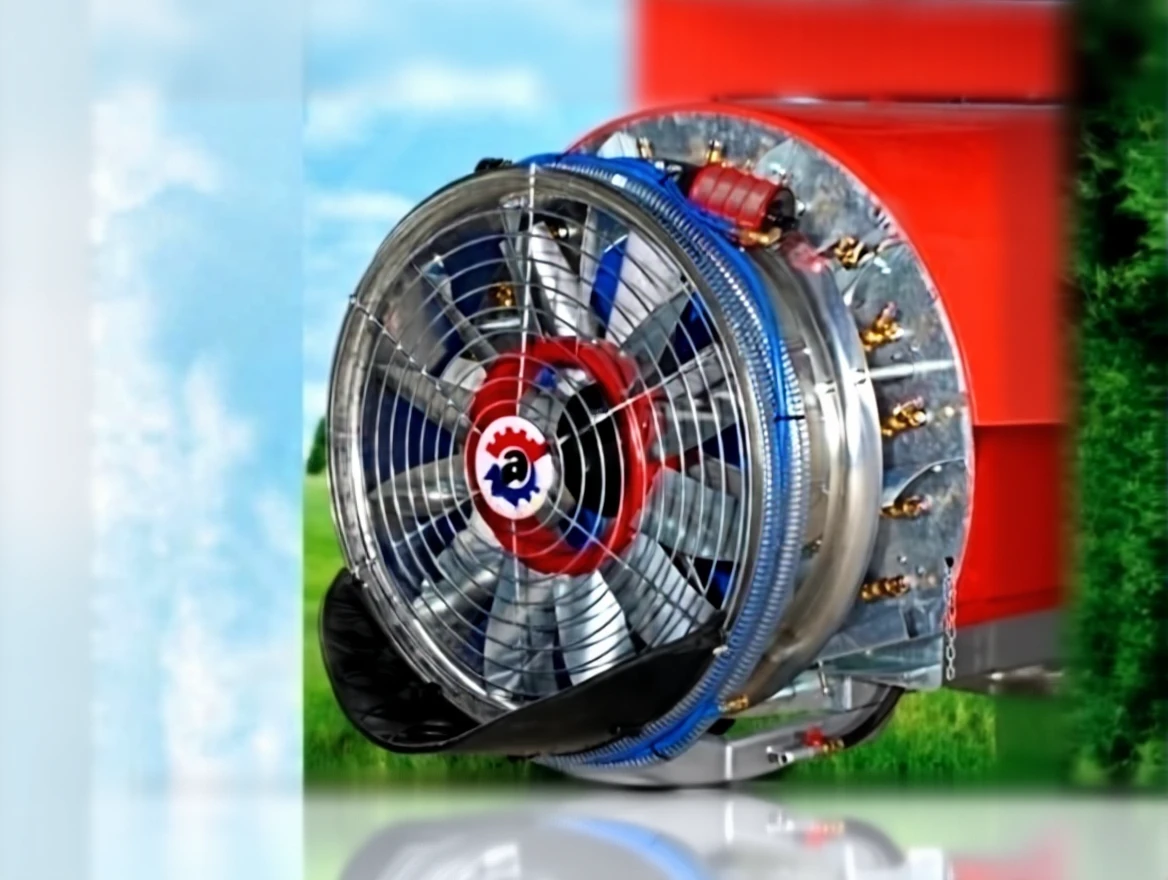

• FAN DIAMETER and PROPELLER          32″ (82 cm.) With Plastic Blades or Aluminum lining clutch

• HOOD MATERIAL  Hot dipped galvanized

• INJECTORS            Brass body with Braglia stopper

• NUMBER OF INJECTORS          12 Pieces

• WEIGHT       700 kg. (2000 liters)

• WARRANTY           2 Years

• PROFESSIONAL MODELS         Propeller with aluminum lining clutch, the gearbox and injectors used are imported.

• DYNAMIC MODELS have plastic propellers and the gearbox and injectors used are domestic production.
