2000 mm Top Fabric Bias Cutting Machine

2000 mm Top Fabric Bias Cutting Machine

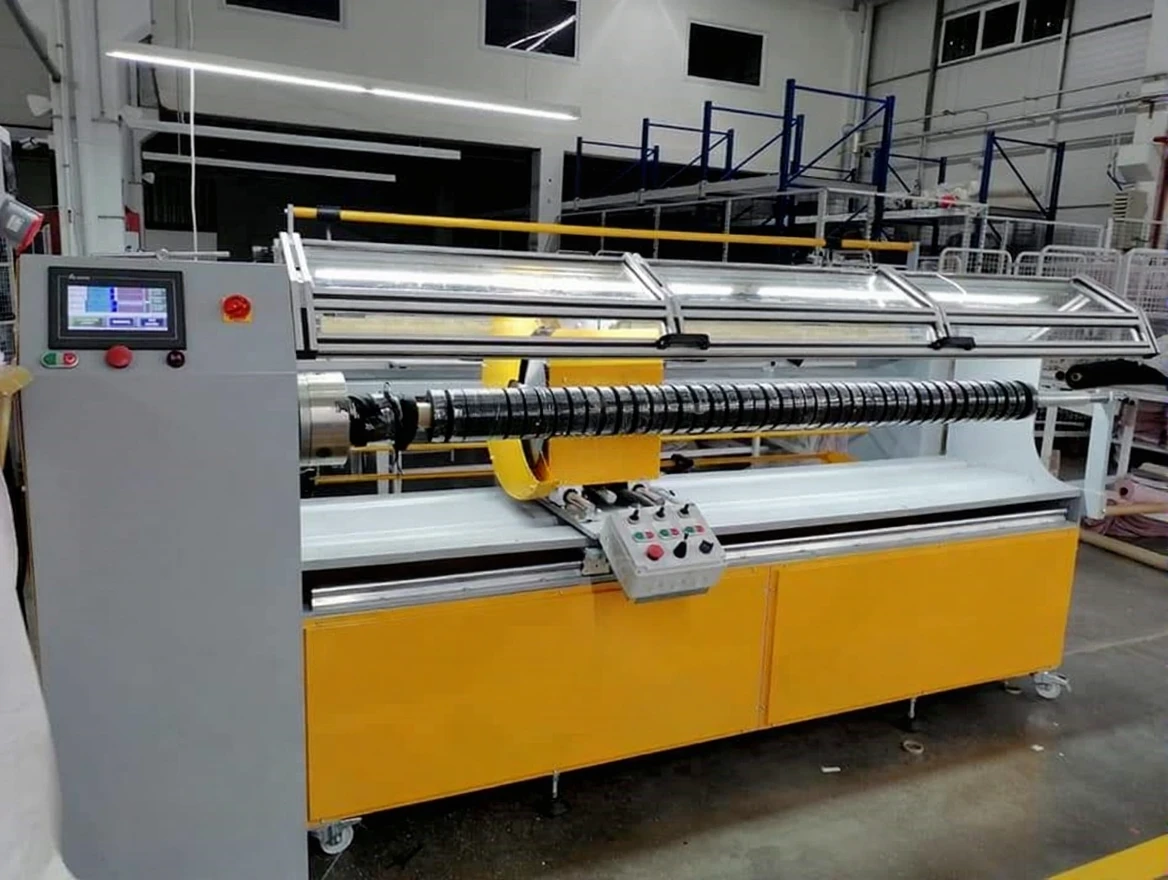

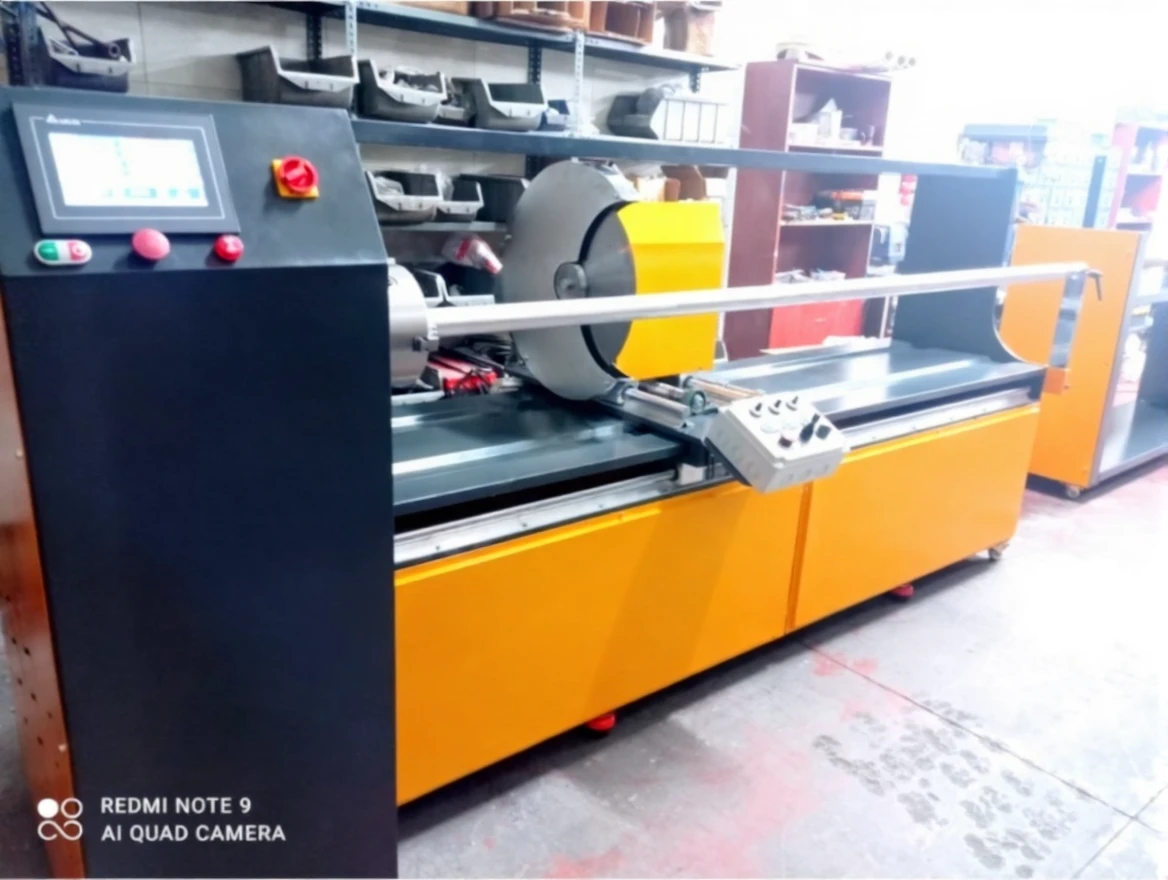

Aksoy Top Fabric Bias Cutting Machine is a powerful device that provides bias cutting with high efficiency and precision. The machine can be used on a wide range of fabrics with a maximum fabric width of up to 2000 mm and can process roll fabrics with a diameter of up to 300 mm. It has a large capacity for cutting operations with blades of 500 mm in diameter, and the winder shaft diameter is 49 mm, while the inner diameter of the cardboard roll to be used is 50 mm. These technical specifications ensure effective cutting of different types of fabrics and smooth winding.

The machine dimensions are a total length of 3000 mm, a width of 750 mm, and a height of 1100 mm, with a weight of approximately 750 kg. This compact structure saves space in the production area and can operate efficiently even in large production lines. The Aksoy Top Fabric Bias Cutting Machine is equipped with a PLC control system, allowing users to manage cutting operations precisely. A precise adjustment can be made for bias cutting between 1 and 999 pieces, accommodating different production needs. The cutting speed, blade rotation, and sharpening time can be adjusted, optimizing the speed and quality of the cutting process.

The machine has an automatic and manual blade sharpening system, with a sharpening time adjustable between 0 and 30 seconds and a sharpening quantity of 1 to 99 pieces, maintaining high cutting quality for long-term use. The adjustable cutting speed can vary between 1 and 100 rpm, providing flexible use for different types of fabrics. The motors used offer high performance; the 0.75 kW mirror motor, 2.2 kW blade motor, 0.37 kW right-left geared carriage motor, and 2800 rpm forward-backward geared blade movement motor make the cutting process fast and efficient. Additionally, the 0.12 kW sharpening motor provides excellent support to keep cutting quality consistently high.
