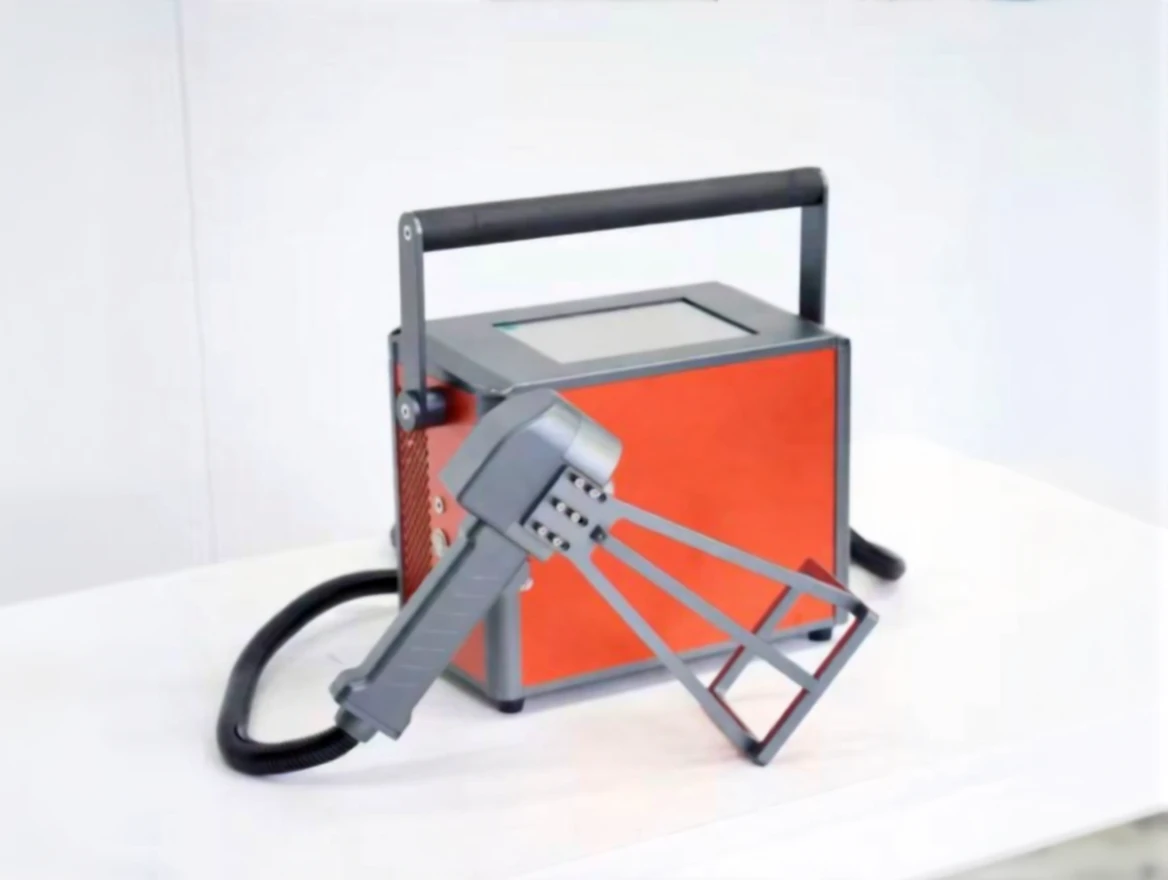

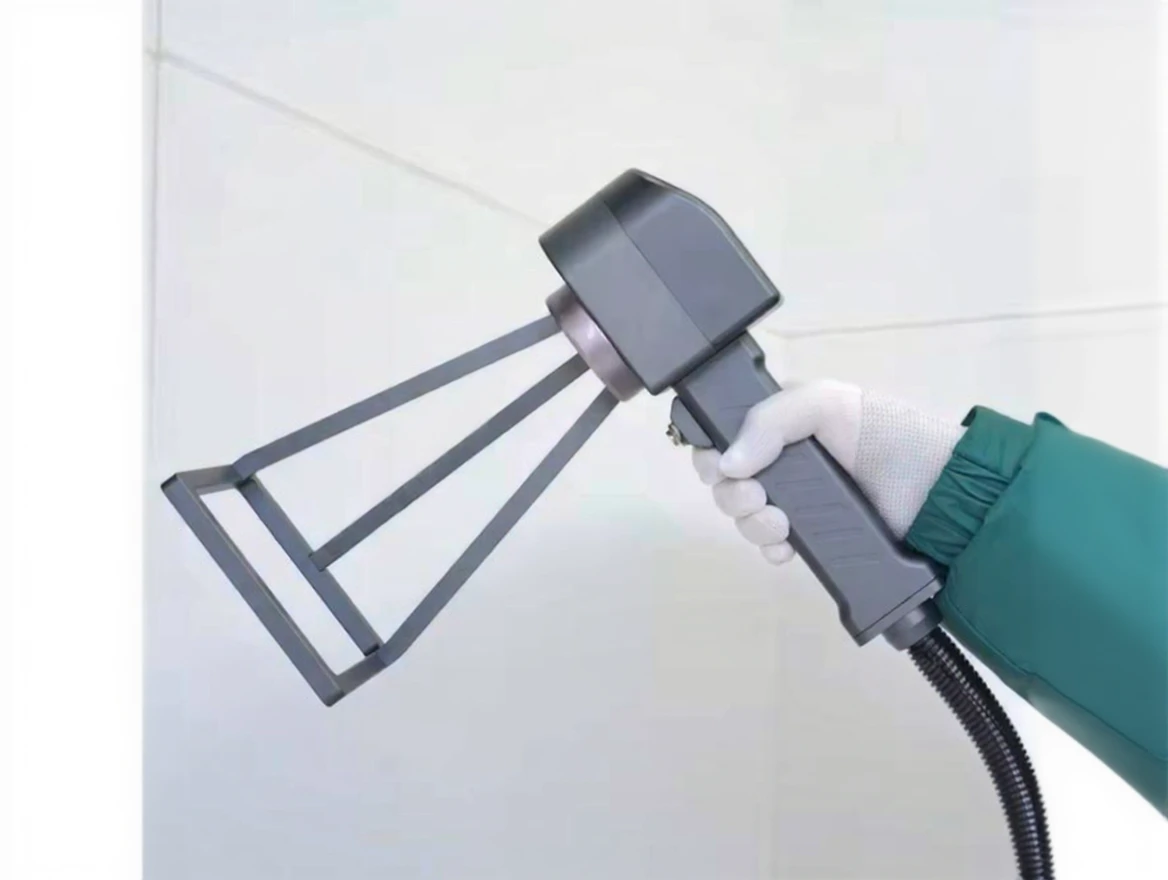

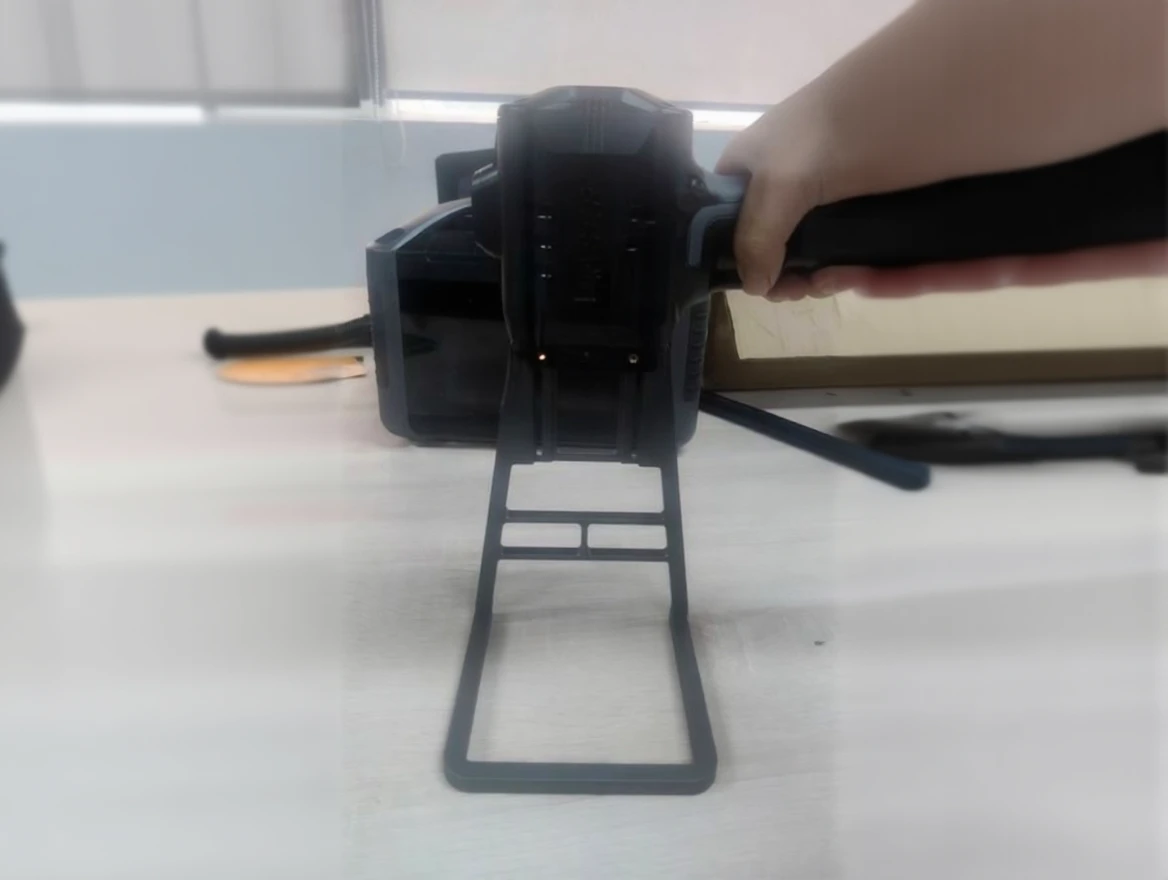

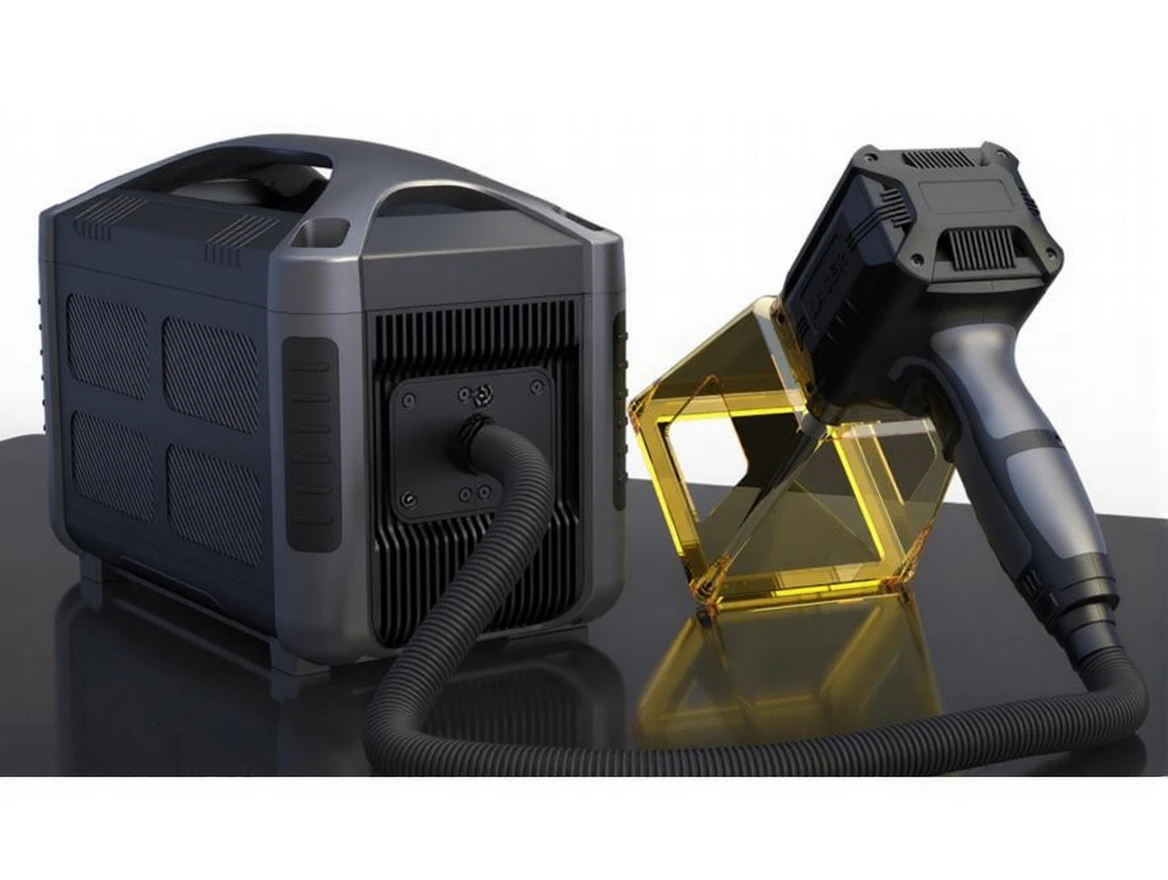

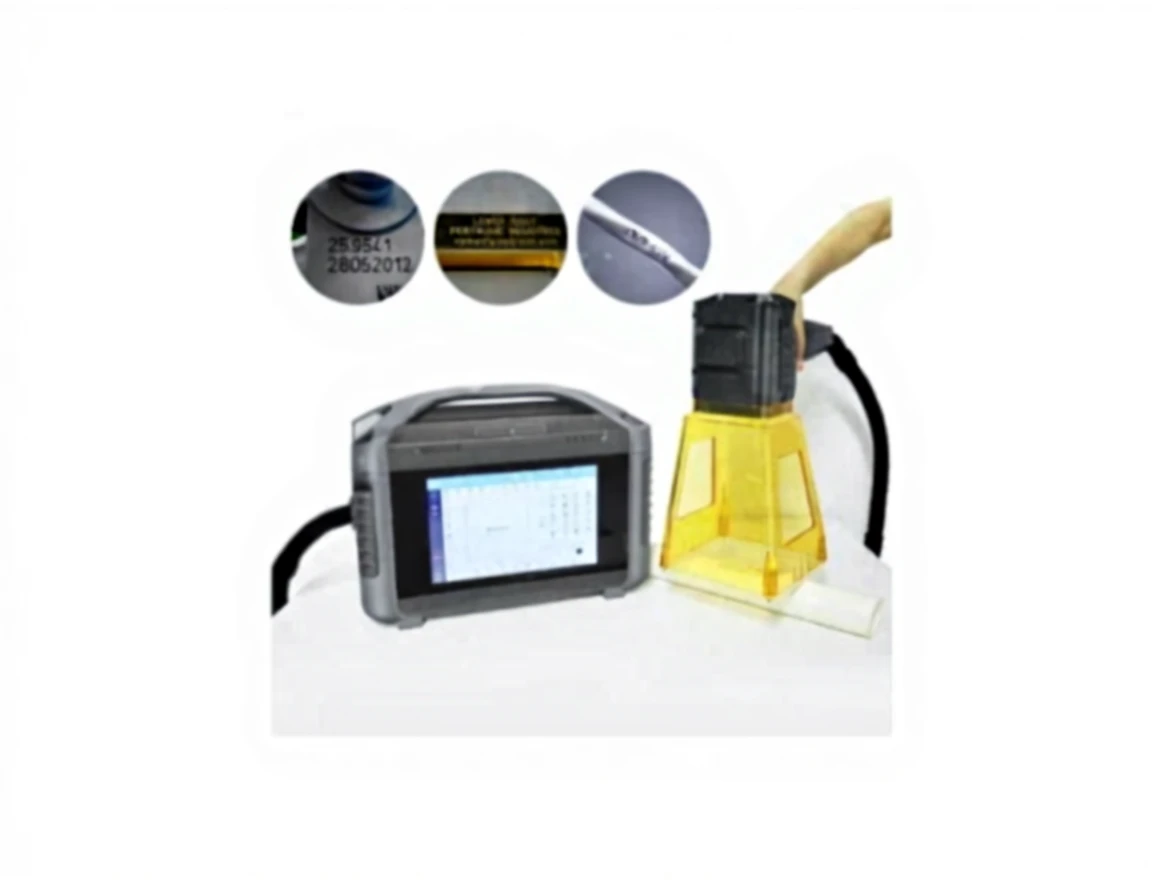

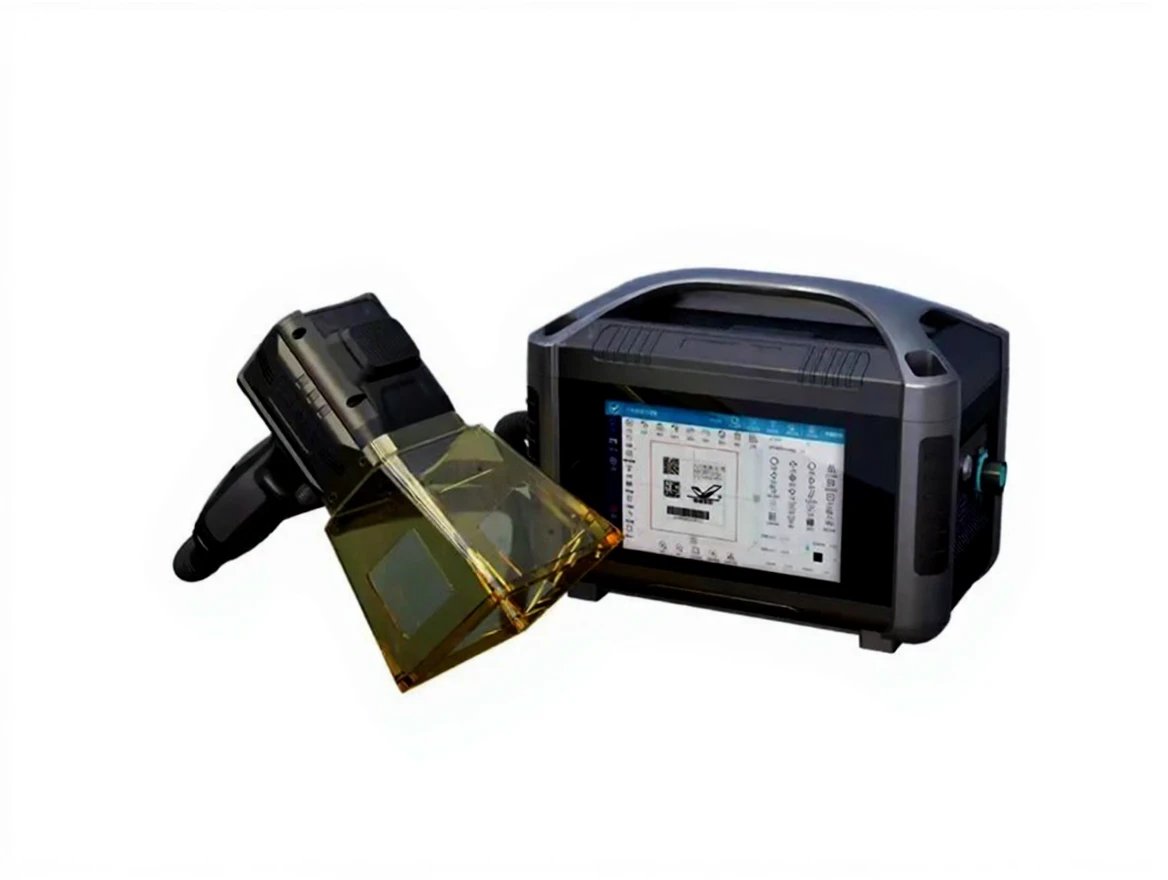

20W Handheld Laser Marking Machine

Contact for details. There are many details that create a wide range of differences in price. It can be supplied on a wide scale according to the demands. Spare parts are available.

New generation, durable design.

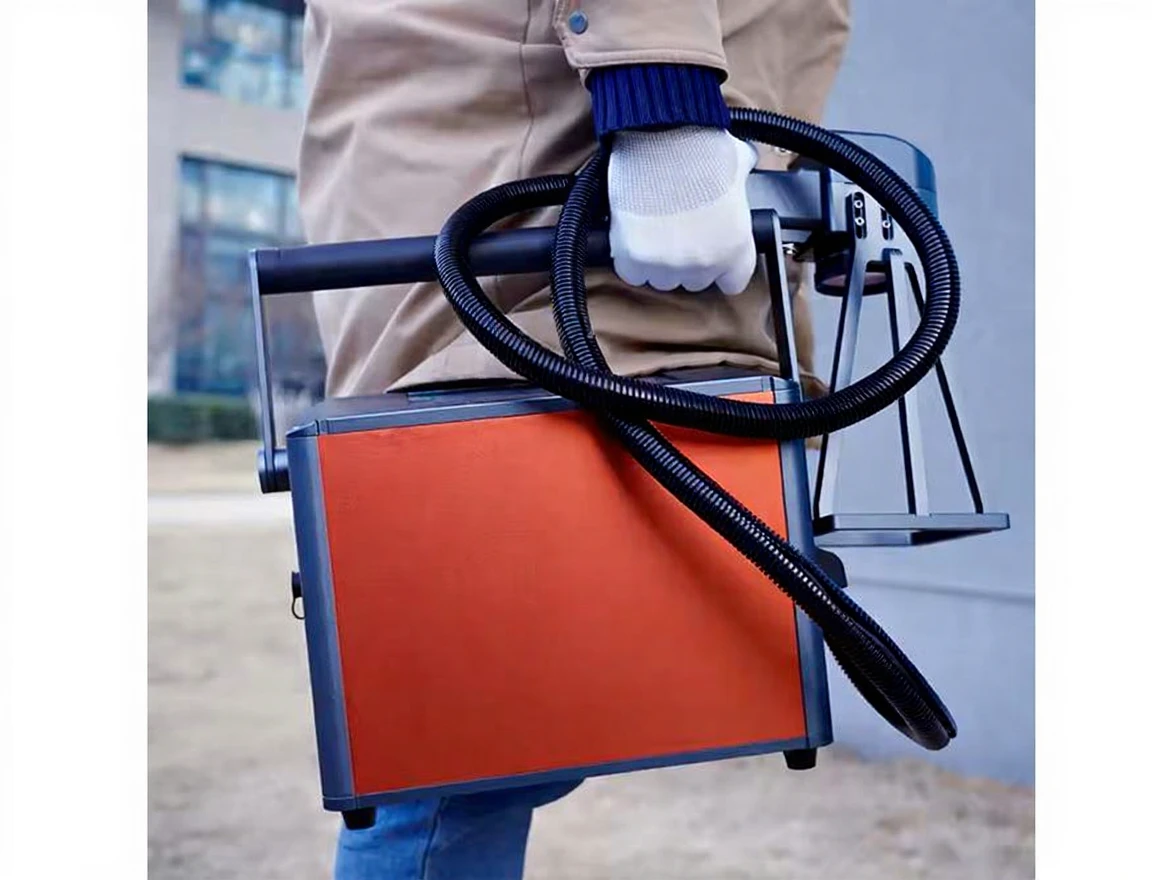

• Compact, lightweight models (6.8kg).

• Turkish/English marking design interface.

• Ability to change marking quality with power, speed, frequency, and scanning frequency adjustments.

• Marking position estimation with pilot light before marking.

• Design that does not require focusing

• Marking Unit weight is only 6.8 kg.

• Easy marking on different products at different power levels.

• More economical and environmentally friendly compared to coding with ink.

• Comes with its own computerized and Linux software

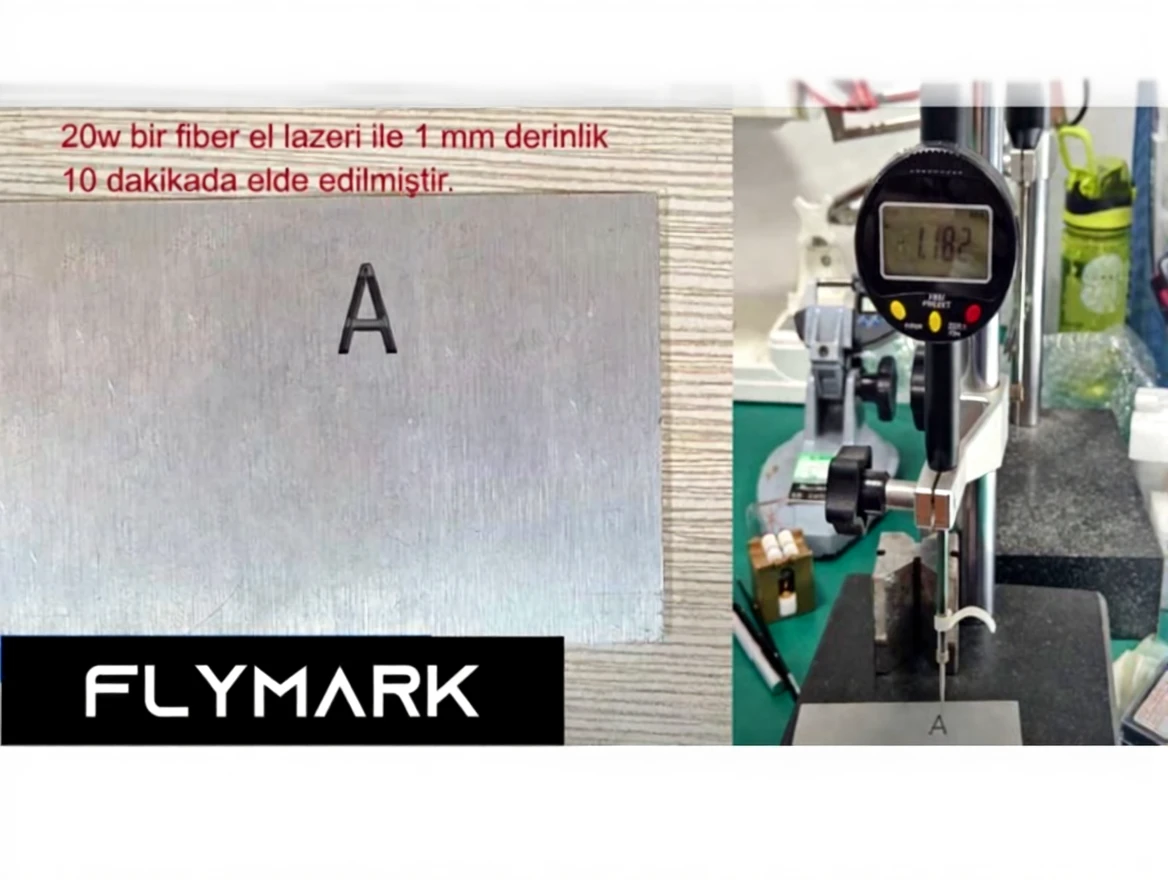

• Suitable for Steel, Aluminum, Painted Materials, and some polymers

20W Handheld Laser Marking Machine Technical Specifications:

Marking Area: X-Y (On the Ground) 70x70mm, 110x110mm (standard), 150x150mm

Required Voltage: AC 220V – 50Hz

Marking Speed: 7000mm/s (High-quality Scanner Head)

Laser Source Output Power: 20 W / 30 W

Laser Source Lifetime: 100,000* hours

PRF Rate: 30-60 kHz (for 30W)

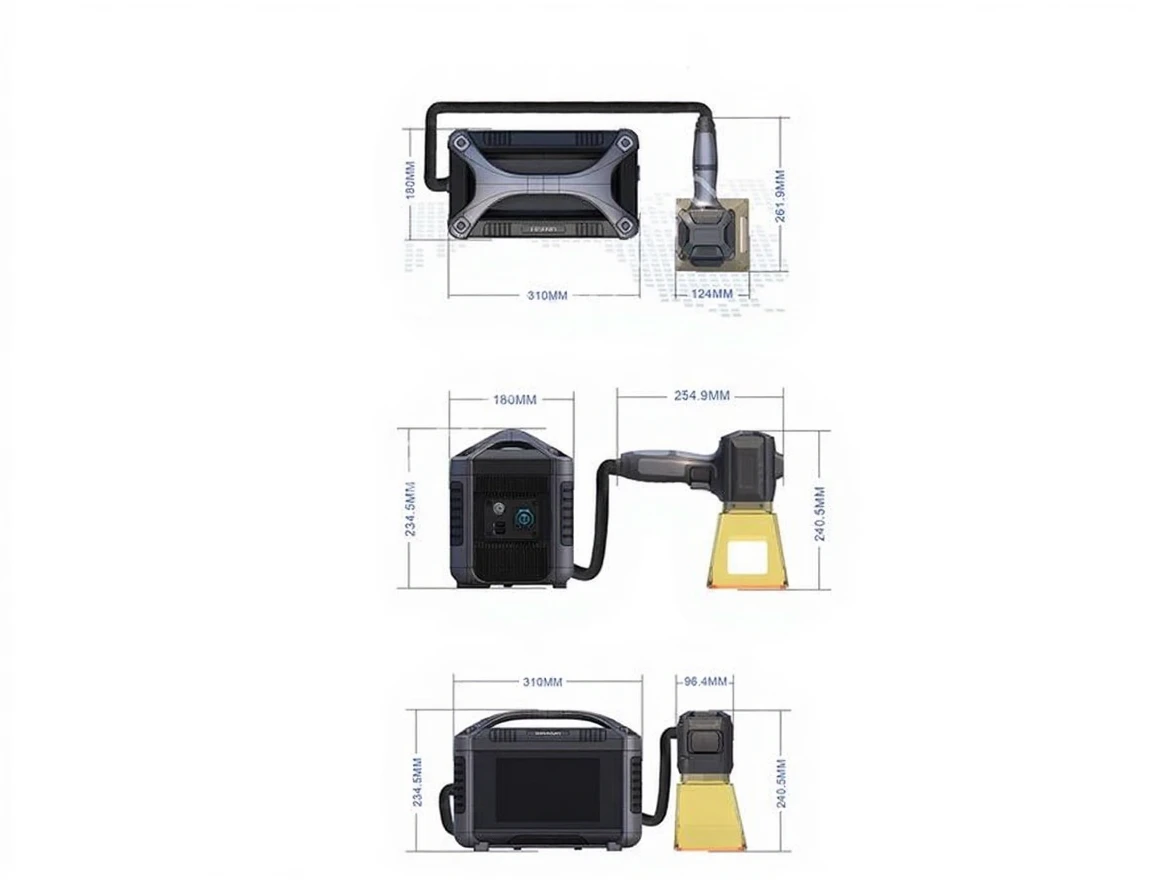

Weight: 6.8 kg

Wavelength: ~1064 nm

Battery Capacity: 10000 mAh (10Ah)*

Power Consumption: 140W to 450W (at 20°C for 30 W)

Environment Humidity and Temperature: %80 – 0°C ~ 40°C

Certification and Warranty Period: CE Certified and 2 years Warranty

Focus System: Auto Focus Distance

Line Width and Repeat Accuracy: 0.03mm and 0.01mm

Linux interface
