21,000 kCal/h Atmospheric Burner Hot Air Generator
| Brand | Termonem |
|---|---|
| Model Type |
A25 |

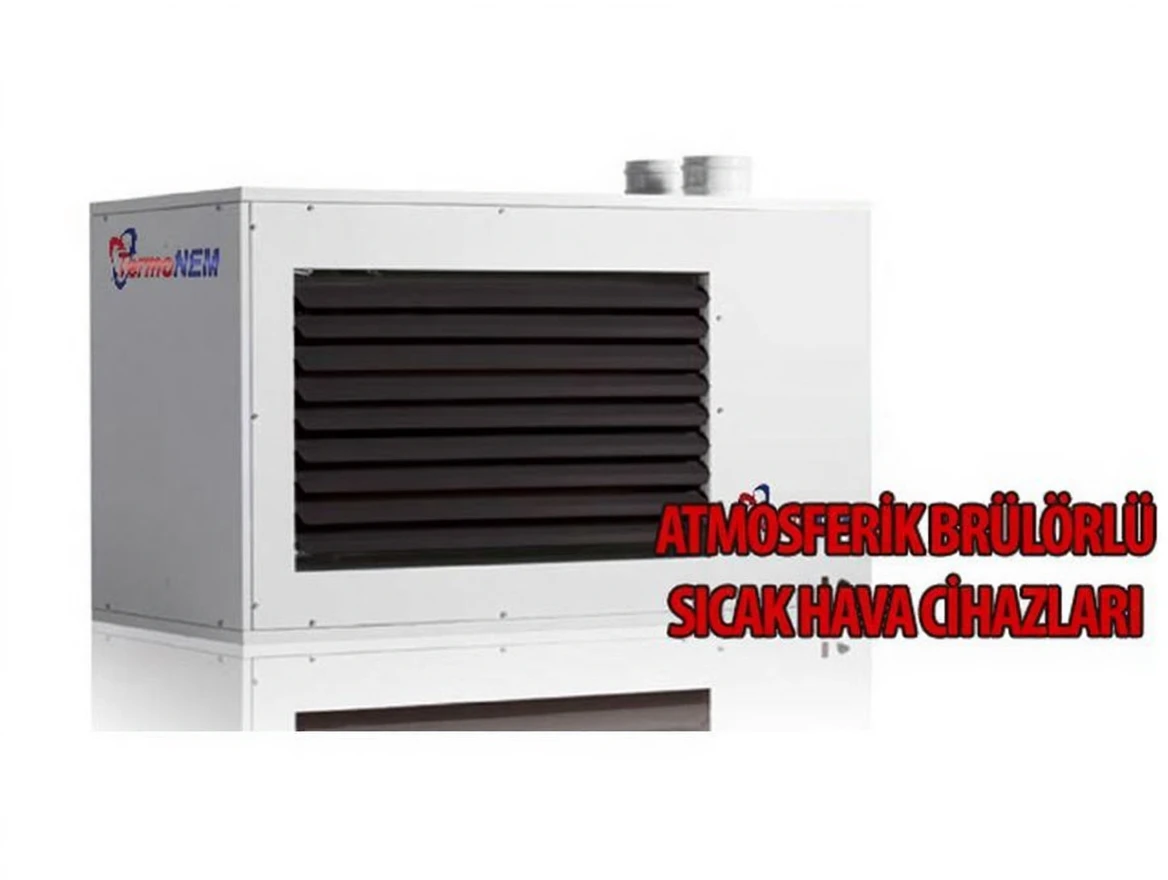

Termonem 21,000 kCal/h Atmospheric Burner Hot Air Generator (Model A25)
Termonem A25 is an atmospheric burner hot air generator that provides safe and efficient hot air. It produces heat at the required point and time; transferring directly from air to air without the need for any intermediary such as water or steam.
Features
-
Electronic ignition, ionization-based flame detection for quiet and comfortable combustion
-
Presostat controlled solenoid valve for safe combustion and air supply
-
Thermostatic control for activating the fan according to the need
-
-
Level safety limit thermostat: 80 °C
-
-
-
Level safety limit thermostat: 100 °C
-
Advantages
-
No boiler, pipe, or hot water distribution lines; minimal energy loss
-
No preheating required; instant and on-demand hot air production
-
Saves space as it is mounted on the wall
-
Mounted 2.5 m above the ground, does not create space loss in the production area
Technical Specifications (Model A25)
| Feature | Value |
|---|---|
| Nominal Heat Output | 21,000 kcal/h (24.4 kW) |
| Nominal Output Power | 18,904 kcal/h (22 kW) |
| Efficiency (%) | 90.4 |
| Air Flow Rate (20 °C) | 1,900 m³/h |
| Delta T | 33 °C |
| Air Blowing Distance | 16 m |
| Gas Consumption (Natural Gas G20, 20 mbar) | 2.57 m³/h |
| Gas Consumption (Propane 0 °C, 1013 mbar) | 1.86 kg/h |
| Fan Motor Power (1F 230 VAC) | 185 W |
| Fan Speed/Minute | 1,300 rpm |
| Noise Level (5 m) | 55 dB(A) |
| Gas Pipe Size | 1/2" |
| Exhaust Outlet Size | 100 mm |
| Clean Air Inlet Size | 130 mm |
| Length (A) | 635 mm |
| Width (B) | 495 mm |
| Height (C) | 750 mm |
| Net Weight | 58 kg |
Applications
-
Factories, production, and warehouse areas
-
Workshops and large enclosed spaces
-
Industrial environments requiring fast and efficient heat distribution
Termonem A25 offers a reliable heating solution with low operating costs and high energy efficiency.
