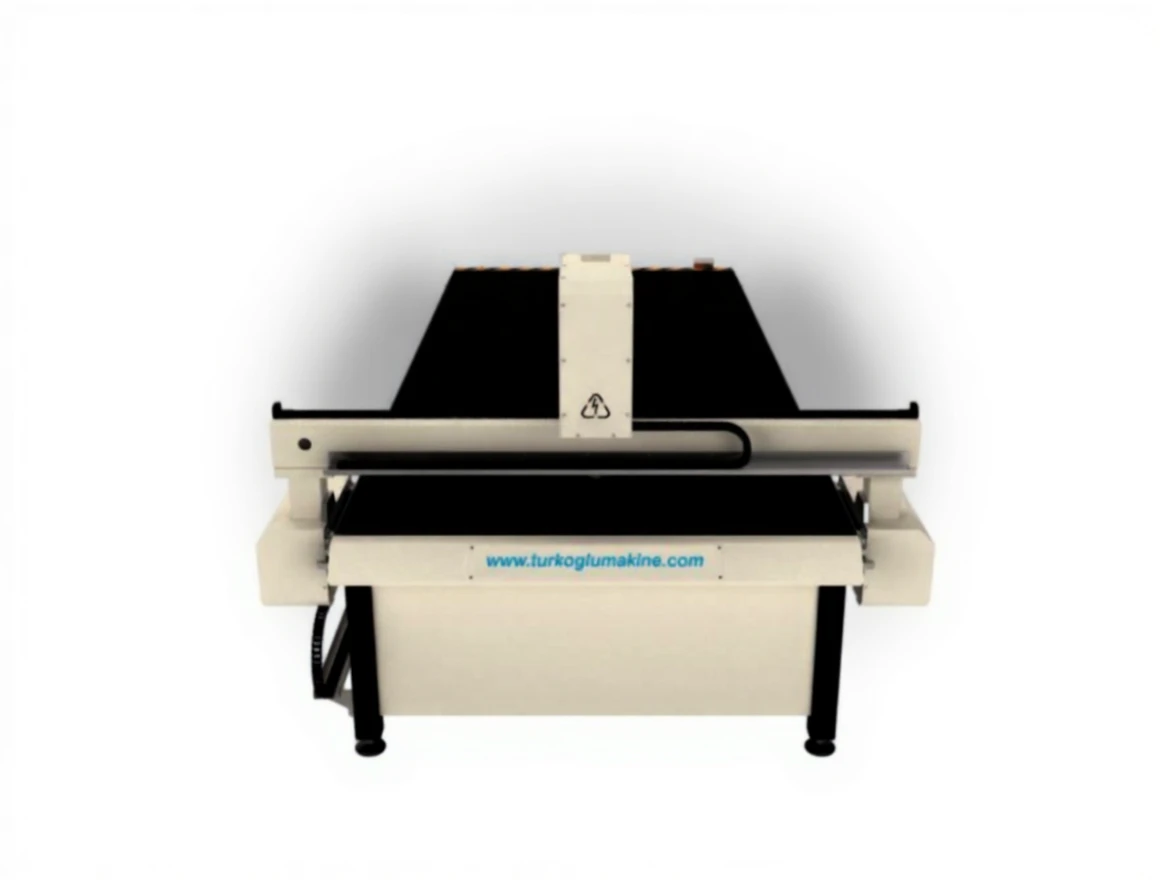

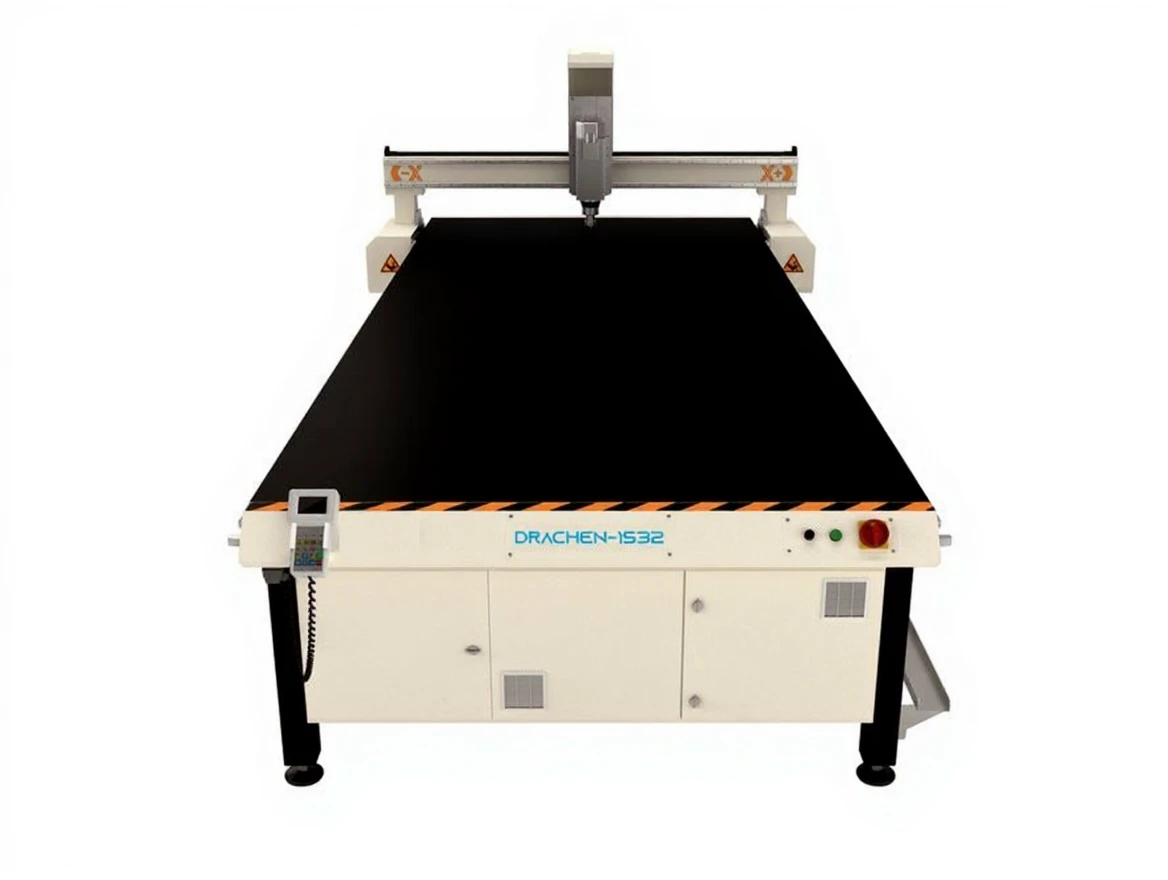

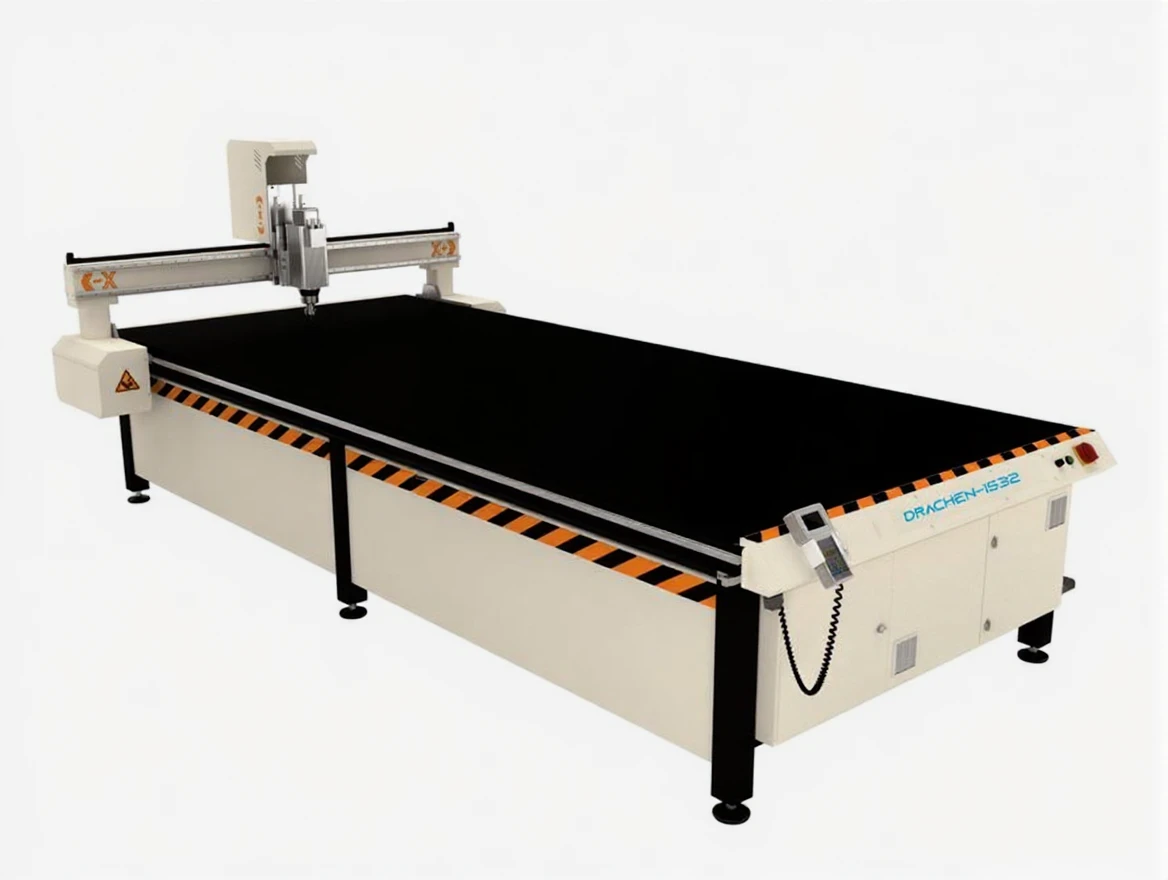

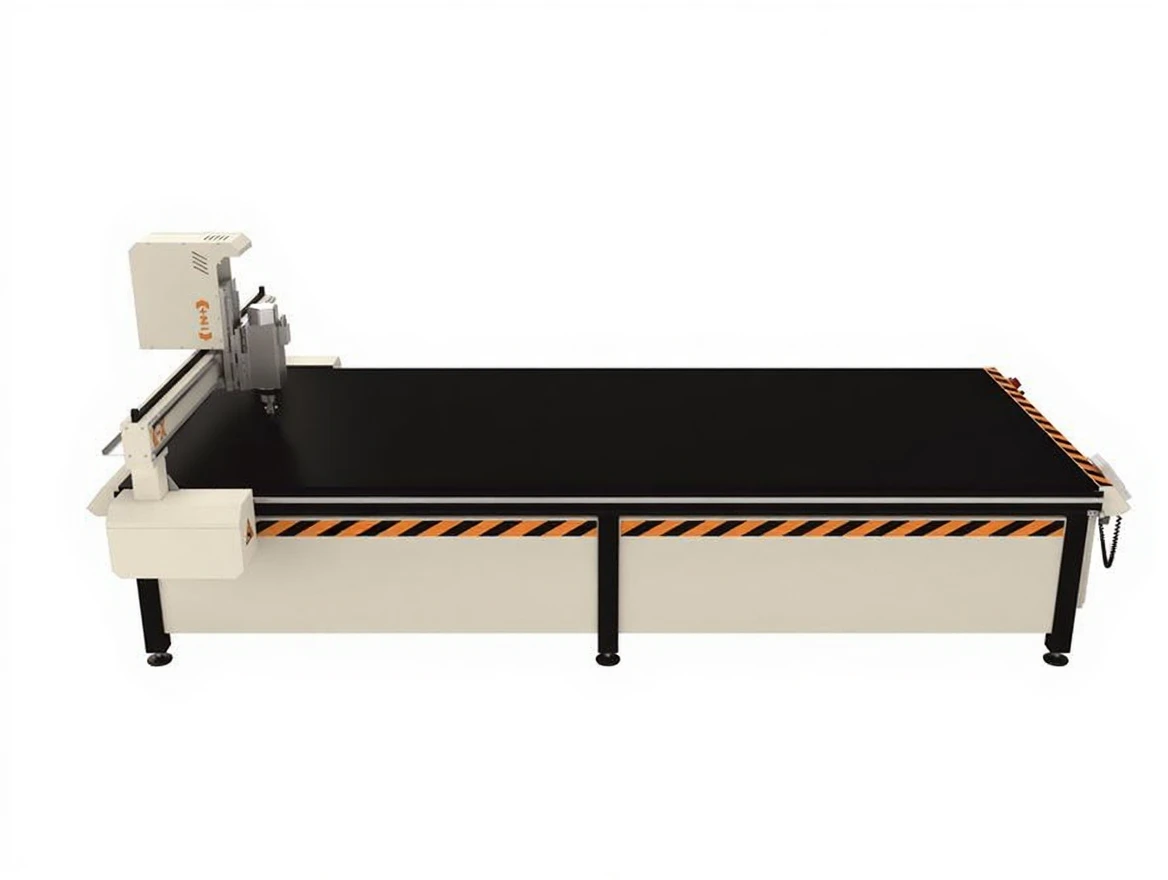

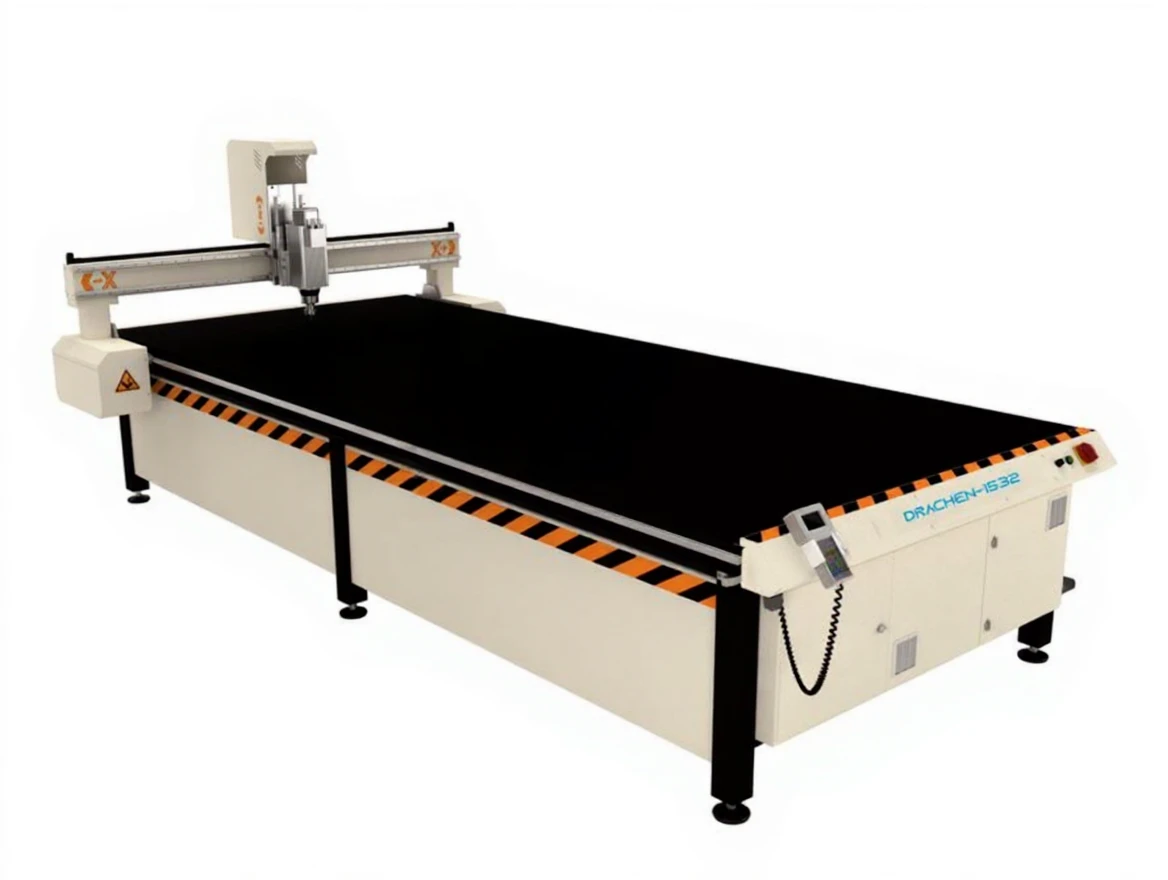

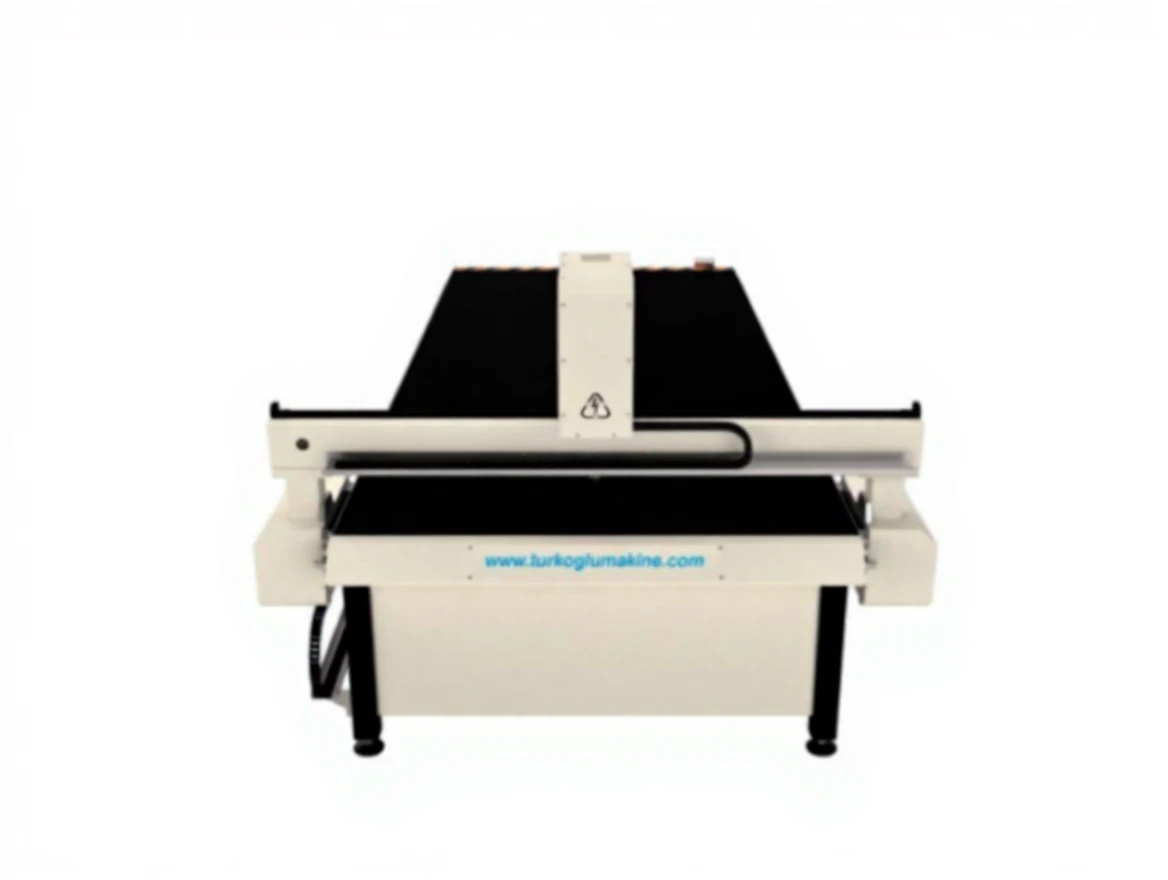

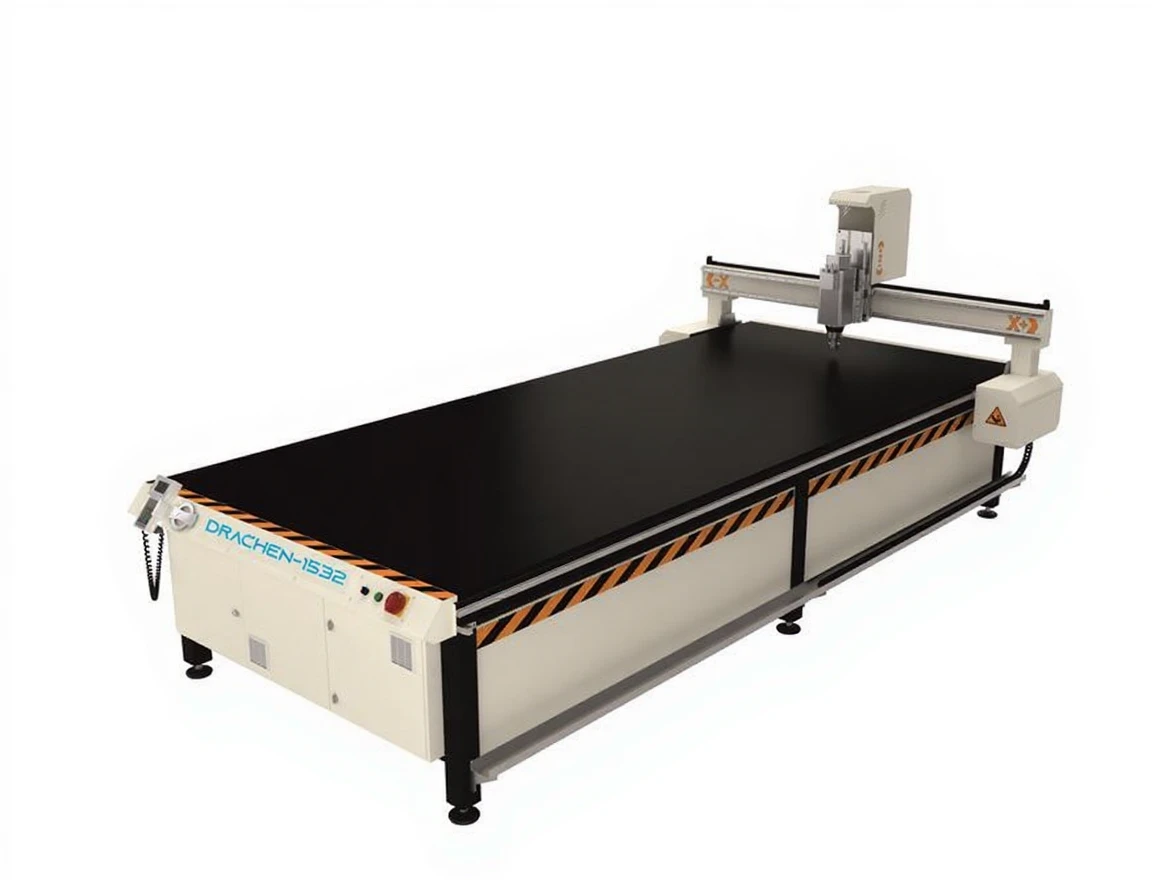

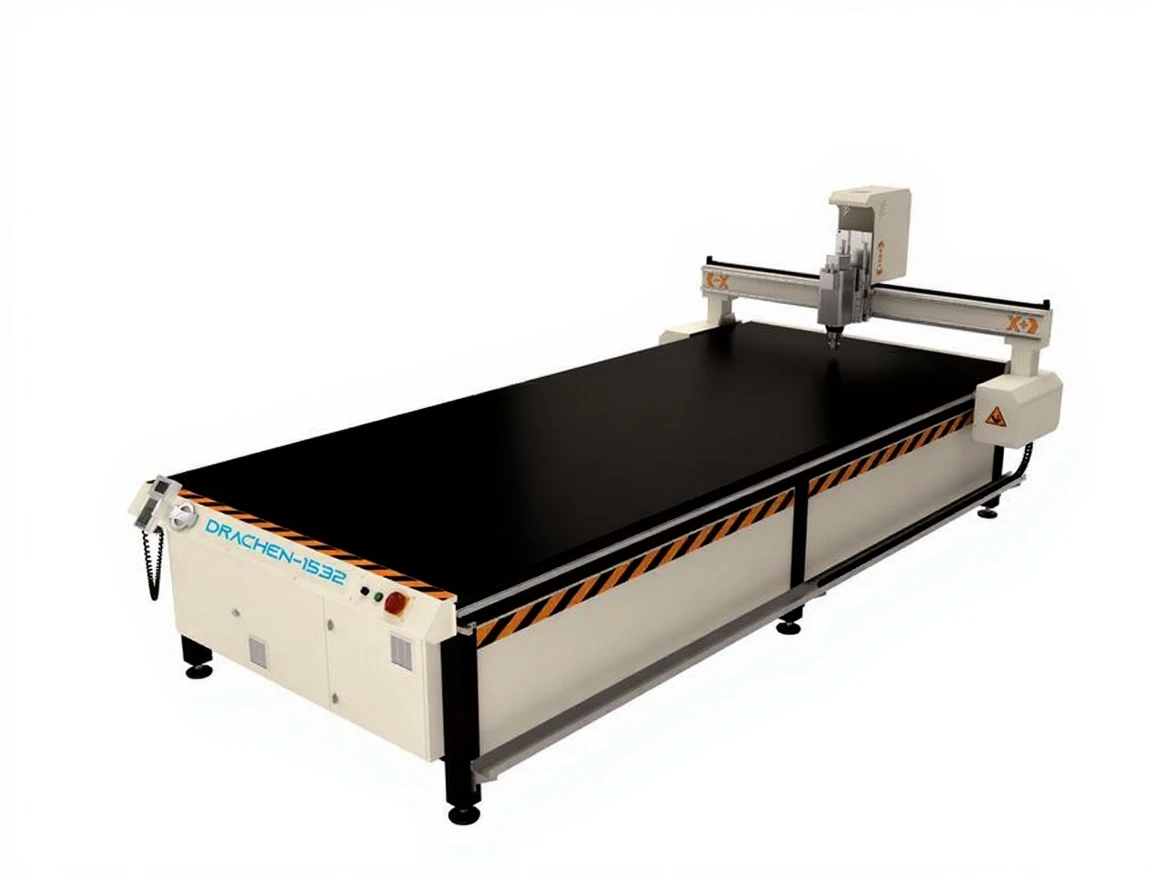

2100x4000x150 mm Advertiser CNC Router

2100x4000x150 mm Spectra Advertiser CNC Router

General Specifications
*Working area of 1500X3200X150 – 2100x4000x150 mm (Can be produced in custom sizes)
*2.2 Kw, 220v 18000 Rpm internal fan-cooled steel ball bearing spindle (Domestic Production)
*Step motors (X, Y1, Y, Z)
*Drive system with 70:1 ratio reducer
*Control system from the panel (Domestic Production)
*Traverse speed of 10 m/minute in idle mode
*1.5 module helical drive system (Provides faster, quieter, and more precise movement)
*Fault detection system
*25 mm MDF table
*Air installation for cleaning inside the machine
*Internally produced electronic panel and material cabinet in compliance with European standards
*Reinforced iron chassis (Total weight between 1250-1350 kg)

Compatible Materials
Plastic, Plexiglas, MDF, Chipboard, Composite Panel, etc.
