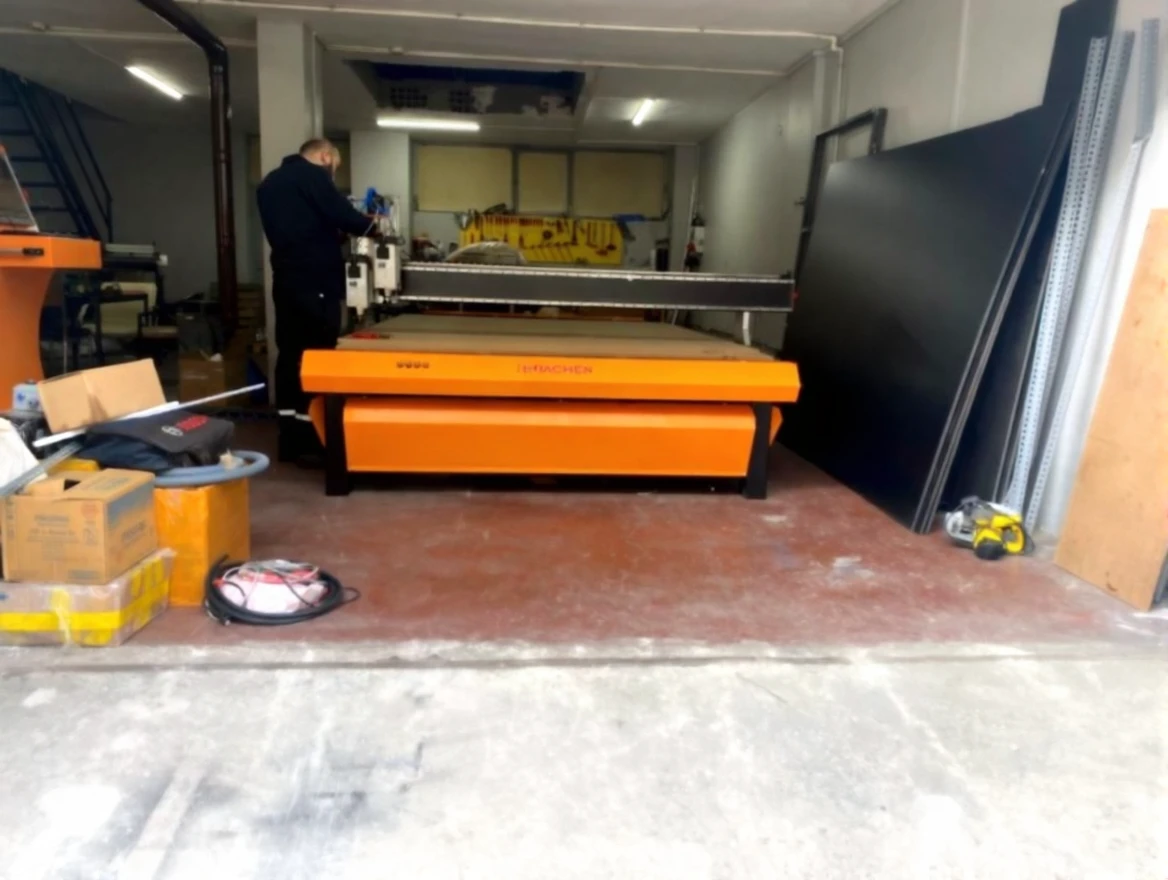

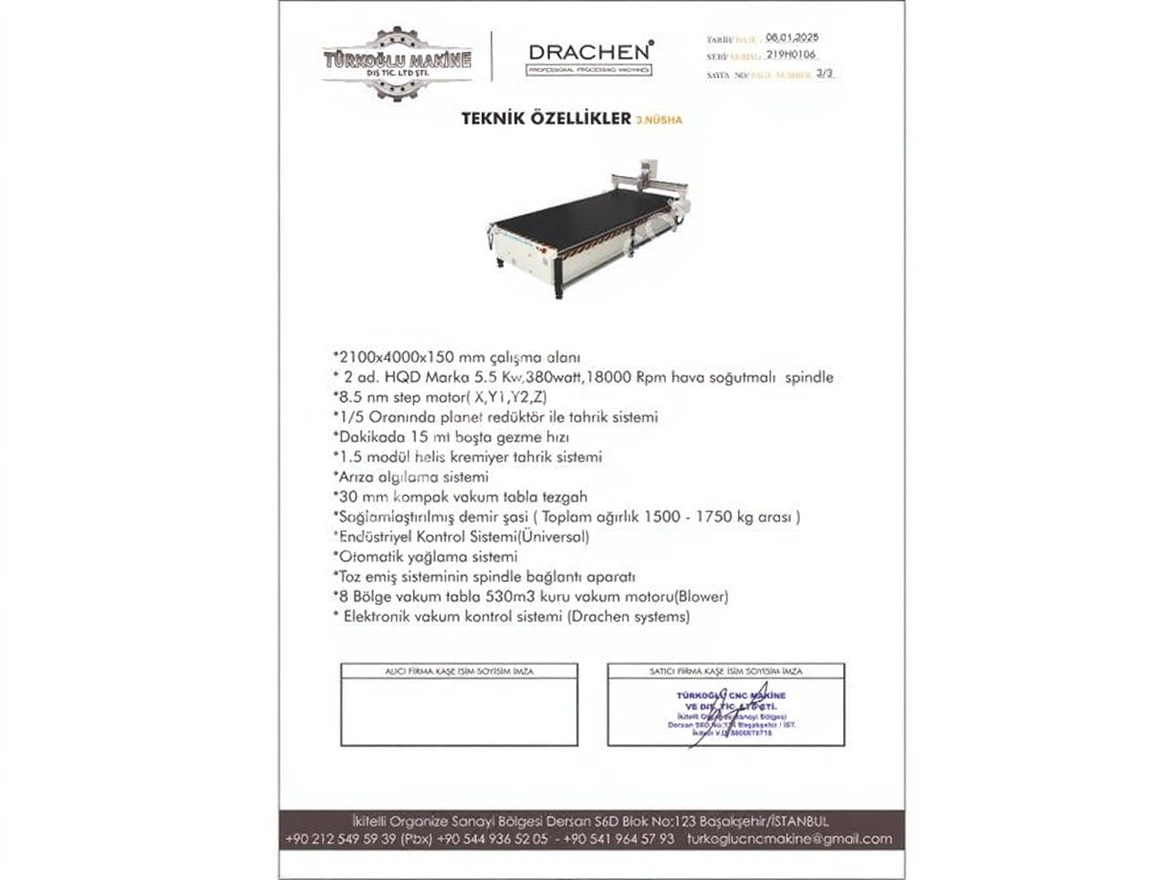

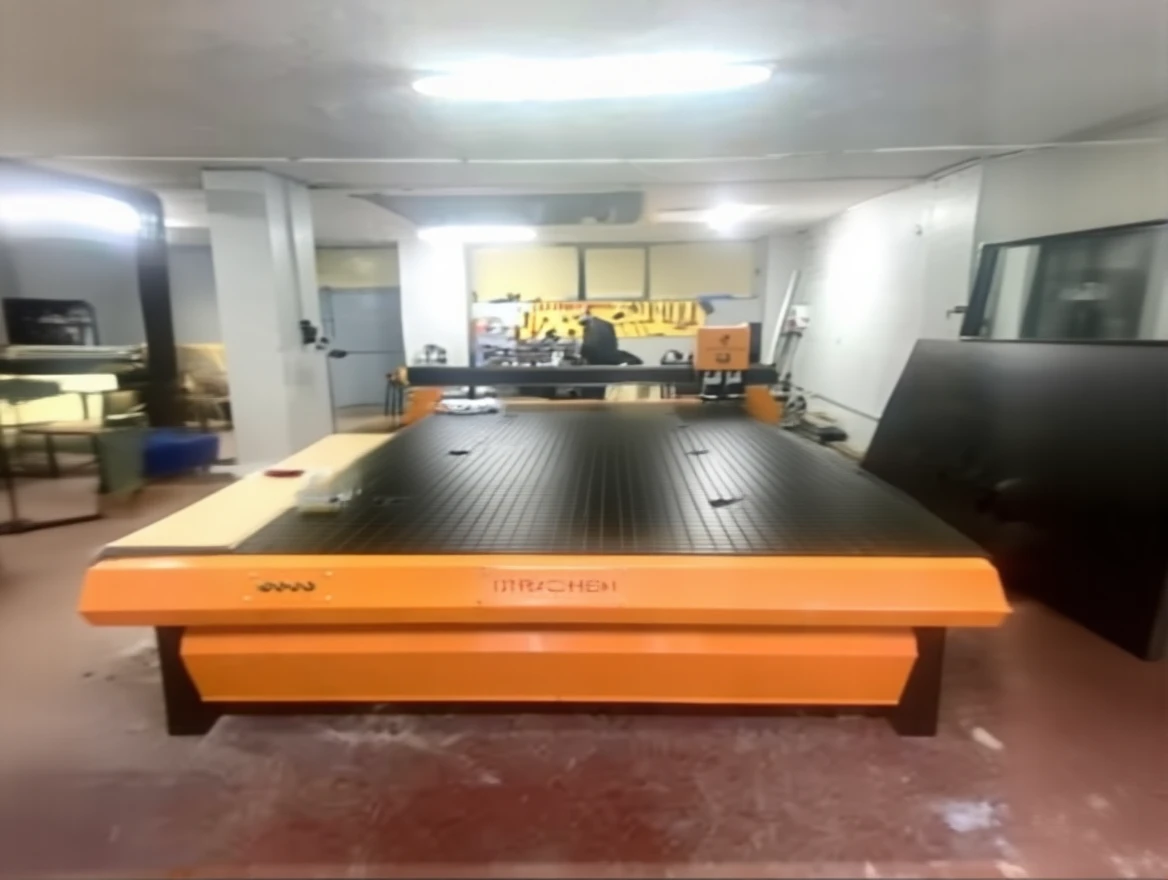

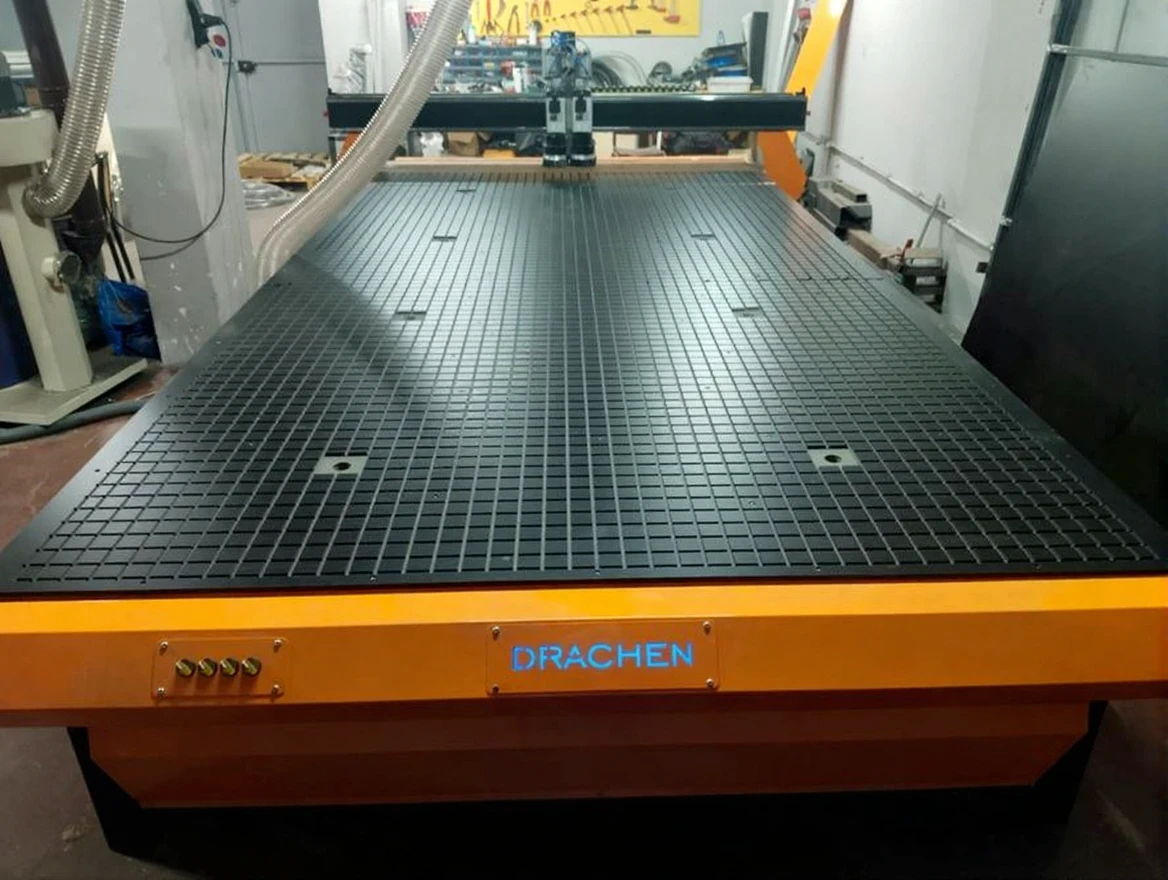

2100x4000x150 mm Wood Processing CNC Router

*2100x4000x150 mm working area

• 2 pcs. HQD Brand 5.5 Kw, 380watt, 18000 Rpm air-cooled spindle *8.5 nm step motor (X,Y1,Y2,Z)

*Drive system with 1/5 ratio planetary reducer

*15 m/min idle travel speed

*1.5 module helical rack drive system

*Fault detection system

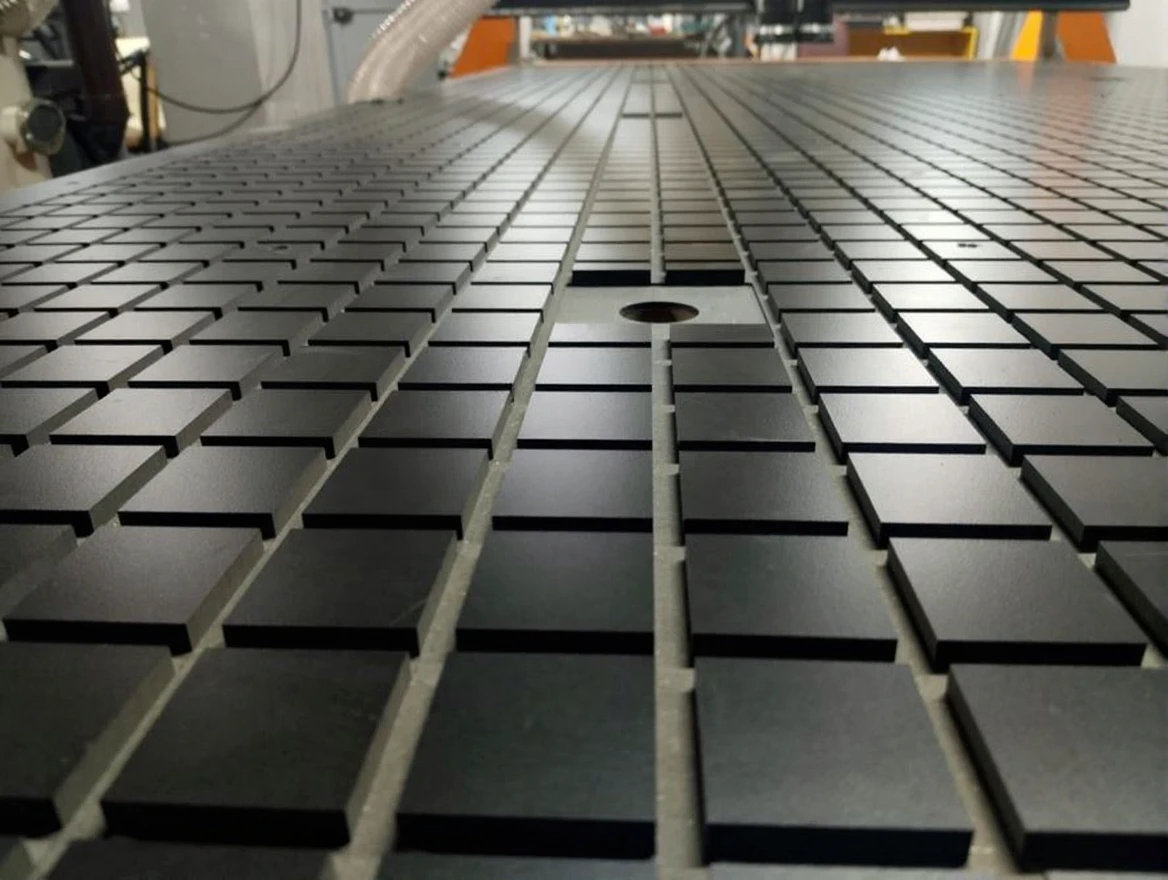

*30 mm composite vacuum table

*Reinforced iron chassis (Total weight between 15kg)

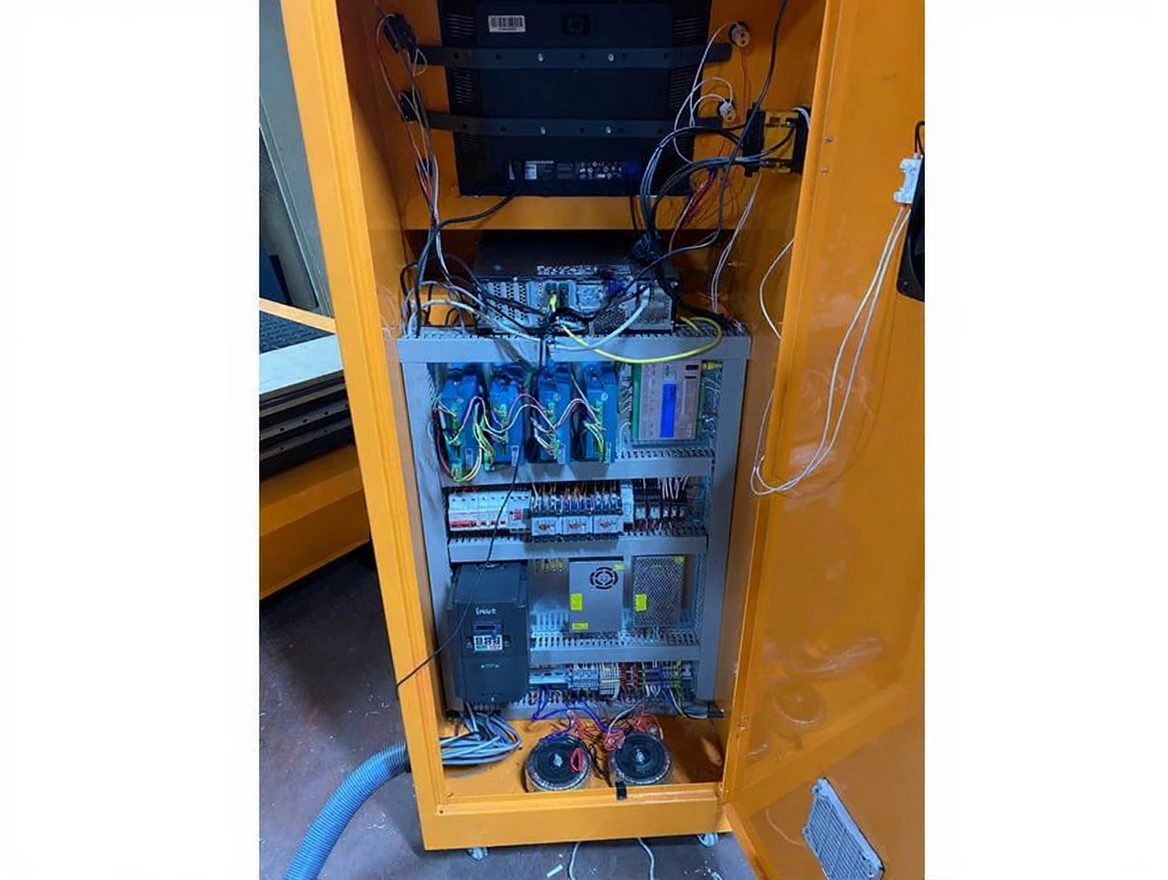

*Industrial Control System (Universal)

*Automatic lubrication system

*Spindle connection apparatus of dust extraction system

*8 zone vacuum table 530m3 dry vacuum motor (Blower)

• Electronic vacuum control system (Drachen systems)
