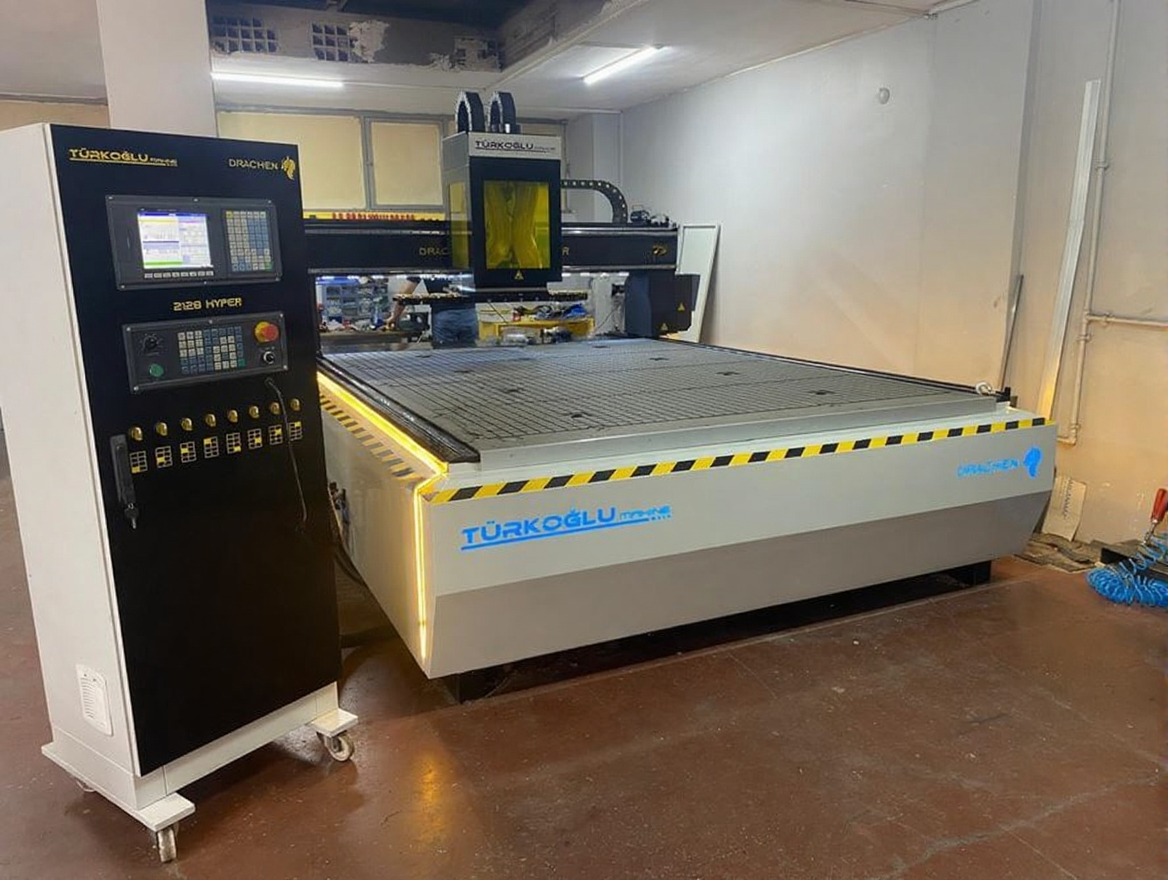

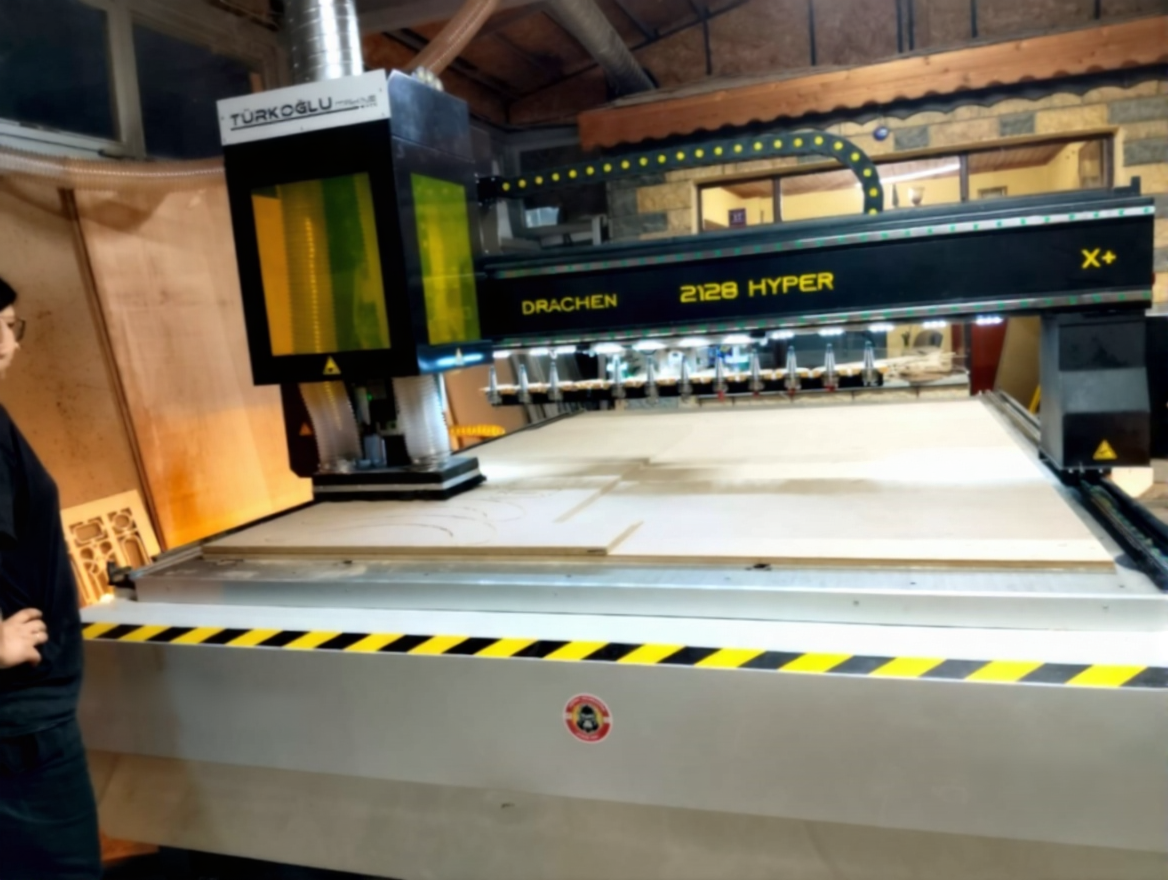

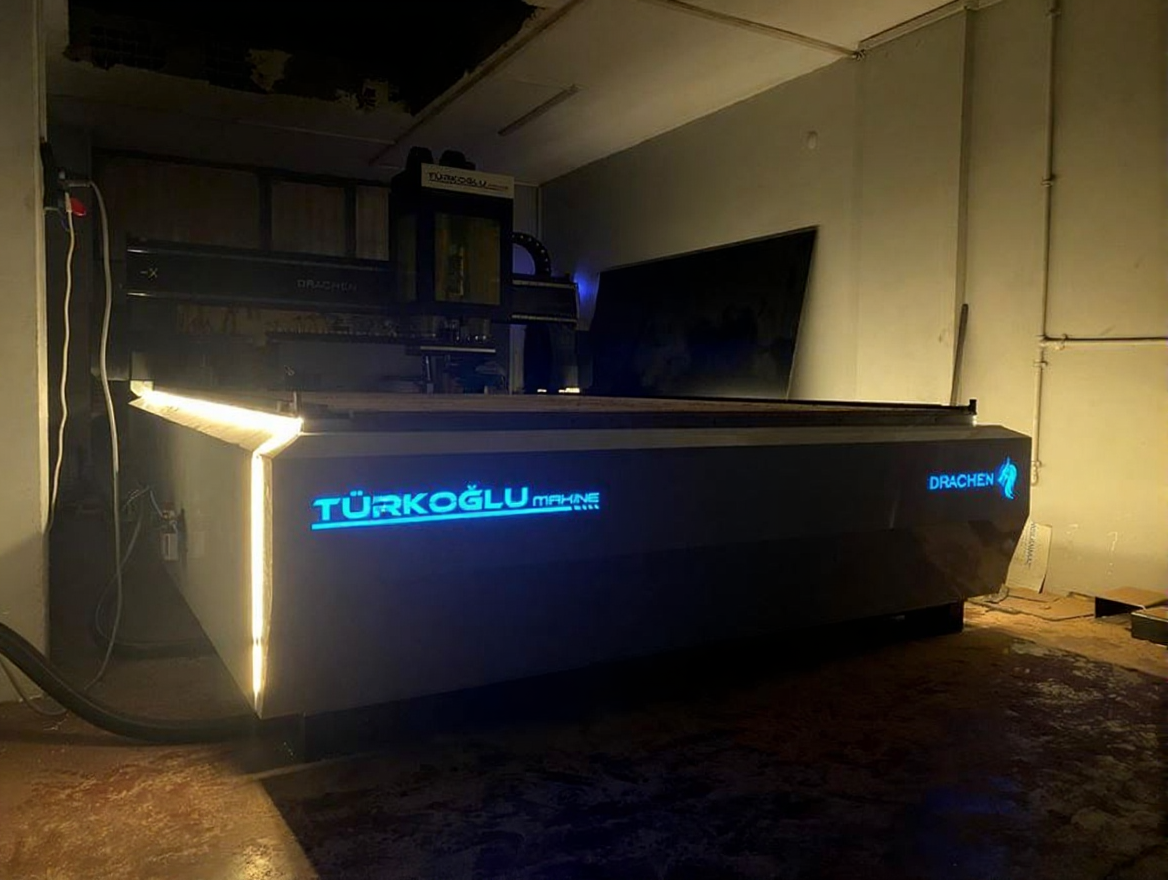

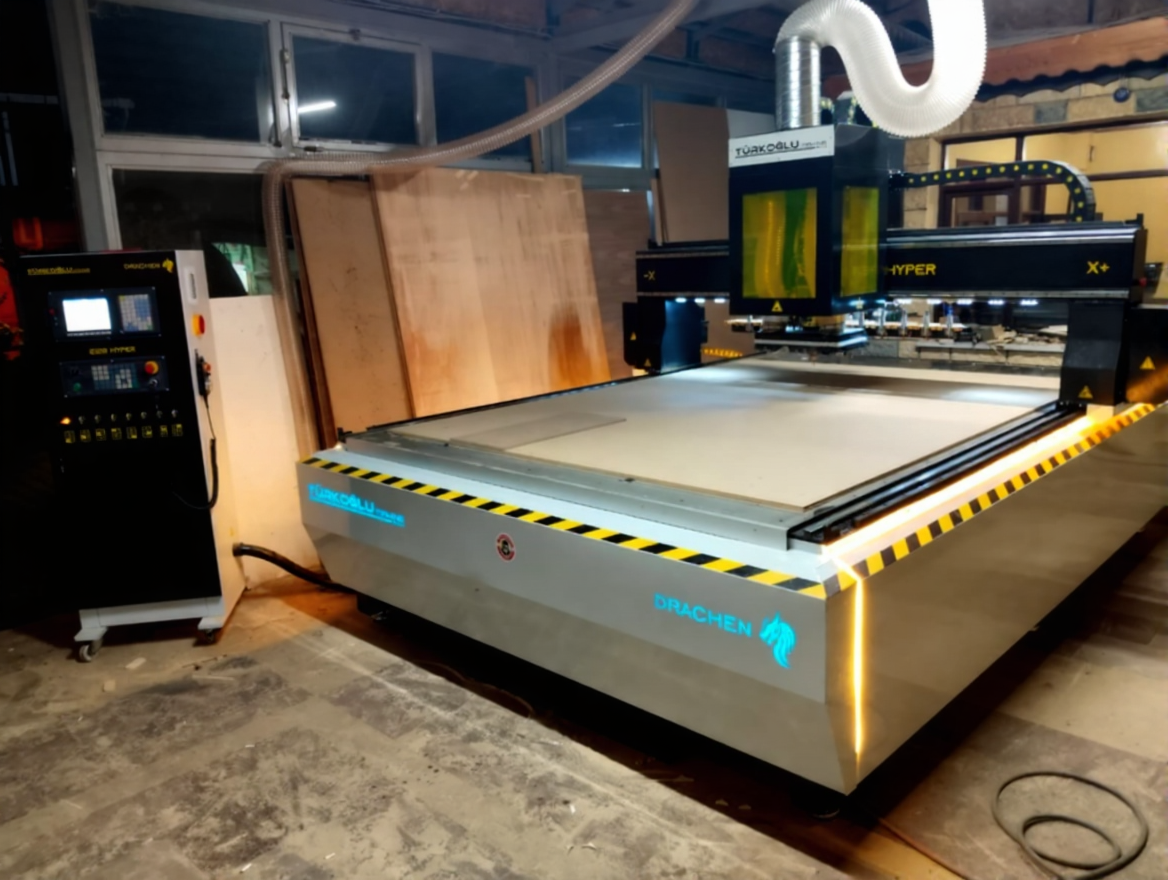

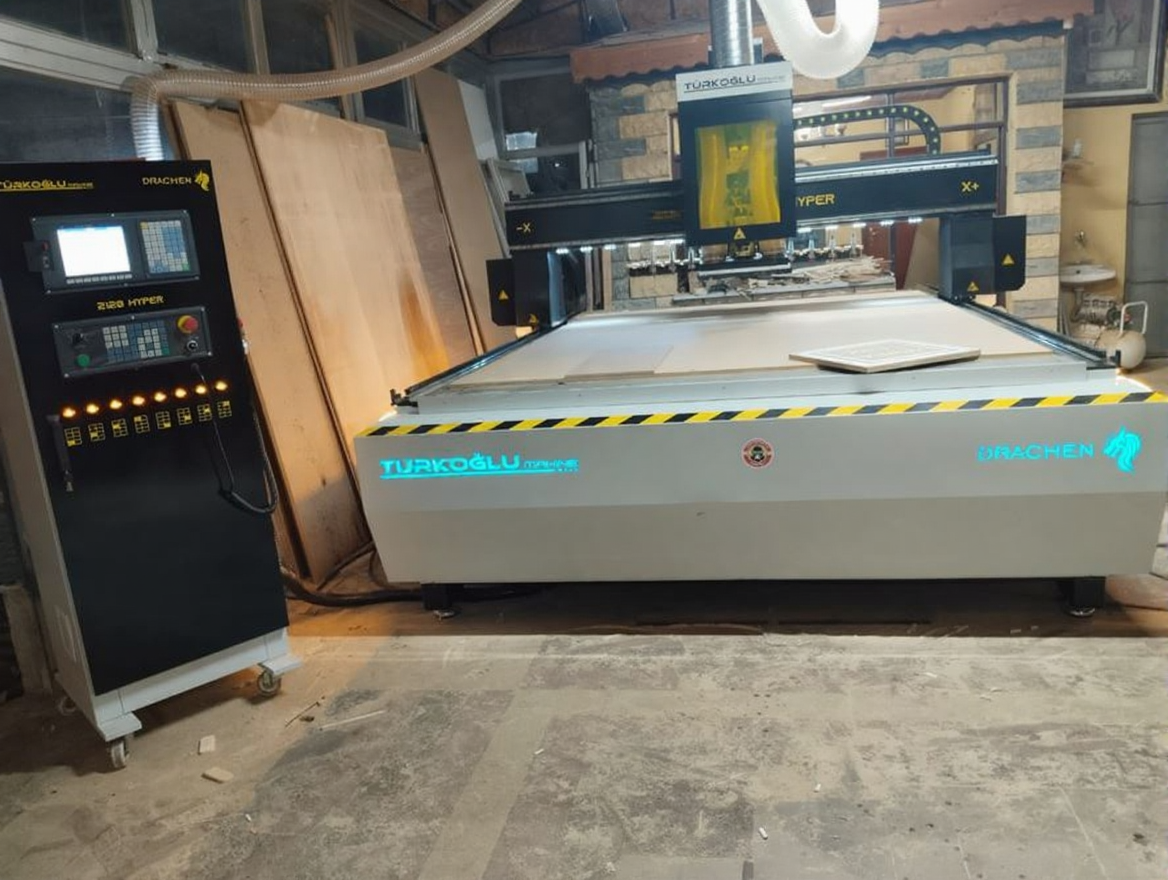

210x280x15 cm CNC Wood Processing Machine

10x280x15 cm CNC Wood Processing Machine

Net Working Area: 210x280x15 cm

Industrial Control System
(Remembers its position during power outages and resumes work)

Wired Handwheel: Allows precise and remote control of the machine

X-Axis: 1.5 kW Servo Motor

Y-Axis: 1.5 kW Servo Motor

Z-Axis: 1 kW Braked Servo Motor

All Axes: 3 Archmin 120 body reducers with a 1/7 ratio

Tool Change: 12 units under the bridge

Linear Motion System: All axes are precision 25mm

Gear and Pinion: Ground German GAMBINI brand

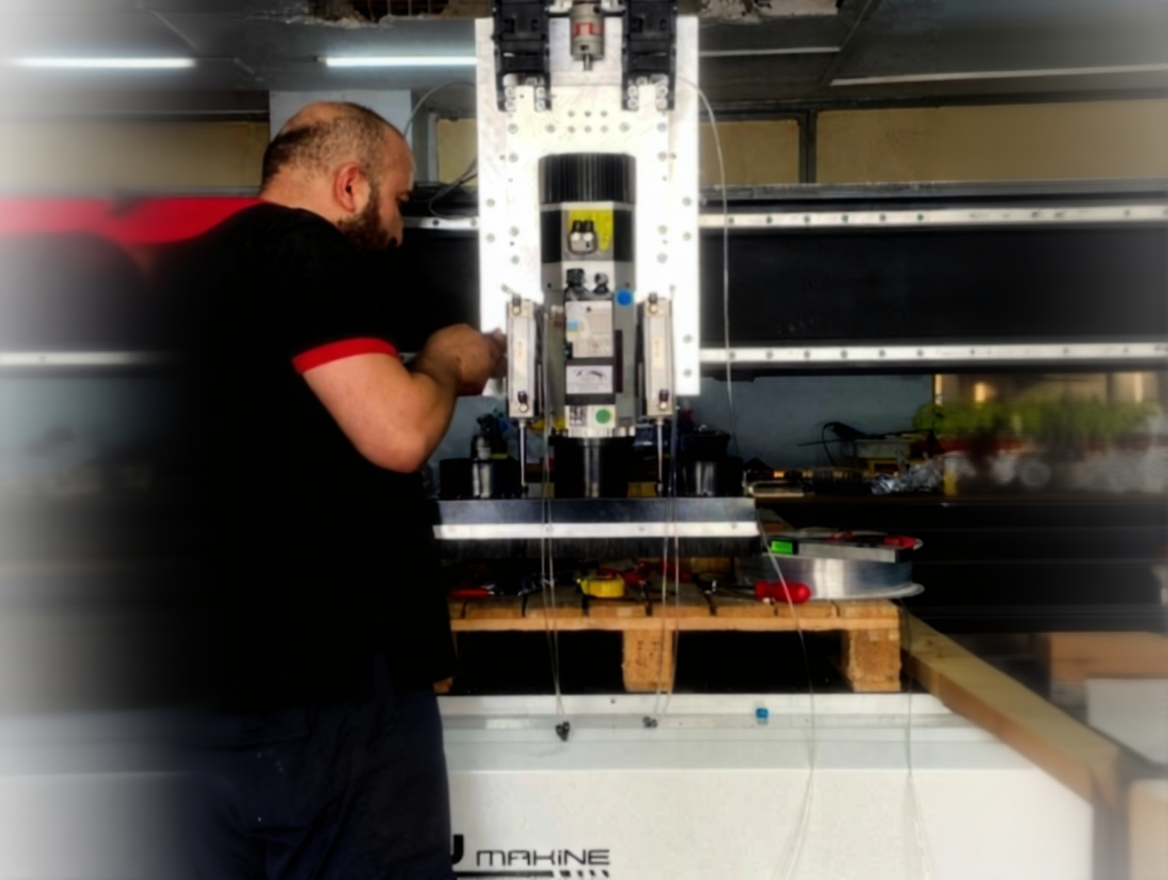

Spindle Motor: Imported 9kW, 24,000 rpm, ceramic bearing

Vacuum Motor: 7.5 kW blower, 530m

Vacuum Table: Operates regionally, electronically, and automatically

Table: Compact material

Motor Tool Reset Probe

Automatic Tool Lubrication System

Manual Lubrication Press for all axes

Industrial Design Emergency Stop Button

Industrial Design Electrical Panel
