Ø 22- 120Mm Portable Pipe Drilling Machine
| Brand | Elsa |
|---|---|
| Model Type |
Basic |

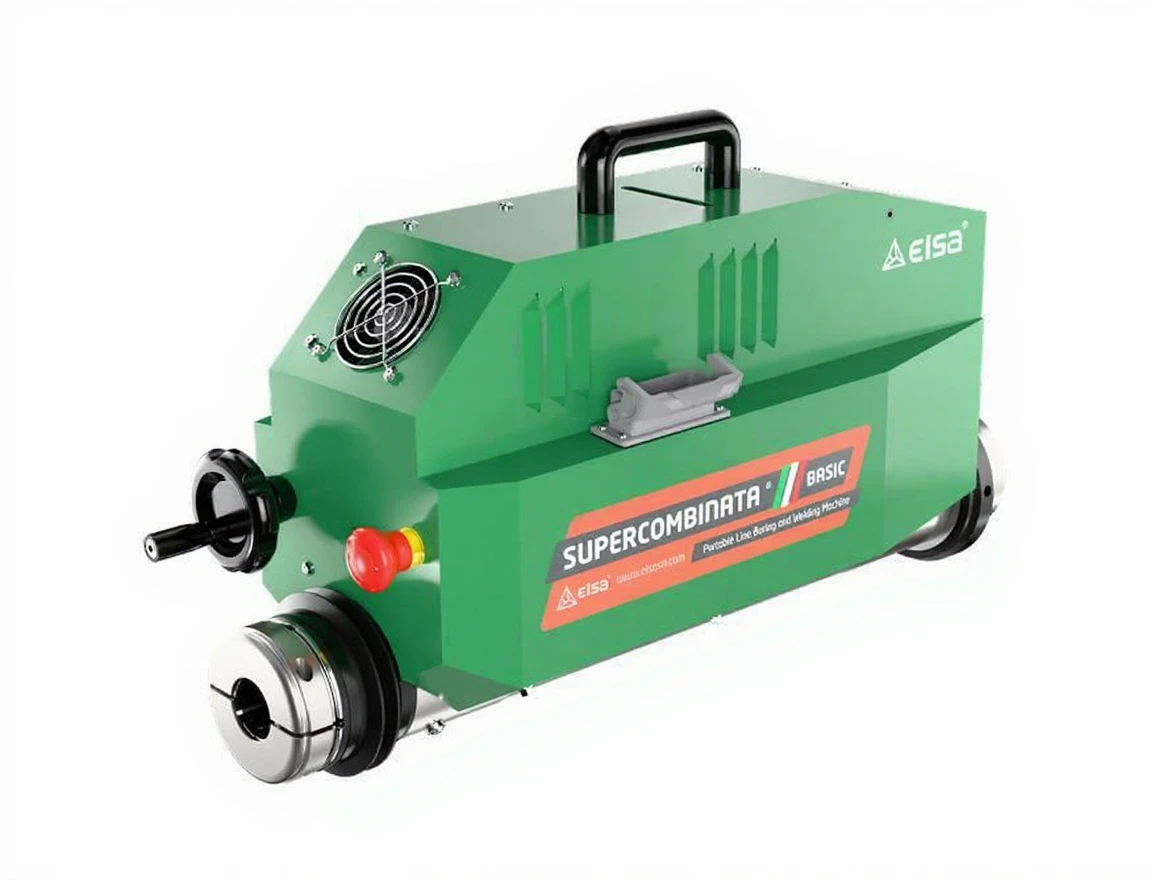

Ø 22- 120mm Portable Boring Machine
Supercombinata BASIC is a professional performance and affordable entry-level solution of the Supercombinata series. The machine with its standard equipment can perform internal boring operations in the range from Ø 22 mm to 120 mm, making it ideal for repairs and simple applications in the excavation field.
With the BASIC 250 kits, the machine can also perform internal boring and facing up to Ø 250 mm and can create external turning, facing at right angles, and up to Ø 250 mm for seeger ring slotting with other additional kits.
|
Technical Specifications |
|
|---|---|
|
Bar Diameter |
: ∅ 20×1800 MM / ∅ 40×1500 MM |
|
Boring |
: ∅ 22- 120 MM |
|
External Turning |
: Additional Kit |
|
Internal Welding |
: Additional Kit |
|
Facing at Right Angles |
: Additional Kit |
|
Dimensions Longitude Stroke |
|
|---|---|
|
Voltage |
: 230 V (50Hz) |
|
Main Switch |
: Available |
|
Emergency Stop Button |
: Available |
|
Inverter Feed |
: RH/LH |
|
Inverter Rotation |
: CW/CCW |
|
Speed Regulator |
: Rotation/Feed |
|
Electric Power Consumption |
: 2000 W |
|
Control Panel 110/120 V |
: On request |
|
Electronic Control Panel Feed Motor |
|
|---|---|
|
AC Motor |
: Single Phase |
|
Power at Nominal Speed |
: 1800 W |
|
Bar Output Torque |
: 120 rpm With 290 NM |
|
1st Speed |
: Maximum 115 rpm (145 NM) |
|
2nd Speed |
: Maximum 400 rpm (45 NM) |
|
Length |
: 680 MM |
|
Width |
: 240 MM |
|
Height |
: 380 MM |
|
Weight Center Unit |
: 36 KG |
|
Dimensions Feed Motor |
|
|---|---|
|
Gear Motor |
: DC |
|
Power at Nominal Speed |
: 90 W |
|
Max. Speed |
: 11 rpm |
|
Feeding System |
: Electromechanical |
|
Feeding |
: Manual / Automatic |
|
Spiral |
: Follows Changing Steps |
|
Welding Machine |
: Compatible with EURO Conn. MIG/MAG Welding Machines |
