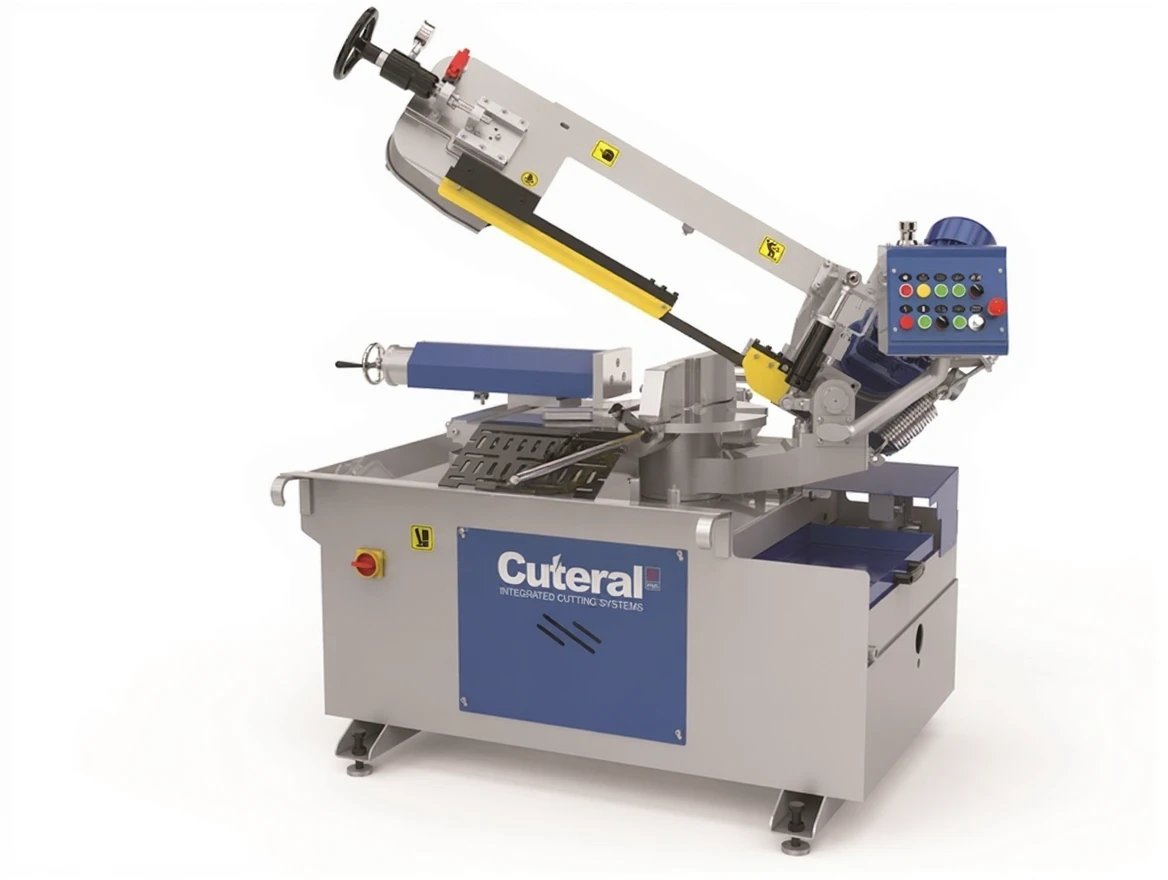

220 mm Semi-Automatic Double Direction Angled Band Saw Machine
| Brand | Cuteral |
|---|---|
| Model Type |
PSM 220/330 DM |
Description
Cuteral PSM 220/330 DM
220 mm Semi-Automatic Double Direction Angled Band Saw Machine
Cuteral PSM 220/330 DM Technical Specifications
| A | 1555 mm | |||
| B | 1670 mm | |||
| C | 1185 mm | |||
| D | 400 mm | |||
| E | 695 mm | |||
| F | 455 mm | |||
| hmax | 2010 mm | |||
| Semi-Automatic | ||||
| Blade Size | 27 x 0.9 x 3175 mm | |||
| Blade Motor | 1.1 kW – 1000 rpm | |||
| Drive Motor | Manual | |||
| Hydraulic Motor | 0.75 kW – 1400 rpm | |||
| Coolant Motor | 0.12 kW – 3000 rpm | |||
| Voltage | 400 V | |||
| Maximum Power | 1.97 kW | |||
| Cutting Speed | 25 m/min – 100 m/min | |||
| Weight | 670 kg | |||
| Material Clamping System | Pneumatic | |||
| Blade Tensioning System | Hydromechanical | |||
| Cutting Capacity 90° Length | 220 mm | |||
| Cutting Capacity 90° Width | 330 mm | |||
| Material Cutting Angles | -45° | 220 mm | 180 mm | 220 x 180 mm |
| -30° | 220 mm | 220 mm | 220 x 280 mm | |
| 0° | 220 mm | 220 mm | 220 x 330 mm | |
| 30° | 220 mm | 220 mm | 200 x 280 mm | |
| 45° | 220 mm | 210 mm | 210 x 180 mm | |
| 60° | 130 mm | 110 mm | 100 x 130 mm | |
