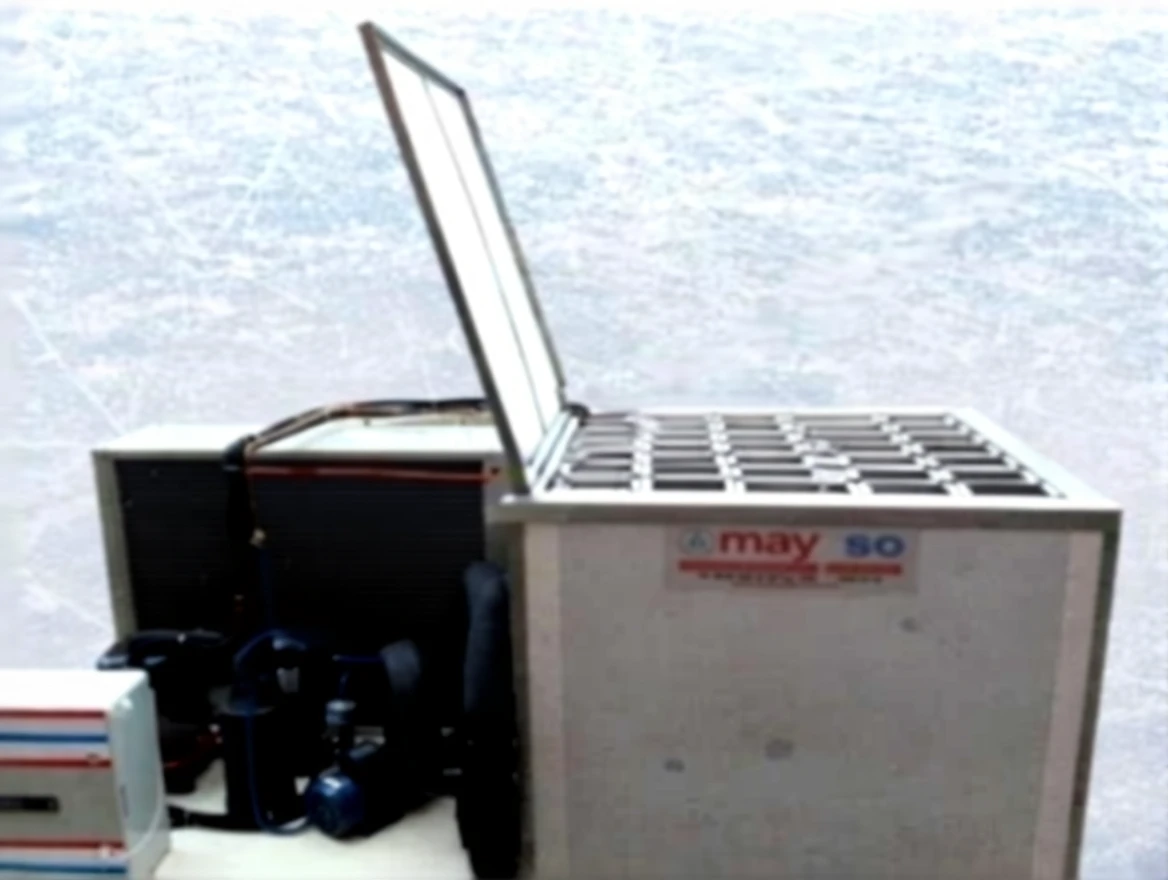

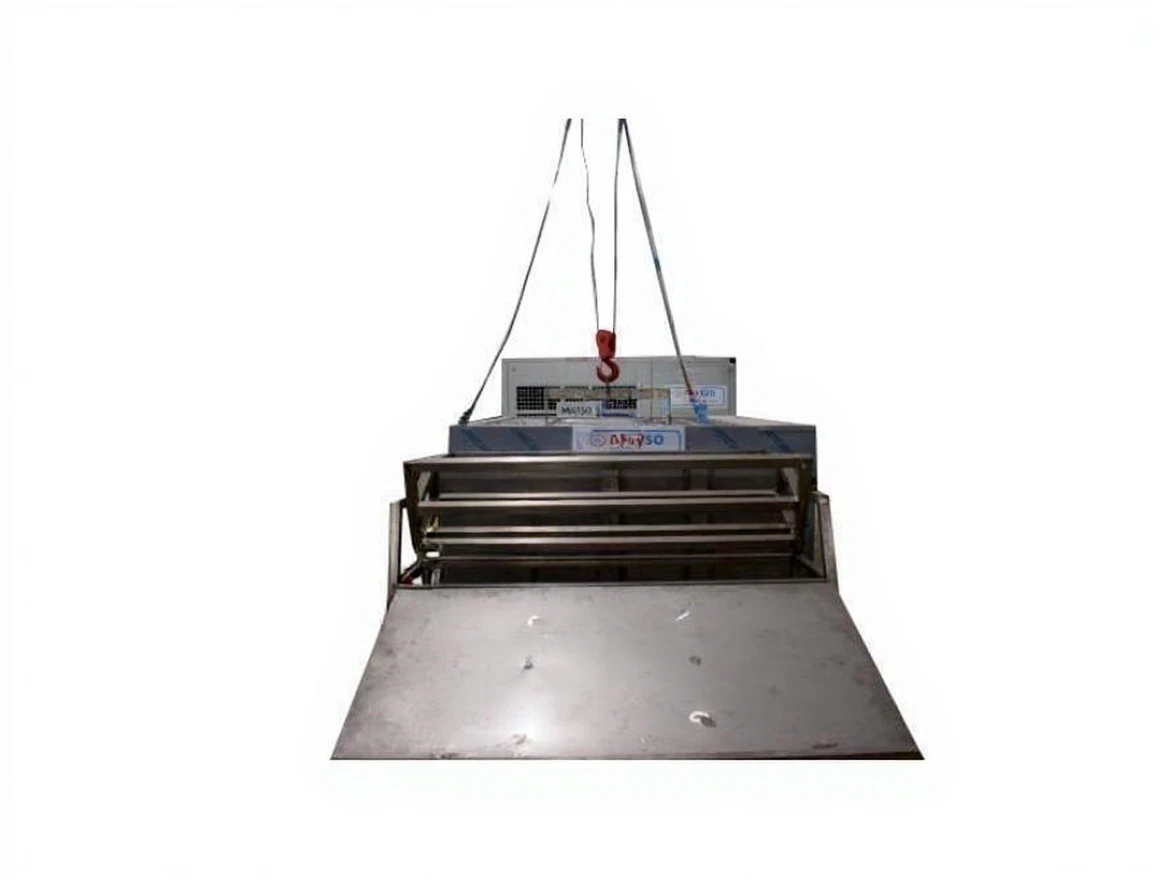

2200 Kg / Day Mold Ice Machine

Brand Mayso Soğutma
Model Type

MYBZ-BLK / 2 T

Category:
Description

2200 Kg / Day Mold Ice Machine

The MYBZ-BLK / 2 T model Mold Ice Machine produced by Mayso Cooling provides block ice production with a capacity of 2200 kg/day. This machine produces block ice using fresh water, cooled with brine in tanks at -15°C.

Features:

  • Capacity: An ideal solution with a capacity of 2200 kg/day.

  • Block Ice Production: Block ice is produced by cooling brine water at -15°C using fresh water.

  • Electricity and Water Savings: Mayso Cooling stands out with high energy efficiency and water savings.

  • High Performance: Operates safely in all environments, including non-standard climate conditions.

Technical Specifications:

  • Capacity: 2200 kg/day ice production capacity

  • Ice Type: Mold Ice (Block Ice)

  • Water Type: Operates with fresh water

  • Cooling System: Block ice production is done with a brine cooling system

Advantages:

  • Energy Efficiency: More efficient operations with low energy consumption.

  • Water Savings: High efficiency with low water consumption.

  • Environmentally Friendly: Environmentally friendly operation by efficiently using natural resources.

  • Durability: Smooth operation in various climate conditions.

Areas of Use:

  • Food Industry: Used for cooling fresh food and fish products.

  • Fishing: An ideal solution for storing fish.

  • Industrial Cooling: Suitable for industrial facilities with high cooling requirements.

Block Ice Machines provide high efficiency and energy savings, significantly reducing operating costs. It offers an ideal solution for medium-sized facilities with a capacity of 2200 kg/day. You can contact us for detailed information and a price quote.

Mayso Cooling MYBZ-BLK / 2 T Technical Specifications

Machine Model

MYBZ-BLK / 2 T

Daily Ice Capacity

2200 Kg / 24h

Block Ice Weight

15 Kg

Number of Molds

49

Daily Ice Mold Count

147 Pieces

Ice Production Time

6 / 7 Hours

Ice Output Temperature

-10 / -12 °C

Ice Color

White Matte

Water Inlet Temperature

20 °C

Cooling Capacity

12,300 Watts

Refrigerant

R404A

Compressor Type

Semi-Hermetic

Total Power Consumption

10.5 kW

Compressor Power

8 kW

Condenser Fan Power

1.5 kW

Stirring Motor Power

1 kW

Energy Input

3P/380V/50Hz

Total Amperage Draw

19 Amps

Evaporator Type

Copper Coil

Evaporator Temperature

-20 °C

Condenser Temperature

45 °C

Condenser Cooling Type

Air-Cooled

Ice Freezing Type

Brine Water

Machine Dimensions

116x315x150 cm

Machine Weight

900 kg
