220×3100 mm CNC Bending Press

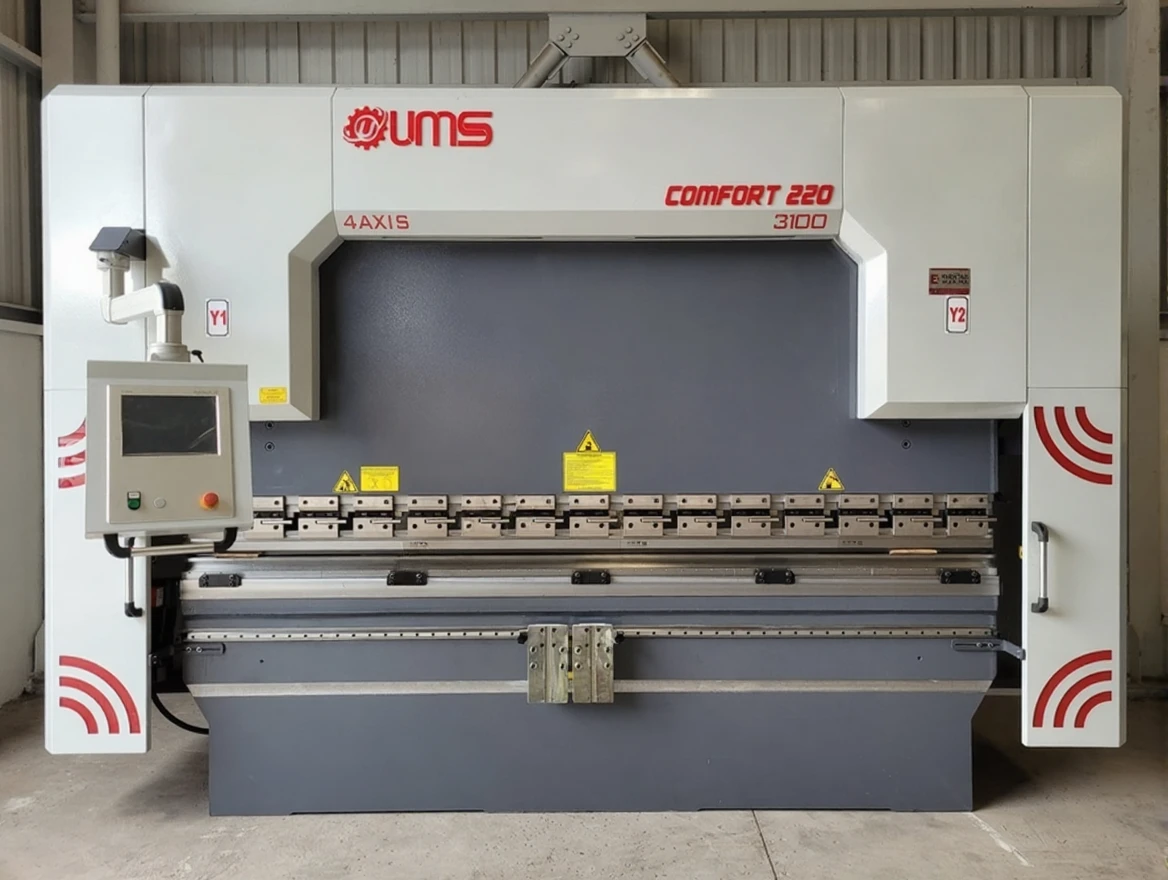

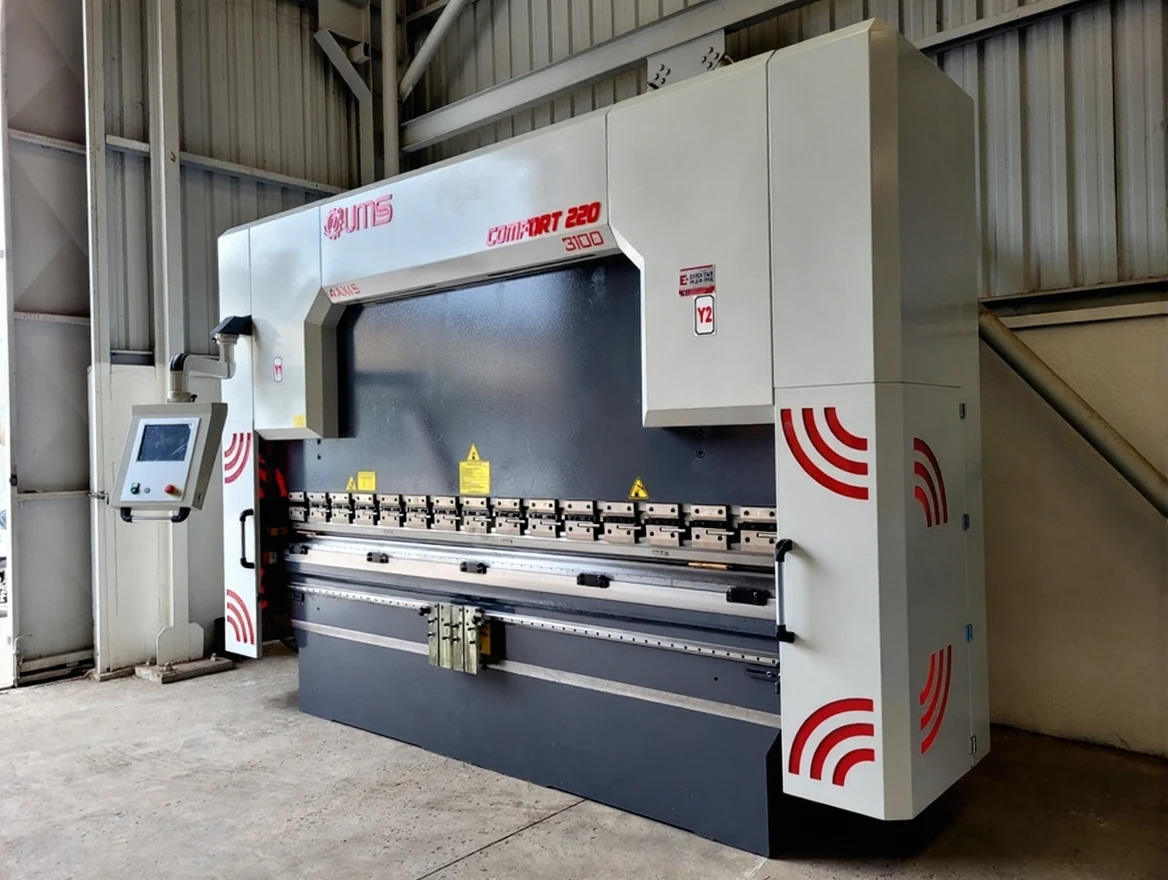

UMS COMFORT 220×3100 CNC BENDING

UMS COMFORT 220×3100 CNC BENDING DESCRIPTION;

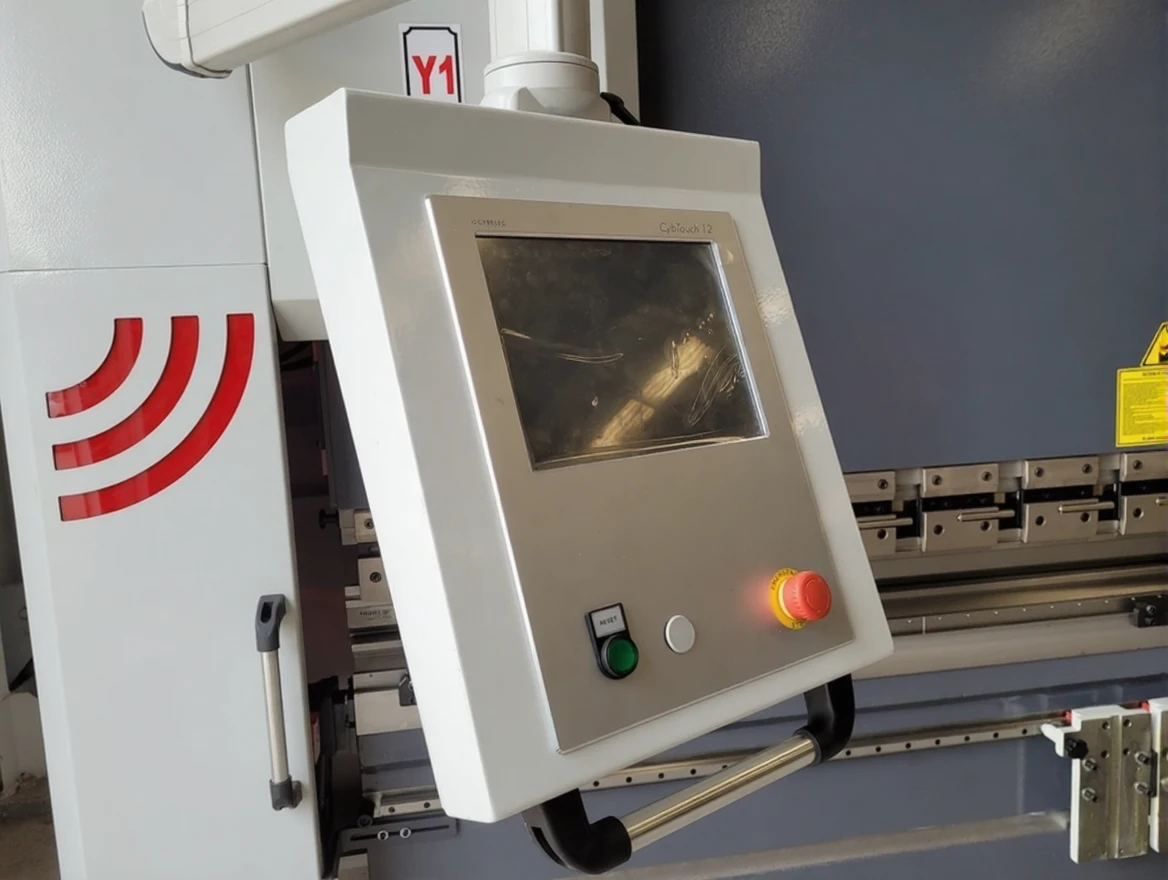

CNC Control Unit CYCBELEC TOUCH 12

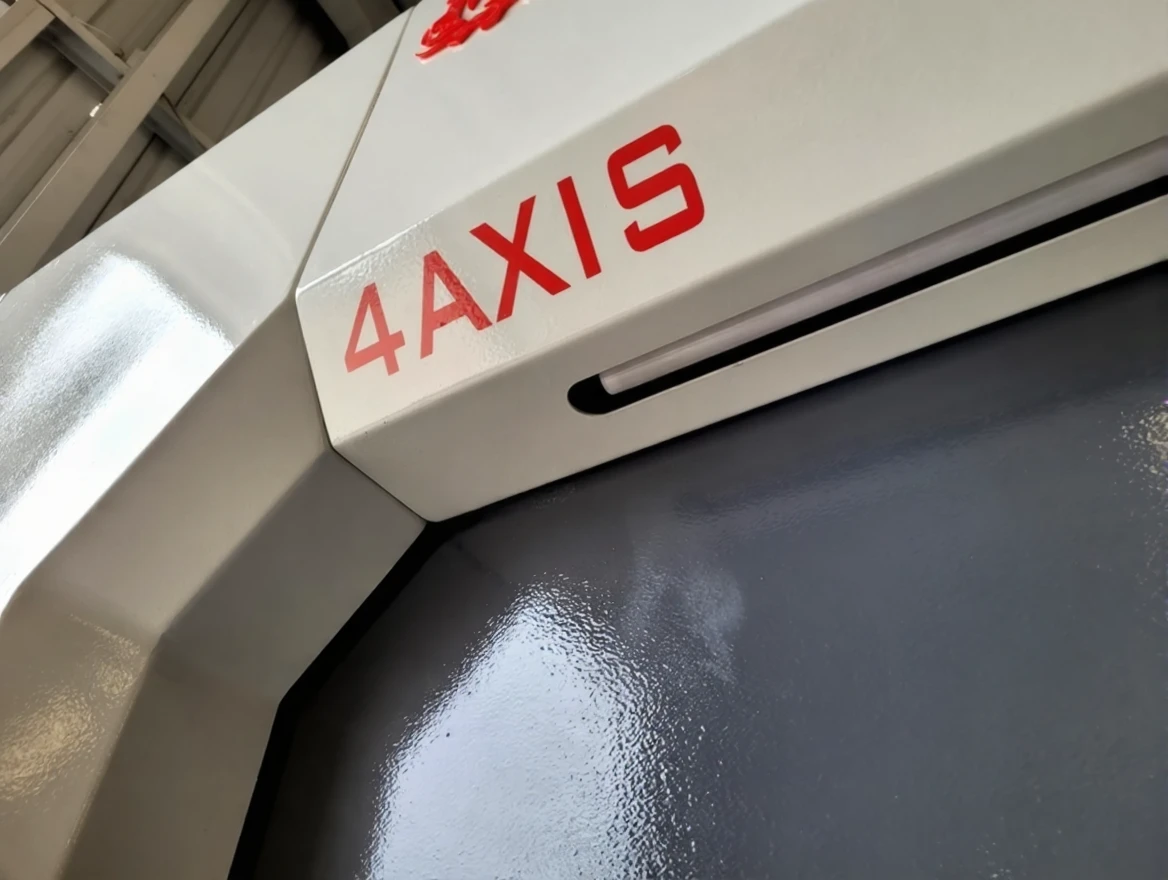

Y1, Y2, X+R (X=750mm) 4-axis back support axes

Motorized Crowning System

Narrow table

Stroke 260 mm and Throat depth 410 mm

Ball screw, linear guide, SERVO motorized back support

GIVI (Italy) Magnetic Linear Scales

Rexroth (Germany) proportional valve hydraulic blocks

Rexroth (Germany) oil pump, internal gear type

3 pieces of back support fingers, manually movable along the linear guide, precisely adjustable

Promecam European type “quick clamping” system

Narrow Lower table (UMS Special design) IW = 60mm

Sliding Front support arms (2 pieces)
