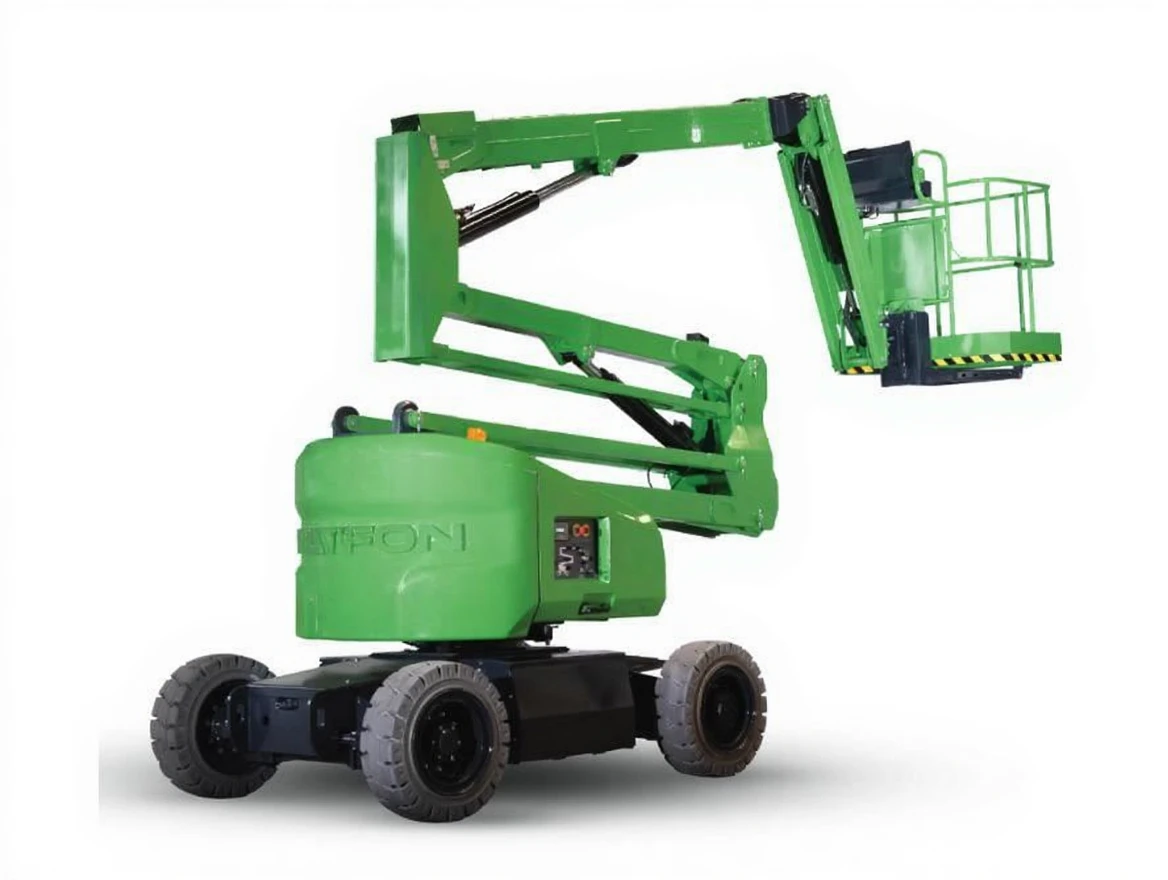

230 Kg 16 Meter Articulated Platform
| Brand | Platfon |
|---|---|
| Model Type |
PB16 |
Platfon PB16 230 Kg 16 Metre Eklemli Platform
PB16 Articulated Lift, with Platfon's safety-focused design and user-friendly control systems, provides a safe working environment for operators. Its wide working height and quick access features allow it to be effectively used in various industrial applications such as construction, maintenance, installation, and cleaning.
|
Feature |
Feature |
|---|---|
|
Maximum Number of Persons |
2 |
|
Lifting Capacity |
230 kg |
|
Travel Speed (Closed) |
5.2 km/h |
|
Travel Speed (Open) |
0.8 km/h |
|
Gradeability |
35% |
|
Platform Rotating Angle (Right/Left) |
90° / 90° |
|
Turntable Rotation Angle |
356° |
|
Turning Radius (Inside) |
1.06 m |
|
Turning Radius (Outside) |
3.40 m |
|
Tail Swing |
0 m |
|
Control System |
Proportional |
|
Drive Mode |
2WD x 2WS |
|
Wheel Dimensions |
28×9-15 non-marking |
|
Drive System |
AC |
|
Working Slope (X/Y) |
5° / 5° |
|
Battery Capacity |
8x6V, 320Ah (C20) non-maintenance |
|
Battery Charger |
48 V / 30 A |
|
Weight |
7200 kg |
|
STANDARD |
OPTIONS |
|---|---|
|
Foot Pedal |
Platform collision prevention system |
|
Emergency Stop |
AC power on platform |
|
Emergency Lowering |
Platform LED working lamp Special color option |
|
Overload Protection |
Special color option |
|
Gradient Level Protection |
|
|
Motion Alarm |
|
|
Warning Flasher Horn |
|
|
Full Height Drive |
|
|
Working Hour Indicator |
|
|
Automatic Brake System |
|
|
Fault Diagnosis System |
|
|
Charger Protection |
|
|
Proportional Control |
|
|
Self-lubricating Bearing |
|
