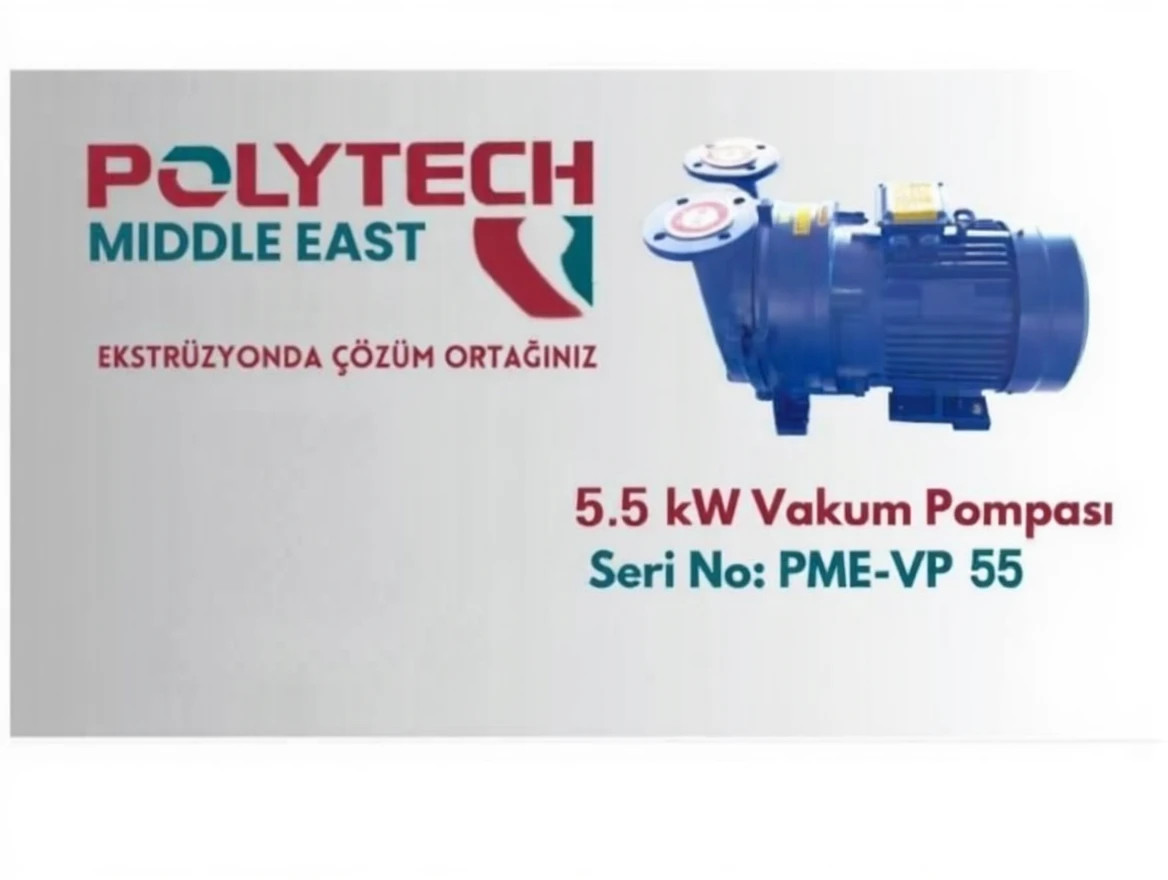

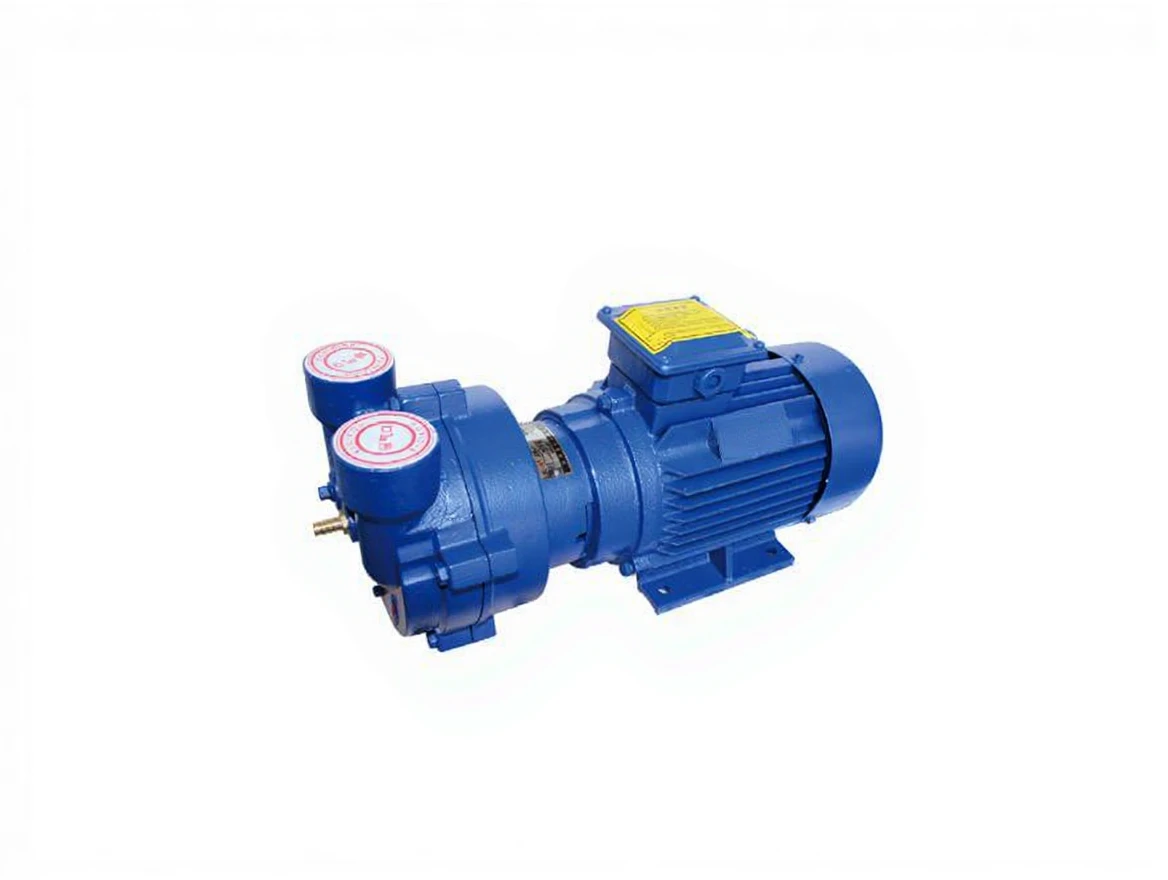

230 m³/h 5.5 kW Water Ring Monoblock Vacuum Pump
| Brand | Polytech |
|---|---|
| Model Type |
PME-VP 55 |

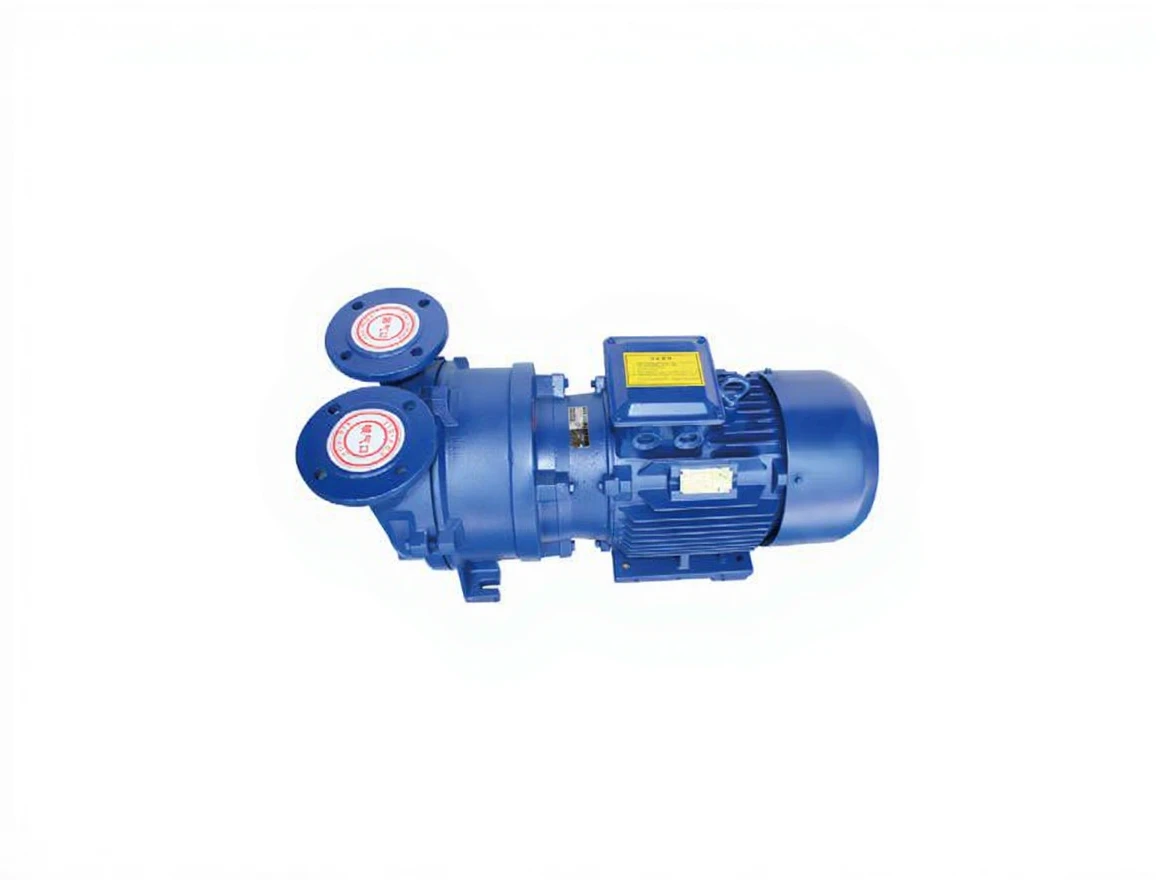

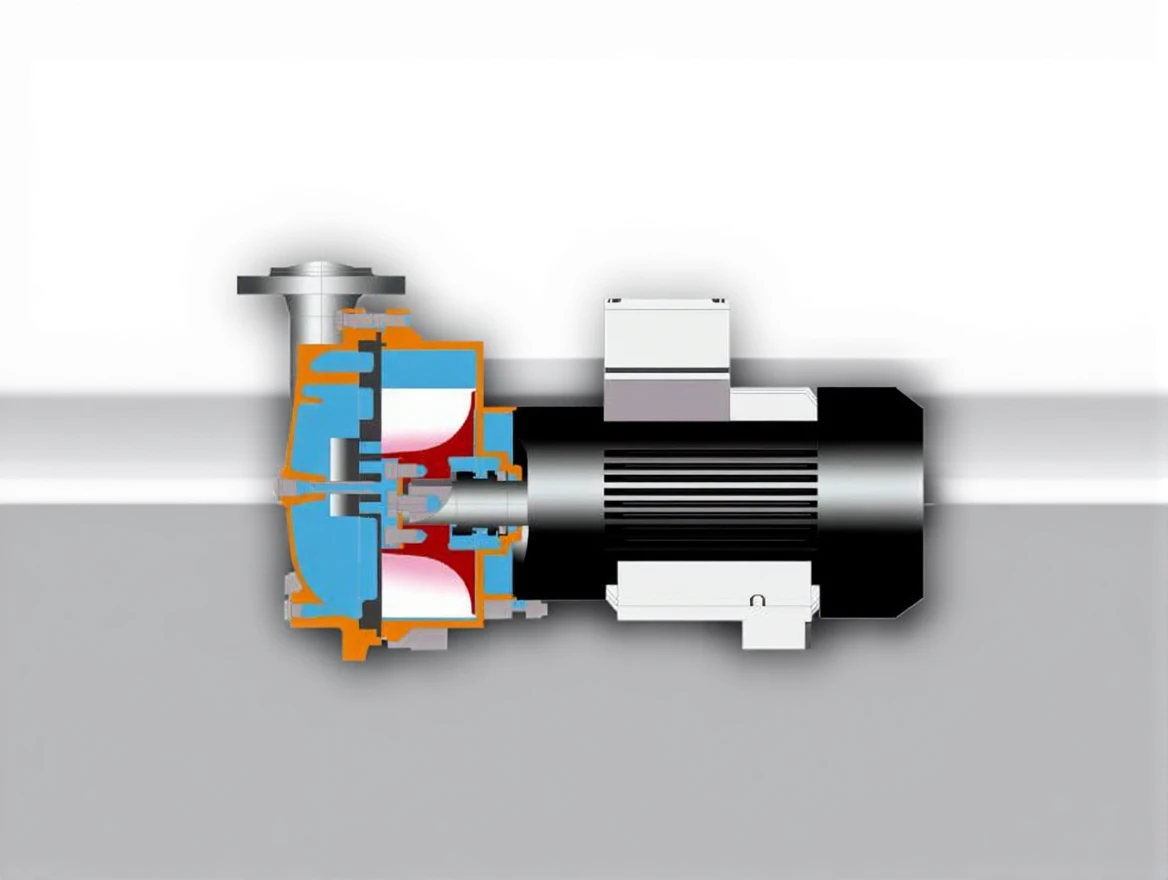

230 m³/h Water Ring Monoblock Vacuum Pump
5.5 kW Vacuum Pump for Plastic Extrusion Machines
In the dynamic world of plastic production, efficiency, precision, and reliability are of great importance to produce high-quality products. Among the many components that contribute to the success of plastic machines, the 5.5 kW vacuum pump is a powerful and versatile device designed to meet the challenging requirements of modern plastic production lines. Thanks to its high capacity, it provides optimal performance in applications such as gas extraction, shaping, and cooling, making it an indispensable tool for manufacturers aiming to achieve superior product quality and operational efficiency.
Features and Applications:
The 5.5 kW vacuum pump stands out with its robust construction, compact design, and low maintenance requirements. These features make it ideal for processes such as vacuum distillation, drying, gas extraction, and condensation. Its ability to handle both dry and wet gases ensures consistent performance even in challenging environments. Its energy-efficient operation and durable design offer a cost-effective solution for industries requiring reliable vacuum generation.
For Extrusion Processes:
-
Increases Quality and Consistency: Improves the quality and consistency of plastic products (e.g., pipes, sheets, or films) in extrusion.
-
Gas Extraction: During plastic extrusion, the vacuum pump removes trapped air or volatile components that could cause defects in the final product. This prevents defect formation on the surface of the final product and ensures a higher quality product.
The 5.5 kW vacuum pump stands out as a reliable, energy-efficient, and high-performance solution in modern plastic production lines.

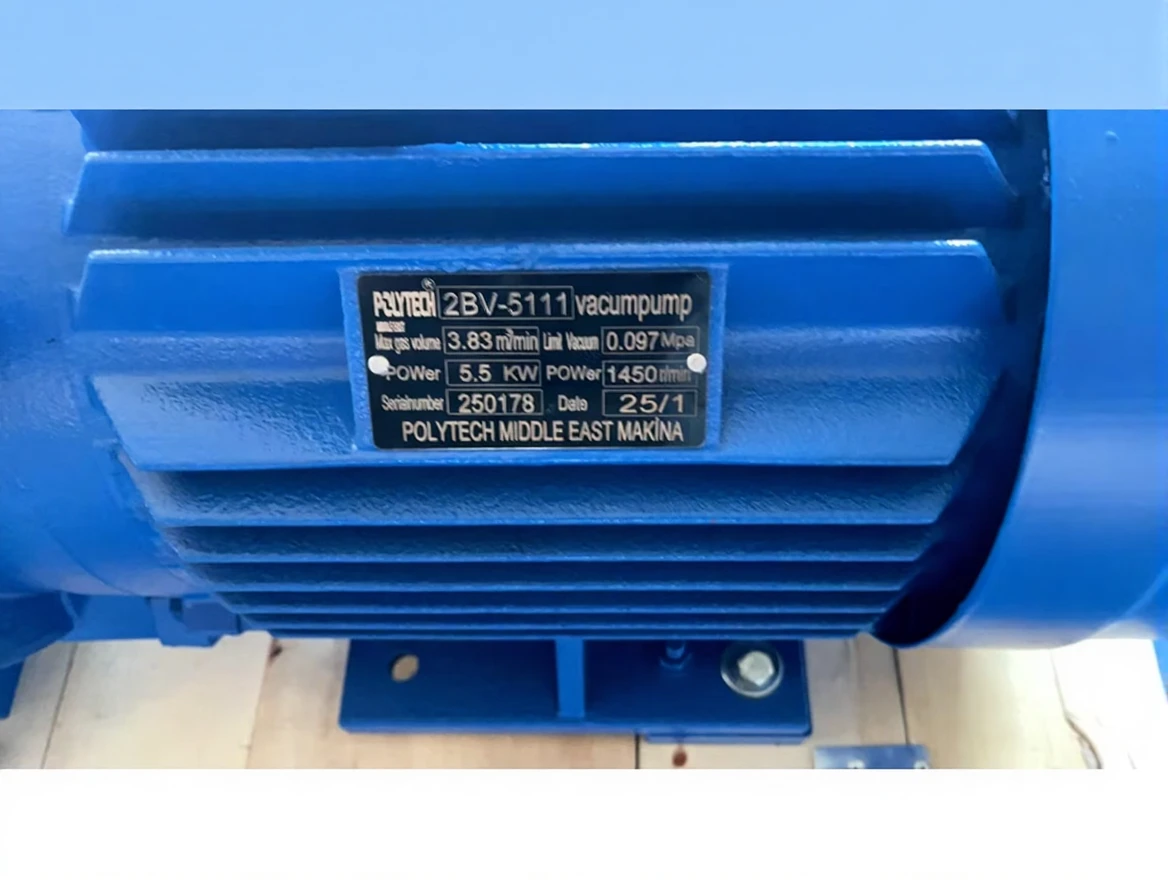

Technical Parameters:
|
Type |
2BV-5111 |
|
Motor Power (kW) |
5.5 |
|
Pump Speed (rpm) |
1440 |
|
Maximum Air Volume (m³/min) and Maximum Air Volume (m³/hour) |
3.83 230 |
|
Working Liquid (L/min) |
8.3 |
|
Weight (KG) |
117 |
|
Noise Level (dB(A)) |
68 |
What is a 5.5 kW Vacuum Pump?
A 5.5 kW vacuum pump is a high-performance mechanical device used to create a vacuum by removing air, gases, and other substances from a closed environment. “5.5 kW” refers to the motor power of the pump and indicates its capacity to perform challenging tasks that require strong and continuous vacuum levels. These types of pumps are commonly used in industrial fields, especially in processes like plastic extrusion. Maintaining the vacuum is critical for ensuring product quality and production efficiency.
How Does the 5.5 kW Vacuum Pump Work in Plastic Extrusion Lines?
The 5.5 kW vacuum pump used in plastic extrusion lines is typically employed to remove moisture, air, or volatile components from the melt during gas extraction or ventilation processes. A brief explanation of its operation:
Purpose:
During extrusion, trapped air, moisture, or gases in the plastic melt can cause defects in the final product. The vacuum pump creates negative pressure to remove these unwanted components.
Process Integration:
-
The vacuum pump is connected to a venting extruder barrel or a gas extraction area in the extrusion line.
-
As the molten plastic passes through this area, the pump draws gases and volatiles through the venting port.
Operation:
-
The pump creates a vacuum (negative pressure) to draw in gases and moisture.
-
The extracted gases are typically filtered or condensed to prevent contamination.
Key Benefits:
-
Improves product quality by reducing air bubbles, voids, or surface defects.
-
Enhances material properties by removing moisture and volatile components.
-
Increases extrusion efficiency and consistency.
Why 5.5 kW?
-
High Power: The 5.5 kW motor provides sufficient energy to create strong and stable vacuum levels even in high-speed or large-scale extrusion lines.
-
Energy Efficiency: Balances power and energy consumption to reduce operating costs.
-
Reliability: Designed for continuous operation, providing consistent performance with minimal downtime.
Applications in Plastic Extrusion
-
Plastic Pipe Production: Ensures smooth surfaces, uniform wall thickness, and absence of air voids.
-
Plastic Sheet and Film Extrusion: Ensures consistent thickness and prevents defects such as bubbles or uneven surfaces.
-
Profile Extrusion: Ensures accurate formation of complex shapes (e.g., window frames, seals).
-
Recycling Lines: Removes contaminants and moisture from recycled plastic materials.
The 5.5 kW vacuum pump is a powerful, energy-saving, and reliable solution to enhance quality and efficiency in plastic production.
Related products

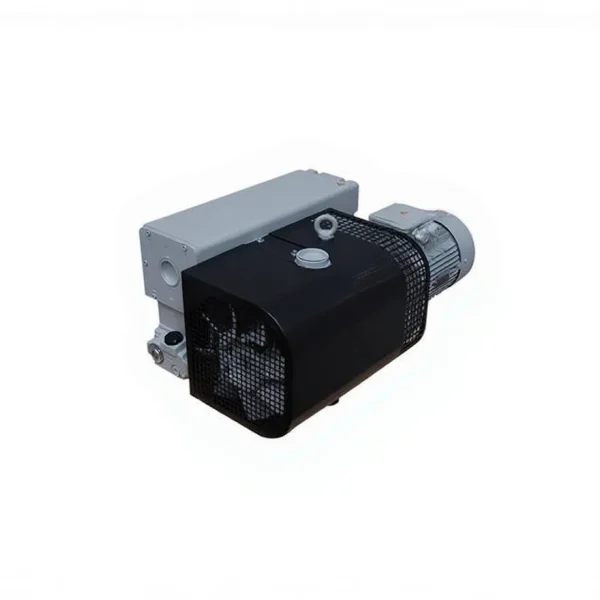

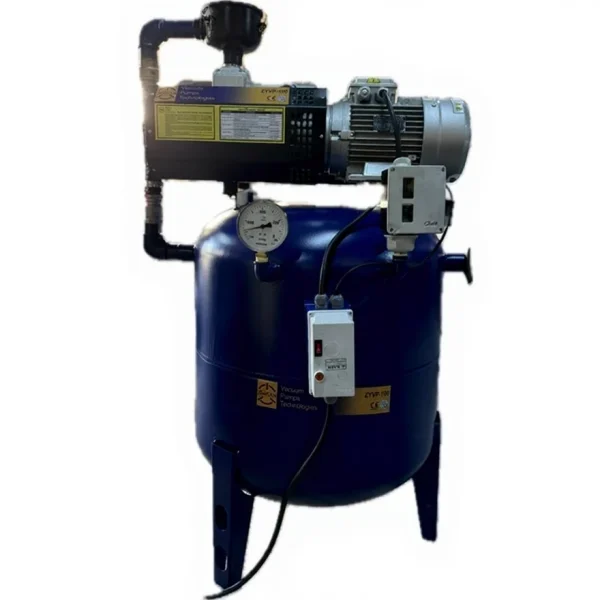

Oil Circulation Vacuum System (1P * 200 Lt. Wheeled – Collector)
