240 Kg Climbing Pantograph Monorail Platform
| Brand | Bmunit |
|---|---|
| Model Type |
Sis 75-10 |
240 Kg Climbing Pantograph Monoray Platform

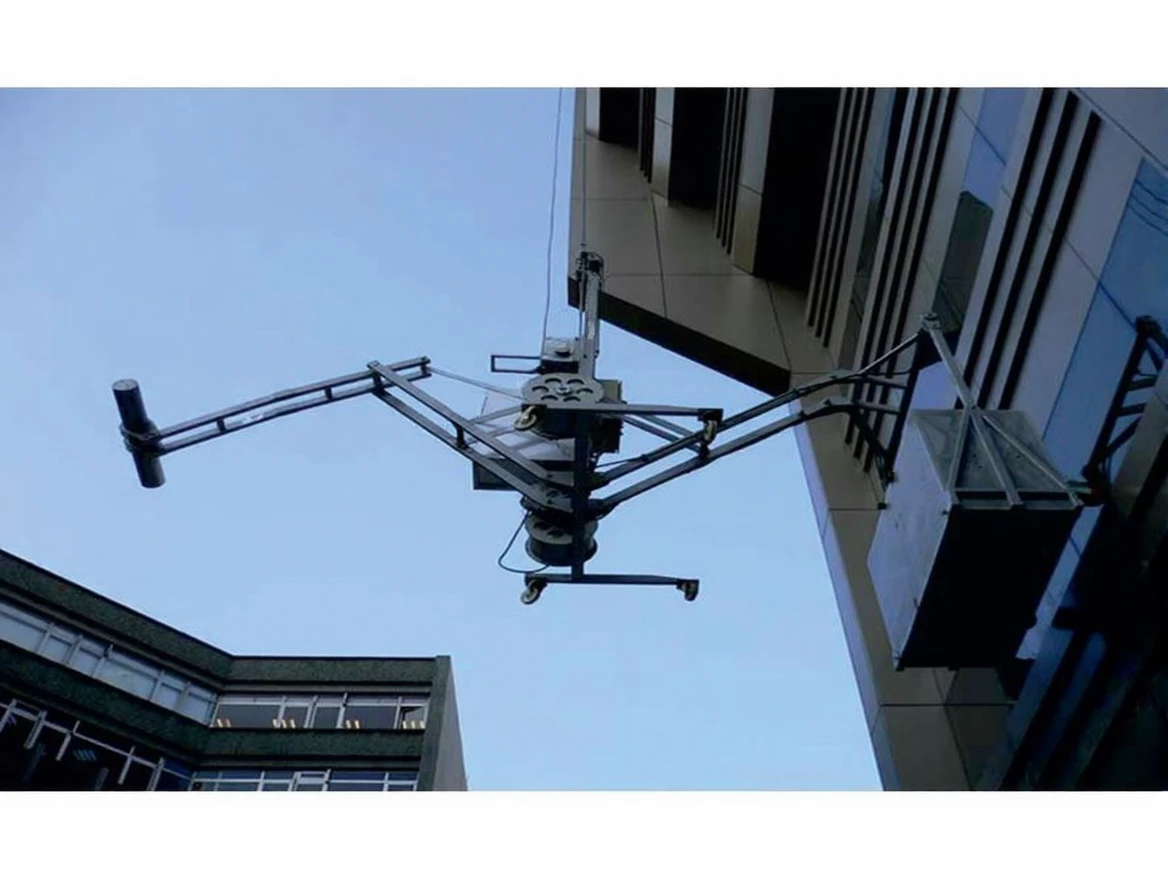

It is a platform used when it is necessary to reach under the eaves. It can be opened scissor-like, forward 1, 2, 3 meters according to preference. The opening movement is done by manual hydraulic piston inside the platform. It is a double-person working platform and does not have a lifting system on its own. It is only used with terrace units. It is used in general-purpose work with a width of 200 x 60 x 100 cm.
The main carrier systems are made of steel, the platform is made of aluminum material. There are 2 carriers and 2 safety ropes. It has a carrying capacity of 240 kg (It can be changed according to special production and requests). Safety ropes and safety locks provide a secure working environment. Operator errors are prevented by the overload detection system, lower collision prevention bar, lower limit switch, and upper limit switch. Production and assembly are made in accordance with EN 1808 standards of European norms.
General Introduction
In the monorail system, the rail and console are placed inside or outside the wall panel according to the static load and dynamic load calculated according to the architectural structure of the building.
-
Rails can be passed around the building so that every point can be thoroughly cleaned.
-
The railing is made of special aluminum material to provide a nice appearance for your building.
-
Since it does not cover space on the terrace, the structure can be largely utilized from the terrace.
-
Thanks to its compact structure, you can park the system in the most suitable position after cleaning.
-
Enables cleaning with two people on the platform.
Application Standards
-
The facade cleaning system is produced in accordance with EU directives and our company has ISO 9001 quality certificate.
-
Our production is carried out in accordance with the following standards.
-
EN 1808 standard
-
98/37 EC Machinery Safety Directive
-
2006/95 / EC Low Voltage Standard
Purpose of Use:
-
It is a platform used when it is necessary to reach under the eaves.
Opening Features:
-
It can be opened scissor-like, forward 1, 2, 3 meters.
-
The opening movement is done by manual hydraulic piston inside the platform.
Platform Features:
-
It is a double-person working platform.
-
It does not have a lifting system on its own, it is only used with terrace units.
-
It is used in general-purpose work with a width of 200 x 60 x 100 cm.
Material and Carrying Capacity:
-
The main carrier systems are made of steel, the platform is made of aluminum material.
-
There are 2 carriers and 2 safety ropes.
-
It has a carrying capacity of 240 kg (It can be changed according to special production and requests).
Safety Features:
-
Safety ropes and safety locks provide a secure working environment.
-
Operator errors are prevented by the overload detection system, lower collision prevention bar, lower limit switch, and upper limit switch.
Standards:
-
Production and assembly are carried out in accordance with EN 1808 standards of European norms.
Technical Specifications:
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Systems Used | SIS 50 / SIS 75 / SIS 85 / SIS 85-20 / SIS 90 / SIS 95 / SIS 100 / SIS 105 |
| Rope | 4 Pieces 8 mm Steel Rope |
| Voltage | 24 V |
| Control | Steel Rope Inner Cable / Cable |
| Vertical Speed | 8 m/min (According to the main engine) |
| Horizontal / Vertical Movement | 4 m/min (According to the main engine) |
| Platform Weight | 150 kg (It can vary according to the building height.) |
| Working Capacity | 240 kg |
