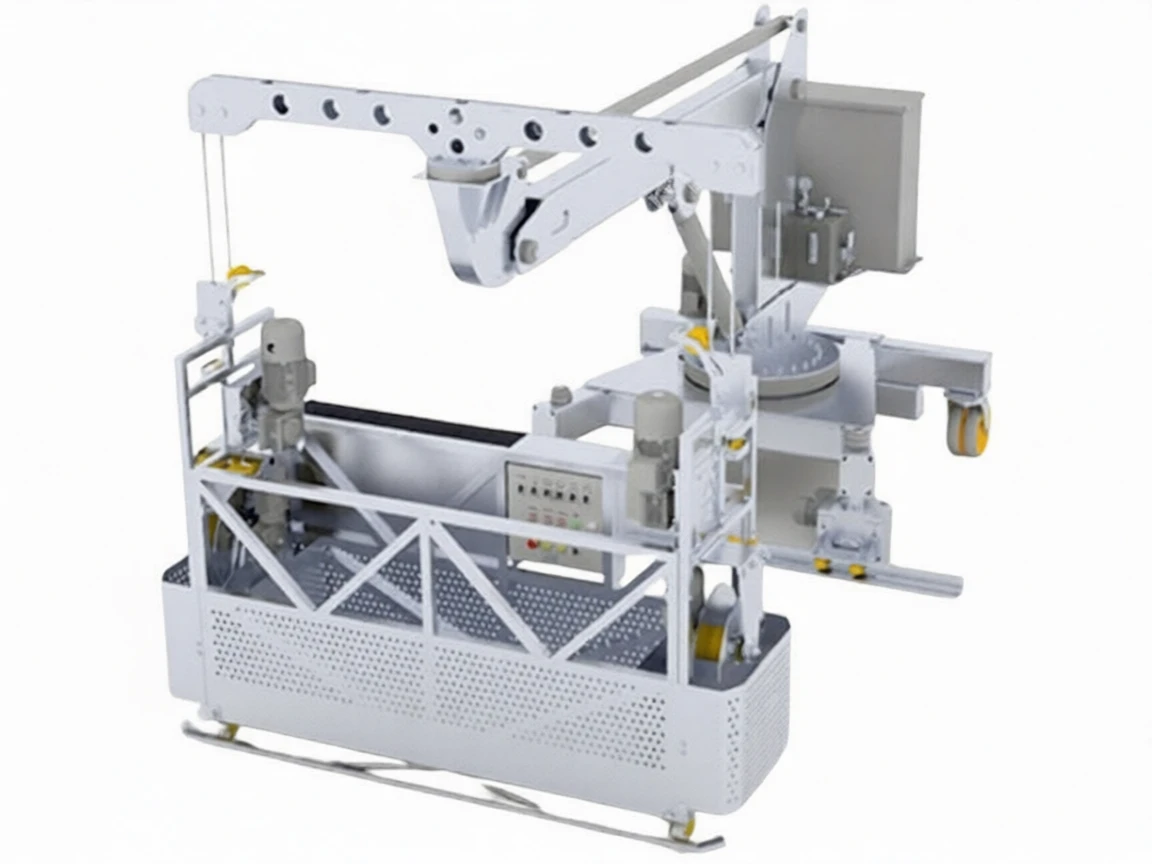

240 Kg Luffing Façade Cleaning System

240 Kg Bomlu External Facade Cleaning System

A moving, single fixed boom lightweight type facade cleaning system located on the building terrace. Boom length can be produced between 2.5 m and 5 m according to the building facade. Project-specific and dual-person motorized or drum platforms can be used. The horizontal movement is guided by double rails or single rail on concrete surface.

In order for the machine to work on all sides of the building, a minimum movement area of 2 m is required behind the parapet. Easy access to corners is provided thanks to the +45° rotatable separator arm mounted at the end of the boom. The motorized rotation capability of the main body provides access to the desired point on the facade. Thanks to the hydraulic system, the distance of the working platform from the facade can be adjusted and the platform can be parked on the terrace.

All movements can be controlled from the control panels on the main body and working platform. Optional cable control or steel rope control system can be implemented. SIS 85-10 series facade cleaning system is preferred for buildings up to a height of 400 meters. Safety measures such as double safety rope safety lock system, rope tension control, etc. provide a safe working environment. Operator errors are prevented by overload detection system, bottom collision prevention bar, limit switch, and upper limit switch. Production and installation are carried out in compliance with European standards EN 1808.

The platform unit platform can be moved according to the appearance of unusual buildings. Plan a platform design tailored to a specific building.

• 2-10 m standard platform length
• Light-receiving platform for telescopic facades
• Aluminum body
• Separable telescopic specially designed platform
• Special design according to the architecture
• Parking folding arm on the platform
• Water tank on the platform
• Crane for glass replacement
• Communication between body and platform via telephone
• Built-in wire rope platform storage system

General Description

• Location: A moving, single fixed boom lightweight type facade cleaning system located on the building terrace.

• Boom Length: Production can be made between 2.5 m and 5 m according to the building facade.

• Platforms: Project-specific and dual-person motorized or drum platforms can be used.

Motion and Access

• Horizontal Movement: Carried out by double rails or single rail on concrete surface.

• Movement Area: A minimum movement area of 2 m is required for the machine to work on all facades.

• Boom End: Easy access to corners is provided thanks to the +45° rotatable separator arm.

• Main Body: Access to the desired point on the facade is provided with motorized rotation capability.

• Hydraulic System: The distance of the working platform from the facade can be adjusted and the platform can be parked on the terrace.

Control and Command

• Control Panels: All movements can be controlled from the control panels on the main body and working platform.

• Control System: Optional cable control or steel rope control system can be implemented.

Application and Safety

• SIS 85-10 Series: This facade cleaning system is preferred for buildings up to a height of 400 meters.

• Safety Measures:

  • Double safety rope safety lock system

  • Rope tension control

  • Overload detection system

  • Bottom collision prevention bar

  • Limit switch and upper limit switch

• Standards: Production and installation are carried out in compliance with European standards EN 1808.

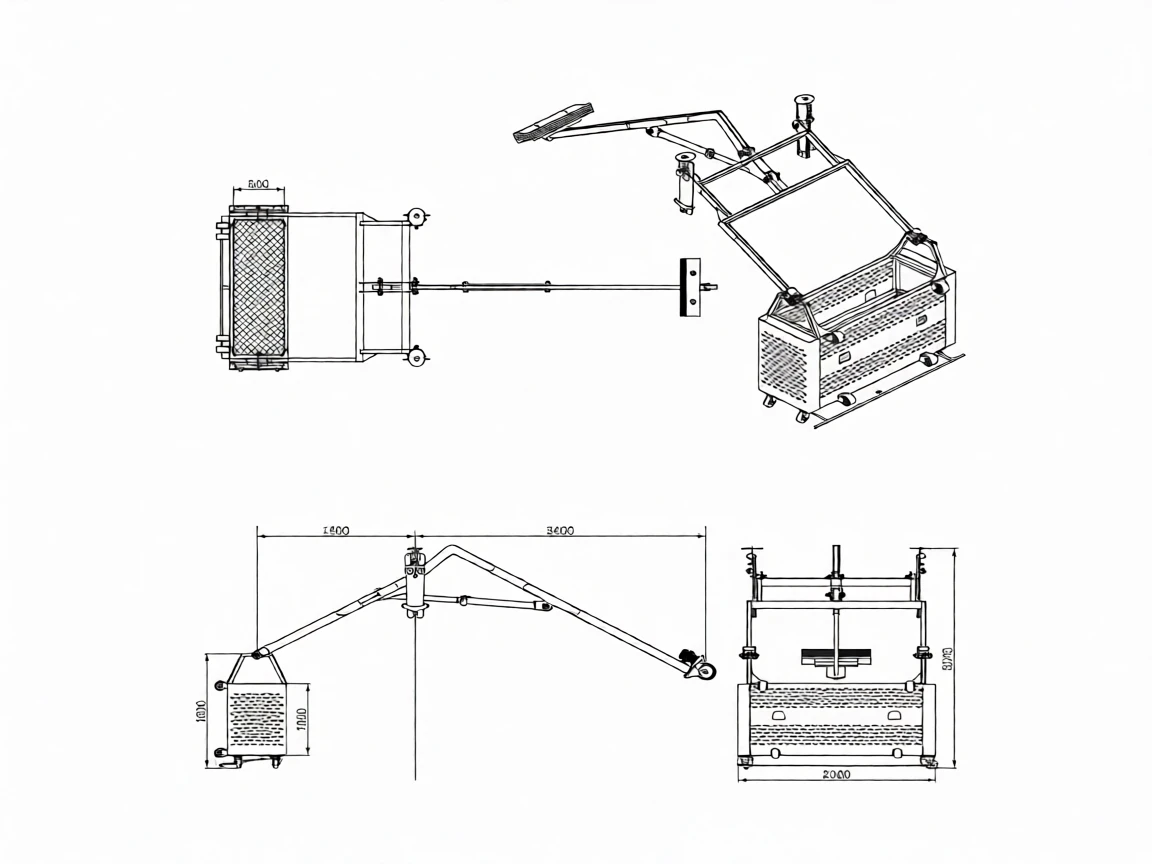

SIS 85-10 Technical Specifications:

}
