240 Kg Rail Guided Façade Cleaning System

240 Kg Rail Facade Cleaning System

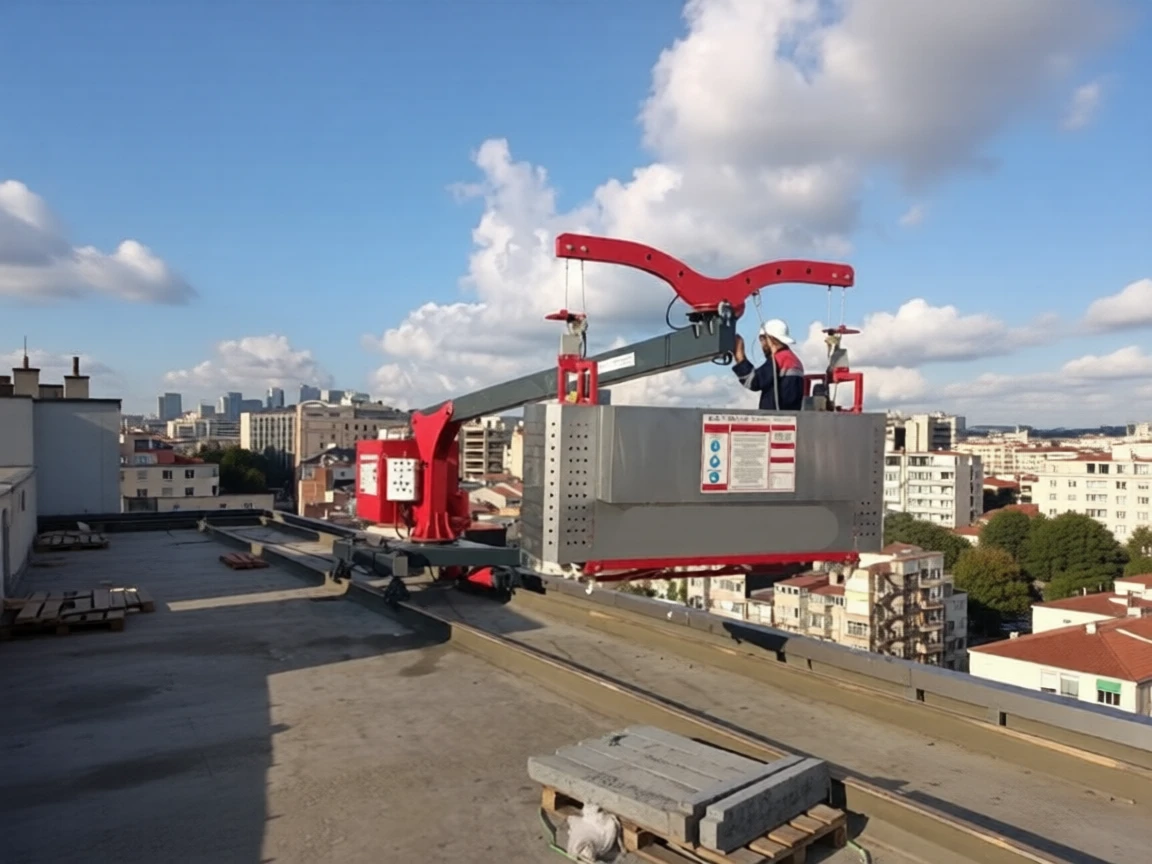

A light-type facade cleaning system with a mobile, double-row rail fixed boom located on the building terrace. Production can be made with a boom length between 2.5 m and 5 m depending on the building facade. Double-person motorized or drum platforms can be used according to the project and request. Horizontal movement is guided by double rails or a single rail on a concrete surface. In order for the machine to work on all facades, a minimum of 2 meters of movement area is required backwards from the parapet.

The corner access is facilitated by the +45° rotating separator arm mounted at the end of the boom. Access to the desired point on the facade is provided by the motorized rotation capability of the main body. The hydraulic system allows adjusting the distance of the working platform from the facade and parking the platform on the terrace. All movements can be controlled from the control panels on the main body and the working platform. Optionally, cable control or steel rope control systems can be applied. The SIS 85-10 series facade cleaning system is preferred for buildings up to a height of 400 meters.

The double safety rope safety locking system provides a secure working environment with safety measures such as rope tension control. Operator errors are prevented by the overload detection system, lower collision prevention bar, limit switches, and upper limit switches. Production and assembly are made in compliance with European standards EN 1808.

The platform unit can be moved according to the appearance of unusual buildings. Plan a platform design tailored to a specific building.

• 2-10 m standard platform length
• Light intake platform for telescopic facades
• Aluminum body
• Separable telescopic specially designed platform
• Specially designed according to architecture
• Parking folding arm
• Water tank on the platform
• Crane for glass replacement
• Communication between body and platform via telephone
• Built-in wire rope platform storage system

General Description

• Location: A mobile, double-row rail fixed boom light-type facade cleaning system located on the building terrace.
• Boom Length: Production can be made between 2.5 m and 5 m depending on the building facade.
• Platforms: Double-person motorized or drum platforms can be used according to the project and request.

Movement and Access

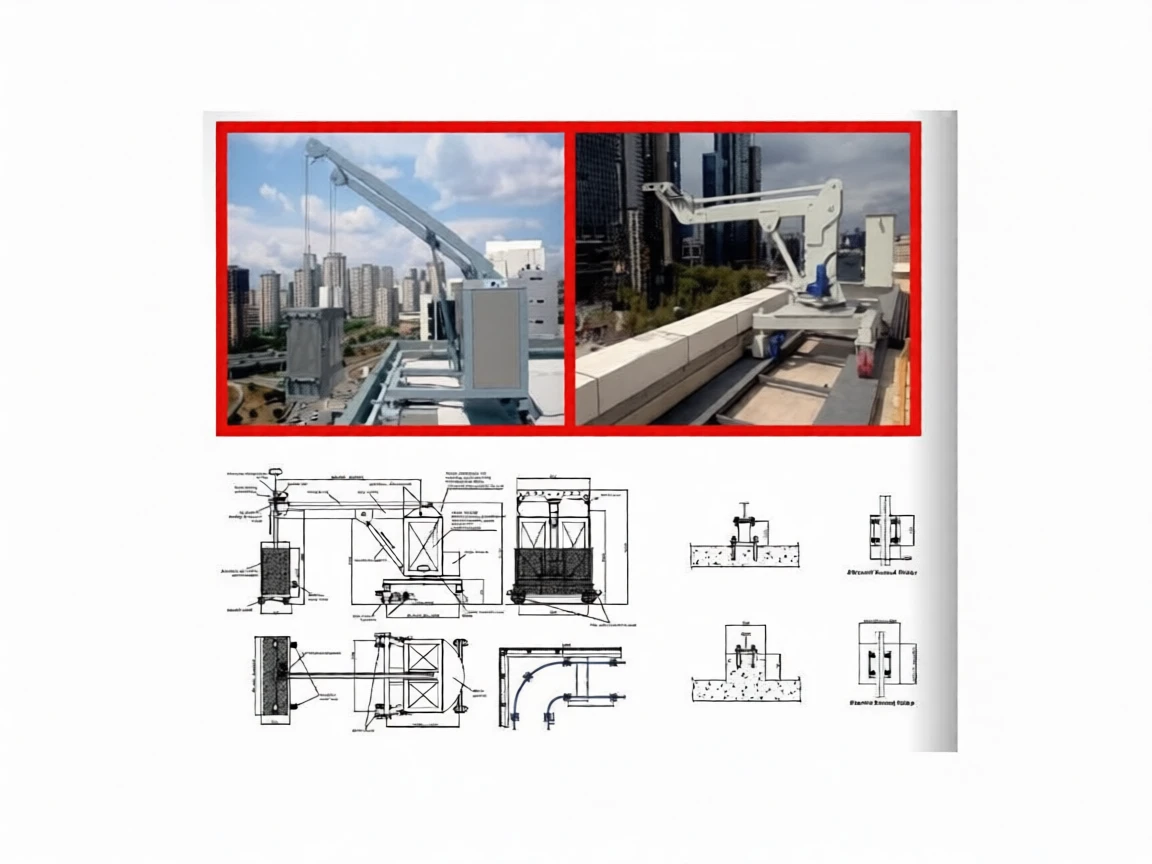

• Horizontal Movement: Guided by double rails or a single rail on a concrete surface.
• Movement Area: A minimum of 2 meters of movement area backwards from the parapet is required for the machine to work on all facades.
• Boom End: Corner access is facilitated by the +45° rotating separator arm.
• Main Body: Access to the desired point on the facade is provided by the motorized rotation capability.
• Hydraulic System: The distance of the working platform from the facade can be adjusted, and the platform can be parked on the terrace.

Control and Command

• Control Panels: All movements can be controlled from the control panels on the main body and the working platform.
• Control System: Optionally, cable control or steel rope control systems can be applied.

Application and Safety

• SIS 85-10 Series: This facade cleaning system is preferred for buildings up to a height of 400 meters.

• Safety Measures:

  • Double safety rope safety locking system

  • Rope tension control

  • Overload detection system

  • Lower collision prevention bar

  • Limit switches and upper limit switches

• Standards: Production and assembly are made in compliance with European standards EN 1808.

SIS 85-20 Technical Specifications:
