2400 Blister/Hour Automatic Blister Medicine Packaging Machine
| Brand | MHT |
|---|---|
| Model Type |
MHT-120 |

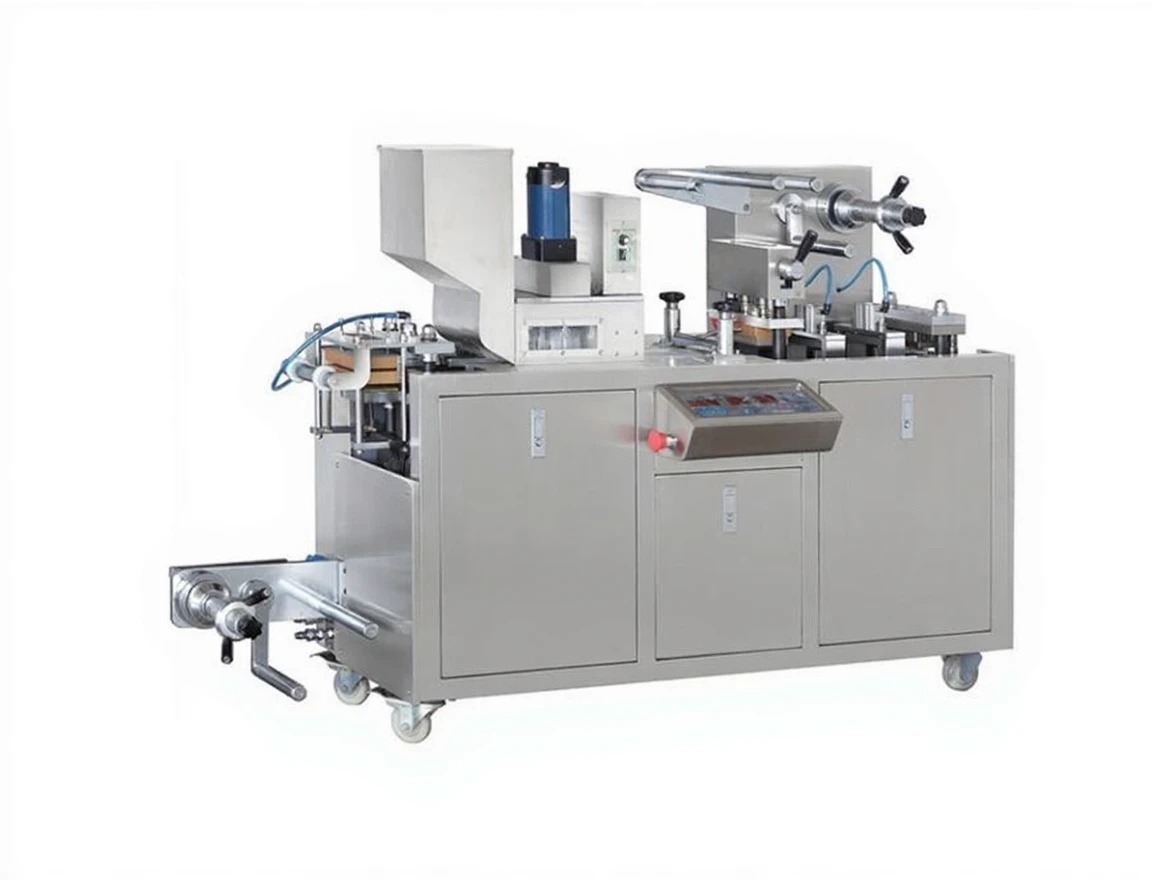

2400 blister / hour Automatic Blister Medication Packaging Machine
MHT-120 is a multifunctional automatic blister packaging machine.
All parts that come into contact with the product are made of 316L quality stainless steel.
It is a machine designed to package all kinds of capsules, tablets, dragees, etc.
High speed and precision.
PLC hardware.
Servo drive system.
High efficiency.
Compliant with GMP standards.
|
Model |
MHT-120 |
|
Output Capacity (strokes) |
10-33 times/min |
|
Production capacity |
2400 blister/hour |
|
Maximum Forming Area & Depth |
125×75 (standard depth ≦15mm), Maximum Depth 25mm (Adjustable) |
|
Standard Stroke Range |
30-80mm (Can be designed according to user’s request) |
|
Standard blister size |
80x57mm (Can be designed according to user’s request) |
|
Air Pressure |
0.4-0.6Mpa |
|
Compressed Air |
Air Compressor ≥ 0.3m3/min |
|
Total Power Supply |
220V 50Hz 2.8Kw |
|
Main Motor |
0.75 kW |
|
PVC hard film |
0.15-0.5*125 (mm) |
|
PTP aluminum film |
[ PHONE HIDDEN ]*125 (mm) |
|
Paper foil |
50-100g*15(mm) |
|
Mold Cooling |
Faucet water or Recycled water |
|
Overall Size |
1840x590x1100 (mm) (WxDxH) |
|
Weight |
Net 415kg Gross weight: 465kg |
|
Sound level |
<75dBA |
