25 kVA Mobile High Frequency Tarpaulin Tent Welding Machine

25 kVA Mobile High Frequency Tarpaulin Tent Welding Machine

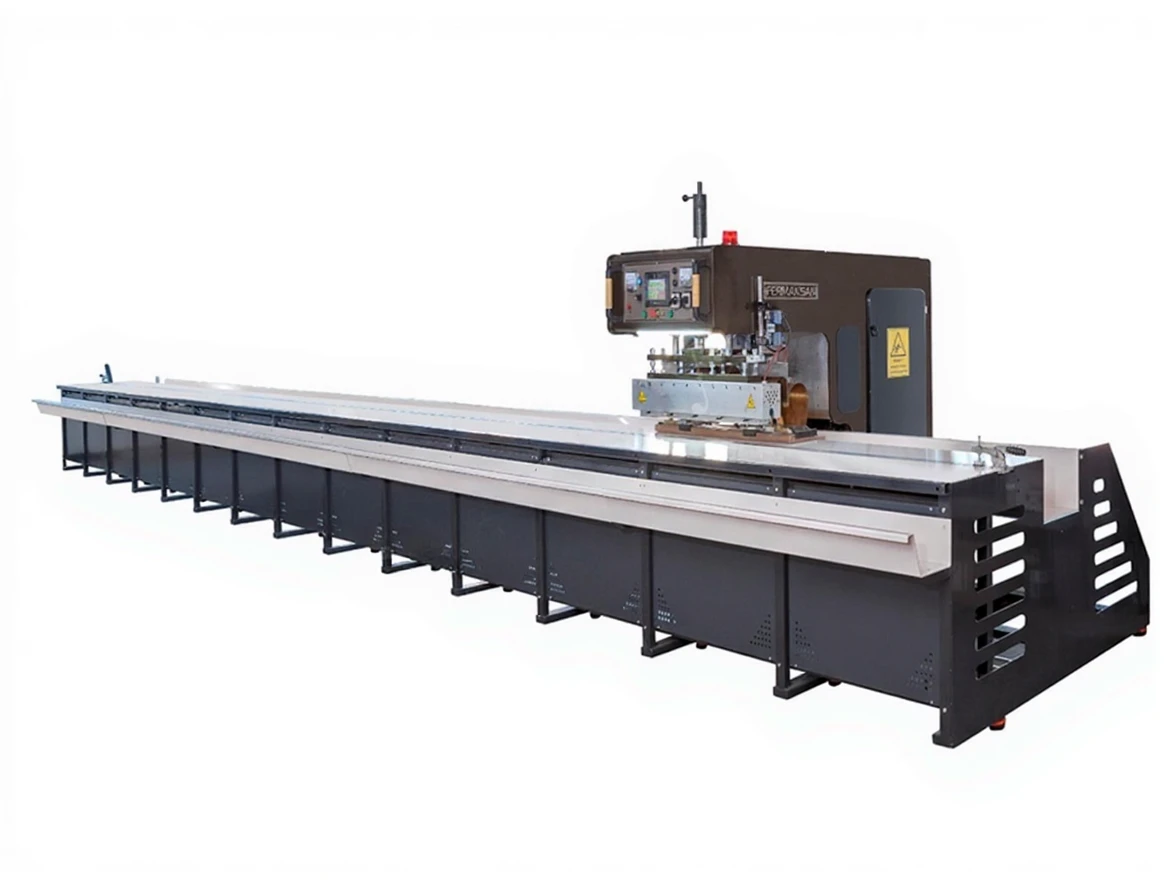

Fermaksan TR 250 GB is a machine with a power of 25 kVA, commonly used in industrial production. It is particularly preferred in the production of various products such as large-sized tents, canopies, tents, marine railings, water tanks, test balloons, sun loungers, and inflatable products. This machine stands out with its unique design and functionality, playing a significant role in industrial production processes.

Features:

• Machine Structure: Fermaksan TR 250 GB has a mobile structure and can move on rails. This feature provides flexibility to users and allows adaptation to different production requirements .

• Areas of Use: The machine is used in many industrial sectors such as stationery industry, packaging industry, label industry, toy industry, and automotive industry. It is especially preferred in the production of stationery products, packaging materials, labels, toys, and automotive parts.

• PLC Controlled Operating System: The machine has a PLC controlled operating system. This feature allows users to control the production process more precisely and increases work efficiency.

• Touch Panel: You can easily control the machine through a user-friendly touch panel. This panel allows operators to easily use and adjust the machine.

• Linear Motion System: The machine has a linear motion system. This feature allows for high precision operations and improves production quality.

Technical Specifications:

• Lower Table: The lower table of the machine is 300 x 1100 mm in size.

• Upper Table: The upper table is 150 x 1000 mm in size.

• Operating Mode: The operating mode of the machine is pneumatic, meaning it operates with a pneumatic system.

• Generator Output Power: The generator output power of the machine is 15, 20, 25, or 30 kVA depending on the options.

• Operating Voltage: The operating voltage of the machine is 3 x 220 V and 50 Hz.

• Voltage Adjustment Range: The voltage adjustment range is between 195 x 235 V.

• Input Power: The input power of the pneumatically operated model is 30 kVA.

• Oscillator Type: It has a lamp-type oscillator.

• Oscillator Cooling: The oscillator is cooled by air.

• Rectification: The rectification process is carried out through silicon diodes.

• Frequency: The frequency of the machine is 27.12 MHz ± 1%.

• Weight: The weight of the machine is 2350 kg.

• Machine Dimensions: The dimensions of the machine are 14000 x 2050 x 2400 mm.

Fermaksan TR 250 GB is a machine that offers high quality and reliable performance in industrial production. With its flexible design and user-friendly operating system, it is preferred in many industrial sectors.
