25 mm Guide Pulling Machine

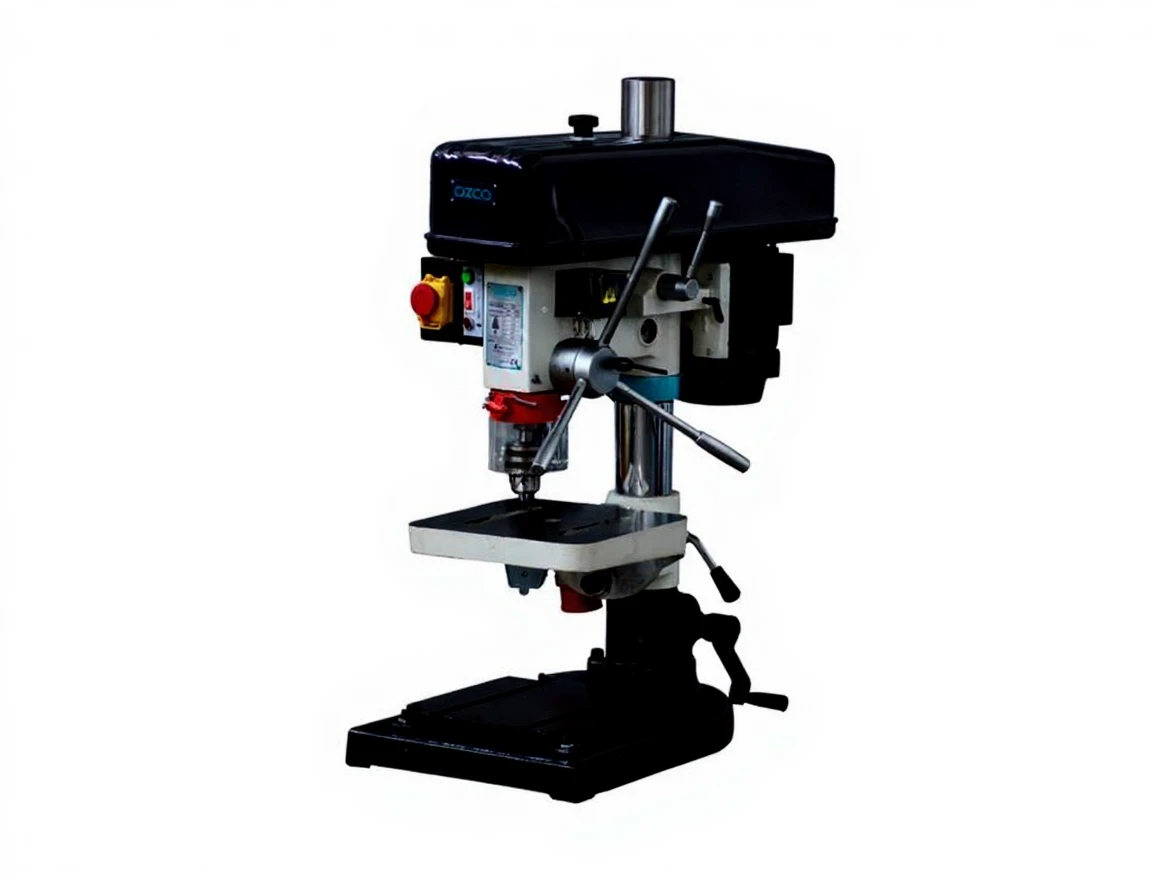

OZCO M25TP GUIDE PULLING DRILLING MACHINE

OZCO M25TP GUIDE PULLING DRILLING MACHINE Description

OZCO M25TP GUIDE PULLING DRILLING MACHINE Shipment Scope

Technical Specifications OZCO M25TP GUIDE PULLING DRILLING MACHINE

Motor Power     1.1 kW, 380 V

Operation Type    Belt-driven

Drilling Capacity       25 mm

Guide Capacity     M20

Spindle Taper        MK3

Spindle Stroke      125 mm

Distance Between Spindle and Column          240 mm

Distance Between Spindle and Table          367 mm

Distance Between Spindle and Base          630 mm

Column Diameter       85 mm

Speed     290-2150 rpm

Gear            5

Table Dimensions               280×300 mm

Base Dimensions             590×375 mm

Machine Dimensions (LxWxH)      935x560x2280 mm

Packaging Dimensions         820x480x1020 mm

Net Weight     165 Kg
