250 Kg 5.4 Meter Personnel Lift Scissor Platform
| Brand | Platfon |
|---|---|
| Model Type |
AT5.5 |

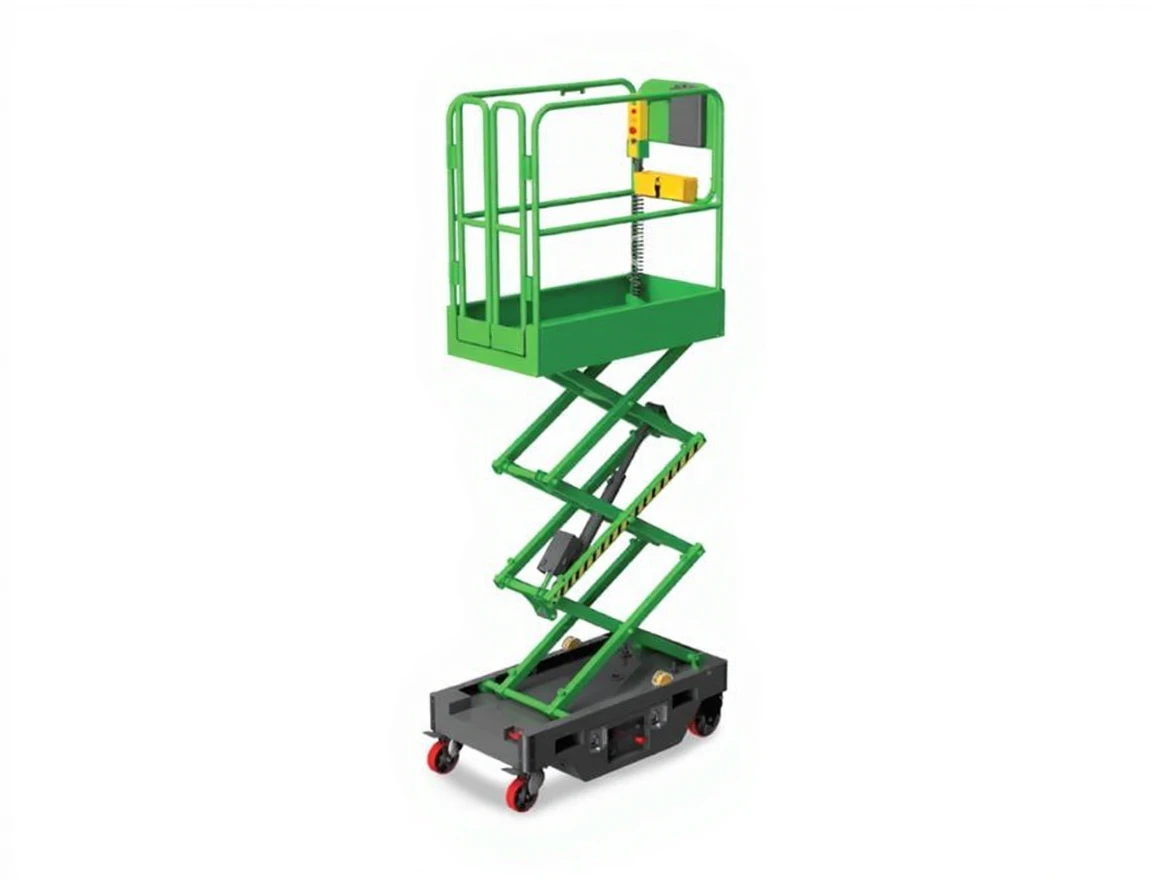

Platfon AT5.5 250 Kg 5.4 Metre Personal Elevator Scissor Platform
High Safety at Heights, Comfort in Narrow Spaces with AT5.5! Platfon's compact and environmentally-friendly scissor platform model AT5.5 provides safe access up to 5.5 meters indoors and outdoors. It operates silently with an electric drive system, being eco-friendly with zero emissions. This model can maneuver easily even in narrow corridors, offering maximum efficiency in sectors such as warehouses, maintenance, construction, and assembly.
|
Model |
AT5.5 |
|---|---|
|
Maximum Working Height |
5.4m |
|
(A) Maximum Platform Height |
3.4m |
|
(B) Length |
1.44m |
|
(C) Width |
0.76m |
|
(D) Height |
1.76m |
|
(ExF) Platform Dimensions |
1.28×0.63m |
|
Height from Ground |
0.050m |
|
Maximum Number of Persons |
1 |
|
Lifting Capacity |
250kg |
|
Working Gradient (X/Y) |
1.3°/2° |
|
Battery |
12V / 100Ah |
|
Battery Charger |
12V / 15A |
|
Weight |
400kg |
|
|
|
|
STANDARD FEATURES |
OPTIONS |
|---|---|
|
Emergency Descent |
Platform Collision Prevention System |
|
Emergency Stop |
Platform Air Line |
|
Overload Protection |
AC Power on Platform |
|
Descent Protection Alarm |
Platform LED Working Light |
|
Safety Arm |
|
|
Horn |
|
|
Non-Marking Tires |
|
|
Transport with Forklift |
|
|
Working Hour Indicator |
|
|
Automatic Brake System |
|
|
Tool Box |
|
