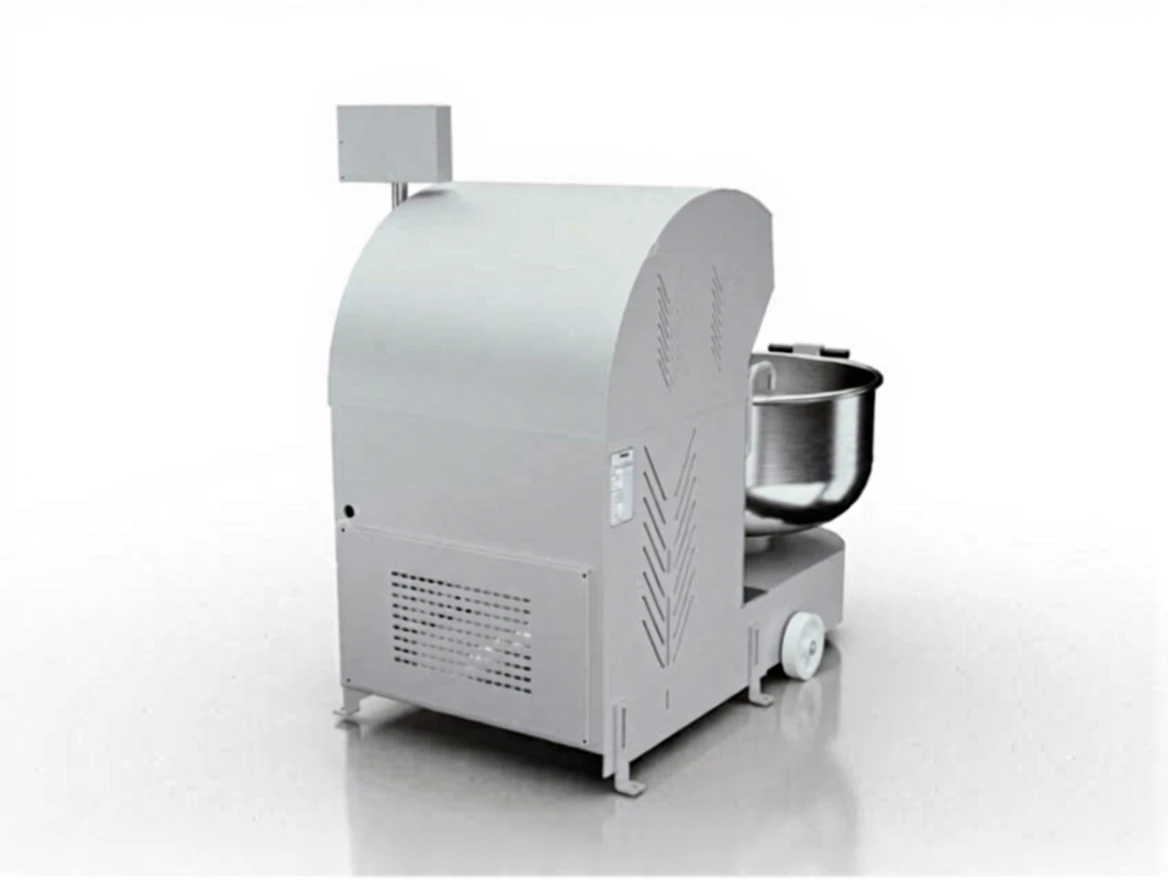

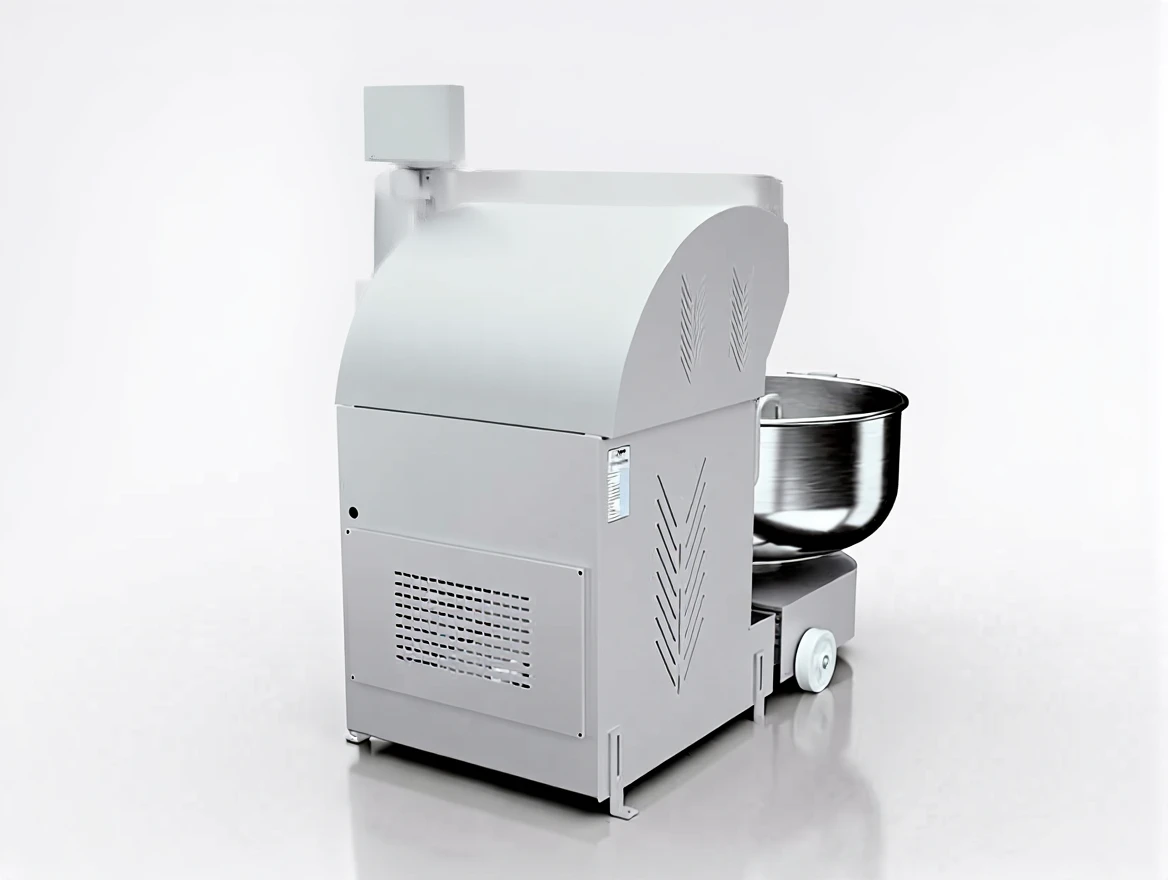

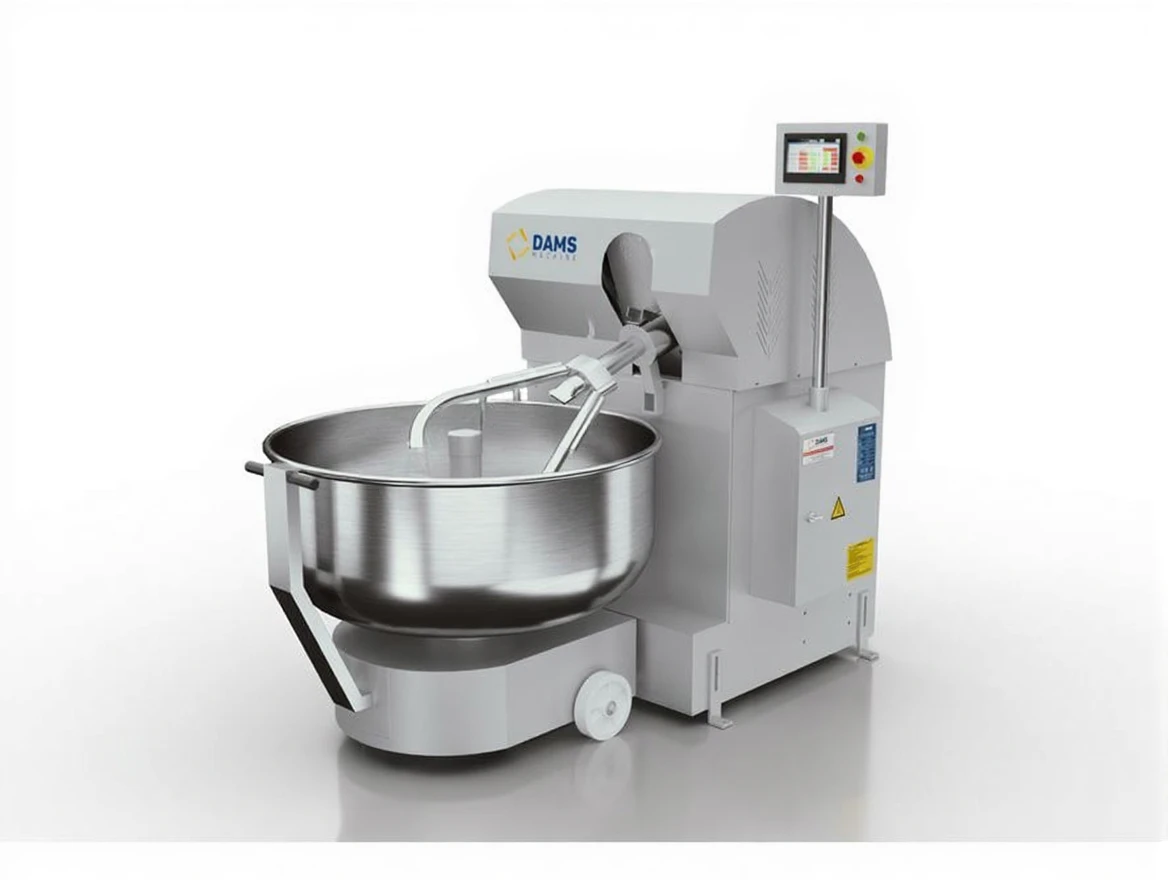

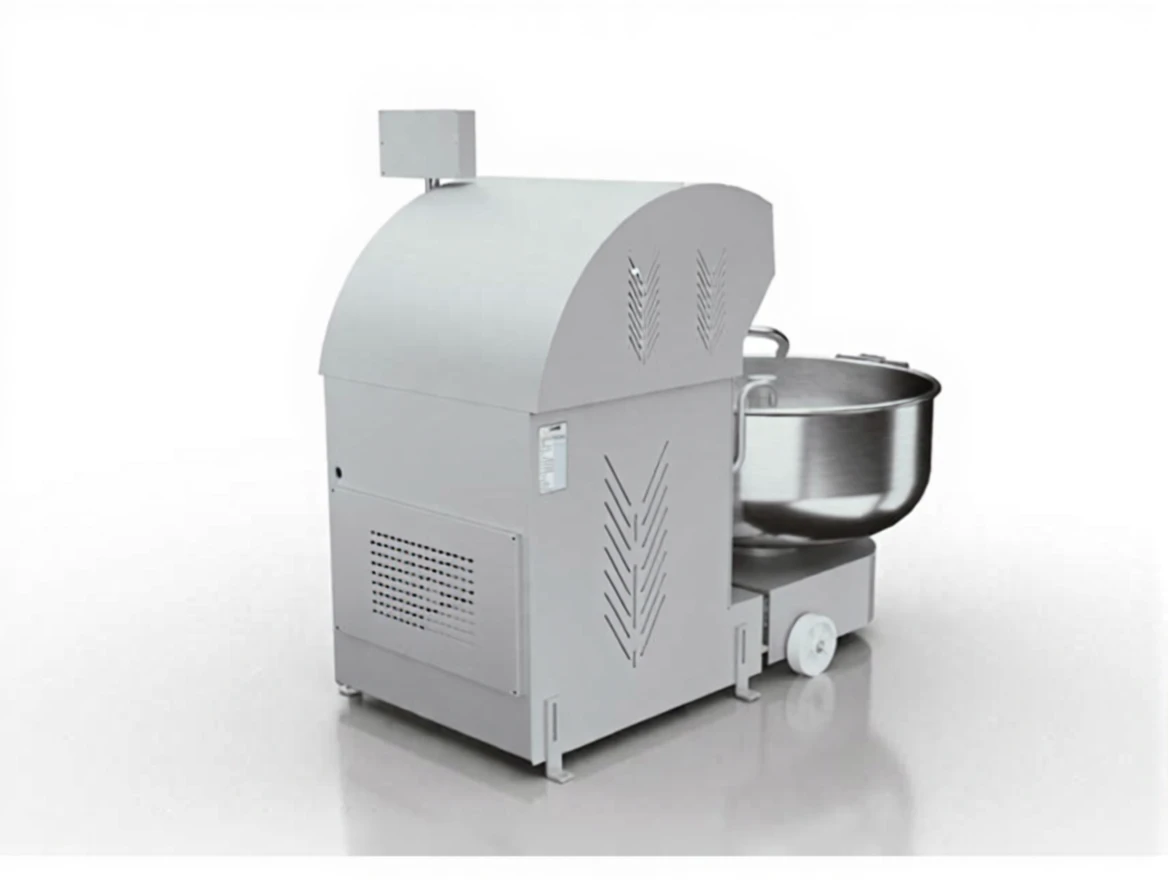

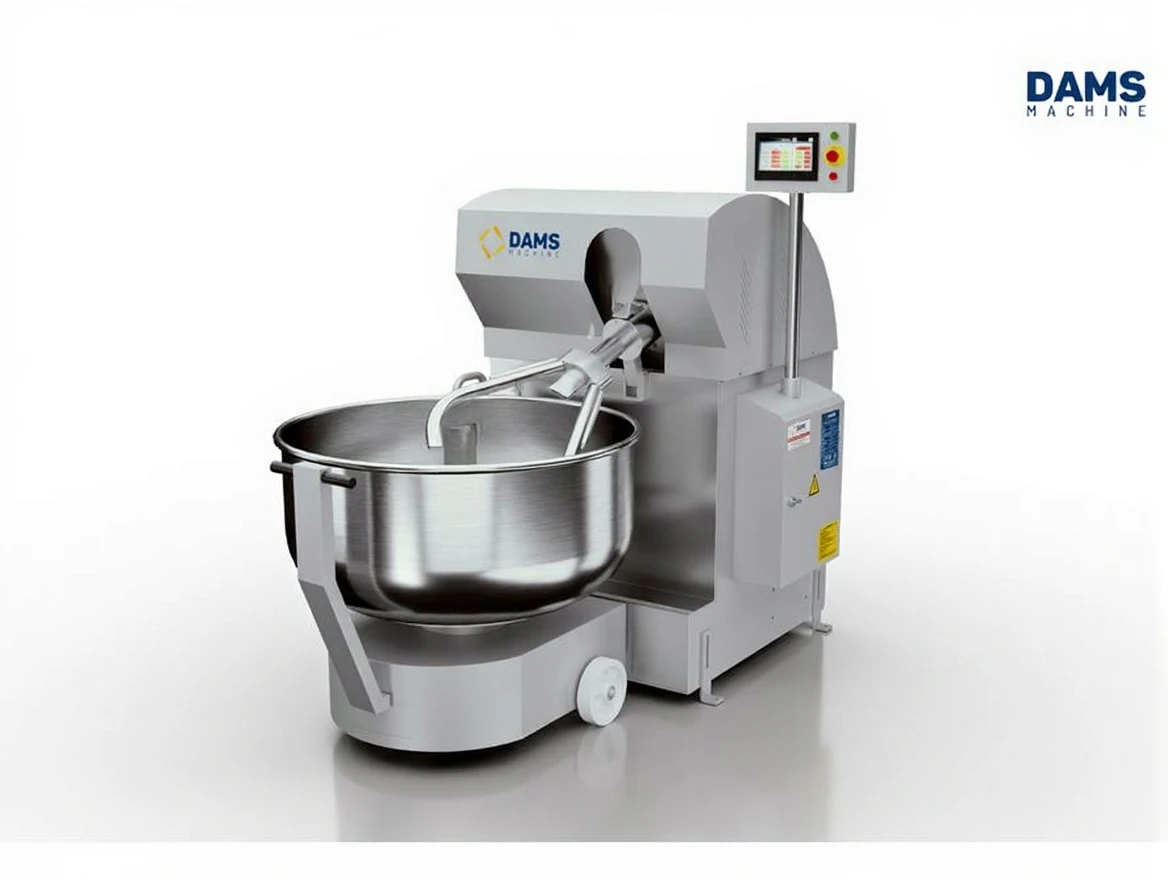

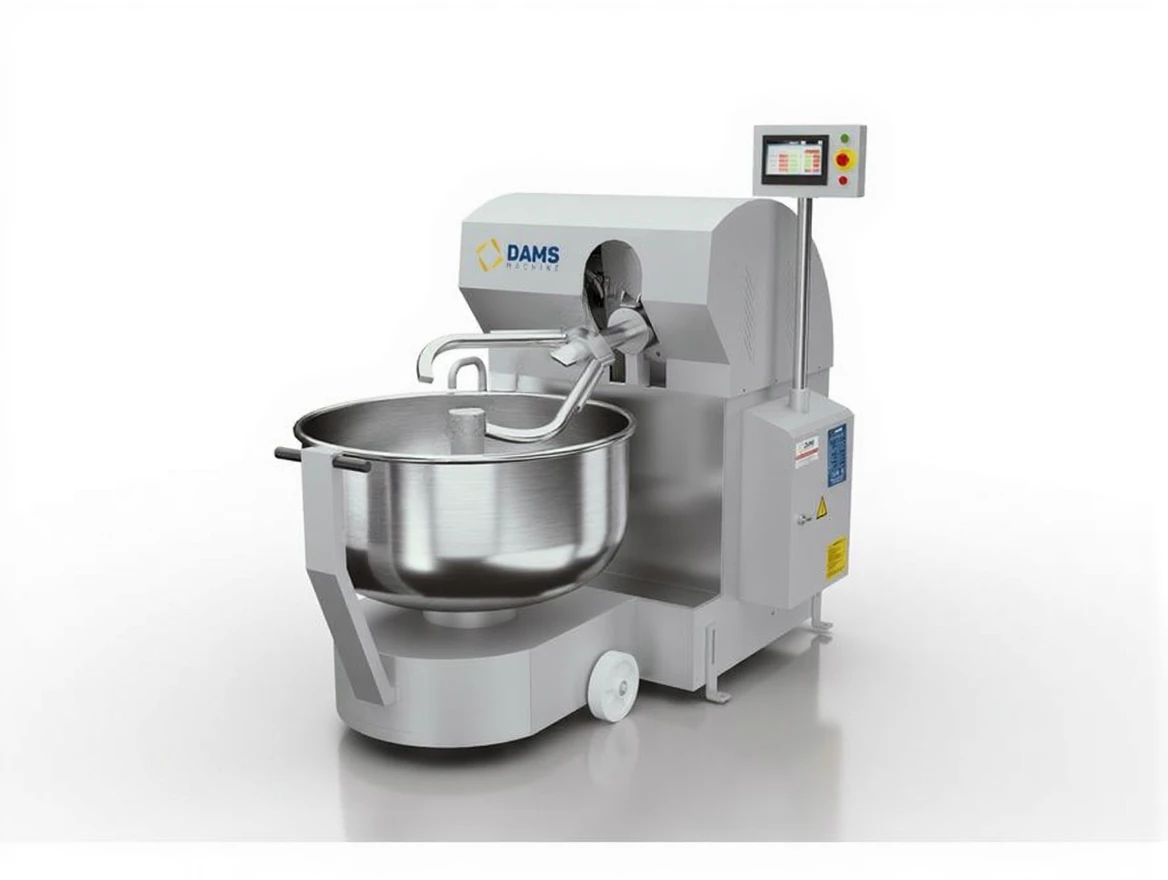

250 Kg Mobile Kettle Dough Mixing Machine
| Brand | DAMS |
|---|---|
| Model Type |
DGKY-250 |
Dams DGKY-250 250 Kg Mobile Kettle Dough Mixing Machine
The DGKY series is a next-generation mobile kettle mixing machine. It has a fast and practical system that allows uninterrupted mixing with the addition of a mobile kettle. It is differential-free, equipped with a powerful dual-speed motor and belt-pulley equipment. This eliminates all failures caused by the differential system, as well as oil dripping and similar problems. The lifting and locking systems for the kettle are hydraulic. With the automatic start mode, slow and fast cycle times can be set by adjusting the timer. It has a faster mixing feature than standard dough mixers, completing the dough mixing process in 25-30 minutes.
Dough, minced meat, raw meatballs, butter, cream, tobacco, and snack production can be used.
PRODUCT FEATURES
Touch PLC Control Panel
Hydraulic kettle locking and lifting
Differential-free system
Water dosing
Timer setting
Powerful dual-speed motor
All surfaces in contact with food are made of 304 quality stainless steel
With a compatible spare kettle (YGK), uninterrupted dough mixing is possible
Can be produced in electrostatic oven paint or entirely in 304 quality stainless steel
" DGKY-250 is prepared with special dimensions upon order".
"DGKY-50 is prepared with special dimensions upon order".
|
|
DGKY-50 |
DGKY-100 |
DGKY-150 |
DGKY-200 |
DGKY-250 |
|
CAPACITY (FLOUR) |
50 KG |
100 KG |
150 KG |
200 KG |
250 KG |
|
WIDTH |
– |
1300 mm |
1350 mm |
1400 mm |
1500 mm |
|
HEIGHT |
– |
1700 mm |
1830 mm |
1850 mm |
2050 mm |
|
DEPTH |
– |
1770 mm |
2030 mm |
2150 mm |
2300 mm |
|
KETTLE DIAMETER |
– |
900 mm |
1000 mm |
1100 mm |
|
|
KETTLE DEPTH |
– |
450 mm |
490 mm |
550 mm |
|
|
WEIGHT |
– |
810 KG |
930 KG |
1020 KG |
1170 KG |
|
MOTOR POWER |
2.2 – 3.4 KW |
3.5 – 5.5 KW |
3.5 – 5.5 KW |
5.5 – 7.5 KW |
7.5-11 KW |
|
VOLTAGE |
380V – 50 HZ |
380V – 50 HZ |
380V – 50 HZ |
380V – 50 HZ |
380V-50 HZ |
