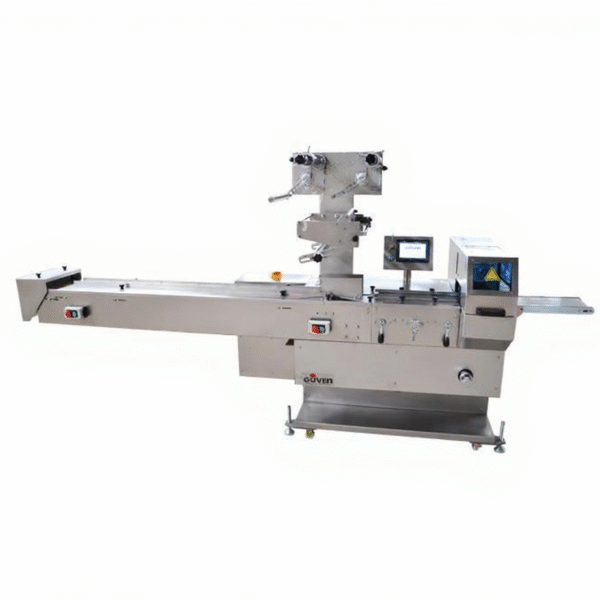

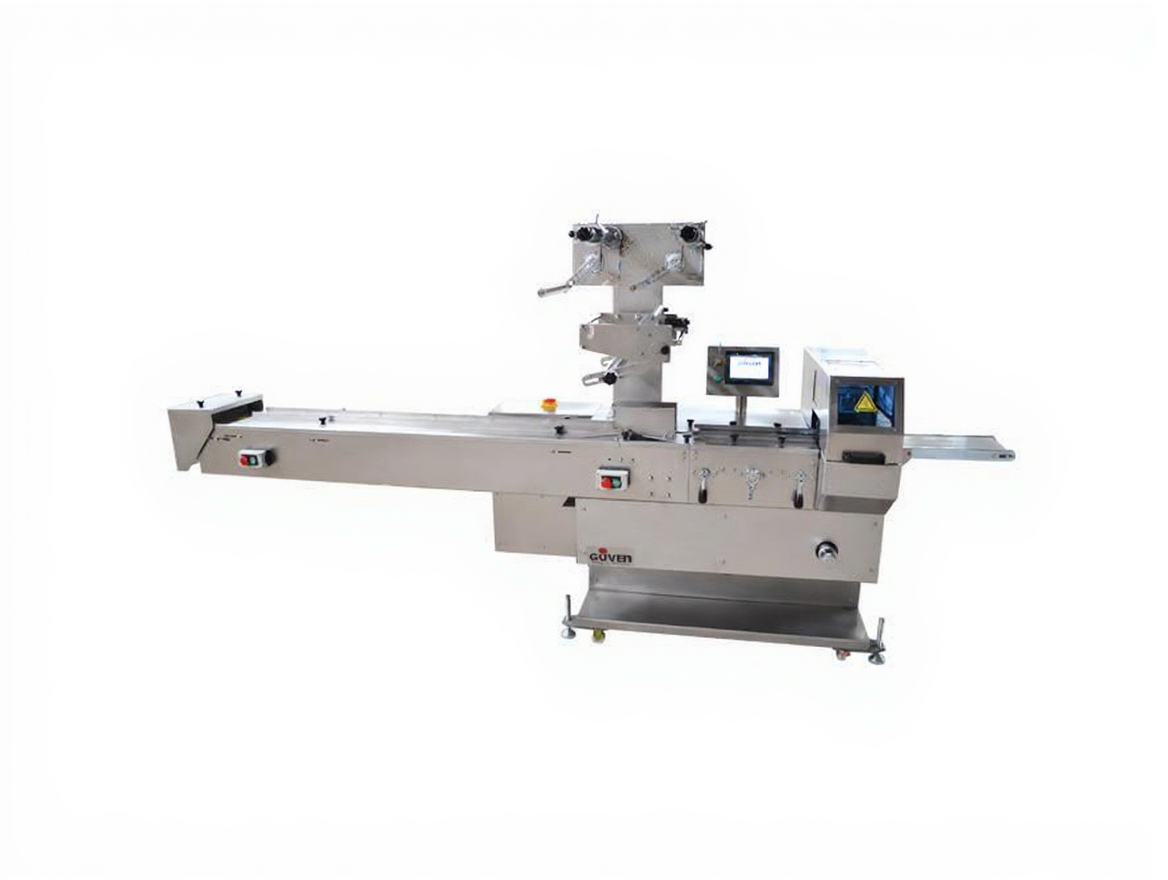

250 Pack/Min Servo Horizontal Flowpack Packaging Machine

250 packs/min Servo Horizontal Flowpack Packaging Machine

GM 33FS 3 Axis Motion Control Servo Motorized, No Product No Package System, No Gap No Cut System, photodetector, 7″ 65536 color touch screen packaging machine. It is suitable for transparent, continuously printed and photodetector-printed packaging.

No Product No Package System stops the package pulling system and rotary cutting jaw system to prevent package waste when there is no product on the product conveyor, and automatically operates when there is a product on the conveyor.

No Gap No Cut System stops the rotary cutting jaw to prevent the product from entering the package in the wrong position and getting stuck under the rotary cutting jaw, and continues to operate automatically after the product in the wrong position passes.

GM 33FS packaging machine allows all settings to be made via the user-friendly touch screen. In addition, all alarm statuses are displayed visually and in writing thanks to the regional alarm system. Packaging Speed can go up to 250 packs/min. It is a suitable solution for packaging products such as Chocolate, Wafers, Cakes, Soaps. Besides being an economical machine, it is a packaging machine suitable for the user with its simple design.

Advanced technology and compact design.

Possibility of using different product types and different coil types.

Visual monitoring of the machine via the regional alarm and control system on the touch screen.

Easy to use with a 7″ 65536 color touch user screen.

With Motion Control Servo Motor System

CONSTRUCTION

The body is made of 4mm sheet metal and electrostatic painted.

The surfaces where the product contacts the machine are Stainless Steel Cr-Ni.

The machine can be easily moved with durable adjustable wheels.

The machine can be fixed after placement with durable adjustable feet.

PACKAGING MATERIALS THAT CAN BE USED

– Single-sided thermally or cold sealable lacquer applied cellophane, PVC, polypropylene OPP.BOPP, paper and aluminum laminations.

GENERAL FEATURES

250 Packs/min

Lockable cover system

3 Axis Motion Control Servo Motor Controlled

Photodetector System

7″ 65536 color Touch Screen

No Product No Package System

No Gap No Cut System

Easy Packaging Size Adjustment

220 VAC / 50Hz 1 Phase + N, 2.5 KW

24 VDC Control Voltage for Safety

Rotary jaw system,

Stepless Package length,

Stepless Machine Speed,

Stepless Jaw Speed

Product Feeding Conveyor

Adjustable Wrapping Box

Easy to change pusher lug system

3 sets of bottom sewing system

Rotary Cutting Jaw overload safety

PID controlled 2-zone temperature control system

OPTIONAL

Date coding printer

Chrome body

Gas flushing unit

PRODUCTS THAT CAN BE PACKAGED

– Chocolate packaging machine, wafer packaging machine, cake packaging machine, soap packaging machine, can package various food items within the packaging dimensions.
