250 Ton C Type Eccentric Press

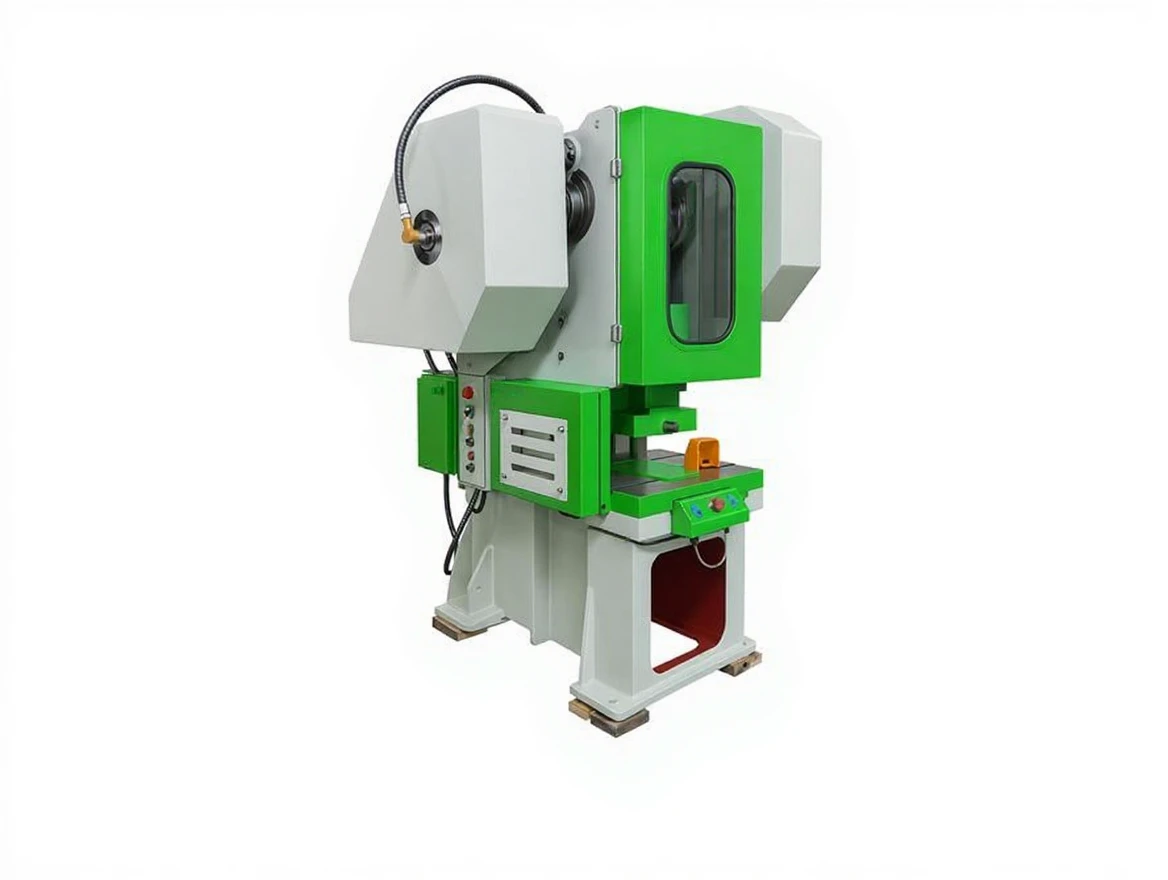

C Type Eccentric Press – CECP 250 Ton

Standard Features

• Steel construction body

• Registration from 4 surfaces

• Spheroidal cast connecting rod and pinion bearings

• Crankshaft and transmission shafts made of 4140 rectified steel

• Central system fully automatic grease lubrication

• Pneumatic clutch and brake combination

• Complies with CE safety directives

• Double coil safety valve

• Manually adjustable stroke

• Beam barrier finger – hand protection security system

• PLC control system

• Double pedal control system

• Mechanical safety system

• Emergency reverse motor movement

• Compliant with labor safety regulations

• Compliant with CE standards

Optional Features

• Vibration damping wedge

• Spare table

• Press feeding systems

• 1 set of desired features mold

• 8-bearing sliding

Technical Specifications

• Capacity: 250 Ton

• Throat Depth: 350 mm

• Table – Slide Distance: 520 mm

• Distance Between Slide – Table: 630 mm

• Space Between Walls: 520 mm

• Slide Adjustment: 150 mm

• Approximate Width of Press: 2000 mm

• Approximate Depth of Press: 2500 mm

• Approximate Height of Press: 3100 mm

• Front Anchor Dimension: 930 mm

• Side Anchor Dimension: 1430 mm

• Table Hole Diameter: 250 mm

• Table Size: 700 × 1100 mm

• Mold Clamping Slot Diameter: 60 mm

• Slide Size: 670 × 380 mm

• Ground to Table Dimension: 810 mm

• Stroke Adjustment: 20 – 160 mm

• Number of Strokes / Minute: 40 strokes/min

• Motor Power: 22 + 2.2 kW

• Motor Speed: 1450 RPM

• Approximate Weight: 12,000 kg

Production Information

This machine is manufactured by CronossTech in Turkey.
