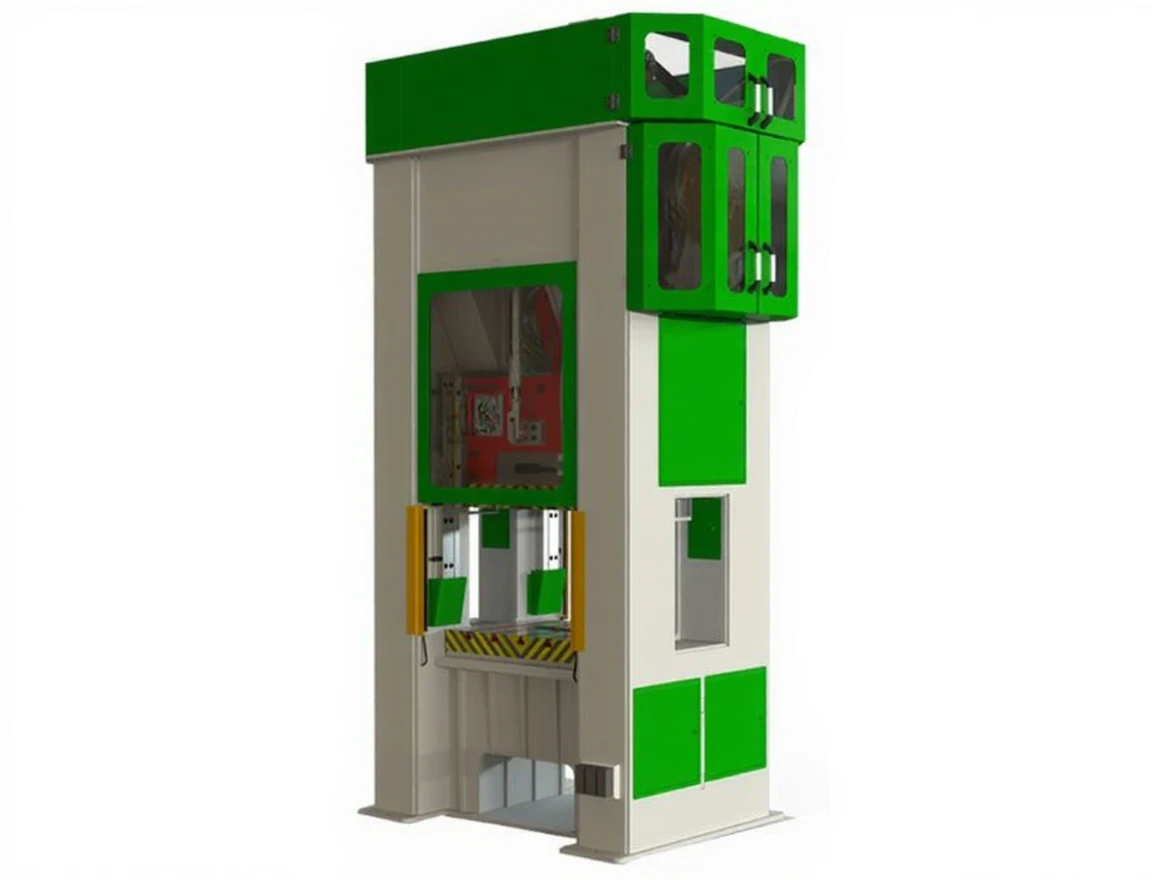

250 Ton H Type Single Connecting Rod Eccentric Press

H Type Eccentric Press – CEHP TB 250 Tons

Standard Features

• Steel construction body

• Pneumatic clutch – brake system

• T channel additional slide

• 8 bearings ram

• Adjustable stroke on single connecting rod

• Balanced piston on the ram

• Full automatic thin lubrication system

• PLC control system

• Piano type control panel

• Touchscreen LCD display

• Motor reverse movement

• Overload hydraulic fuse

• Motorized ram adjustment mechanism

• Photoelectric safety curtain

• Gear set in closed oil tank

• Double-coil safety valve

• Compliance with CE standards

Optional Features

• Press feeding systems

• Waste material discharge systems

• Sliding safety cover in front of the table

• Mold with desired features

Technical Specifications

• Steel construction 8 slide monoblock body

• Vibration stress relief on body and welded parts

• Usable area of moving table: 1200 × 1000 mm

• Usable area of fixed table: 1200 × 1000 mm

• Parallelism and perpendicularity tolerances compliant with ISO and DIN standards

• Stroke distance: 200 mm (fixed)

• Table – Ram distance (max.): 500 mm

• Ram adjustment (regulation): 120 mm

• Eccentric shafts: Ck45

• Gears: Cast steel

• Motorized adjustment of table–ram distance

• Approximate press height: 4600 mm

• Approximate press width: 2900 mm

• Approximate press depth: 2550 mm

• Lower table height of the press from the ground: 900 mm

• Distance between walls: 1230 mm

• Press side window size is adjustable according to demand

• Flywheel bearing structure

• Slide bedding: Bronze (CuSn14)

• Connecting rods, intermediate and main bearings: Bronze (CuSn14)

• Central automatic grease lubrication

• Single connecting rod structure

• Pneumatic clutch and brake combination system (OMPI)

• 4 pieces of ram cushioning cylinders

• Approximate press weight: 31,000 kg

Automation and Electrical Information

• Main motor: 37 kW – IE3

• Touch panel and PLC: Delta

• PLC program for adapting the mold to the press

• Speed control device: Delta

• Operating speed: 25 – 45 strokes/min

• Mold recipe capacity: 100 pieces

• Switchgear components: Siemens & Schneider

• Piano type or wall type electrical panel

• Table–ram distance measurement can be monitored on the screen

Production Information

This machine is manufactured by CronossTech in Turkey.
