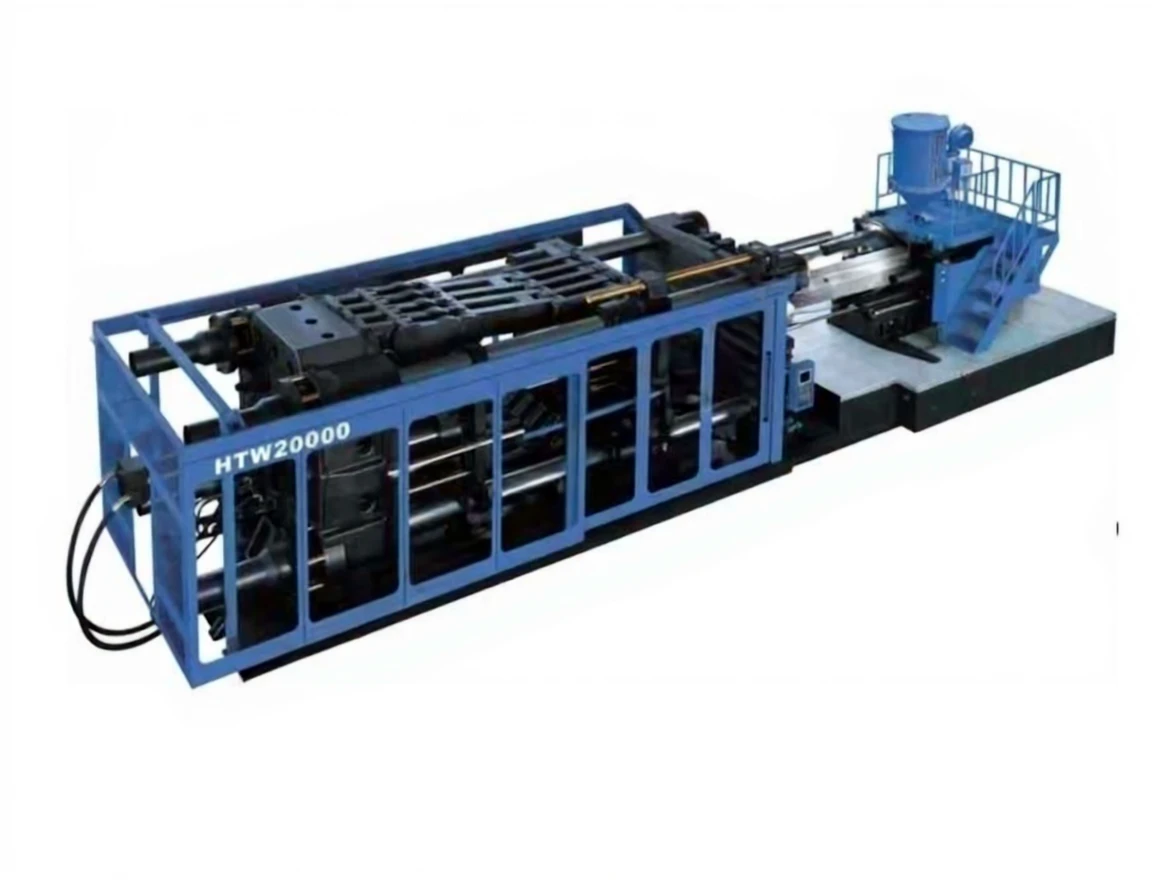

2500 Ton Servo Plastic Injection Machine
| Brand | Ce-Ba/Haitai |
|---|---|
| Model Type |
HTW-2500 |
Ce-Ba/Haitai HTW-2500
2500 Ton Servo Plastic Injection Machine
General Features
The energy-saving injection molding machine is equipped with a high-performance servo motor control system,
This study aims to design servo motor injection machines.
With this study, the technological gains, features, speed, precision, energy efficiency, and quality of the next-generation plastic injection machine designed using servo motors have been compared to traditional A/C motor machines.
Ce-Ba/Haitai HTW-2500 Technical Specifications
.png)
|
MODEL CODE |
|
HTW2500 |
|||
|
INJECTION UNIT |
INJECTION UNIT |
Unit |
|
||
|
SCREW TYPE |
Screw Type |
|
A |
B |
C |
|
SCREW DIAMETER |
Screw diameter |
mm |
180 |
200 |
210 |
|
SCREW L/D RATIO |
Screw L/D ratio |
L/D |
24 |
24 |
24 |
|
INJECTION VOLUME |
Shot volume(therretical) |
cm3 |
28501 |
35186 |
38775 |
|
INJECTION WEIGHT |
Injection weight(ps) |
g |
25935 |
32019 |
35285 |
|
INJECTION RATE |
Injection rate |
Mm/s |
1523 |
1880 |
2000 |
|
INJECTION PRESSURE |
Injection pressure |
MPa |
175 |
142 |
128 |
|
SCREW SPEED |
Screw speed |
rpm |
53 |
||
|
CLAMPING UNIT |
CLAMPING UNIT |
|
|
||
|
CLAMPING FORCE |
Clamping force |
KN |
25000 |
||
|
OPEN STROKE |
Open stroke |
mm |
1900 |
||
|
SPACE BETWEEN TIE BARS |
Space between tie bars(W×H) |
mm |
1850X1700 |
||
|
MAX. MOULD HEIGHT |
Max.Mould height |
mm |
1800 |
||
|
MIN. MOULD HEIGHT |
Min.Mould height |
mm |
700 |
||
|
EJECTOR STROKE |
Ejector stroke |
mm |
450 |
||
|
EJECTOR FORCE |
Ejector force |
KN |
490 |
||
|
OTHER PARAMETERS |
Others |
|
|
||
|
SYSTEM PRESSURE |
[ URL HIDDEN ] pressure |
MPa |
16 |
||
|
SERVO MOTOR POWER KW |
Pump motor power |
KW |
45+45+55+55 |
||
|
HEATING POWER KW |
Heating power |
KW |
170.9 |
||
|
MACHINE DIMENSIONS |
Machine dimension(L×W×H) |
m |
18.50X4.10X4.30 |
||
|
OIL TANK CAPACITY |
Oiltank cubage |
L |
3100 |
||
|
MACHINE WEIGHT |
Machine weight |
t |
180 |
||
