2500x1300mm Flatbed Led UV Printing Machine
| Brand | Mimaki |
|---|---|
| Model Type |
JFX200-2513EX |
2500x1300mm Flatbed Led UV Printing Machine

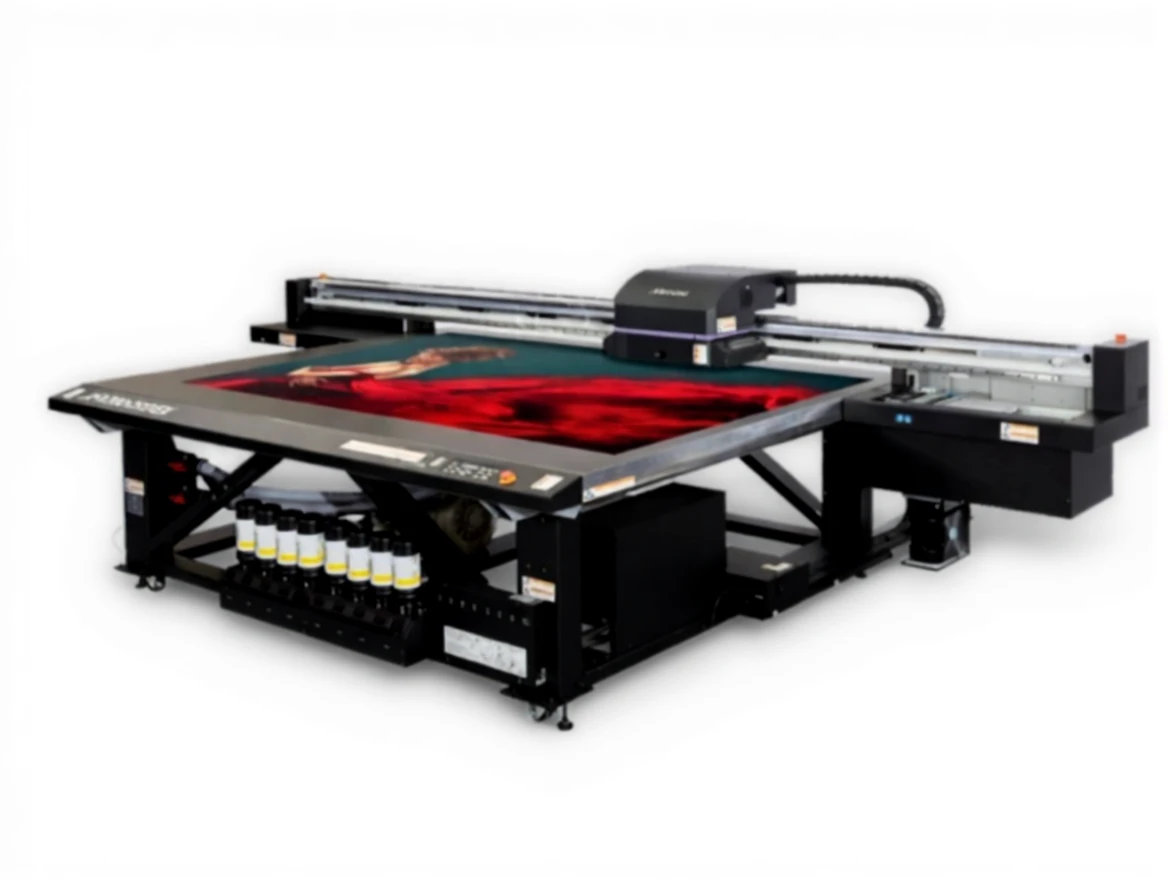

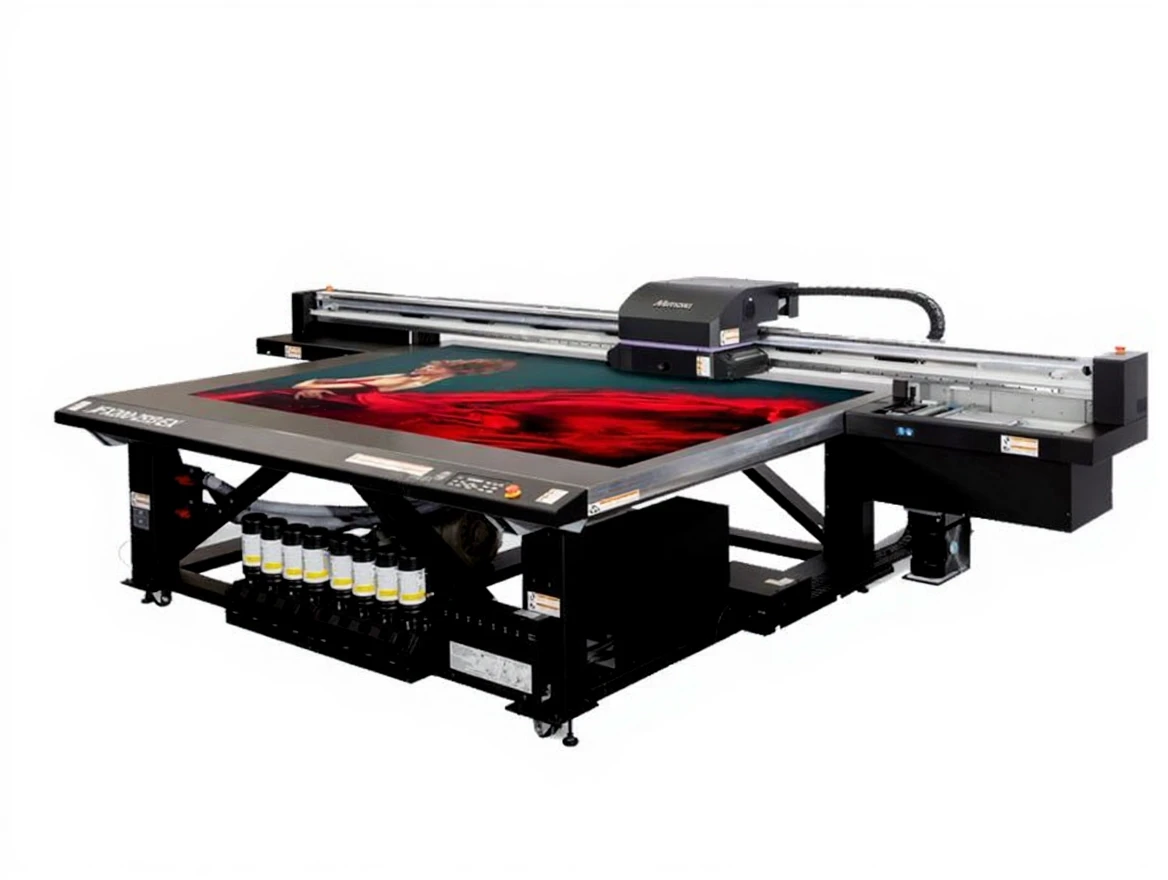

The Mimaki JFX200-2513 EX, as a wide-format UV-LED flatbed printing machine, offers high-quality and efficient printing solutions. This device, which is an improved version of the previous model JFX200-2513, is ideal for signage, indoor decoration, and industrial applications.
Key Features:
-
Printing Area: 2,500 x 1,300 mm
-
Maximum Media Thickness: 50 mm
-
Maximum Printing Speed: 35 m²/h
-
Printing Resolution: 300, 450, 600, 900, 1,200 dpi
-
Ink Types: LH-100, LUS-120, LUS-150, LUS-350 UV curable inks; PR-200 primer
-
Connection Options: USB 2.0 and Ethernet
-
Device Dimensions (W x D x H): 4,400 x 2,450 x 1,250 mm
-
Weight: 650 kg
Highlighted Features:
-
2.5D Printing Technology: This feature, which can automatically create textures up to 17 layers from a single grayscale image using RasterLink6 Plus software, adds depth and textural effects to prints.
-
High Efficiency: With the newly designed staggered three print heads, it provides up to 200% faster speed in simultaneous printing of colored and white inks compared to previous models.
-
Automatic Maintenance Functions: Nozzle Check Unit (NCU) and Nozzle Recovery System (NRS) automatically detect and clean clogged nozzles, providing uninterrupted printing process.
-
Enhanced User Experience: The added foot pedal for vacuum control and Ethernet connection support provide ease of use and flexibility.
The JFX200-2513 EX is an ideal solution for businesses looking to produce high-quality prints across a wide range of applications, from architectural designs to promotional items.
