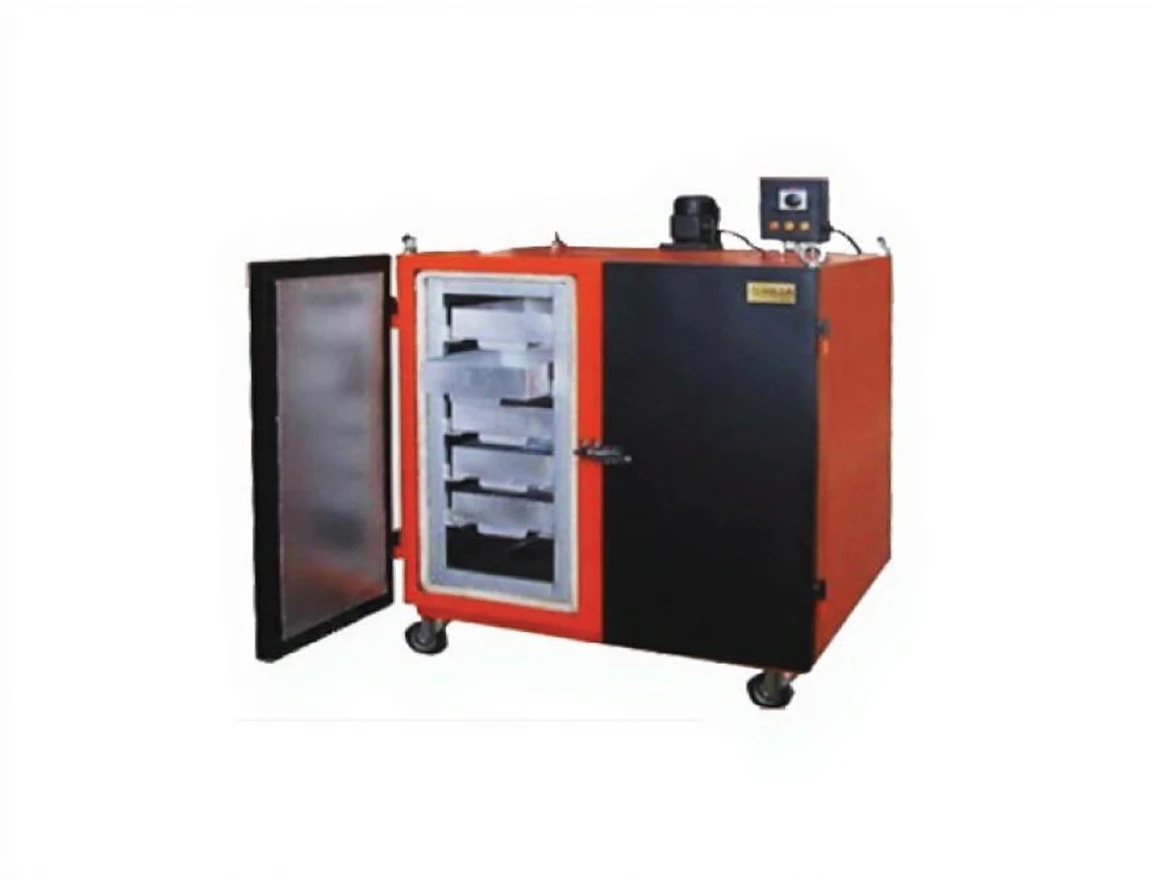

250+250 Kg Electrode and Submerged Arc Drying Oven

The main working principle is to allow the drying function of factory output welding electrodes and submerged arc welding powder to be performed in two separate compartments in a single oven, and to carry out the shock and resting functions on a single oven.

Factory output electrodes and submerged arc welding powders are subjected to a shock process by being kept at a minimum of 300 C and a maximum of 350 C for two hours during the first use. In the second stage, the oven temperature is reduced to 130 C for resting until it is transferred to the application area.

This oven may be suitable for companies with intensive functions using two separate welding types. After the products in the shock section are consumed, new products should be placed in their places, and rested products should be transported to the application area with storage thermoses (BMK-1, BMK-1A, BMK-2Y, BMK-4Y, etc.).

Category: Electrode and Submerged Arc Welding Powder Drying Ovens

Product Code: BMET-250

Capacity: 250 Kg Electrode + 250 Kg Powder

Height: 140 cm

Outer Diameter: 135×110 cm

Max. Heating Degree: 0-400 C

Temperature Control: Digital Controlled

Power: 4500+4500 W

Operating Voltage: 380 V 3ph*

Operating Current: 42 A

Heat Insulation: Available

Weight: 340 Kg
