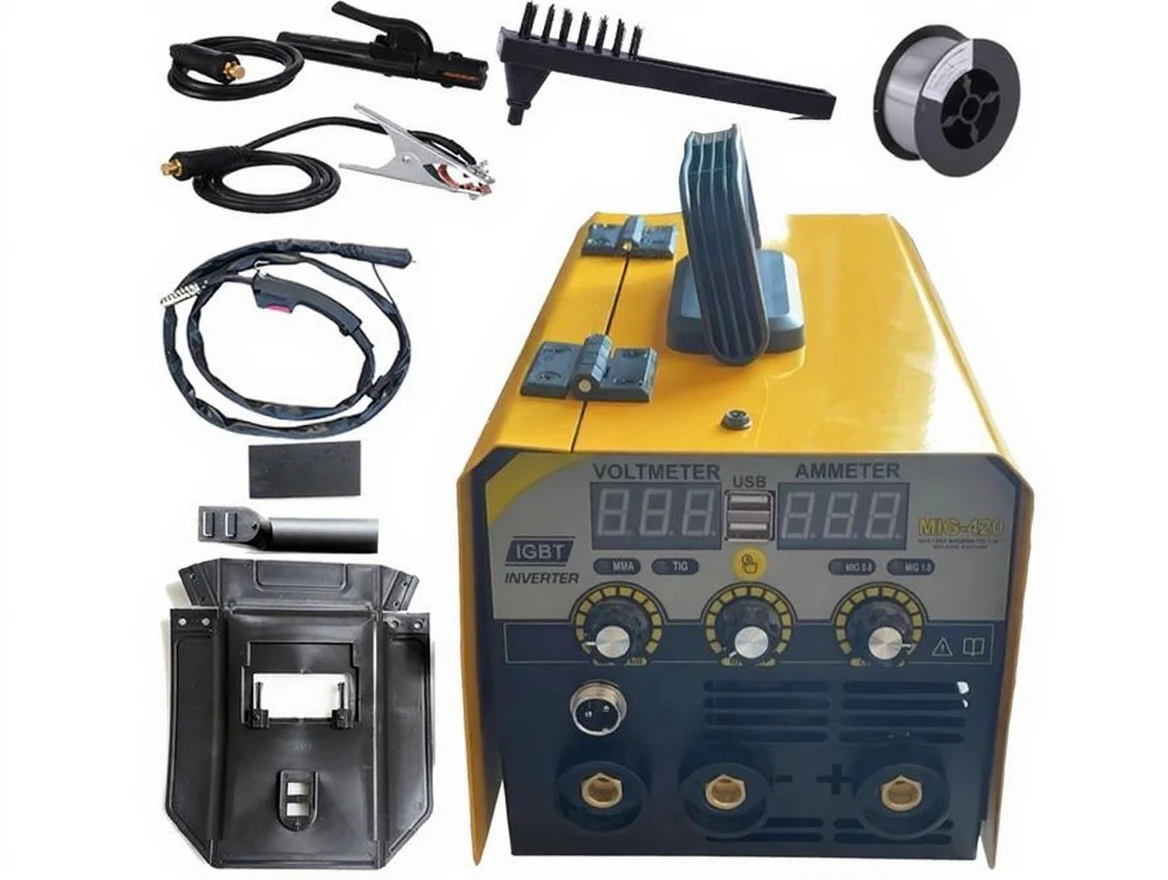

250A MIG420 Çok Fonksiyonlu Gazsız Gazaltı Kaynak Makinesi

Bosch Plus EEA358 MIG420 Multi-Functional Gasless Arc Welding Machine (Yellow)

Can be used as a normal electrode welding machine or as a gasless wire welding machine for 2 different types of use.
It has 3 functional features for tig mig and mma welding applications.

Tig (Argon) Welding: Argon Welding, also known as (TIG Welding) Tungsten inert gas welding, is a welding process that uses electricity to melt and join metal parts. TIG (Argon) welding is appropriate for a wide range of metal thicknesses. It is even suitable for very thin materials that are difficult (or impossible) to weld with other welding techniques.

MIG Welding: Metal inert gas (MIG) welding is a sub-type of gas metal arc welding (GMAW). In this welding process, the main materials are joined with a welding current. The filler metal is continuously fed from the welding gun. While the electric arc melts the electrode wire, it is melted together with the main metals in the welding pool. At the same time, the protective gas moves along the welding gun to keep the weld away from atmospheric pollution.

MMA Welding: Manual metal arc welding (MMA) is a hand-operated arc welding method in which the necessary heat for welding is generated by the arc formed between the coated consumable electrode and the workpiece. The tip of the electrode, the welding pool, the arc, and the areas close to the weld of the workpiece are protected by the gases formed by the combustion and decomposition of the coating material from the harmful effects of the atmosphere.

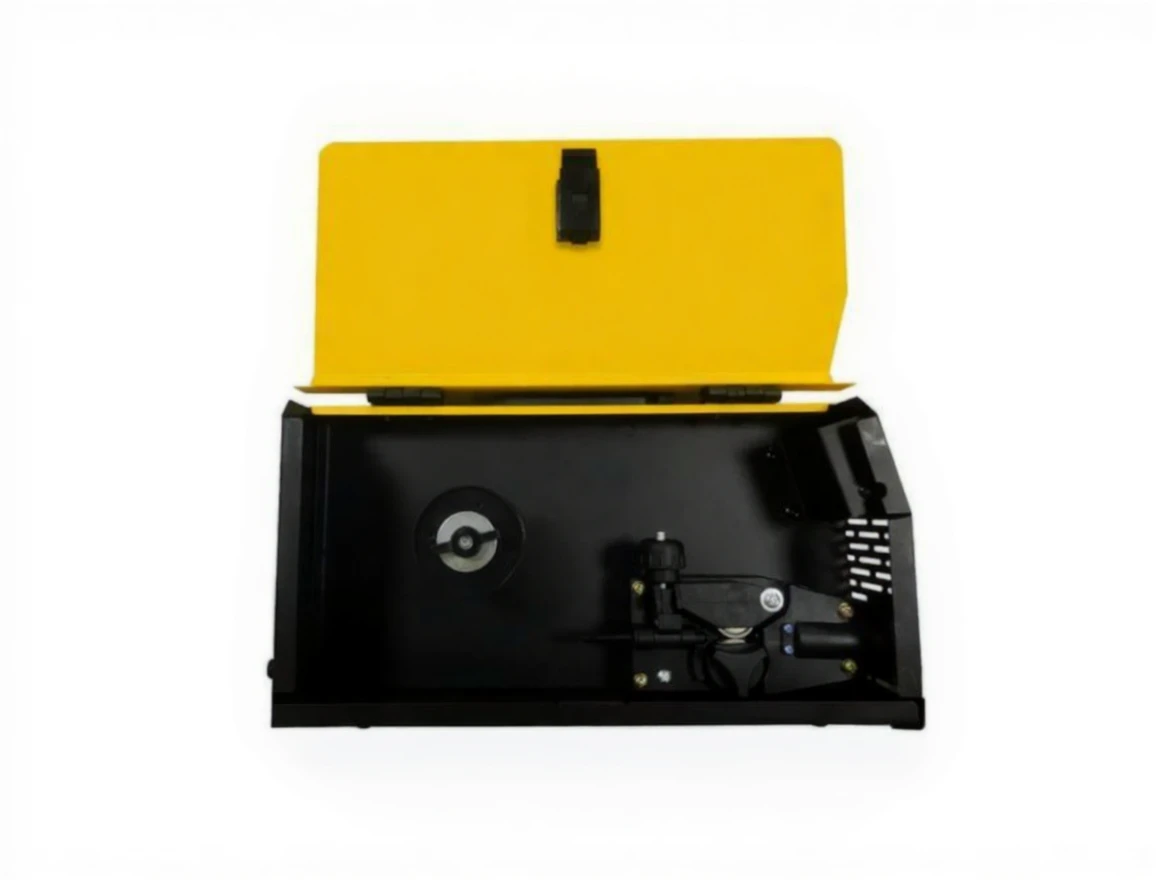

It works with 1 kg wire, compatible with wires up to 0.8 mm, 0.9 mm, 1 mm, and the wire is also available in stock. The machine operates gasless with wire wound torch.

220-volt portable gasless arc welding machine with 200 amps, features 1 phase 230v-50/60 Hz mains voltage, and can operate with generators, tolerating voltage fluctuations up to 15%.

Thanks to inverter technology, it has high energy efficiency compared to traditional machines. It offers excellent welding characteristics with various types of steel, aluminum, and flux-cored wires. Positive (+) and negative (-) polarity options are available.

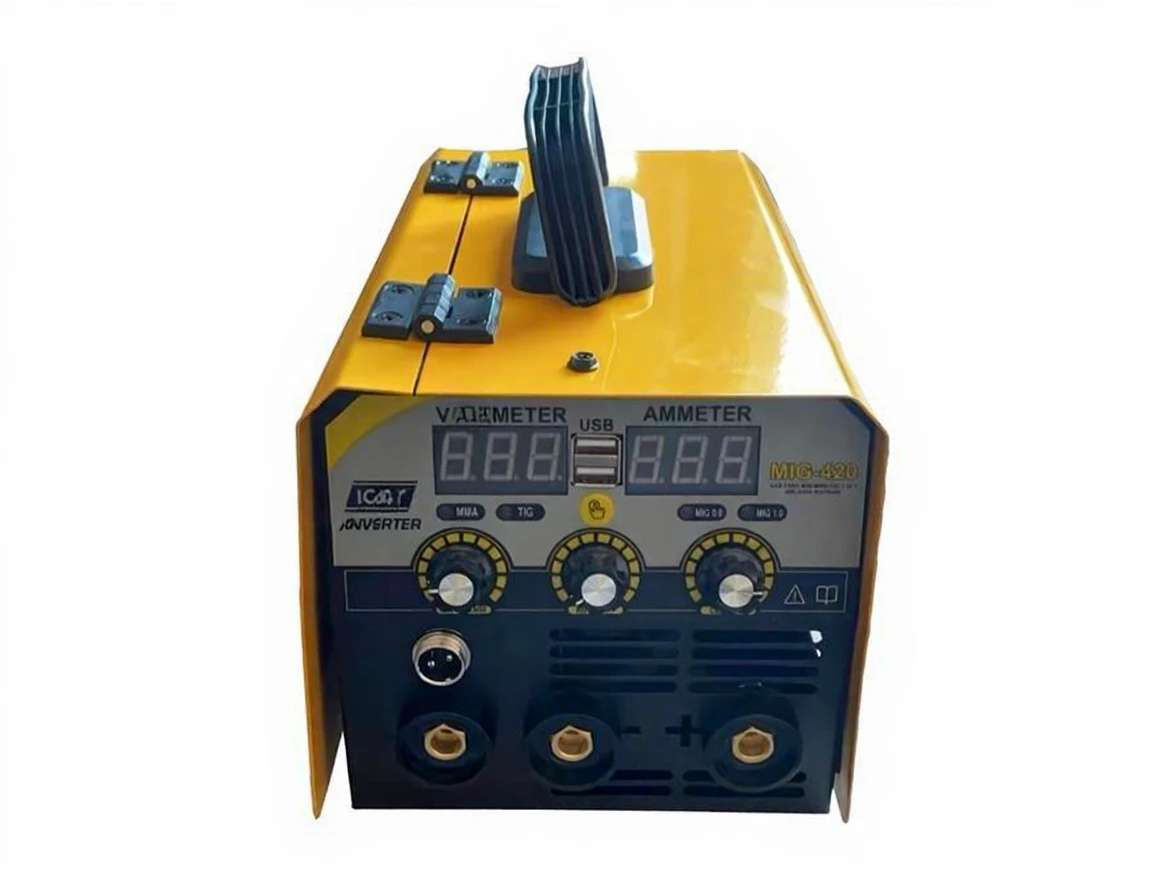

Welding voltage, wire feeding speed (current), soft start, pre-Gas, post-Gas, burn-back settings, and 2/4 trigger option are made from the control panel. Welding parameters are easily monitored from large digital displays. There are free wire feeding and gas test buttons.

Technical Specifications

Type: Portable Gasless Arc Welding Machine

Power: 8.21 (20%) kVA

Voltage: 220-230 volts, 50Hz

Current Range: 30-250 Amps

Min. Generator Power: 7kVA

MMA Electrode Diameter: [ PHONE HIDDEN ]

Protection Degree: IP23

Product Weight: 4kg

Product Size: 340 x 200 x 180mm

Protection Class: p21

Wire Feeding System: Welding wire diameter [ PHONE HIDDEN ]mm, Standard wire spool size [ PHONE HIDDEN ]mm

Wire spool diameter: 1x30mm

Wire feeding speed: 1 – 18m/min

Torch trigger control: 2/4

Welding Thickness: 1 ~ 5mm

Wire spool capacity: 1kg

Cooling System: Fan Cooling

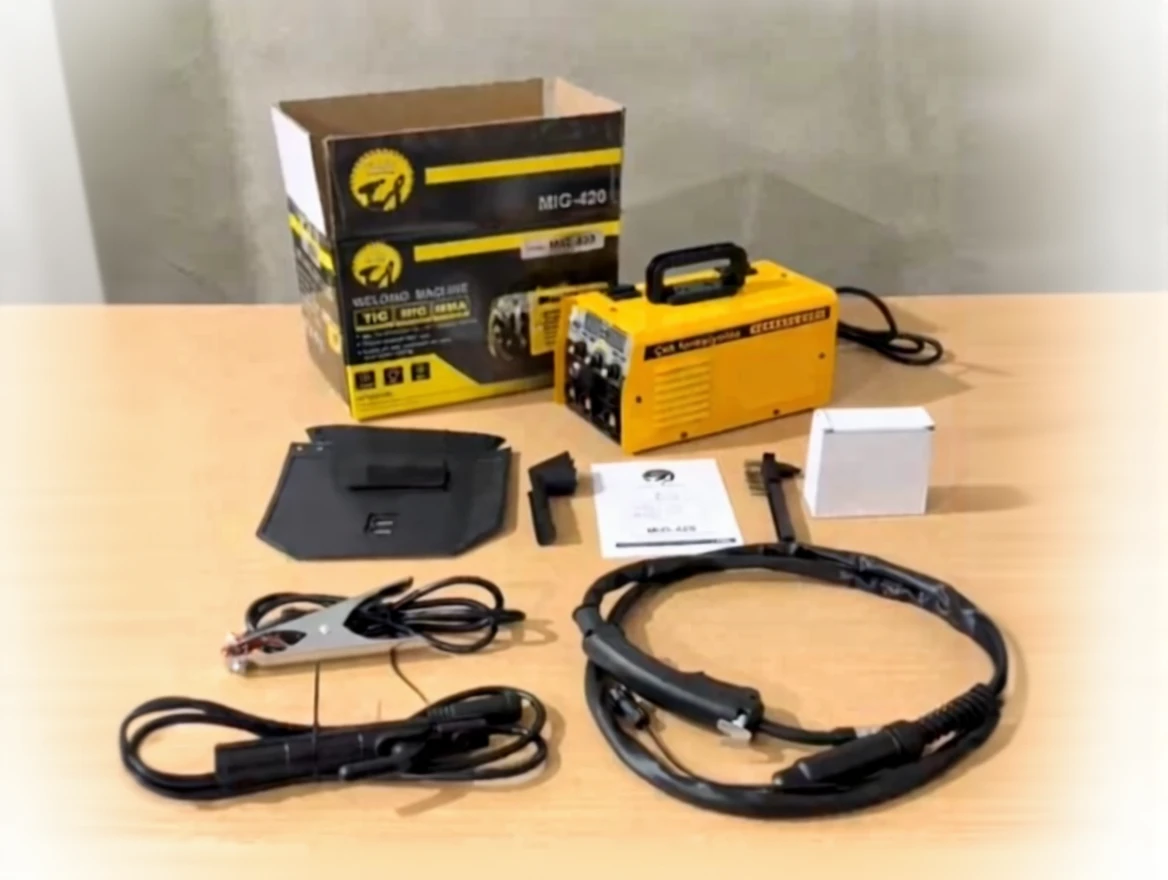

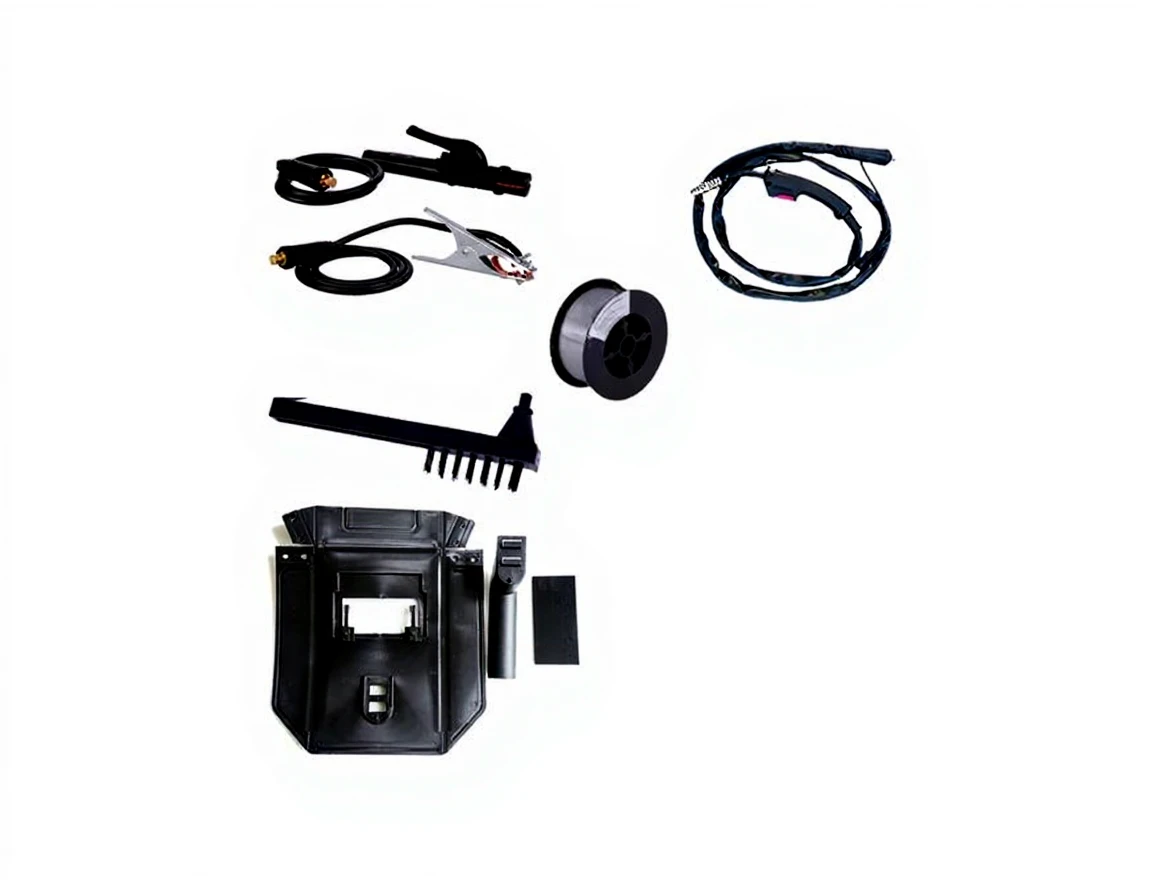

Accessories: 1 machine case, 1 body, Extra parts

Functions

• Ø300, ø270, and ø200 mm reels, drum packaging (requires accessory attachment), and spool gun with ø100 mm reels can be used.

• It is compact and portable for easy transportation inside the workshop and on the field.

• It is fan-cooled and thermally protected against overheating.

• Standard accessories are included with the machine.

• There are free wire feeding and gas test buttons.

• 3D cooling system

• It can be used as gasless or normal electrode welding.

• 1 kg wire capacity
