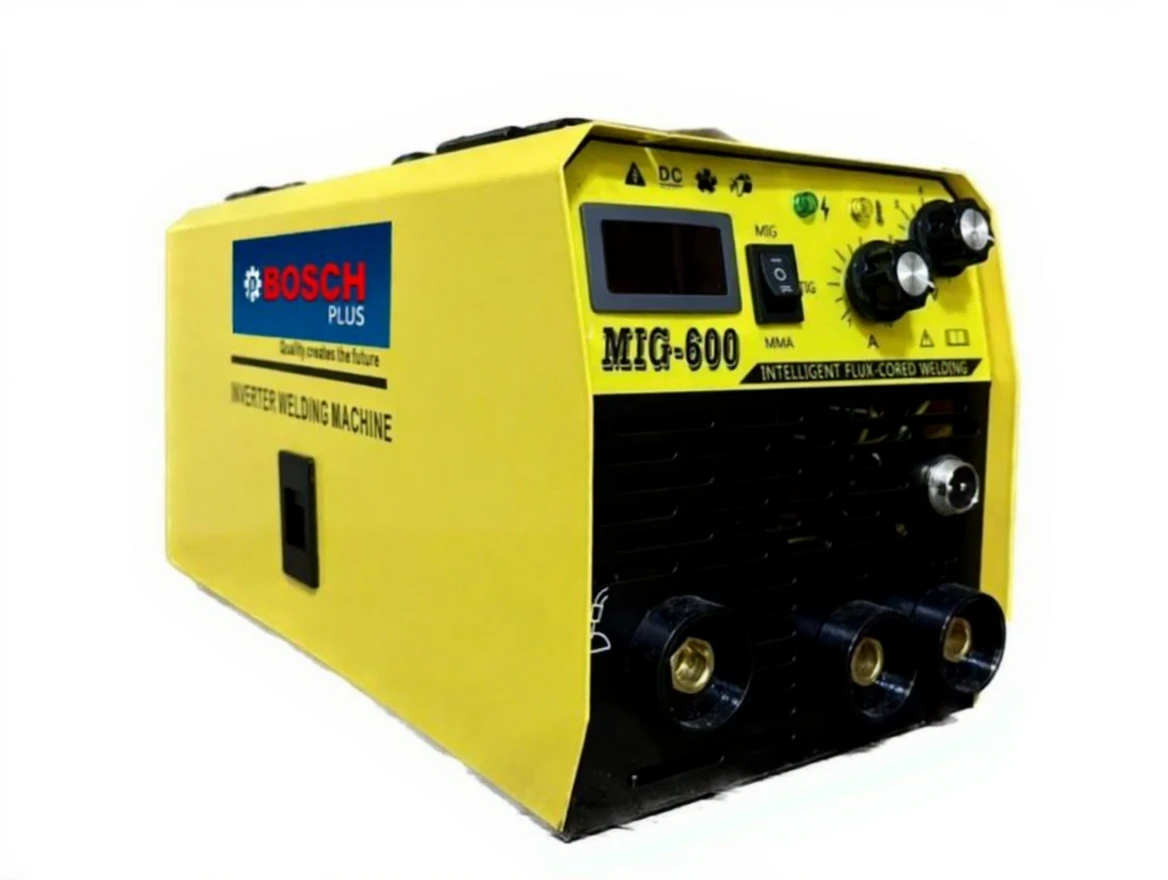

250A MIG600 3 Fonksiyonlu Gazsız Gaz Altı Kaynak Makinesi

Bosch Plus EEA240 Digital Welding MIG600 Gasless Submerged Arc Welding Machine 3 Function Yellow

Use it as a normal welding electrode or as a gasless wire welding with 2 different usage options.

220 volts compact type gasless submerged arc welding machine 250 amperes Features Single phase 230v-50/60 hz grid and operates with generators, tolerates voltage fluctuations up to 15%.

Thanks to the inverter technology, it has high energy efficiency compared to conventional machines. Provides excellent welding characteristics with steel, aluminum, and special wire varieties. It has positive (+) and negative (-) pole setting options.

Welding voltage, wire feeding speed (current), soft start, pre-Gas, post-Gas, burn-Back settings and 2/4 trigger options are made from the front panel. Welding parameters are easily monitored from large digital displays. It has free wire feeding and gas test buttons.

The product is produced in original quality similar to A quality.

Technical Specifications

Type: compact type Gasless Submerged Arc Welding Machine

Power: 8.21 (20%) kva

Voltage: 220-230 volts 50Hz

Current range: 30-250 Amperes

Min. Generator Power: 7kva

MMA Electrode Size: [ PHONE HIDDEN ]

Protection Rate: IP23

Product weight: 4kg

Product size: 96*155*220mm

Protection class: p21

Wire feeding system: Welding wire diameter [ PHONE HIDDEN ]mm , Standard wire feeding reel size [ PHONE HIDDEN ]mm

Wire feeding reel diameter: 1x30mm

Wire feeding speed: 1 – 18m/min

Torch trigger control: 2 / 4

Welding thickness: 1 ~ 5mm

Wire reel capacity: 1kg

Cooling System: Fan Cooling

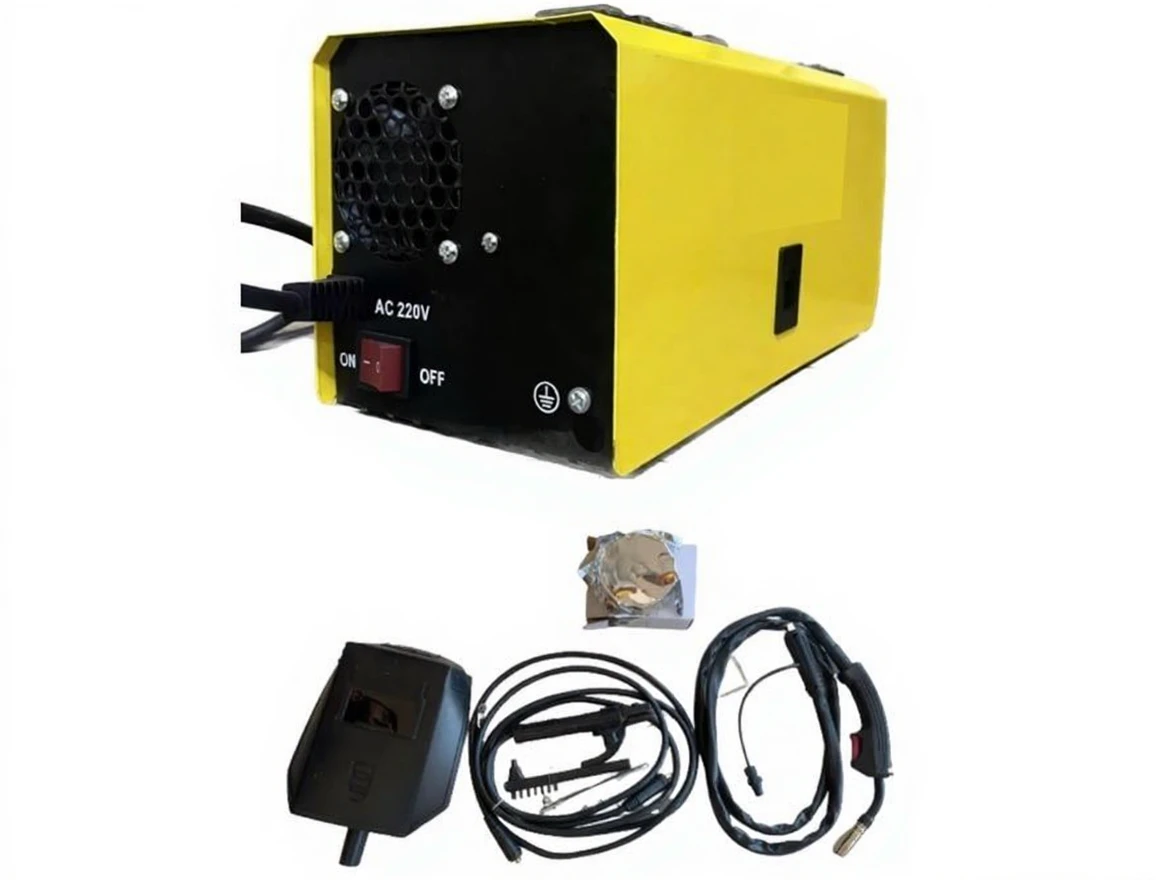

Parts: 1 machine box, 1 body, Extra parts

Functions

• Ø300, Ø270, and Ø200 mm reels, barrel packaging (accessory attachment optional) and spool gun can be used with Ø100 mm reels.

• It is compact and easy to carry into the workshop and field.

• It is fan-cooled and thermally protected against overheating.

• Standard accessories come with the machine.

• It has free wire feeding and gas test buttons.

• 3d cooling system

• Can be used as gasless or normal electrode welding

• 1 kg wire capacity
