254×1270 mm Mold Maker Milling Machine

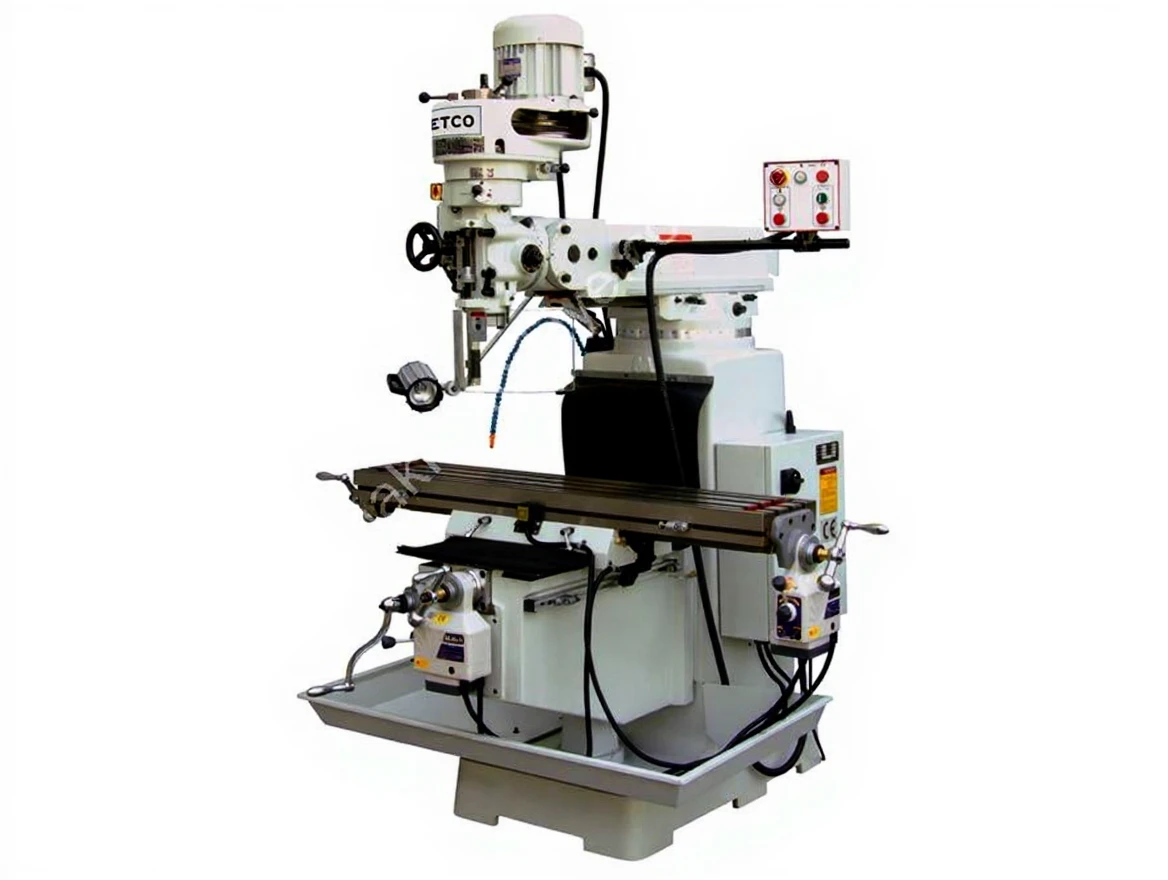

JETCO JBE-3 Mold Maker Milling Machine

JETCO JBE-3 Mold Maker Capacity

X & Y axis are ALIGN motorized, Table size 254×1270 mm, Table’s X & Y & Z axis movements are 825 & 400 & 406 mm, T slot size 16 x 3 x 63 mm, Quill diameter is 85.72 mm. It is of Taiwanese origin.

JETCO JBE-3 Mold Maker Accessories

X & Y Axis ALIGN Motor, X & Y & Z Axis Swallow Tail Slide System, 8-Stage PAKO Switch, Time-Adjusted Automatic Lubrication, Halogen Work Lamp, Y&Z Axis Slide Bellows, Work Spindle Guard & Cooling System, Chip Tray, Suction Shaft, Tool Box, Collet Set (15 pieces), Clamping Set (52 pieces), Vise (150mm)

JETCO JBE-3 Mold Maker Technical Specifications

Table size  mm  254 x 1270

T. slot     mm      16 x 3 x 63

Table’s X axis movement    mm      825 (manual: 914)

Table’s Y axis movement    mm      400

Table’s Z axis movement    mm      406

Head’s up/down movement          mm      610

Spindle quill movement            mm      127

Quill diameter         mm      85.72

Motor            HP        3

Spindle taper          ISO40

Speed change             16-stage speed

Spindle speed        rpm    80-5440

Head rotation angle         Right/Left 90° – Front/Back 45°

Net weight       kg          1200
