254×1270 mm Mold Maker Milling Machine
| Brand | KG Super |
|---|---|
| Model Type |
M 250D |
Description

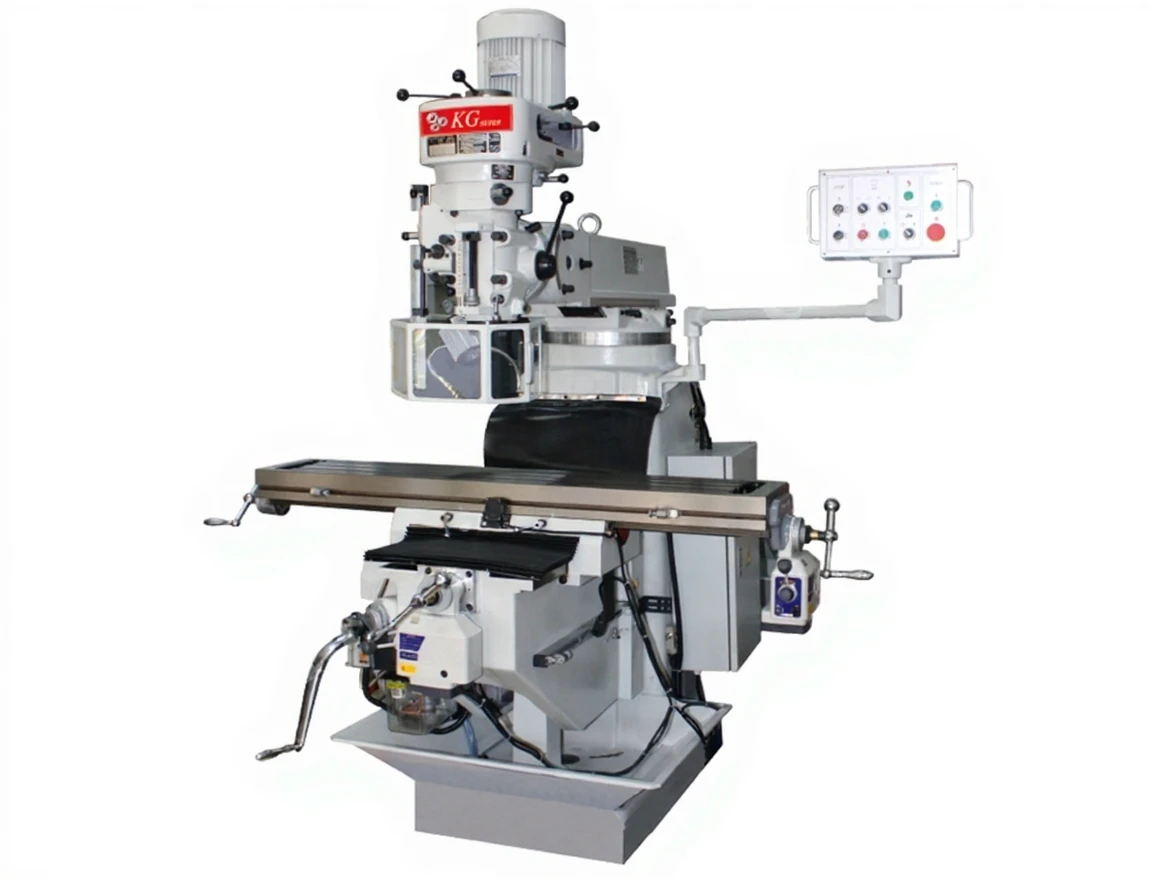

Kg Super M 250D
254×1270 mm Table Range Mold Maker Milling Machine
Kg Super M 250D Technical Specifications
|
TABLE DIMENSIONS |
254 x 1270 mm |
|
T CHANNEL |
3 x 16 mm |
|
X-Y-Z AXIS MOVEMENTS |
870 x 400 x 400 mm |
|
SPINDLE CONE |
ISO 40 |
|
QUILL DIAMETER |
100 mm |
|
QUILL MOVEMENT |
127 mm |
|
SPINDLE RPM |
80 – 5440 rpm |
|
MOTOR POWER |
3.75 KW / 3 HP |
|
WEIGHT |
1300 kg |
Kg Super M 250D General Features
-
X – Y Axes ALIGN AL-500 feed motors
-
Z Axis automatic motor up and down
-
Hardened table
-
Turcide – B Coated X – Y slides
-
Easy to Use Control Panel
Kg Super M 250D Standard Accessories
-
23 piece collet set
-
58 piece clamping set
-
Vice
