254×1270 mm Moulder Milling Machine

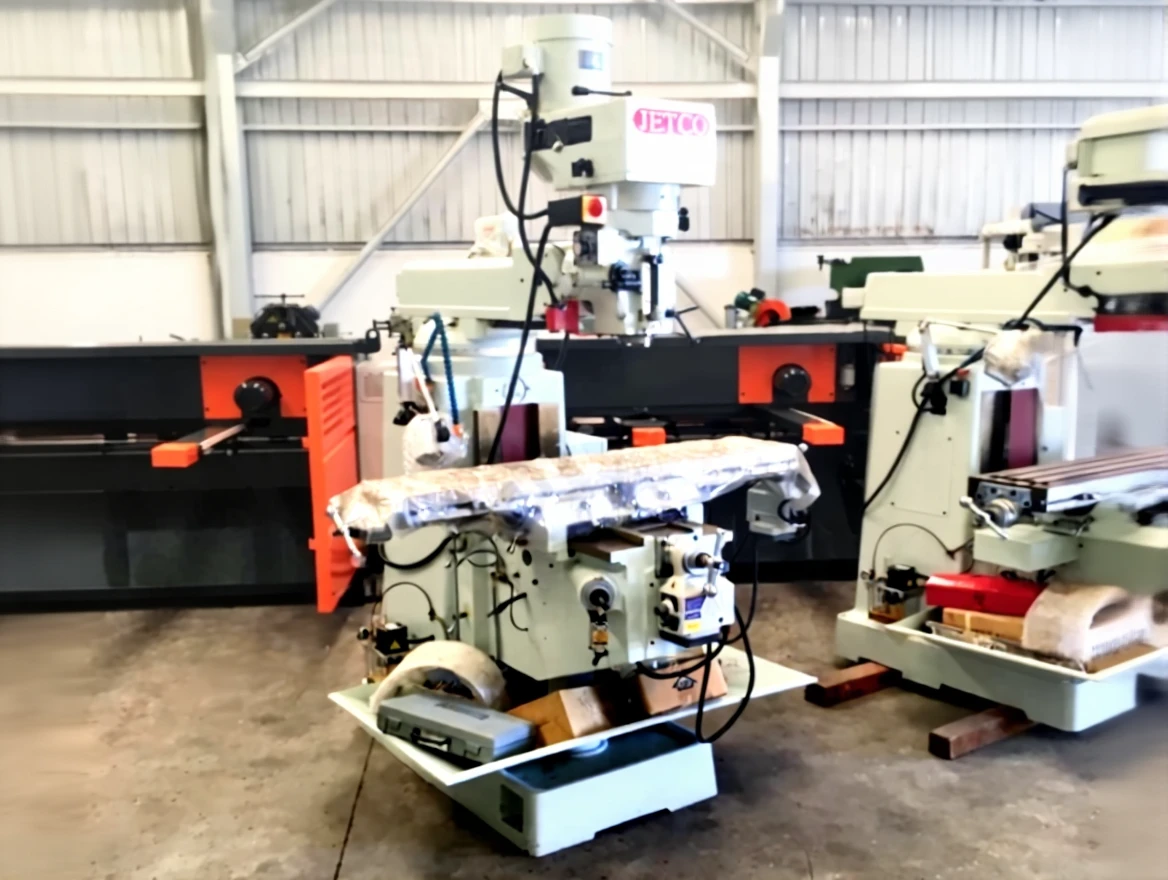

JETCO JBE 4A MOULDER MILLING MACHINE

Jetco Jbe 4A Moulder Milling Capacity:

The X-axis is motorized, Table size 254×1270 mm, The movements of the table in X & Y & Z axes are 825 & 400 & 406 mm, T-slot dimensions are 16 x 3 x 63 mm, The spindle diameter is 105 mm. It is of Taiwanese origin.

Jetco Jbe 4A Moulder Milling Accessories:

X & Y Axis Motorized, X-axis dovetail slide system, Time-controlled automatic lubrication, Halogen work lamp & Spindle guard & cooling system, Pulling spindle & Tool box, Z-axis rapid motor, Y & Z axis box slide system, Y & Z axis box slide system, Y & Z axis slide protective bellows, Chip tray, Vise, Clamping set, Collet Set

Technical specifications   Unit JBE-4A

Table size mm          mm      254 x 1270

T. slot mm    mm      16 x 3 x 63

Table X-axis movement    mm      825 (manual: 914)

Table Y-axis movement    mm      400

Table Z-axis movement    mm      406

Head up/down movement          mm      610

Spindle pin movement               mm      127

Spindle diameter         mm      105

Motor HP         5

Spindle taper                       ISO40

Speed change                  20-speed

Spindle speed       revolutions/minute  68-6524

Head rotation angle                  Right/Left 90° – Front/Back 45°

Net weight       kg          1350
