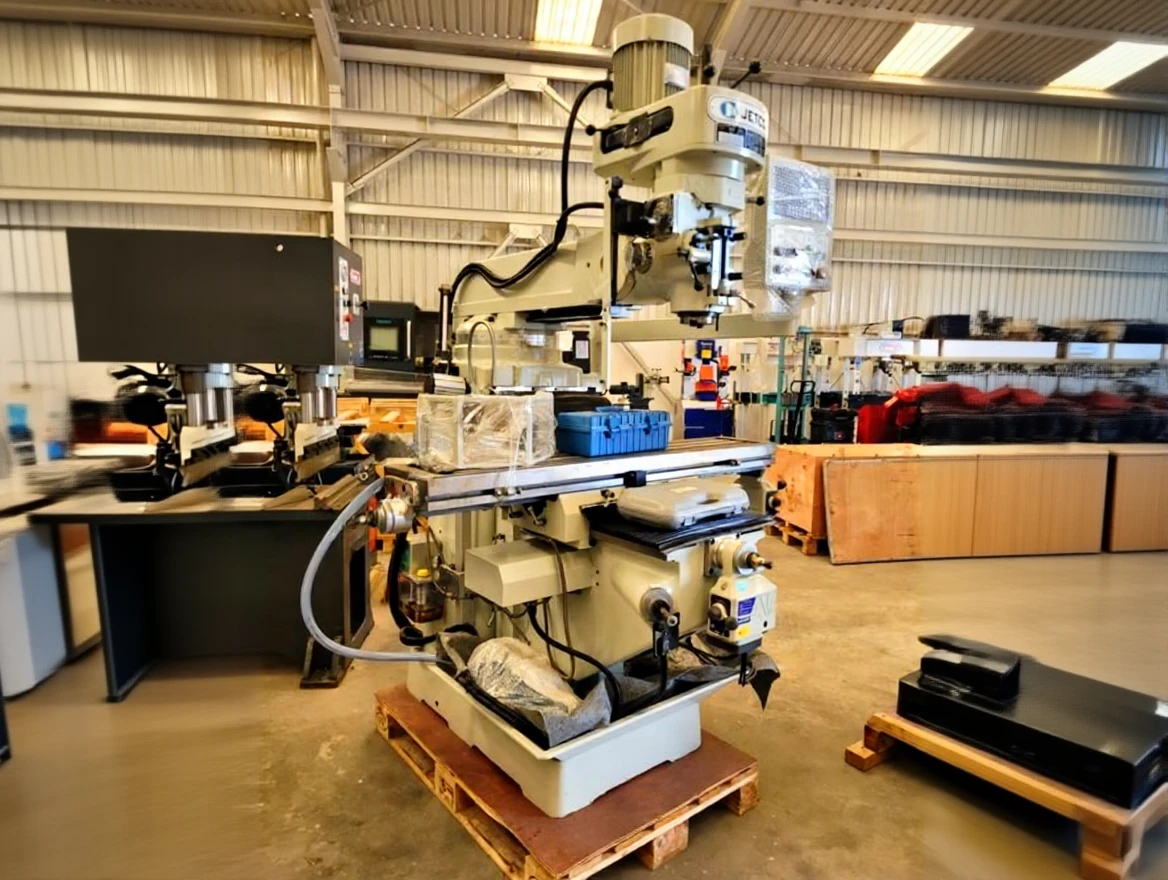

254×1370 mm Mold Maker Milling Machine
| Brand | Jetco |
|---|---|
| Model Type |
JTM-4A |
JETCO JTM-4A Mold Maker Milling Capacity
X & Y Axis Electric Motor, Table size 254×1370 mm, The movements of the table in X & Y & Z axes are 920 & 410 & 400 mm. It is of Chinese origin.
JETCO JTM-4A Mold Maker Milling Accessories
JETCO JTM-4A Mold Maker Milling Technical Specifications
Table dimensions mm 254 x 1370
T channel dimensions 3×16
x axis movement mm 920
y axis movement mm 410
z axis movement mm 400
neck movement mm 470
Distance between spindle tip and table mm 0-400
Spindle taper NT40
Quill movement mm 127
Spindle speed rpm 65-4500
automatic quill movement [ PHONE HIDDEN ]
Spindle motor power hp 5
Head rotation angle degree 90
Dimensions mm 1650x1550x2235
Weight mm 1420
