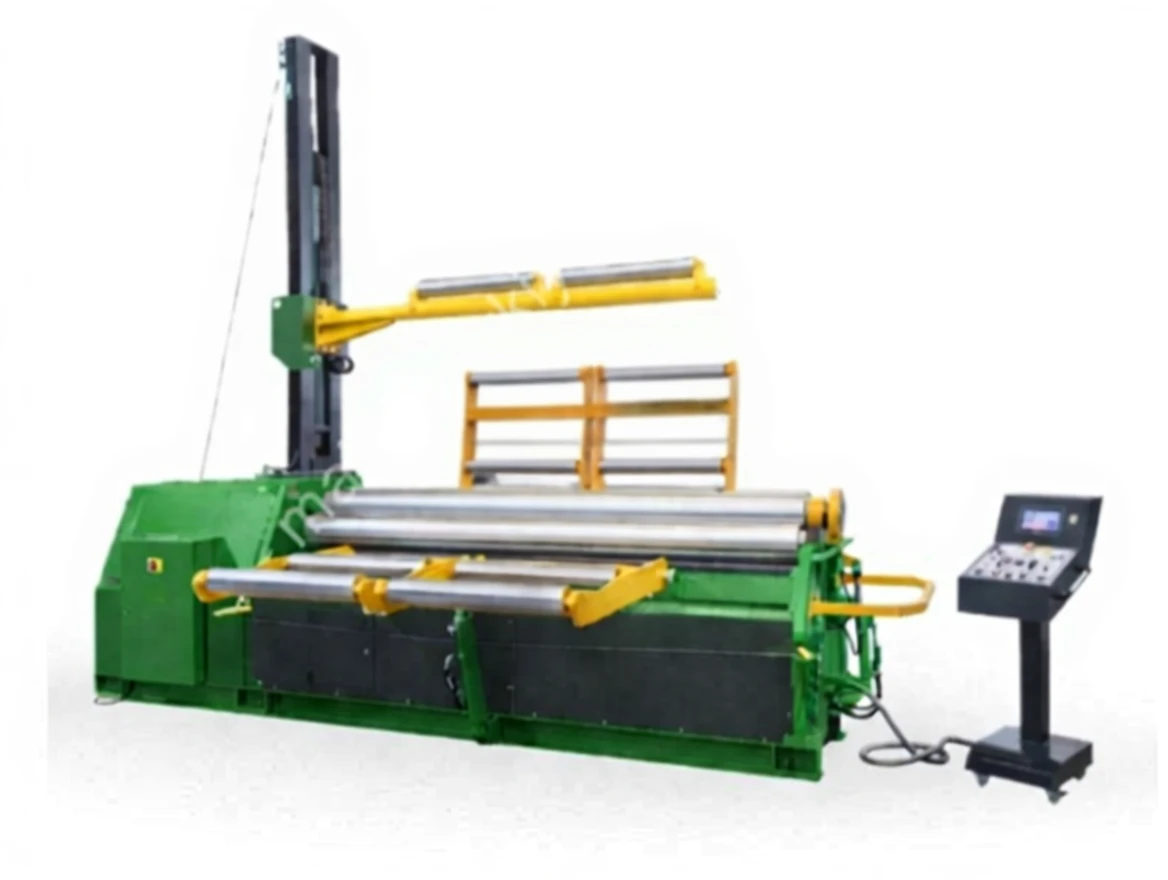

2550X10mm – 4 Bulk Hydraulic Cylinder Bending Machine

SHSB 4R 2550 × 250 Hydraulic 4 Cylinder Machine (OEM)

⚙️ Standard Equipment

• Suitable for bending light and medium sheet metal, aluminum, and stainless materials

• Suitable for bending round and various diameter materials

• Bottom and side rollers are hydraulic and have direct linear motion

• Protected against overload

• Top roller is driven by an electric motor and planetary gearbox

• Bottom roller is driven by a cardan drive system

• 2 roller rotational drive

• Position of the rollers is easily readable with three digital indicators

• Bent part is easily removed thanks to hydraulic opening head

• Easy operation with movable control panel

• Welded steel construction body

• SAE 1050 (CK45) induction hardened forged or rolled steel spindles

• Taper bending system

• Hydraulic balancing system for parallel movement of the spindles

• Complies with EU safety standards, has CE marking

• User manual

🔩 Optional Equipment

• Remote assistance with NC control

• Top crane (elevator) for support in bending large diameters

• Hydraulic side supports for support in bending large diameters

• Ground and polished rollers

• Two-speed adjustment system

• Stepless speed adjustment

• Hydraulic motor driven rotating

• Removal system

📊 Technical Specifications

• Bending Length: 2550 mm

• Pre-Bending: 6 / 8 mm

• Bending: 8 / 10 mm

• Top & Bottom Roller Diameter: Ø250 mm

• Side Roller Diameter: Ø200 mm

• Minimum Bending Radius: [ PHONE HIDDEN ] mm

• Motor Power: 7.5 + 1.5 kW

• Bending Speed: 5 m/min

• Tank Capacity: 40 L

• Machine Length: 4500 mm

• Machine Width: 1200 mm

• Machine Height: 1370 mm

• Machine Weight: 6100 kg

🏭 OEM Production Note

This machine is manufactured under OEM production in Turkey.
Procurement, configuration, and commercial management are carried out by CRONOSSTECH.
