2550X25mm – 4 Bulk Hydraulic Cylinder Bending Machine

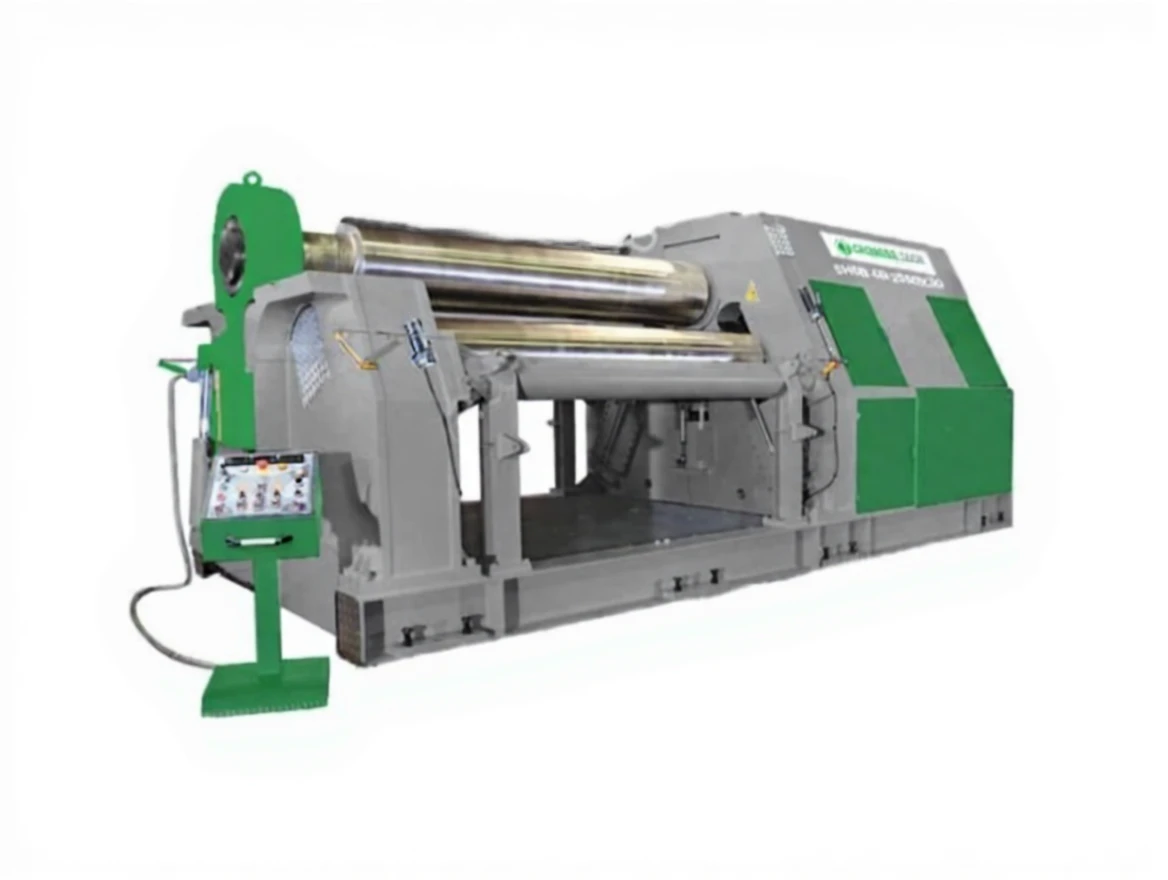

SHSB 4R 2550 × 350 Hydraulic 4-Roll Plate Bending Machine

⚙️ Standard Equipment

• Bottom and side rolls are hydraulically up and down linear movable with body attached pistons

• Protected against overload

• Top and side rolls are driven by hydromotor and planetary gearbox
  (3 top motors are drive)

• Position of the rolls is easily readable with three digital displays

• Bent part can be easily removed thanks to hydraulic opening head and automatic top lift shaft

• Easy operation with movable control panel

• Welded steel construction body

• SAE 1050 (CK50) induction hardened, forged or rolled steel shafts

• Conical bending system

• Central lubrication system

• Hydraulic balancing system for parallel motion of the shafts
  (Ø280 – 320 – 350 – 380 – 400 – 460)

• Electronic balancing system for parallel motion of the shafts
  (Ø500 – 550 – 580 – 620 – 680)

• Dual speed operating system

🔩 Optional Equipment

• Automation with NC and CNC controls

• Upper crane (elevator) for support in large diameter bending

• Hydraulic side supports for support in large diameter bending

• Hydraulic sheet removal system

• Ground and polished rolls for special jobs

• Stepless speed control system

• Electronic balancing system for parallel motion of the shafts
  (Ø280 – 320 – 350 – 380 – 400 – 460)

📊 Technical Specifications

• Bending Length: 2550 mm

• Pre-Bending: 16 / 20 mm

• Bending: 20 / 25 mm

• Top & Bottom Roll Diameter: Ø350 mm

• Side Roll Diameter: Ø260 mm

• Motor Power: 23.5 kW

• Bending Speed: 1.5 – 5 m/min

• Machine Length: 4850 mm

• Machine Width: 1900 mm

• Machine Height: 1950 mm

• Machine Weight: 12,800 kg

🏭 OEM Production Note

This machine is manufactured in Turkey under OEM production.
Supply, configuration, and commercial management are handled by CRONOSSTECH.
