26.00 M (200 Kg) Spider Articulated Platform

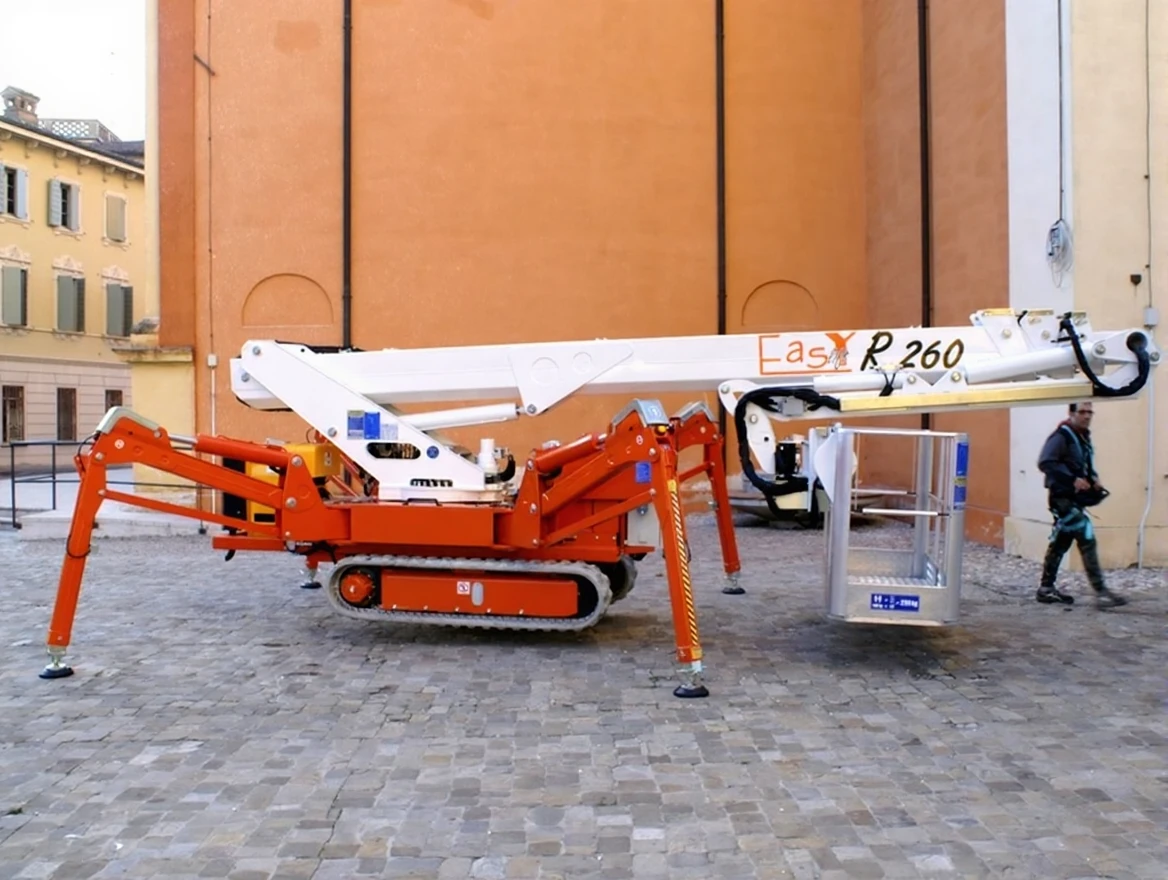

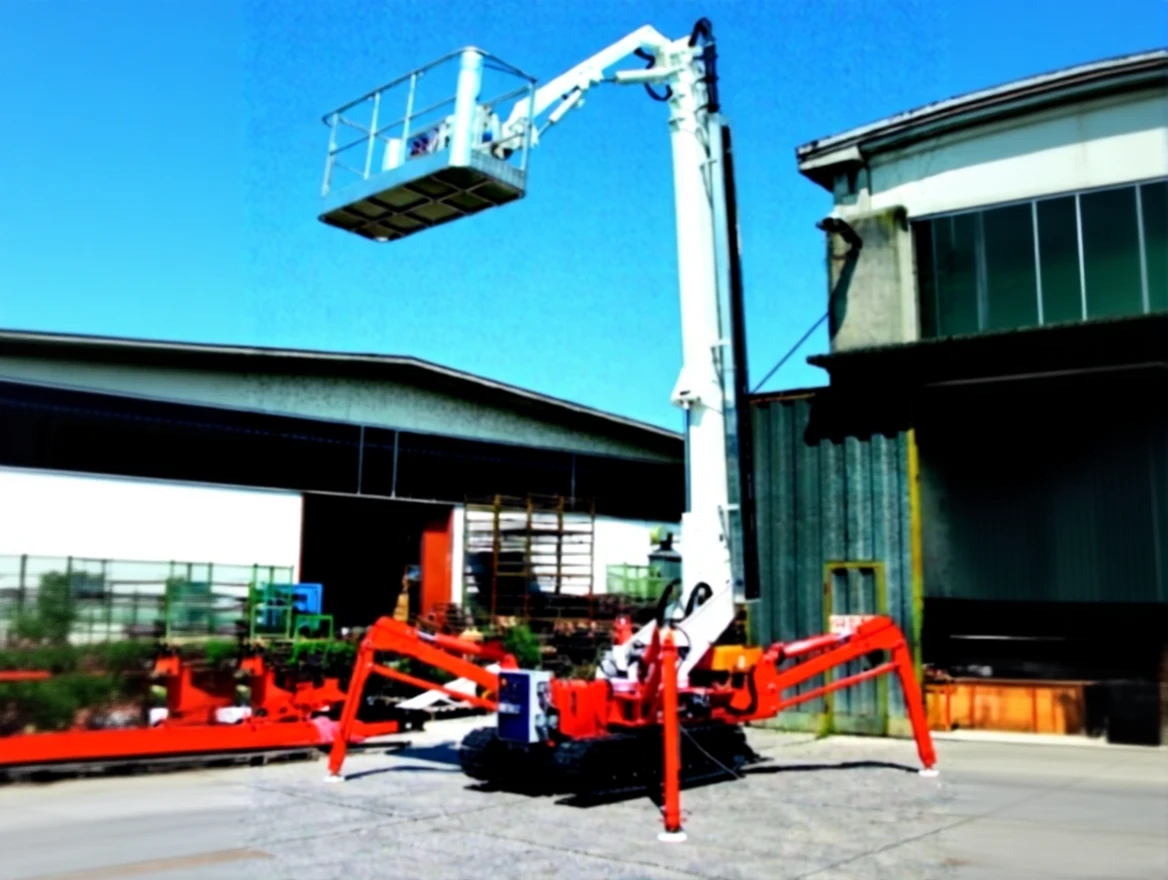

Easy Lift R260 is a spider articulated platform that can reach heights of up to 26 meters. This platform offers a wide working area with a horizontal reach of 13.50 meters and a 360° turning angle.

With a maximum lifting capacity of 200 kg, the Ertek Easy Lift R260 can safely carry various equipment.

Since the basket dimensions of the platform are 2.0 x 0.8 meters, users can have a large working area and easily place the necessary equipment.

Additionally, the weight of the platform is 5400 kg, which provides stability and safety.

Easy Lift R260 is equipped with a powerful Hatz diesel engine and a high-capacity lithium battery. There is also an electric motor option for environmentally friendly operation.

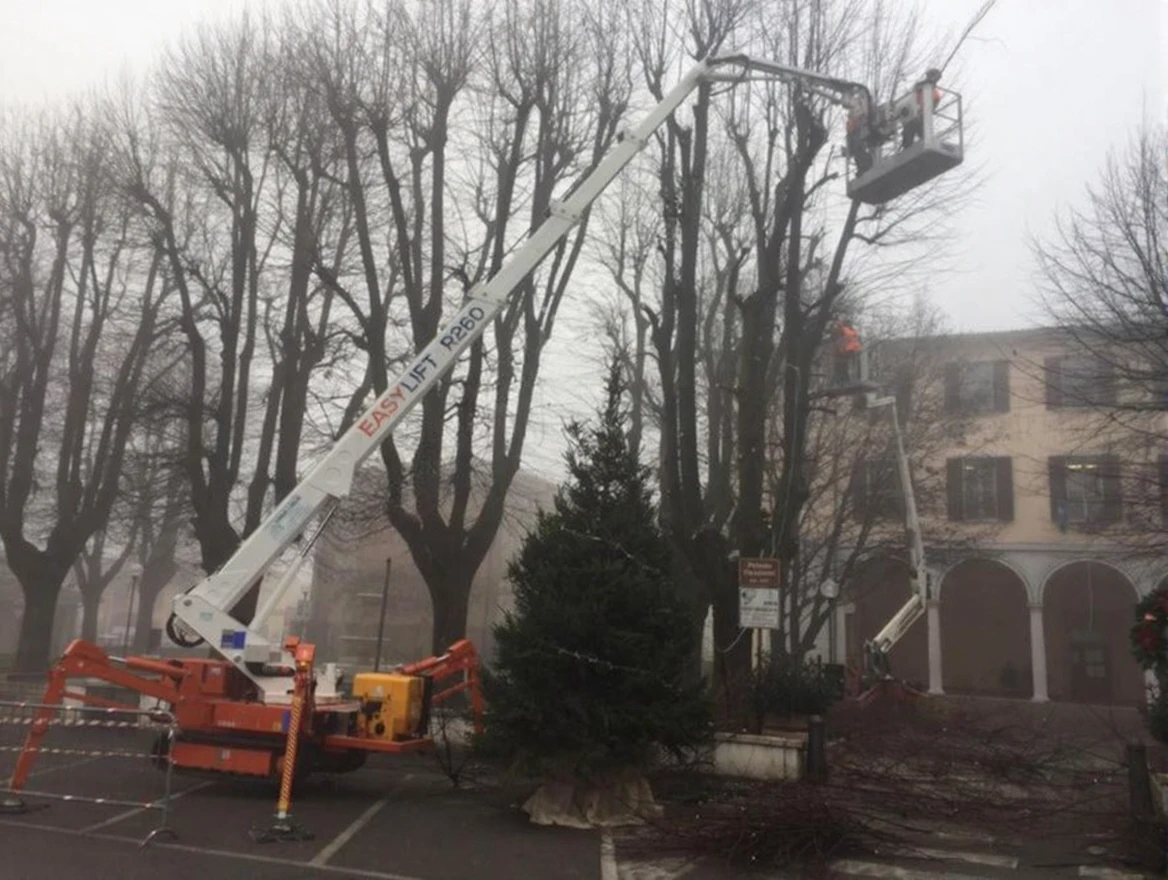

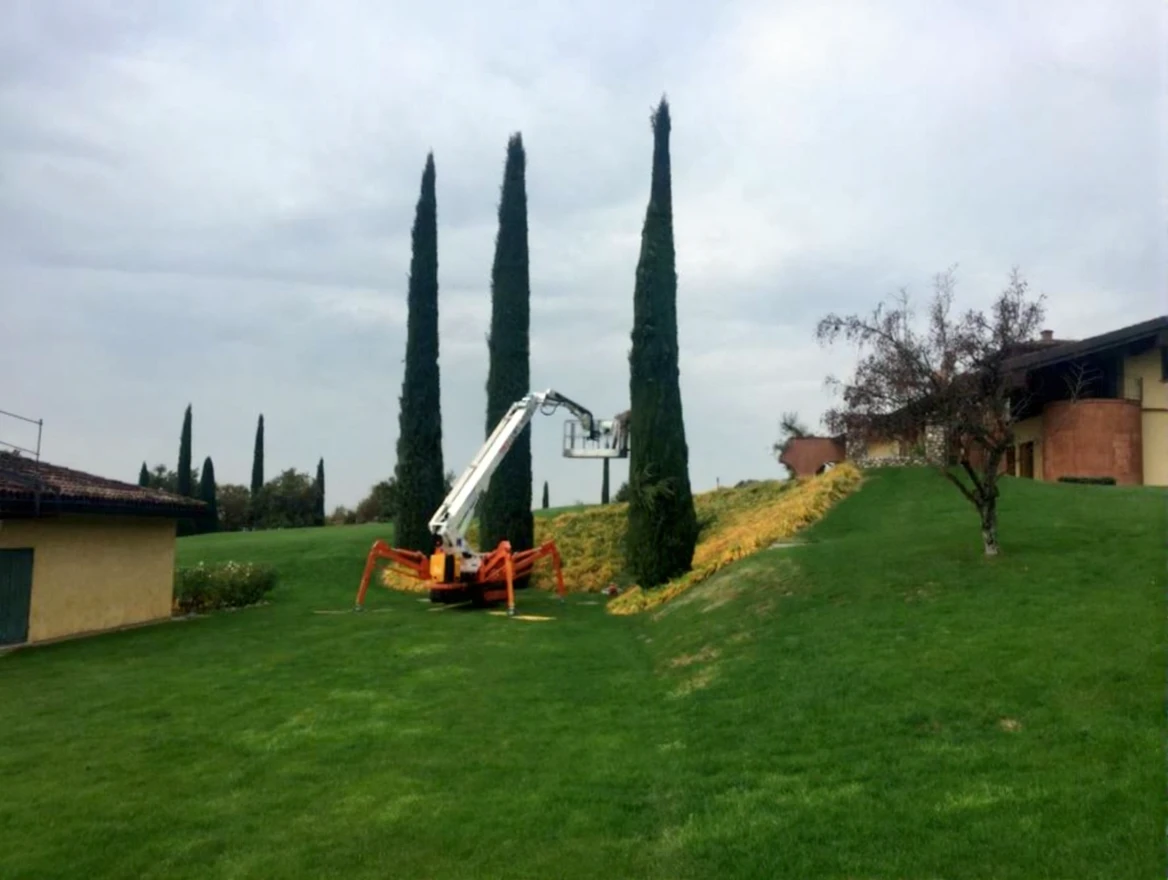

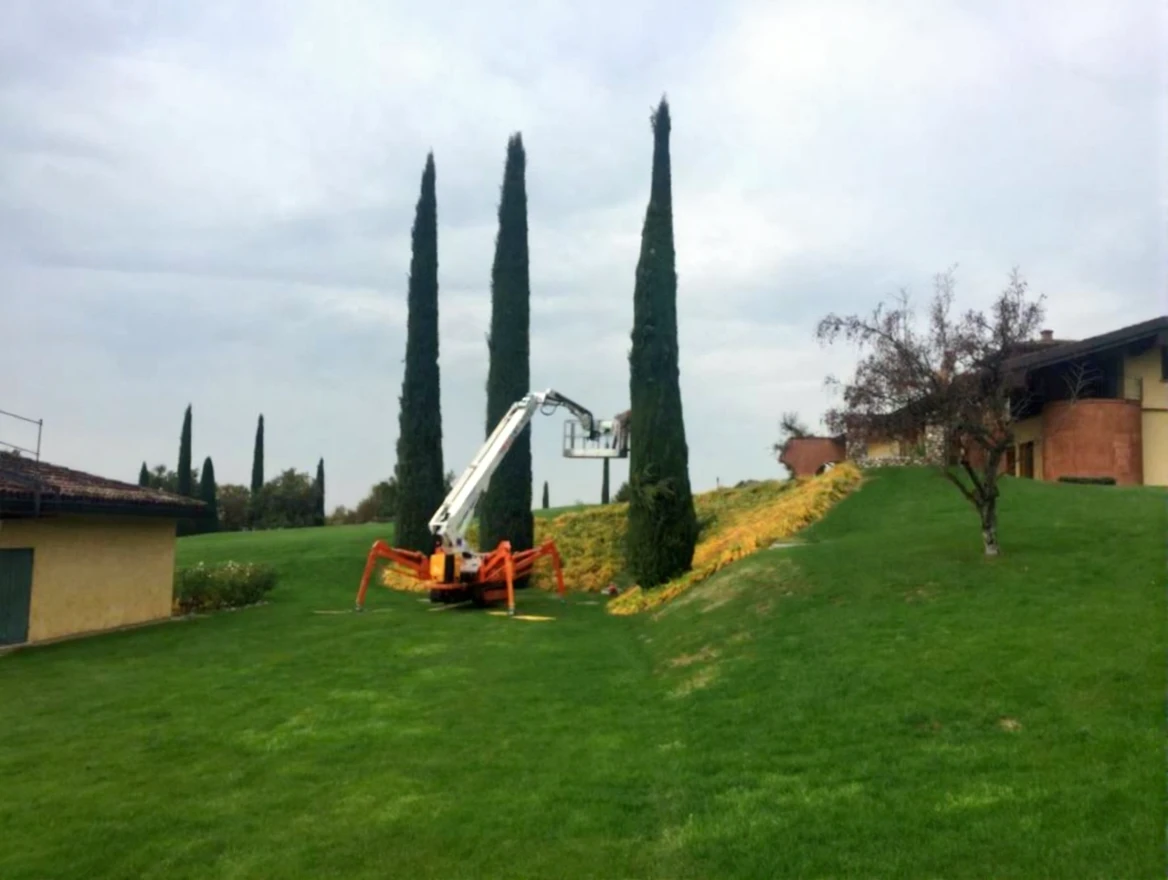

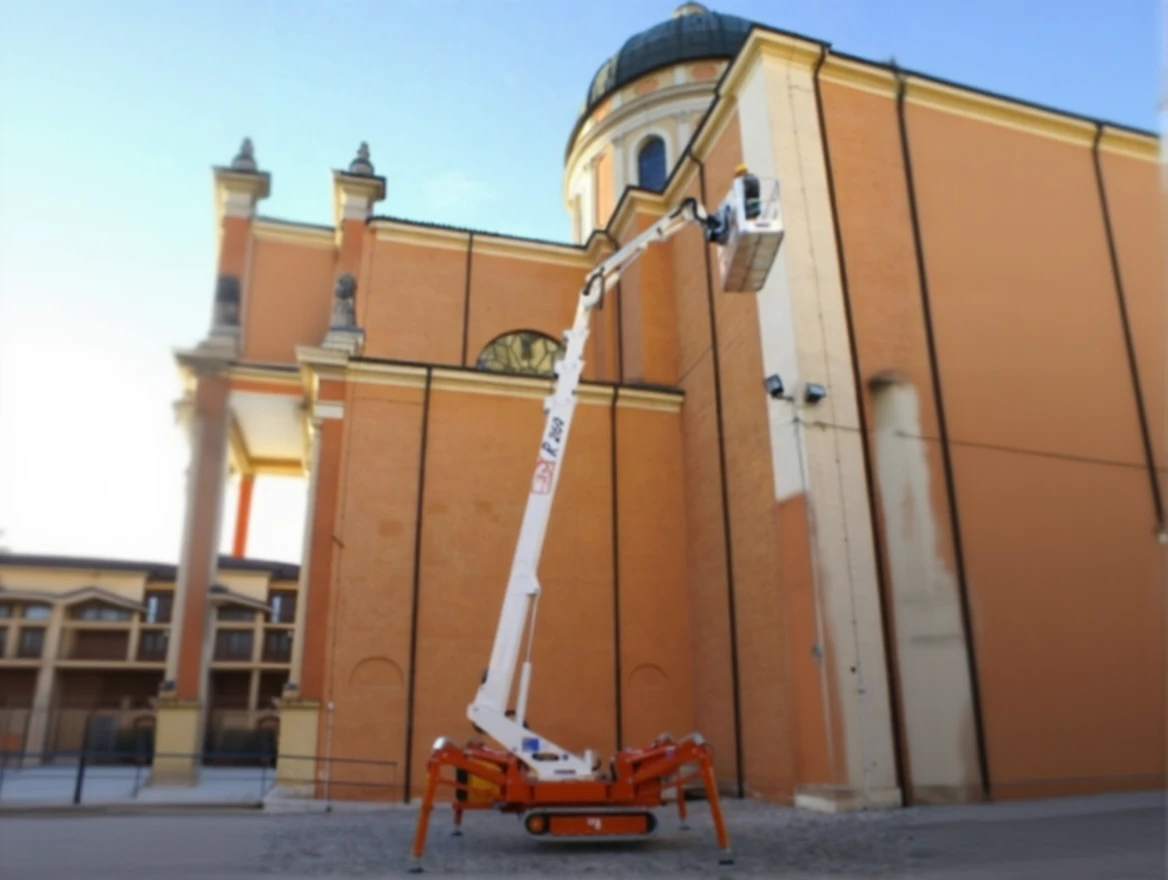

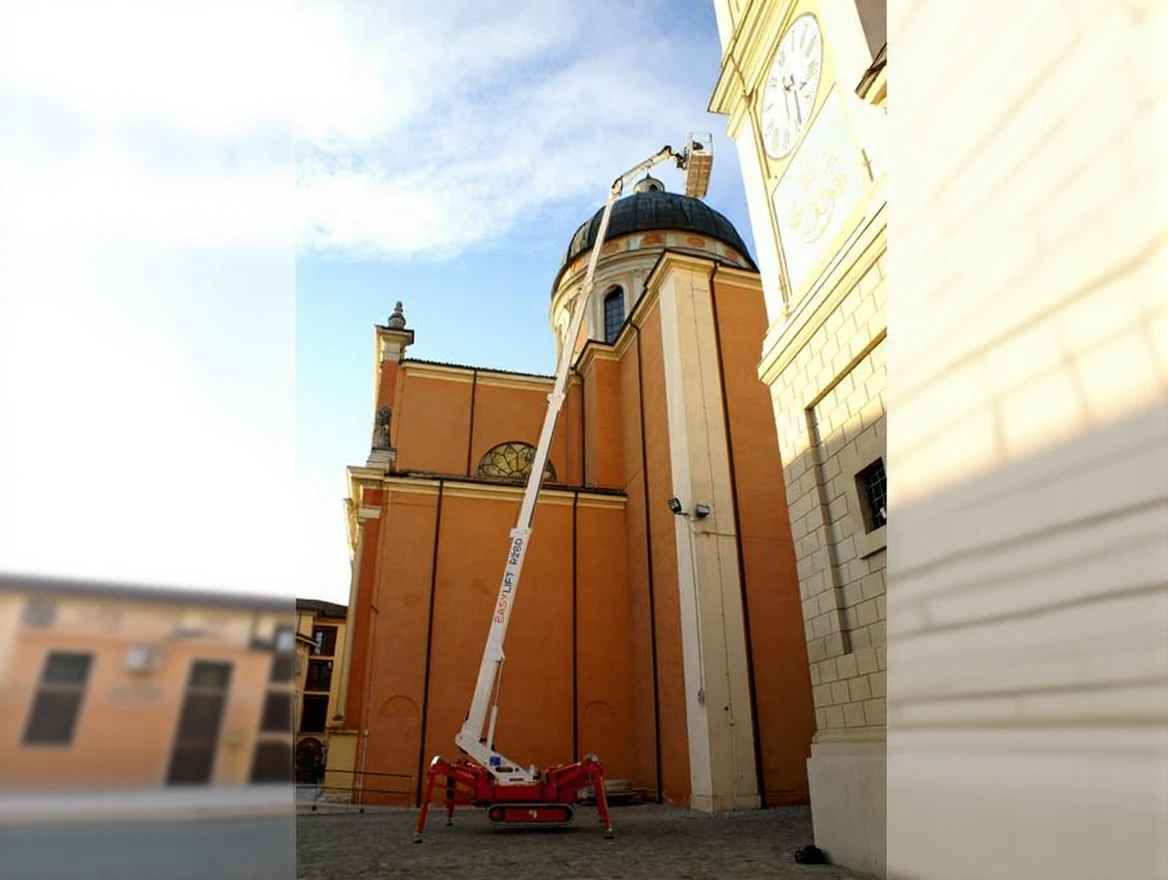

With these features, the Ertek Easy Lift R260 offers a reliable and efficient solution for construction, maintenance, cleaning, and similar industrial applications.

It facilitates users’ access to high places while also enhancing safety and work efficiency.

Easy Lift R260 Technical Specifications

Horizontal Reach Distance: 13.50 m

Turning Angle: 360°

Max Lifting Capacity: 200 kg

Weight: 5400 Kg

Basket Size: 2.0 x 0.8 m

Diesel Engine: Hatz 25.7 kW

Battery: Lithium 200Ah/h

Electric Motor: 3.0 kw-230V-50Hz
