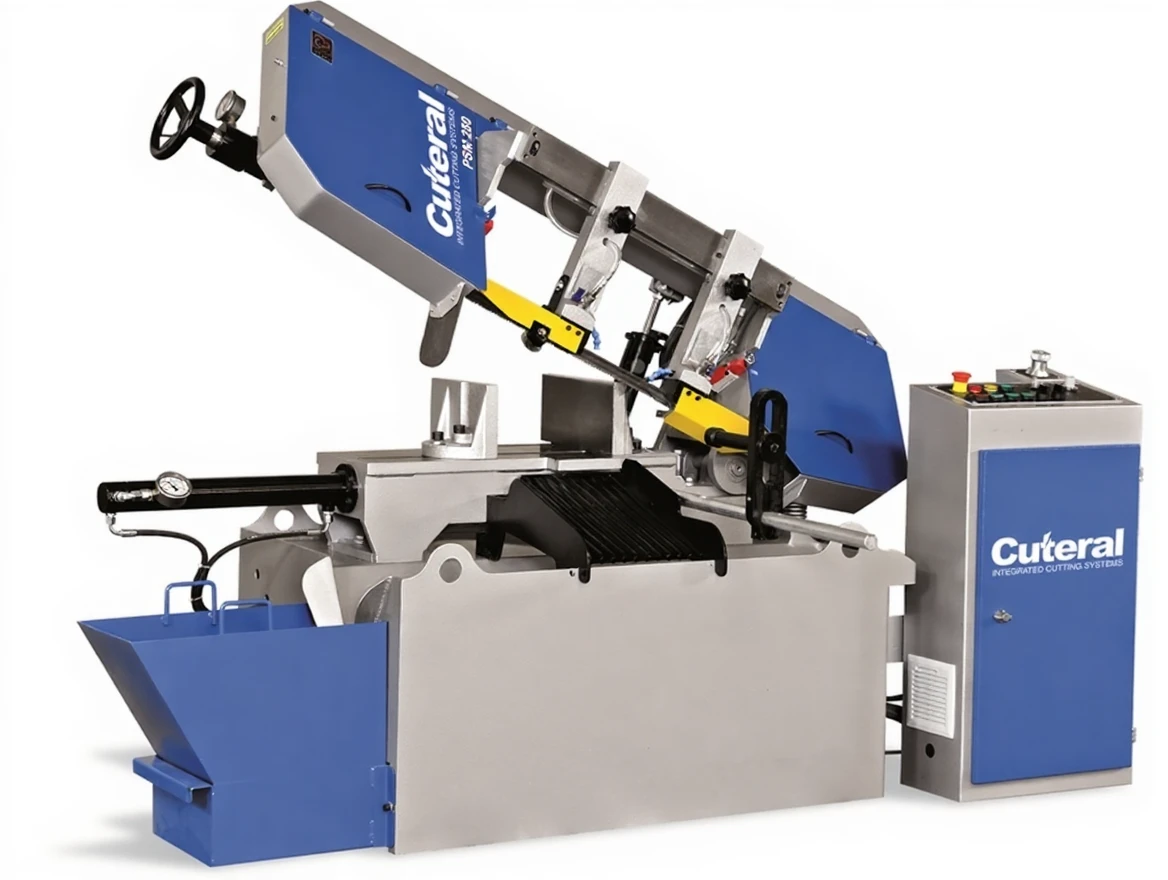

280 mm Angled Semi-Automatic Band Saw Machine
| Brand | Cuteral |
|---|---|
| Model Type |
PSM 280 |
Description
Cuteral PSM 280
280 mm Angled Semi-Automatic Band Saw Machine
Cuteral PSM 280 Technical Specifications
| A | 1235 mm | |||
| B | 2200 mm | |||
| C | 1065 mm | |||
| D | 1065 mm | |||
| E | 725 mm | |||
| F | 1375 mm | |||
| hmax | 1800 mm | |||
| Semi-Automatic | ||||
| Blade Size | 27 x 0.9 x 3670 mm | |||
| Blade Motor | 1.5 kW – 1500 rpm | |||
| Drive Motor | Manual | |||
| Hydraulic Motor | 0.75 kW – 1400 rpm | |||
| Coolant Motor | 0.12 kW – 3000 rpm | |||
| Voltage | 400 V | |||
| Maximum Power | 2.37 kW | |||
| Cutting Speed | 15 m/min – 100 m/min | |||
| Weight | 600 kg | |||
| Material Clamping System | Hydraulic | |||
| Blade Tensioning System | Hydromechanical | |||
| Cutting Capacity 90° Length | 280 mm | |||
| Cutting Capacity 90° Width | 300 mm | |||
| Angle of Cut Material | -45° | 250 mm | 210 x 210 mm | 200 x 200 mm |
| -30° | 280 mm | 280 x 280 mm | 280 x 280 mm | |
| 0° | 280 mm | 250 x 250 mm | 140 x 300 mm | |
