280 mm Desktop Lathe
| Brand | Ozco |
|---|---|
| Model Type |
CR2870V |

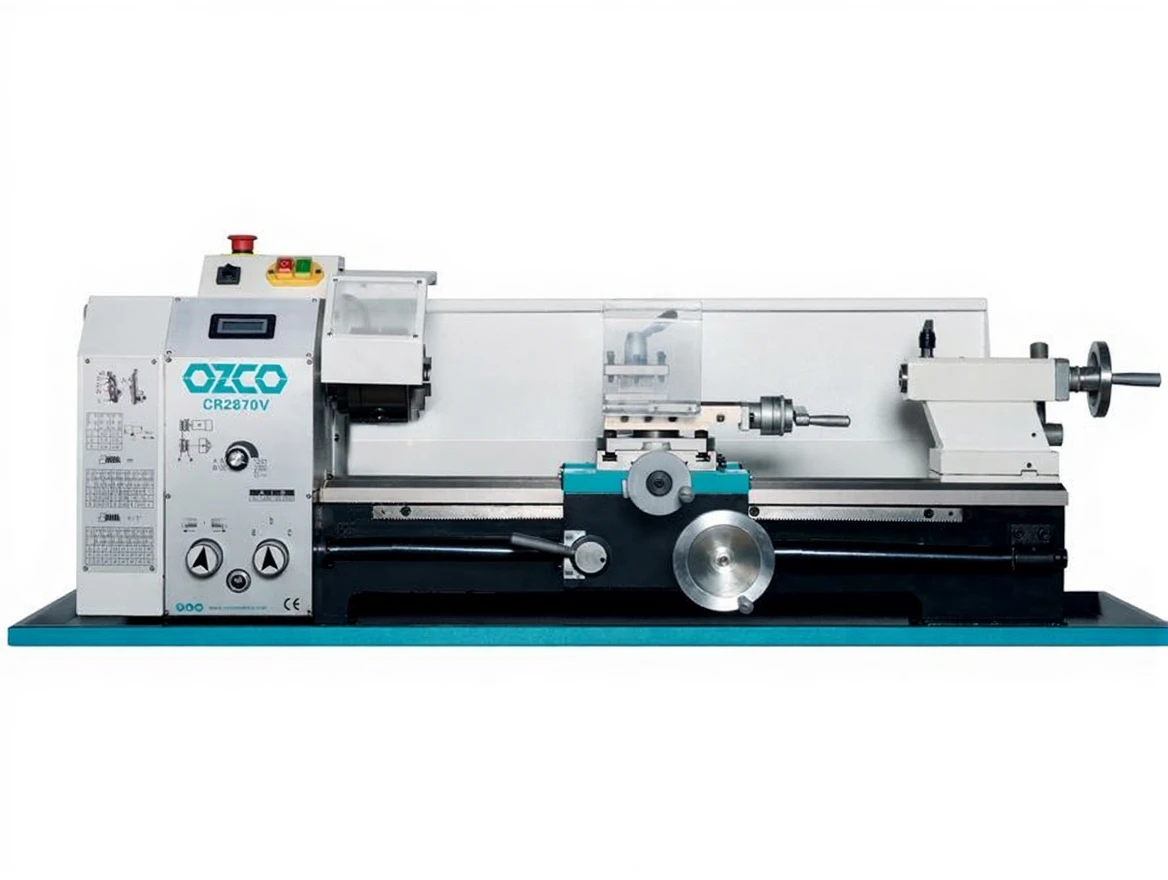

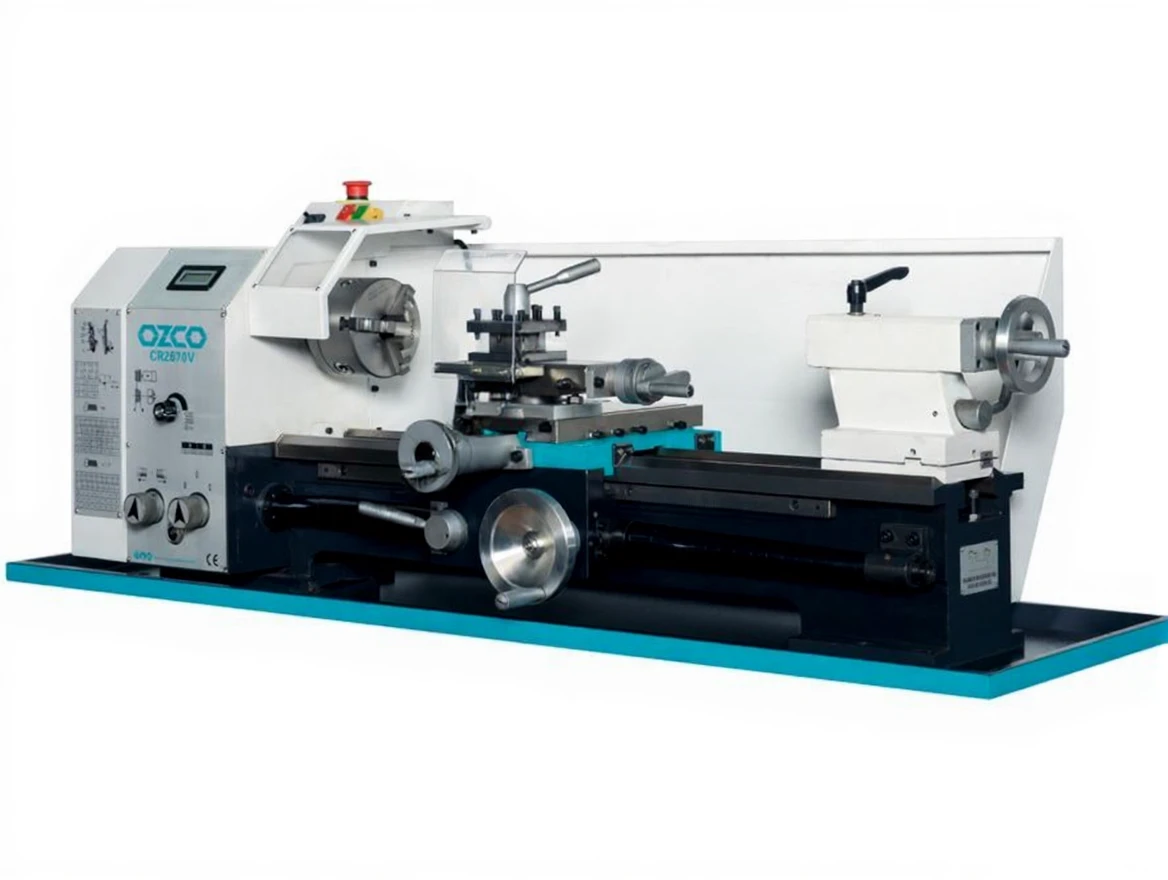

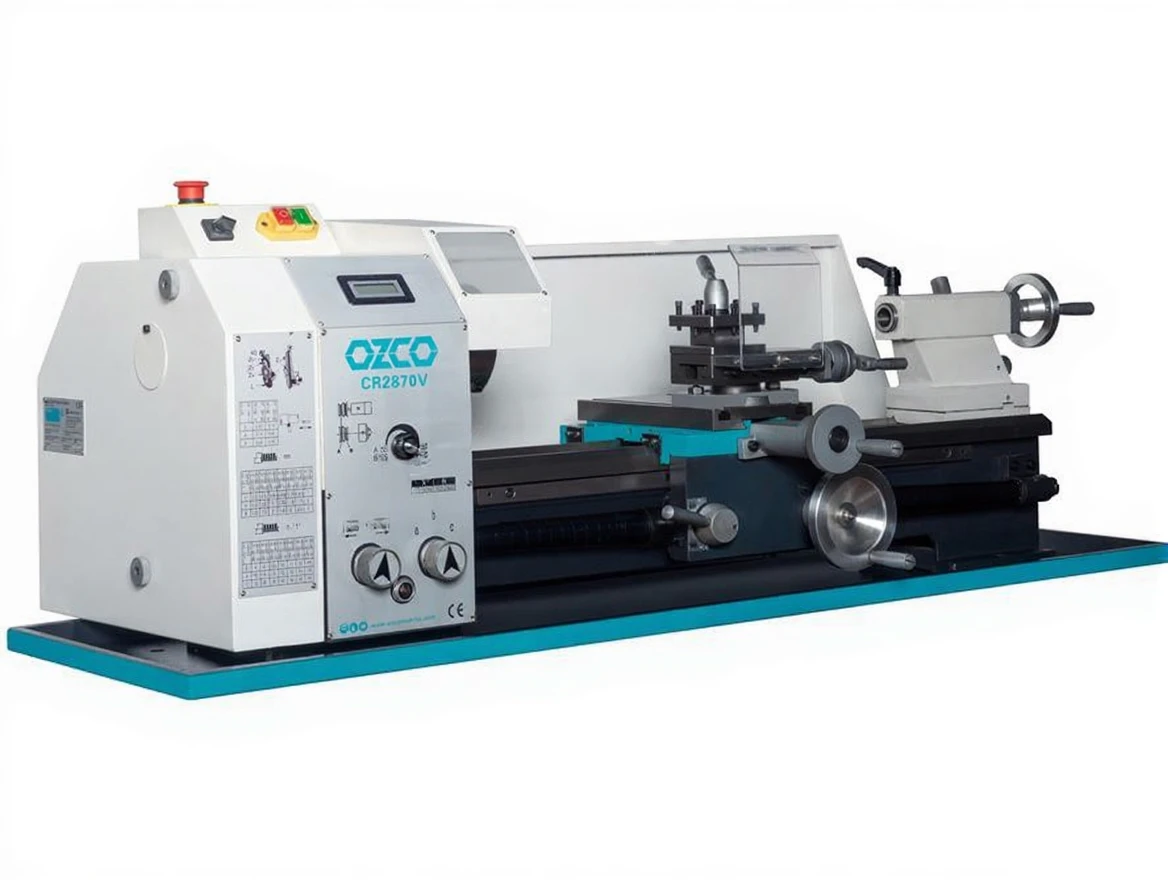

OZCO CR2870V Desktop Lathe
OZCO CR2870V Desktop Lathe Description;
Hardened and ground slides
Powerful and precise spindle
Right / Left rotation movement
Automatic feed carriage
Guide pull
Emergency stop button
Rear protection plate
Chip tray
Compliant with CE standards
OZCO CR2870V Desktop Lathe Shipment Scope;
3-jaw chuck Ø125 mm
Fixed center
Live center

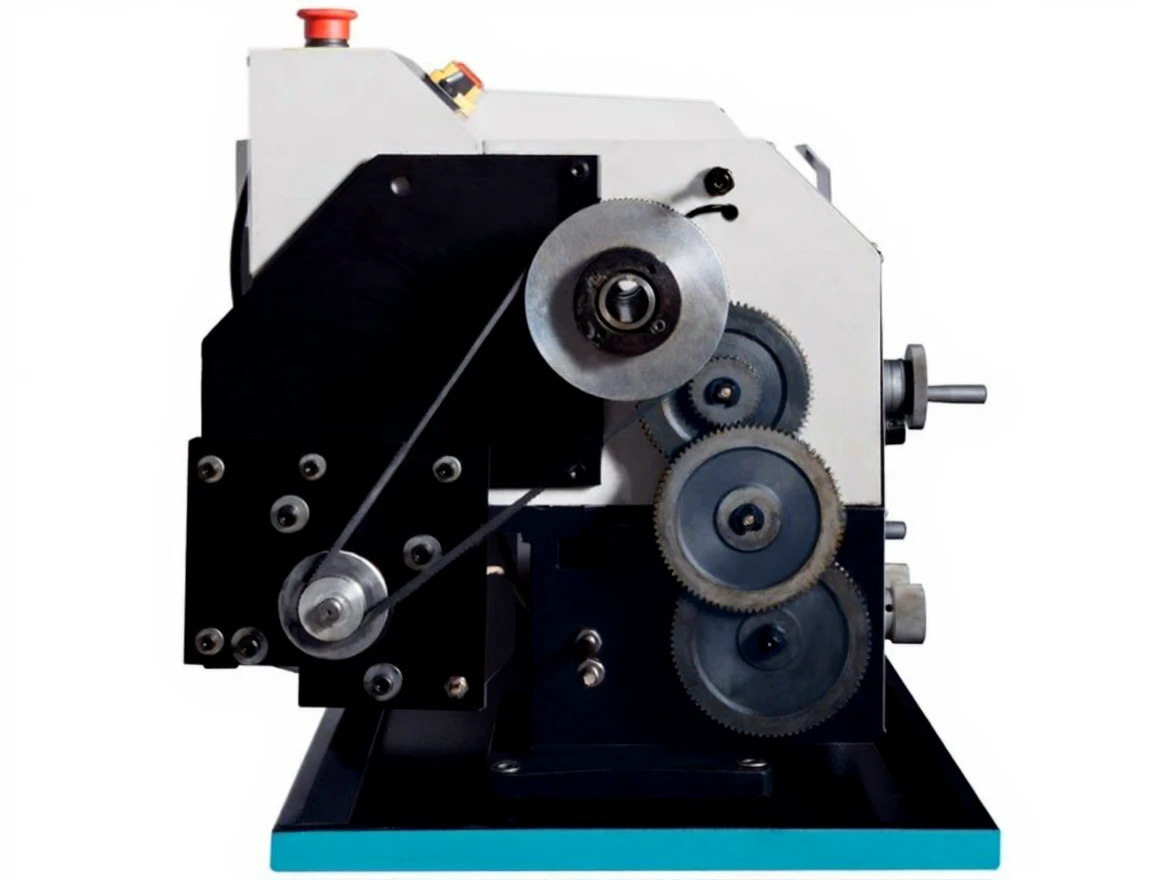

Gear pulling gears
Rear protection plate
Chip tray
Tooling
Technical Specifications CRAFT CR2870V Lathe
|
Motor Power |
1.5 kW, 230 V W |
|
Bench Top Diameter |
280 mm |
|
Bench Width |
180 mm |
|
Distance Between Centers |
700 mm |
|
Speed |
50-2500 rpm |
|
Gear |
Variable |
|
Spindle Diameter |
MK4 mm |
|
Tailstock Diameter |
26 mm |
|
Cross Support Movement |
60 mm |
|
Longitudinal Support Movement |
160 mm |
|
Tool Holder Movement |
MK2 |
|
Tool Holder Movement |
85 mm |
|
Linear Feed |
0.07-0.4 mm/rev |
|
Metric Thread and Ratio |
0.2-3.5 mm |
|
Inch Thread and Ratio |
8-56 |
|
Collet Size |
16 mm |
|
Machine Dimensions (LxWxH) |
1370x640x535 mm |
|
Weight |
200 Kg |
